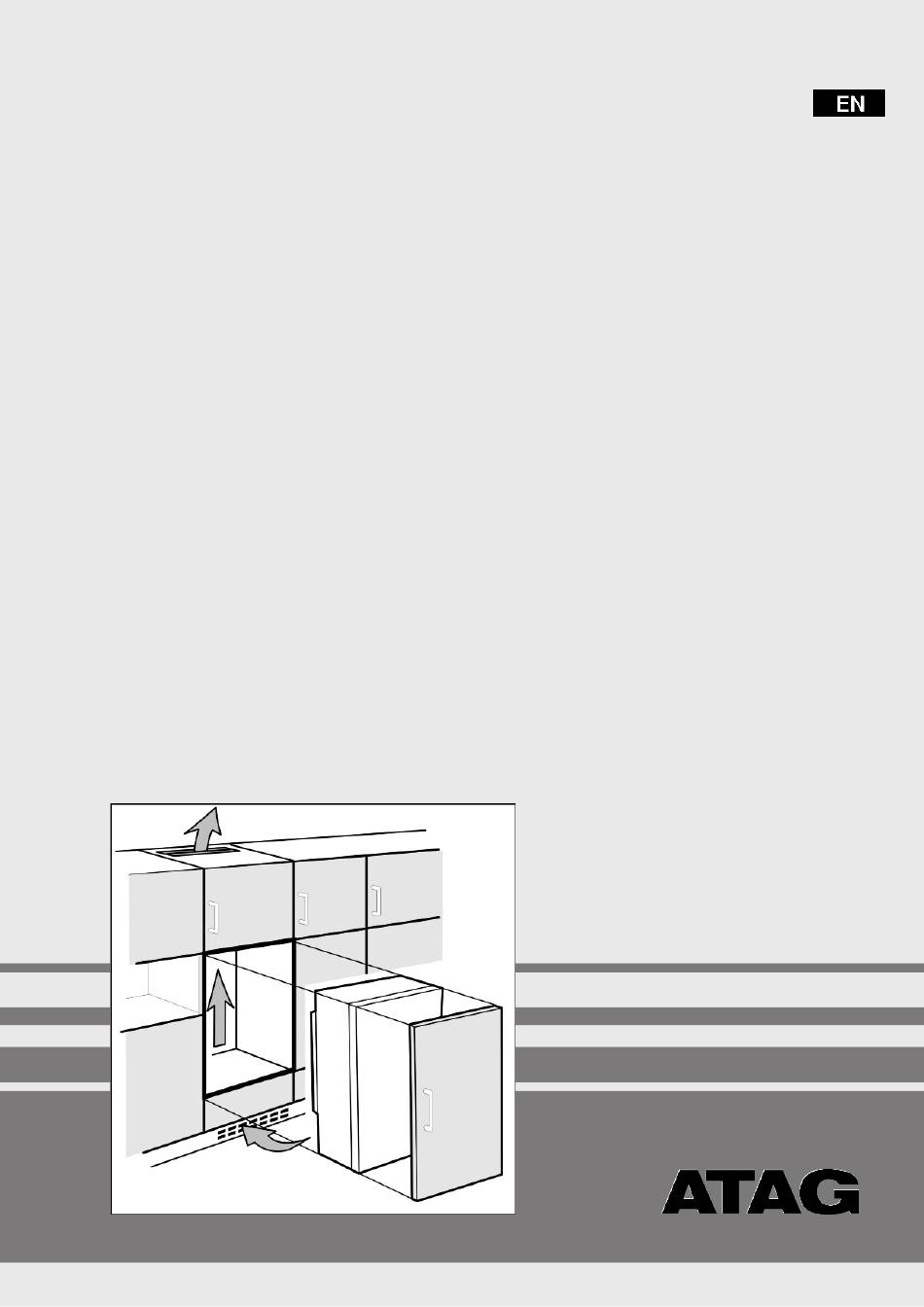

- Page 1 Installation instructions Refrigerators and freezers for integrated use, door-on-door KD80122AF KD80140AF KD80140BF KD80178AF KD80140CD KD80178CD KD80102AD KD80140AD 700005496000...
-
Page 2: Table Of Contents
General safety information Contents 2 Transporting the appliance General safety information........Transporting the appliance........CAUTION Risk of injury and danger of damage as a result of incorrect Installing the appliance......... transport! Appliance dimensions........... u Transport the appliance in a packed condition. u Transport the appliance upright. -
Page 3: Appliance Dimensions
Note u Clean appliance (see Operating Instructions, Chapter "Cleaning the appliance"). 4 Appliance dimensions Fig. 2 F (mm) KD80102AD 1024 — 1040 KD80122AF 1220 — 1236 min. 550, 560 min. min. max. KD80140AF, 1397 — recom- KD80140BF, —... -
Page 4: Unit Door
Appliance model Maximum cabinet door weight (kg) KD80102AD Fig. 3 KD80122AF There must be an effective ventilation shaft of at least KD80140AD, KD80140AF, Fig. 3 (A) and outlet 200 cm per appliance at the air inlet KD80140BF, KD80140CD Fig. -
Page 5: Changing Over Door Hinges
Changing over door hinges 8 Changing over door hinges 9 Installing the appliance in the recess CAUTION Risk of injury if soft stop contracts! WARNING u Carefully remove the soft stop mechanism. Fire hazard from short-circuiting! u When pushing the appliance into the recess, take care not to crush, jam or damage the mains power cable. -
Page 6: Warning
Connecting the appliance The packaging is made of recyclable materials: corrugated board/cardboard expanded polystyrene parts polythene bags and sheets polypropylene straps nailed wooden frame with polyethylene panel* u Take the packaging material to an official collecting point. 11 Connecting the appliance NOTICE Failure to connect properly Damage to the electronics. - Page 8 * Depending on model and options...
- Page 10 * Depending on model and options...
- Page 12 * Depending on model and options...
- Page 14 * Depending on model and options...
