60in Fab Bagging Enhancement Kit
TimeCutter
Model No. 140-3508
Use of this product may cause exposure to chemicals known to the State of California
to cause cancer, birth defects, or other reproductive harm.
Determine the left and right sides of the machine from the normal operating position.
Preparing the Machine
1.
Park the machine on a level surface.
2.
Disengage the blade-control switch.
3.
Move the motion-control levers outward to the P
4.
Shut off the engine and remove the key.
5.
For easier access, raise the front of the machine and support it using jackstands rated for your machine.
WARNING
Mechanical or hydraulic jacks may fail to support the machine and cause serious injury.
Use jack stands when supporting the machine.
Installing the Kit

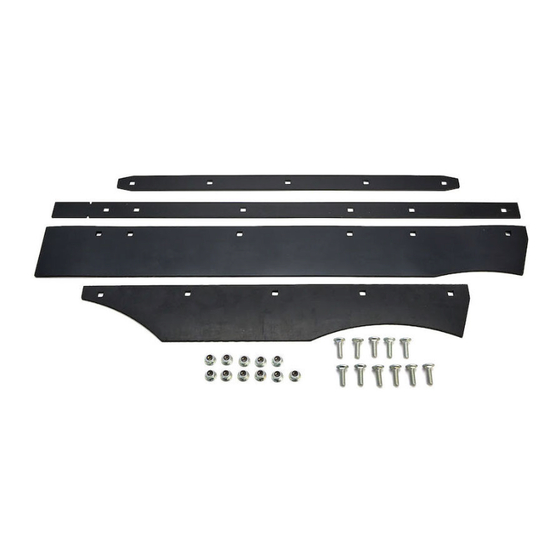

Install the left skirt, left plate, right skirt, and right plate to the mower deck using 11 bolts and 11 nuts.
1. Nut (11)
2. Right skirt
© 2019—The Toro® Company
8111 Lyndale Avenue South
Bloomington, MN 55420
®
Riding Mower
WARNING
CALIFORNIA
Proposition 65 Warning
ARK
3. Right plate
4. Left skirt
Register at www.Toro.com.
position.
5. Left plate
6. Bolt (11)
Original Instructions (EN)
All Rights Reserved *3436-514* A
Printed in the USA
Form No. 3436-514 Rev A
Installation Instructions
