Sealey LED360G.V5 Instructions

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to
instructions
1. SAFETY
Inspect the cable and connector for wear and damage to ensure items are safe before connecting to the power supply. If worn or
9
damaged DO NOT use.
Ensure the light is fully charged before initial use.
9
DO NOT charge in damp conditions.
8
DO NOT turn the light on when it is being charged.
8
DO NOT shine directly into your, another person's or an animal's eyes.
8
DO NOT allow children to use the light.
8
DO NOT handle or move the light whilst it is being charged.
8
DO NOT use the light if you suspect that the battery or the light casing is damaged.
8
DO NOT leave battery in a discharged state, recharge battery immediately. Before storage, fully recharge the battery, subsequently
8
recharge the battery at least once every six months of non-use.
DO NOT attempt to open, disassemble, modify or service the battery pack.
8
DO NOT crush, puncture, short external contacts or dispose of in fire or water.
8
DO NOT expose to temperatures above 60°C (140°).
8
Replace only with the battery pack designated for this product.
9
Recycle or dispose of used battery as stipulated by local regulation.
9
If the electrolyte in the cells gets on your skin, thoroughly wash with soap and water. If it gets in your eyes, rinse thoroughly with cool
9
water and seek immediate medical attention.
2. INTRODUCTION
Unique and innovative 360° swivel and tilt function enables the light source to be positioned in any direction. Exclusive patented design
owned and registered to Sealey. 8W SMD LED providing up to 600 lumens output with 120° spread of light, illuminating the whole work
area. Includes an additional high power 3W LED directional torch. Features two swivel hooks and three rubber covered magnets, two on
the rear and one on the end, which allow hands-free operation. High quality 2.6Ah lithium-ion battery for longer life, no memory effect and
a much slower discharge than traditional Ni-MH batteries. Features a micro USB charging port and is supplied with charging cable.
3. SPECIFICATION
Model No
Battery
Charging Time
IP Rating
LED Type
Lumen Output Side(High/Low)Top
Maximum Length:
Minimum Length:
Operating Time Side(High/Low)/Top
Plug Type:
Case Colour:
The battery fitted to this lamp is considered to be a consumable item and its ability to accept a charge will reduce over time.
We will provide warranty against mechanical and electrical defect for a period of one year - this does not cover fair wear and tear.
If the battery is not properly charged before first use, or regularly conditioned, its capacity will diminish. Under these circumstances
we will not replace the battery regardless of whether it is less than one year old.
Note: The lithium battery does not suffer from memory effect and once fully charged may be stored for up to six months without
another charge.
Original Language Version
© Jack Sealey Limited

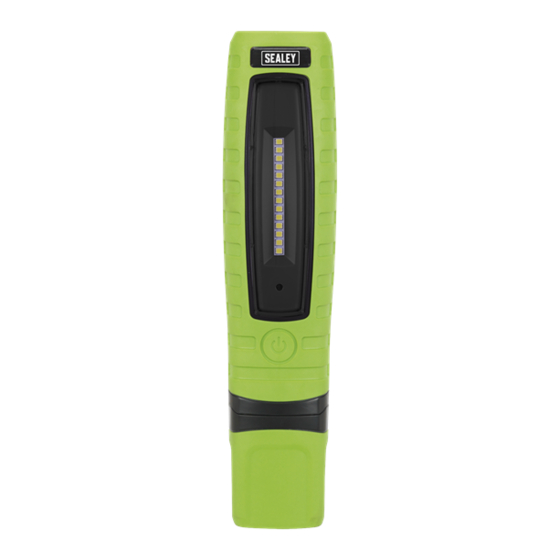

360° 8W & 3W SMD LED RECHARGEABLE
INSPECTION LIGHT
LED360.V5, LED360G.V5, LED360R.V5
MODEL NO:
LED360.V5 LED360G.V5
3.7V 2.6Ah Li-ion 3.7V 2.6Ah Li-ion
3.5hr 3.5hr
IP54 IP54
8W + 3W SMD 8W + 3W SMD
(600/200)/120lm (600/200)/120lm
280mm 280mm
260mm 260mm
(3/6)/8hr (3/6)/8hr
3-Pin BS 3-Pin BS
Black Green
LED360R.V5
3.7V 2.6Ah Li-ion
3.5hr
IP54
8W + 3W SMD
(600/200)/120lm
280mm
260mm
(3/6)/8hr
3-Pin BS
Red
LED360.V5, LED360G.V5, LED360R.V5 Issue 3 (H,3,) 29/09/23
