Rechargeable 360 inspection lamp 16 smd led+3w led 2 x lithium-ion

Advertisement

Quick Links

thank you for purchasing a sealey product. manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
refer to
instructions
1. safety
inspect the cable and connector for wear and damage to ensure items are safe before connecting to the power supply. if worn or
9
damaged do not use.
ensure the lamp is fully charged before initial use.
9
do not charge in damp conditions.
8
do not turn the lamp on when it is being charged.
8
do not shine directly into your, another person's or an animal's eyes.
8
do not allow children to use the lamp.
8
do not handle or move the lamp whilst it is being charged.
8
do not use the lamp if you suspect that the battery or the lamp casing is damaged.
8
do not leave battery in a discharged state, recharge battery immediately. Before storage, fully recharge the battery, subsequently
8
recharge the battery at least once every six months of non-use.
do not attempt to open, disassemble, modify or service the battery pack.
8
do not crush, puncture, short external contacts or dispose of in fire or water.
8
do not expose to temperatures above 60°c (140°).
8
replace only with the battery pack designated for this product.
9
recycle or dispose of used battery as stipulated by local regulation.
9
if the electrolyte in the cells gets on your skin, thoroughly wash with soap and water. if it gets in your eyes, rinse thoroughly with cool
9
water and seek immediate medical attention.
2. introductions

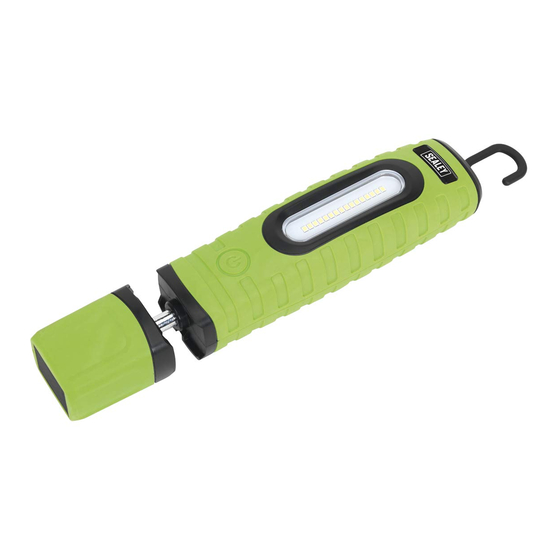

unique and innovative 360° swivel and tilt function enables the light source to be positioned in any direction. exclusive patented design owned
by and registered to sealey. includes two 3.7V 2,600mAh rechargeable li-ion batteries in parallel for up to 15 hours run time. each lamp houses
16 smd leds providing up to 700 lumens output and a 120° spread of light, illuminating the whole work area. includes an additional 3W led
directional torch. features two swivel hooks and three rubber covered magnets, two on the rear and one on the end, which allow hands-free
operation. supplied with high quality usB cable.
3. specification
model no .....................................................led360Plus.V2
Battery .................................................3.7V 2.6Ah li-ion (x2)
led Quantity ................................................. 16smd + 1led
lumen output side(High/low)top ............... (700/350)/150lm
operating time side(High/low)/top ......................(6/12)/15hr
charging time ...................................................................6hr
iP rating .........................................................................iP54
minimum length ......................................................... 256mm
maximum length ........................................................ 276mm
The battery fitted to this lamp is considered to be a consumable item and its ability to accept a charge will reduce over time.
We will provide warranty against mechanical and electrical defect for a period of one year - this does not cover fair wear and tear.
If the battery is not properly charged before first use, or regularly conditioned, its capacity will diminish. Under these circumstances
we will not replace the battery regardless of whether it is less than one year old.
note: the lithium battery does not suffer from memory effect and once fully charged may be stored for up to six months without
another charge.
4. operation
© Jack sealey limited
instructions for
rechargeable 360° inspection lamp
16 smd led+3w led 2 x lithium-ion
led360plus.V2 series
model no:
Original Language Version
led360Plus.V2 series| issue 1 05/04/17
