Sealey LED319 Instructions

thank you for purchasing a sealey product. manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
refer to
instructions
1. safety
inspect the cable and connector for wear and damage to ensure items are safe before connecting to the power supply. if worn or
9
damaged do not use.
ensure the lamp is fully charged before initial use.
9
do not charge in damp conditions.
8
do not turn the lamp on when it is being charged.
8
do not shine directly into your, another person's or an animal's eyes.
8
do not allow children to use the lamp.
8
do not handle or move the lamp whilst it is being charged.
8
do not use the lamp if you suspect that the battery or the lamp casing is damaged.
8
do not leave battery in a discharged state, recharge battery immediately. Before storage, fully recharge the battery, subsequently
8
recharge the battery at least once every six months of non-use.
do not attempt to open, disassemble, modify or service the battery pack.
8
do not crush, puncture, short external contacts or dispose of in fire or water.
8
do not expose to temperatures above 60°c (140°).
8
replace only with the battery pack designated for this product.
recycle or dispose of used battery as stipulated by local regulation.
if the electrolyte in the cells gets on your skin, thoroughly wash with soap and water. if it gets in your eyes, rinse thoroughly with cool
water and seek immediate medical attention.
2. introductions

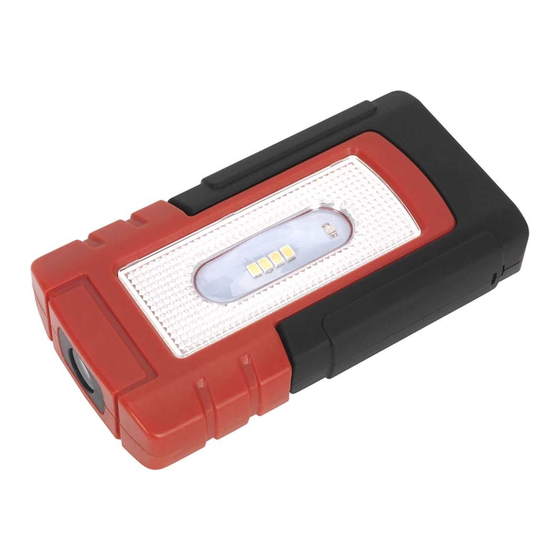

compact work light with a four led inspection lamp and an additional led directional torch. integral hanging hook and a magnetic base which can
rotate through 180° to obtain the best angle in hands free applications. Powered by a 3.7V 1500mAh lithium polymer battery. supplied with micro
usB charging cable.
3. specification
model no ................................................................... led319
Battery ................................................3.7V 1500mAh li-Poly
led Quantity ................................................ 4 smd + 1 smd
lumen output side/top .......................................200ml/70lm
operating time .......................................... side: 4hr, top: 8hr
charging time ...................................................................3hr
iP rating .........................................................................iP20
length ........................................................................ 125mm
The battery fitted to this lamp is considered to be a consumable item and its ability to accept a charge will reduce over time.
We will provide warranty against mechanical and electrical defect for a period of one year - this does not cover fair wear and tear.
If the battery is not properly charged before first use, or regularly conditioned, its capacity will diminish. Under these circumstances
we will not replace the battery regardless of whether it is less than one year old.
note: the lithium battery does not suffer from memory effect and once fully charged may be stored for up to six months without
another charge.
4. operation
Refer to figs. 1 & 2
4.1. connect the usB lead to the socket on the rear of the lamp and into a mains charger. turn on power supply, the charging led on
the lamp will light red to show that charging has commenced.
4.2. When the battery has fully charged the led will turn Green.
4.3. direct the lens away from your eyes before switching on.
4.4. toggle the lamp between the end light and side light using the on/off switch.
4.5. the lamp may be suspended by the hook or attached to any ferrous surface by using the magnets.
4.6. When the light is hanging from the hook it can be rotated through 360° for more precise positioning.
© Jack sealey limited
instructions for
rechargeable inspection light
4 smd + 1 smd lithium-polymer
led319
model no:
Original Language Version led319 | issue 1 23/05/17
