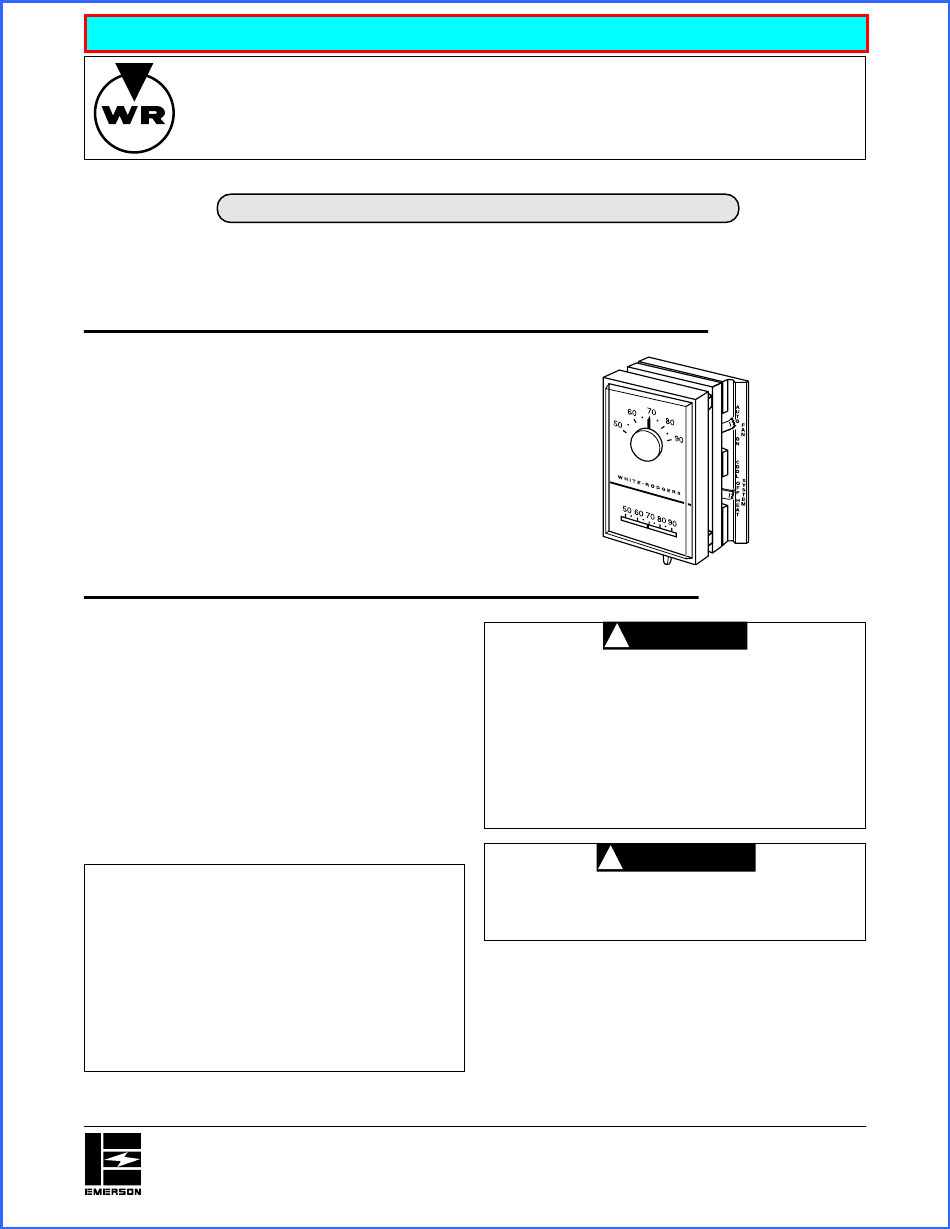

CLICK ANYWHERE on THIS PAGE to RETURN TO THERMOSTAT WIRING WHITE RODGERS at InspectApedia.com
WHITE-RODGERS
Operator: Save these instructions for future use!
FAILURE TO READ AND FOLLOW ALL INSTRUCTIONS CAREFULLY
BEFORE INSTALLING OR OPERATING THIS CONTROL COULD CAUSE
PERSONAL INJURY AND/OR PROPERTY DAMAGE.
This low voltage thermostat is designed to provide conve-
nient control of the heating/cooling system. To provide
greater room comfort, the sensitive spiral bimetal is com-
bined with an adjustable heating anticipator and a fixed
cooling anticipator to provide maximum comfort.
If in doubt about whether your wiring is millivolt, line, or low
voltage, have it inspected by a qualified heating and air
conditioning contractor, electrician, or someone familiar
with basic electricity and wiring.
Do not exceed the specification ratings.
All wiring must conform to local and national electrical
codes and ordinances.
This control is a precision instrument, and should be
handled carefully. Rough handling or distorting compo-
nents could cause the control to malfunction.
CONTENTS
Description ......................................................... 1
Precautions ........................................................ 1
Installation .......................................................... 2
Select Thermostat Location
Route Wires to Location
Attach Subbase to Walls
Attach Thermostat to Subbase
Operation & Maintenance .................................. 5
Adjusting Heat Anticipator
Calibrating Thermostat
WHITE-RODGERS DIVISION
EMERSON ELECTRIC CO.
9797 REAVIS ROAD
ST. LOUIS, MISSOURI 63123-5398

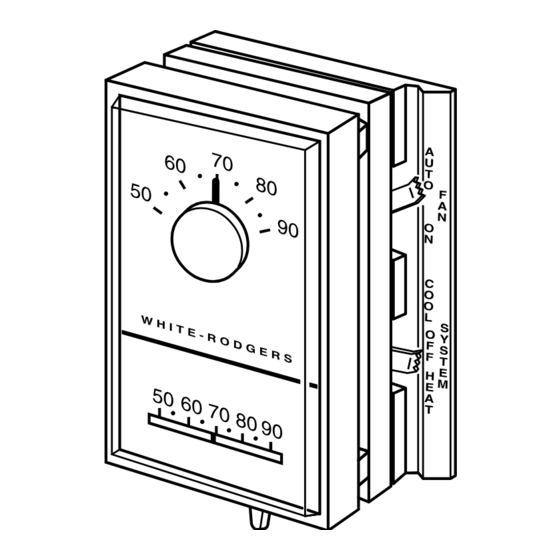

TYPE 1E56
Low Voltage Heating/Cooling Thermostat
INSTALLATION INSTRUCTIONS
To prevent electrical shock and/or equipment
damage, disconnect electric power to system at
main fuse or circuit breaker box until installation
is complete.
Do not short out terminals on gas valve or pri-
mary control to test. Short or incorrect wiring will
burn out heat anticipator and could cause per-
sonal injury and/or property damage.
Do not use on circuits exceeding 30 volts. Higher
voltage will damage control and could cause
shock or fire hazard.
Printed in U.S.A.
DESCRIPTION
PRECAUTIONS
CAUTION
!
WARNING
!
PART NO. 37-2196B
Replaces 37-2196
9509
Advertisement
Related Manuals for White Rodgers 1E56
Summary of Contents for White Rodgers 1E56
- Page 1 CLICK ANYWHERE on THIS PAGE to RETURN TO THERMOSTAT WIRING WHITE RODGERS at InspectApedia.com TYPE 1E56 WHITE-RODGERS Low Voltage Heating/Cooling Thermostat INSTALLATION INSTRUCTIONS Operator: Save these instructions for future use! FAILURE TO READ AND FOLLOW ALL INSTRUCTIONS CAREFULLY BEFORE INSTALLING OR OPERATING THIS CONTROL COULD CAUSE PERSONAL INJURY AND/OR PROPERTY DAMAGE.
- Page 2 INSTALLATION SELECT THERMOSTAT LOCATION ⁄ ” hole for thermostat wire Proper location insures that the thermostat will provide a comfortable home temperature. Observe the following Stout cord with 6” general rules when selecting a location: chain attached Approximately 1. Locate thermostat about 5 ft. above the floor. Baseboard 5 feet from floor strip moulding...
- Page 3 COOL COOL Thermostat Thermostat Contacts Contacts Cooling Cooling Anticipator Anticipator HEAT HEAT In “OFF” position In “OFF” position Heating Heating system switch breaks system switch breaks Anticipator Anticipator both heating and both heating and Switch Switch System cooling circuits System cooling circuits COOL HEAT...
- Page 4 ADJUSTING HEAT ANTICIPATOR 5. Replace thermostat cover. Wait 10 minutes for bimetal temperature to stabilize. Do not stand near the thermo- CAUTION stat during this period, as your breath and body heat will affect bimetal temperature. The adjustable heat anticipator WILL BURN OUT if 25 VAC is applied directly to the thermostat by 6.
