WHITE-RODGERS
Operator: Save these instructions for future use!
FAILURE TO READ AND FOLLOW ALL INSTRUCTIONS CAREFULLY
BEFORE INSTALLING OR OPERATING THIS CONTROL COULD CAUSE
PERSONAL INJURY AND/OR PROPERTY DAMAGE.
This low voltage thermostat is designed to provide con-
venient control of the heating system. To provide greater
room comfort, the sensitive spiral bimetal is combined
with an adjustable heating anticipator to provide maximum
comfort.
If in doubt about whether your wiring is millivolt, line, or
low voltage, have it inspected by a qualified heating and
air conditioning contractor, electrician, or someone famil-
iar with basic electricity and wiring.
Do not exceed the specification ratings.
All wiring must conform to local and national electrical
codes and ordinances.
CONTENTS
Description .............................................................................. 1
Precautions ............................................................................. 1
Specifications .......................................................................... 2
Installation ............................................................................... 2
Select Thermostat Location
Route Wires to Location
Attach Thermostat to Wall
Operation & Maintenance ....................................................... 3
Adjusting Heat Anticipator
Calibrating Thermostat
This product contains mercury. There will not be any exposure to mercury under normal conditions of use. This product may replace a unit which contains mercury.
Do not open mercury cells. If a cell becomes damaged, do not touch any spilled mercury. Wearing non-absorbent gloves, take up the spilled mercury with sand
or other absorbent material and place into a container which can be sealed. If a cell becomes damaged, the unit should be discarded. Mercury must not be
discarded in household trash. When this unit or the unit it is replacing is to be discarded, place in a suitable container and return to us at WHITE-RODGERS.
WHITE-RODGERS DIVISION
EMERSON ELECTRIC CO.
9797 REAVIS RD., ST. LOUIS, MO. 63123
(314) 577-1300,
9999 HWY. 48, MARKHAM, ONT. L3P 3J3
(905) 475-4653,
R
Printed in U.S.A.
FAX (314) 577-1517
FAX (905) 475-4625

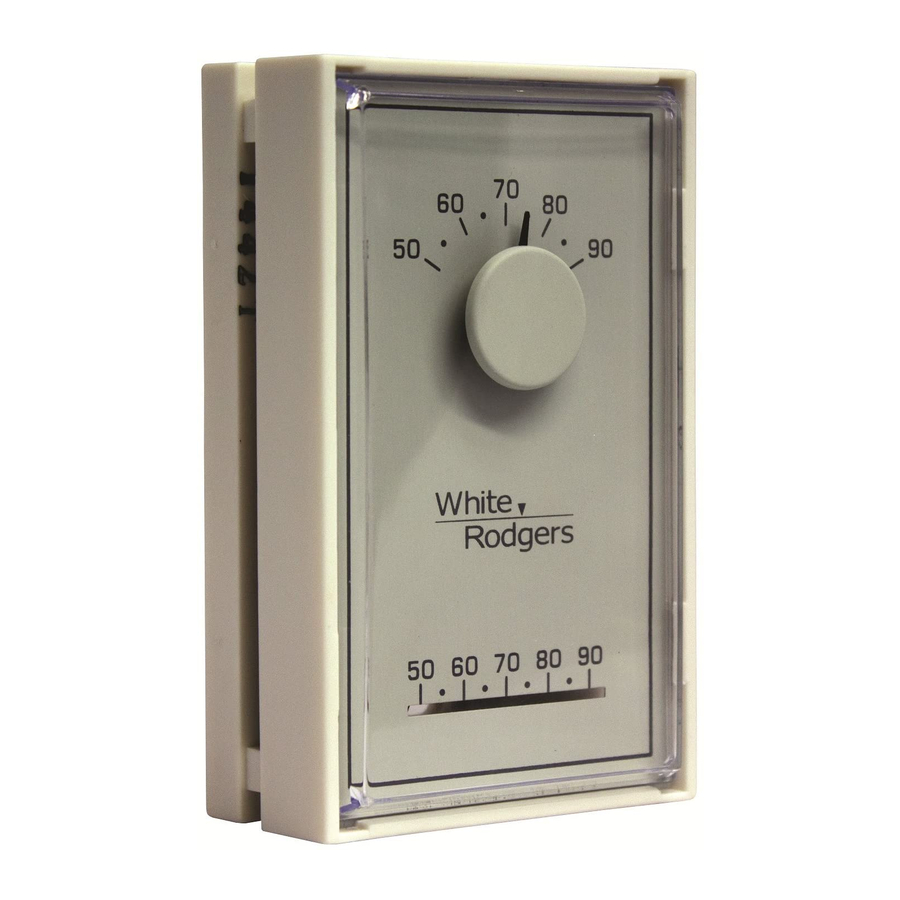

1E30(W) / 1F30(W)
Low Voltage Heating Thermostat

INSTALLATION INSTRUCTIONS

30
1E30
This control is a precision instrument, and should be
handled carefully. Rough handling or distorting compo-
nents could cause the control to malfunction.
To prevent electrical shock and/or equipment dam-
age, disconnect electric power to system, at main
fuse or circuit breaker box, until installation is
complete.
Do not short out terminals on gas valve or primary
control to test. Short or incorrect wiring will burn
out heat anticipator and could cause personal
injury and/or property damage.
Do not use on circuits exceeding 30 volts. Higher
voltage will damage control and could cause shock
or fire hazard.
ATTENTION!
DESCRIPTION
1F30
PRECAUTIONS
CAUTION
WARNING
PART NO. 37-4877D
Replaces 37-4877C
9524
