Assembly (continued)
31

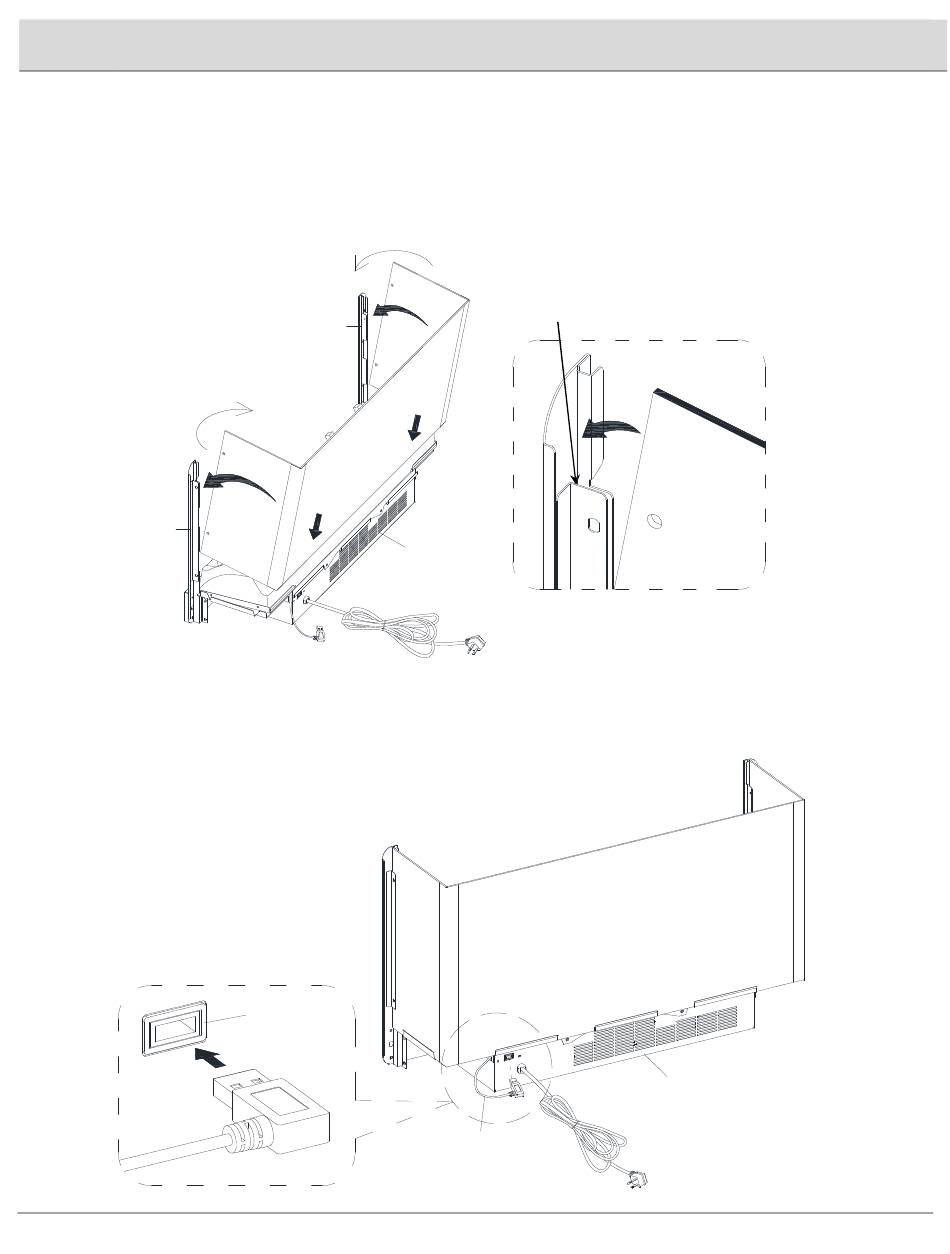

Attaching wall panel
□ Fold the wall panel (H) as shown. Then position yourself at back side of heater (A).
□ Hold wall panel (H) at the angle shown below and insert lower back edge into metal slots on back of heater (A).
□ Tilt wall panel (H) forward until bottom corner inserts into lower U-channels on both upright arms (B and C).
□ Continue to tilt wall panel (H) forward until the top corner inserts into upper U-channels on both upright arms (B and C).
C
32
Connecting ember bed cable to heater
□ Fully plug the USB connector of the ember bed (E) into the back port of heater (A).
B
H
A
A
U-channels
E
20
H
A
