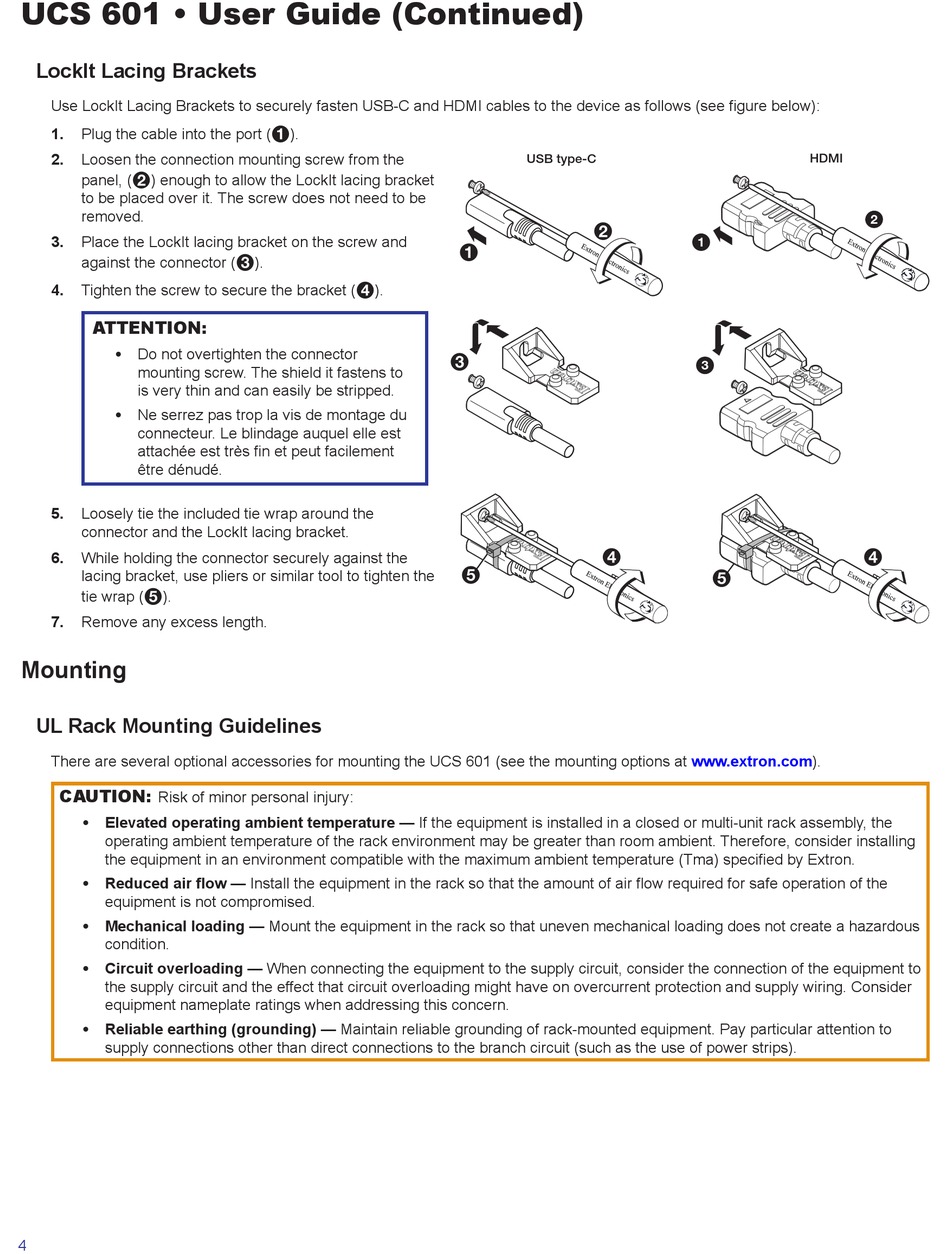

UCS 601 • User Guide (Continued)

LockIt Lacing Brackets

Use LockIt Lacing Brackets to securely fasten USB‑C and HDMI cables to the device as follows (see figure below):
1. Plug the cable into the port (
2. Loosen the connection mounting screw from the
panel, ( ) enough to allow the LockIt lacing bracket
2
to be placed over it. The screw does not need to be
removed.
3. Place the LockIt lacing bracket on the screw and
against the connector (
4. Tighten the screw to secure the bracket (
ATTENTION:
• Do not overtighten the connector
mounting screw. The shield it fastens to
is very thin and can easily be stripped.
• Ne serrez pas trop la vis de montage du
connecteur. Le blindage auquel elle est
attachée est très fin et peut facilement
être dénudé.
5. Loosely tie the included tie wrap around the
connector and the LockIt lacing bracket.
6. While holding the connector securely against the
lacing bracket, use pliers or similar tool to tighten the
tie wrap ( ).
5
7. Remove any excess length.
Mounting

UL Rack Mounting Guidelines

There are several optional accessories for mounting the UCS 601 (see the mounting options at www.extron.com).
CAUTION:
Risk of minor personal injury:
• Elevated operating ambient temperature — If the equipment is installed in a closed or multi‑unit rack assembly, the
operating ambient temperature of the rack environment may be greater than room ambient. Therefore, consider installing
the equipment in an environment compatible with the maximum ambient temperature (Tma) specified by Extron.
• Reduced air flow — Install the equipment in the rack so that the amount of air flow required for safe operation of the
equipment is not compromised.
• Mechanical loading — Mount the equipment in the rack so that uneven mechanical loading does not create a hazardous
condition.
• Circuit overloading — When connecting the equipment to the supply circuit, consider the connection of the equipment to
the supply circuit and the effect that circuit overloading might have on overcurrent protection and supply wiring. Consider
equipment nameplate ratings when addressing this concern.
• Reliable earthing (grounding) — Maintain reliable grounding of rack‑mounted equipment. Pay particular attention to
supply connections other than direct connections to the branch circuit (such as the use of power strips).
4
).
1
).
3
).
4
USB type-C
2
1
3
4
5
HDMI
2
1
3
3
4 4
5
