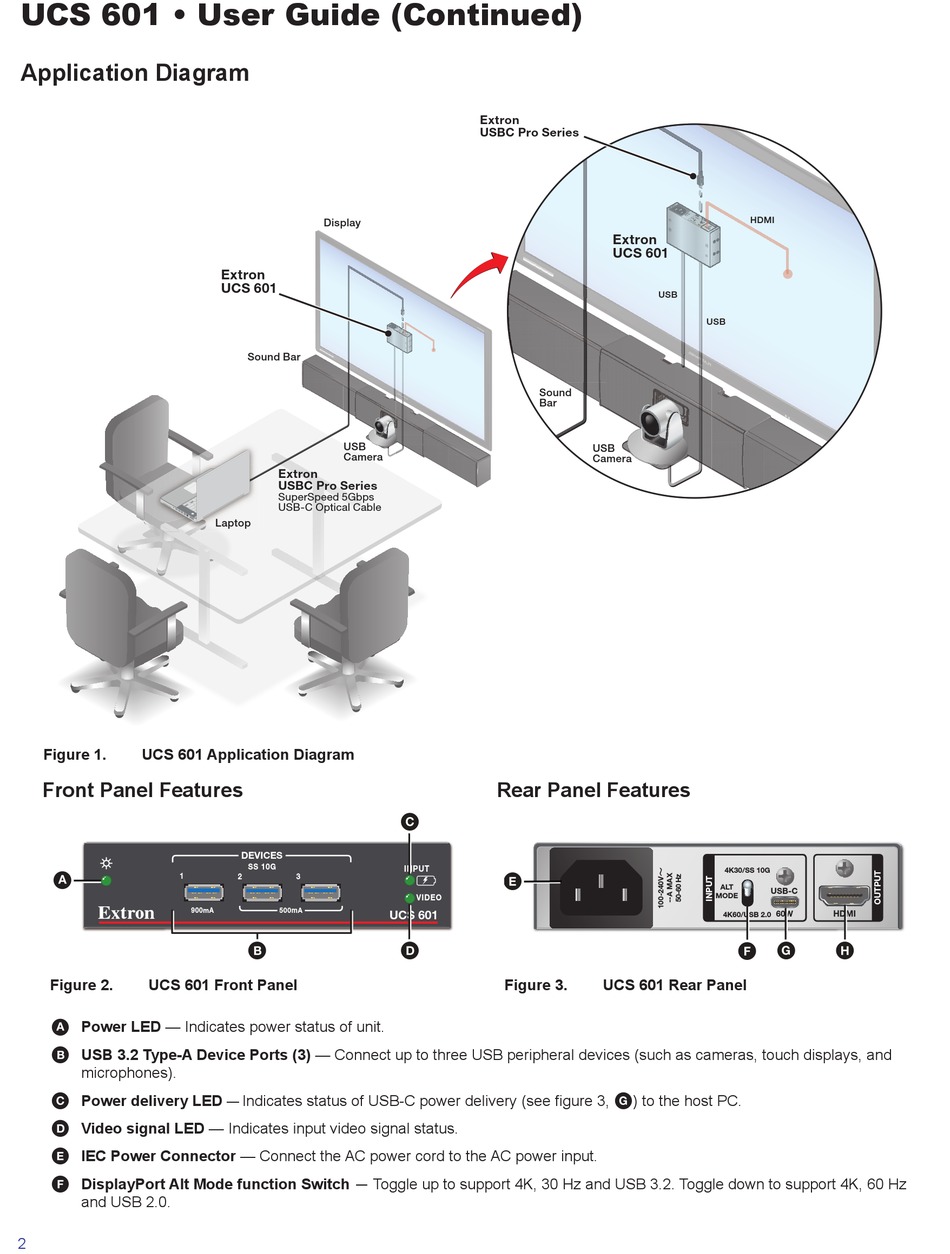

UCS 601 • User Guide (Continued)

Application Diagram

Figure 1. UCS 601 Application Diagram

Front Panel Features

A A A 1
A A A 1
e
e
900mA
900mA
Figure 2. UCS 601 Front Panel
Power LED — Indicates power status of unit.
A
USB 3.2 Type‑A Device Ports (3) — Connect up to three USB peripheral devices (such as cameras, touch displays, and
B
microphones).
Power delivery LED — Indicates status of USB‑C power delivery (see figure 3,
C
Video signal LED — Indicates input video signal status.
D
IEC Power Connector — Connect the AC power cord to the AC power input.
E
DisplayPort Alt Mode function Switch — Toggle up to support 4K, 30 Hz and USB 3.2. Toggle down to support 4K, 60 Hz
F
and USB 2.0.
