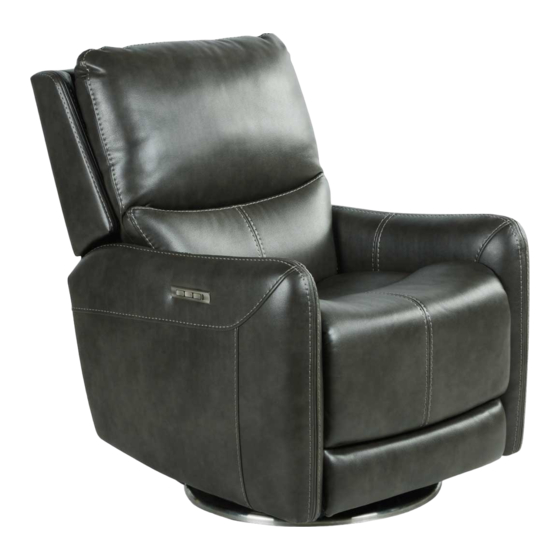

- Page 1 Item#: AH850C Description: Athens 360 Swivel PWR /PWR/PWR Recliner Product Size: 32.5" x 41" x 42.5"H 00284A...
- Page 2 CAUTION: PLEASE READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING ASSEMBLY PROCESS. IT IS RECOMMENDED TO USE TWO PEOPLE WHEN ASSEMBLING AND REMOVING THE INSIDE BACKS TO AND FROM THE BASE OF THE FURNITURE. STEP 1: Attached to the top of the swivel base is the hardware bag that includes the power transfor -mer, power cord and power transformer extension cord.
- Page 3 STEP 3: Attach the lead wires found at the bottom of motion back to the lead wires at the rear of seat. Yellow to Yellow & Grey to Grey. Make sure to close the clip locks to assure the connections will not come loose during use.
- Page 4 TOOLS REQUIRED : NO TOOLS REQUIRED PART LIST Description Sketch Quantity PAH850CB Backrest PAH850CS Seat PAH850CT Transformer PAH850CPC Power cord PAH850CPT Power transformer extension cord Page 4...
- Page 5 Spare part for AH850C PAH850CB Backrest PAH850CW PAH850CW Right Wing Left Wing PAH850CT Transformer PAH850CPC Power cord PAH850CSC SIDE CONTROL PRODUCT DETAILS RECLINER CHAIR BODY STEEL+PLYWOOD PRODUCT SIZE L 32.5" x W 41"x H 42.5" CARTON SIZE L 45.3"x W 26.8"x H 33.5"...
- Page 6 SIDE CONTROL USER’S MANUAL HEADREST LUMBAR FOOTREST CLOSE OPEN CLOSE OPEN CLOSE OPEN & HOME To recline: Sit on the furniture, and press the front of the button closest to the footrest to smoothly raise the footrest and recline to any position. To lower the footrest and return to an upright position, press the back side of the button clos- est to the footrest.
