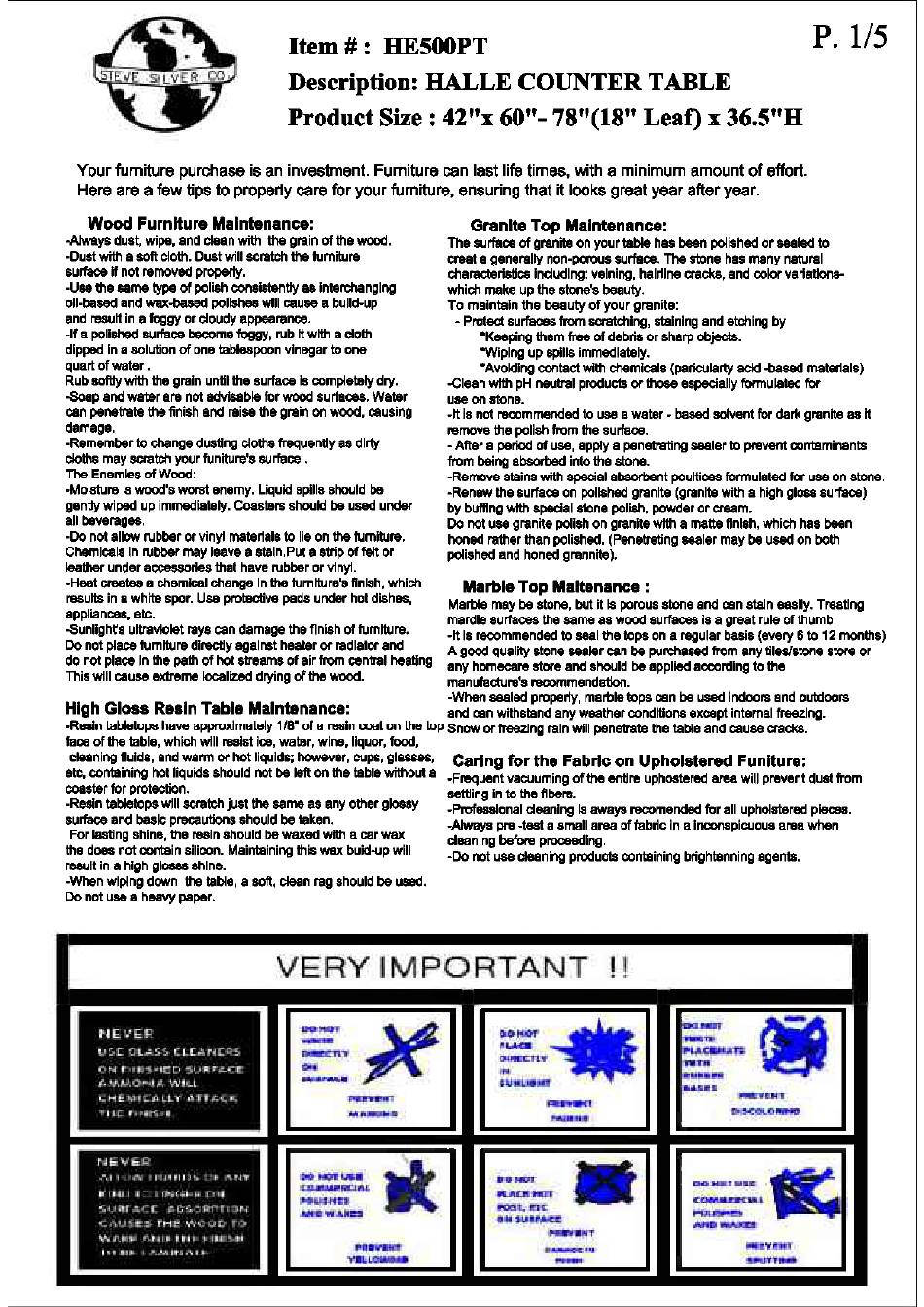

- Page 2 P. 2/5 HE500PT ASSEMBLY INSTRUCTIONS STEP 1 STEP 2 STEP 3 Step 1: Turn Table top (A) upside down on the floor with a piece of cloth or carpet underneath to prevent finish from scratching. Attach Mounting Plate B (E) to Table top (A) by inserting Long Bolt (1), Lock Washer (3), Flat Washer (4) into holes on Mounting Plate B (E) and wooden glide, secure with Wrench (5) Step 2: Attach Mounting Plate A (D) to Leg Frame (C) by using Long Bolt (1), Lock Washer (3), Flat Washer (4).
- Page 3 P. 3/5 HE500PT ASSEMBLY INSTRUCTIONS STEP 4 STEP 5 Step 4: Attach Stretcher (F) by securing position G of Stretch (F) to Mounting Plate B (E) and position H to Leg Frame (C) with Short Bolt (2), Lock Washer (3), Flat Washer (4) and Wrench (5).
- Page 4 P. 4/5 PARTS LIST TABLE TOP (1PC LEAF (1PC (C) LEG FRAME (2PCS) E) MOUNTING PLATE B F) STRETCHER D) MOUNTING PLATE A (2PCS) (1PC) (2PCS) HARDWARE PACK # : PHE500PTH DIMENSION DESCRIPTION Q' TY Ø5/16"x2" 20PCS LONG BOLT 4PCS SHORT BOLT Ø5/16 "x1-1/2"...
