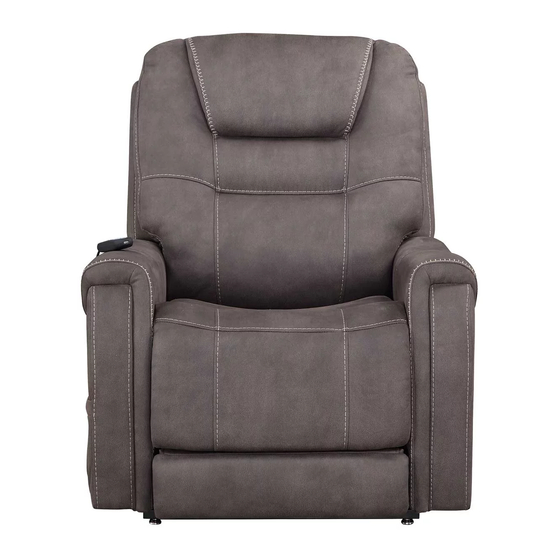

- Page 1 Item#: BS850CG Description: Brisbane Power Lift Chair w/ 3 Zone Heat Product Size: 35.5'' x 42'' x 44.5''H 00323A(VN)
- Page 2 CAUTION: PLEASE READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING ASSEMBLY PROCESS. IT IS RECOMMENDED TO USE TWO PEOPLE WHEN ASSEMBLING AND REMOVING THE INSIDE BACKS TO AND FROM THE BASE OF THE FURNITURE. STEP 1: Attached to the top of the swivel base is the hardware bag that includes the power transfor -mer, power cord and power transformer extension cord.
- Page 3 STEP 3: Slide the metal inserts on recliner’s Left wing(C)and Right wing (D) into the metal sleeves on the side of the recliner’s back. Slide the wings down until they are completely set on the backs metal sleeves. STEP 4: Attach the leadwires found at the bottom of motion back to the leadwires at the rear of seat.
- Page 4 TOOLS REQUIRED : NO TOOLS REQUIRED PART LIST Description Sketch Quantity PBS850CGT PBS850CGP PBS850CGS Page 4...
- Page 5 Spare part for BS850CG PBS850CGT PBS850CGP PBS850CGS PRODUCT DETAILS RECLINER CHAIR BODY STEEL+PLYWOOD PRODUCT SIZE L 35.5" × W 42" × H 44.5" CARTON SIZE L 37" × W 30.75" × H 33.5" SEAT HEIGHT 24.8" SEAT DEPTH 20.5" NET WEIGHT 162.8 LBS GROSS WEIGHT 177.1 LBS...
- Page 6 Control Instruction USER’S MANUAL Headrest Headrest Down Headrest Up Close All and Lift HEAT (ON/OFF) Green Light - Soft HEAT Red light - Stronge HEAT Lower lift Chair Product Protected By Following Patents: Patented Ar�cula�ng Power Headrest US Patent: 10,736,423 MADE IN VIETNAM Page 6...
