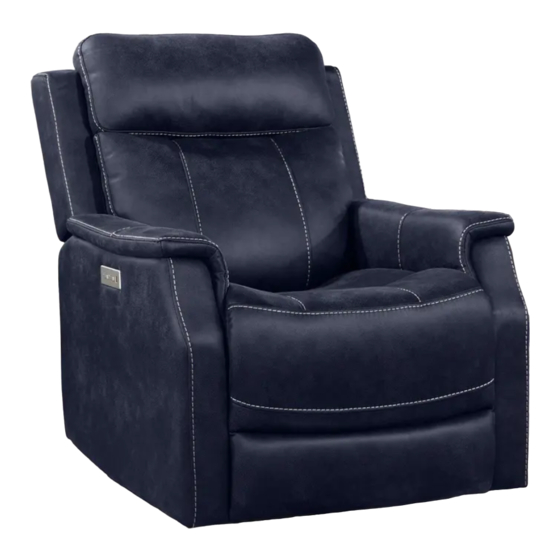

- Page 1 Item#: VA950RO / VA950RW Description: Valencia Pw/Pw Recliner Chair Ocean/ Walnut Product Size: 35.4" × 30.3" × 26"H 00319A...
- Page 2 CAUTION: PLEASE READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING ASSEMBLY PROCESS. IT IS RECOMMENDED TO USE TWO PEOPLE WHEN ASSEMBLING AND REMOVING THE INSIDE BACKS TO AND FROM THE BASE OF THE FURNITURE. STEP 1: Attached to the top of the swivel base is the hardware bag that includes the power transfor -mer, power cord and power transformer extension cord.
- Page 3 STEP 3: Slide the metal inserts on recliner’s Left wing(C)and Right wing (D) into the metal sleeves on the side of the recliner’s back. Slide the wings down until they are completely set on the backs metal sleeves. STEP 4: Attach the leadwires found at the bottom of motion back to the leadwires at the rear of seat.
- Page 4 TOOLS REQUIRED : NO TOOLS REQUIRED PART LIST Description Sketch Quantity PVA950ROT PVA950RWT PVA950ROP PVA950RWP PVA950ROSC PVA950RWSC Page 4...
- Page 5 Spare part for VA950RO / VA950RW PVA950ROT PVA950ROP PVA950ROSC PVA950RWT PVA950RWP PVA950RWSC PRODUCT DETAILS RECLINER CHAIR BODY STEEL+PLYWOOD PRODUCT SIZE L 33.9" x W 40.2"x H 40.1" CARTON SIZE L 35.4" x W 30.3"x H 26" SEAT HEIGHT 18.9" SEAT DEPTH 20.5"...
- Page 6 SIDE CONTROL USER’S MANUAL HEADREST FOOTREST CLOSE OPEN CLOSE OPEN & HOME To recline: Sit on the furniture, and press the front of the button closest to the footrest to smoothly raise the footrest and recline to any position. To lower the footrest and return to an upright position, press the back side of the button closest to the footrest.
