HP 58516A Quick Start Manual

HEWLETT'
PACKARD
HP 58516A
GPS L1 DISTRIBUTION AMPLIFIER
INFORMATION NOTE

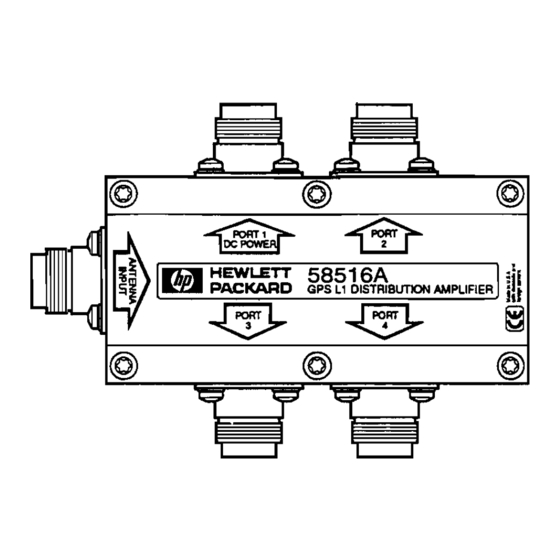

Figure 1. Hewlett-Packard 58516A Distribu-
tion Amplifier
1.
INTRODUCTION
1.1.
The HP 58516A GPS L1 Distribution
Amplifier is one component of a complete line
of GPS accessories for your GPS antenna sys-
tem available from Hewlett-Packard. These
accessories are designed to deliver precise GPS
signals over a wide temperature range and in
harsh environmental conditions.
1.2.
The distribution amplifier is required if
you wish to distribute the signal from a single
antenna to as many as four GPS receivers.
2.
DESCRIPTION
2.1.
The HP 58516A consists of a broadband,
unity gain amplifier and a 1:4 signal splitter.
Designed for use with GPS antennas, the ~u,lt
features
s
high degree of isolation t o eliminate
feedback and interaction between any GPS
systems connected to it.
ternal power option allows the use of a power
source separate from any of the connected
GPS receivers. A unit with Option 05Q does
not receive power through Port 1.
3.
USE WITH HP AND NON-HP SYSTEMS
3.1.
Although designed for use with HP GPS
frequency and time receivers, the HP 58516A
can be used with other GPS receiver and an-
tenna systems.
3.2. The HP 58516A operates over a voltage
range of +4.5 Vdc to +30 Vdc. Voltage is sup-
plied via the connecting cable (the center con-
ductor is positive with respect to the shield) to
Port 1 of a standard unit, or through an exter-
nal dc power input on a unit with Option 05Q.
Caution: Power to the HP 58516A will
be passed
to
the rest of the antenna sys-
tem. For example, if a +30 Vdc supply is
used to power the HP 58516A, the
+30 Vdc will be passed through to the
antenna. When using the HP 58516A
with an HP 58504A GPS antenna, the
maximum voltage should be no greater
than +5.5Vdc.
4. INSIF
..
;'HIS INFORMATION NOTE
4.1.
This note provides information on the
following topics:
Distribution amplifier description.
Installation, including mounting distri-
bution amplifiers.
He, ammended maintenance.
Waml;y.
List (if specifications.
2.2.
Power to the standard unit is supplied by
the GPS timing receiver 'connected to Port 1.
An optional external dc power input (Option
05Q) is available, in which power is supplied
instead through an SMC connector. This ex-
