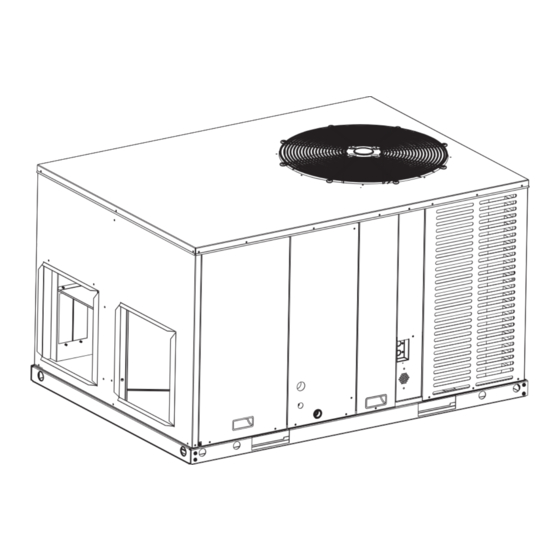

INSTALLATION INSTRUCTIONS
PACKAGE HEAT PUMP & AIR CONDITIONER
FEATURING R-410A
13 SEER SERIES - (2-5Tons)
RECOGNIZE THIS SYMBOL AS AN INDICATION OF IMPORTANT SAFETY INFORMATION
WARNING
These instructions are intended as an aid to qualified, licensed service personnel for proper
installation, adjustment and operation of this unit. Read these instructions thoroughly before
attempting installation or operation. Failure to follow these instructions may result in improper
installation, adjustment, service or maintenance possibly resulting in fire, electrical shock, property
damage, personal injury or death.
Please read carefully and keep in a safe place for future reference by a serviceman.
DO NOT DESTROY THIS MANUAL
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for innovair PEN36C2LS13
Summary of Contents for innovair PEN36C2LS13
- Page 1 INSTALLATION INSTRUCTIONS PACKAGE HEAT PUMP & AIR CONDITIONER FEATURING R-410A 13 SEER SERIES - (2-5Tons) RECOGNIZE THIS SYMBOL AS AN INDICATION OF IMPORTANT SAFETY INFORMATION WARNING These instructions are intended as an aid to qualified, licensed service personnel for proper installation, adjustment and operation of this unit.
- Page 2 General Description As the name Rooftop signifies, this unit is generally installed on the top of the roof. Also the Single Package signifies that both condenser and evaporator are enclosed in a single body(same as window type). In fact, The unit can be ideal for either rooftop or on-the-ground installation.The unit is provided with excellent performances that can be operated up to 115°F of maximum ambient temperature.
-
Page 3: Table Of Contents
Table of contents Read this manual carefully before attempting to install, operate, or perform maintenance on this unit. Installation and maintenance CONTENT PAGE should be performed by qualified service technicians only. Reconnect all grounding devices. All parts of this product capable ACCESSORIES-------------------------------------------------------------1 of conducting electrical current are grounded. -
Page 4: Dimensional Data
3. DIMENSIONAL DATA WARNING Check the electric wire, water and gas pipeline layout inside the wall, floor and ceiling before installation. Do not implement drilling unless confirm safety with the user, especially for the hidden power wire. An electroprobe can be used to test whether a wire is passing by at the drilling location, to prevent physical injury or death caused by insulation broken cords. -
Page 5: Installation
4. INSTALLATION ■ The frame must be located and secured by bolting or welding to the roof. Flashing is required. 4.1 LOCATIONS AND RECOMMENDATIONS ■ The hole in the roof must be prepared in advance of installing the unit. ■ The unit is designed for outdoor installations only. -
Page 6: Electrical Wiring
4.4 MAXIMUM FOUNDATION GRADIENT 4.6 DUCTWORK Note: Make sure that Condensate Drain side is not higher than the other side. All conditioned air ductwork should be insulated to minimize heating and cooling duct losses. Use a minimum of two (2) inches TYPICAL MAXIMUM FOUNDATION GRADIENT of insulation with a vapor barrier. - Page 7 The appliance shall be installed in accordance with national wiring regulations. PEN36C2LS13 36,000 BTU 208~230V/1PH/60Hz T O B E C O N N E C T E D T O B E C O N N E C T E D T O B E C O N N E C T E D Ｘ...
- Page 8 PEN48C2LS13 48,000 BTU 208~230V/1PH/60Hz T O B E C O N N E C T E D T O B E C O N N E C T E D T O B E C O N N E C T E D Ｘ...
-
Page 9: Operating Conditions
PEN60C3LS13 60,000 BTU 208~230V/3PH/60Hz T O B E C O N N E C TE D T O BE C ON N E C T E D T O B E C O NN E C T ED Ｘ NIM01 Ｙ... -
Page 10: Physical Data
7. PHYSICAL DATA Table 7-1 Component Physical Data Nominal Capacity (Btu/h) 36000 48000 60000 Nominal Tonnage A R I C O O L I N G SEER PERFORMANCE Refrigerant type R-410A R-410A R-410A 1116 1116 1116 Length (mm) DIMENSIONS Width (mm) Height (mm) Fins per inch CONDENSER... -
Page 11: Wind Pressure Curve
8. WIND PRESSURE CURVE 36000Btu/h 208-230V~ 60Hz 1100 1300 1500 1700 1900 2100 2300 Air volume(m³/h) 48000Btu/h 208-230V~ 60Hz 1400 1600 1800 2000 2200 2400 2600 2800 3000 Air volume(m³/h) - Page 12 60000Btu/h 208-230V~ 60Hz 60000Btu/h 208-230V 3N~ 60Hz 1500 1700 1900 2100 2300 2500 2700 2900 3100 3300 Air volume(m³/h)
-
Page 13: Performance Data
9. PERFORMANCE DATA COOLING PERFORMANCE DATA—36K(208-230V~ 60Hz) Air Flow 1200 Ent DB (℉) 35.9 36.0 36.2 36.5 28.2 32.2 35.4 36.5 INPUT[kW] 3.20 3.40 3.50 3.65 39.5 39.6 39.8 40.1 23.8 28.9 33.2 36.9 INPUT[kW] 3.24 3.44 3.54 3.69 42.0 42.1 42.3 42.6... - Page 14 COOLING PERFORMANCE DATA—48K(208-230V~ 60Hz) Air Flow 1600 Ent DB (℉) 49.1 49.2 49.4 49.7 34.2 39.6 43.9 47.6 INPUT[KW] 4.39 4.59 4.69 4.84 54.1 54.2 54.4 54.7 27.7 34.7 40.6 45.5 INPUT[KW] 4.44 4.64 4.74 4.89 57.5 57.6 57.8 58.1 18.4 26.9 34.2...
- Page 15 COOLING PERFORMANCE DATA—60K(208-230V~ 60Hz) Air Flow 1750 Ent DB (℉) 59.9 60.0 60.2 60.5 43.6 50.1 55.3 59.7 INPUT[KW] 5.37 5.57 5.67 5.82 65.8 65.9 66.1 66.4 35.7 44.2 51.3 57.2 INPUT[KW] 5.42 5.62 5.72 5.87 70.1 70.2 70.4 70.7 24.5 34.9 43.7...
- Page 16 COOLING PERFORMANCE DATA—60K(208-230V 3N~ 60Hz) Air Flow 1750 Ent DB (℉) 60.5 60.6 60.8 61.1 41.8 48.4 53.7 58.1 INPUT[KW] 5.29 5.49 5.59 5.74 66.5 66.6 66.8 67.1 33.7 42.3 49.4 55.4 INPUT[KW] 5.35 5.55 5.65 5.80 70.8 70.9 71.1 71.4 22.2 32.7...
-
Page 17: Start
10. START-UP 11. SYSTEM OPERATION PACKAGING AND COMPONENTS Error Code ■ ■ ● Is the unit properly located and level with the proper clearance? Type Content Code ● Is the duct work correctly sized, run, taped, insulated, and Normal Standby weatherproofed with proper unit arrangement? See Ductwork Installation section. -
Page 18: Maintenance
12. MAINTENANCE CAUTION ROUTINE MAINTENANCE BY OWNER ■ Do not dry out the air filter under direct sunshine or with fire. You can do some of the periodic maintenance functions for your 3. Re-install the air filter unit yourself; this includes cleaning the permanent air filters, cleaning the unit cabinet, cleaning the condenser coil, and conducting a general unit inspection on a regular basis.
