This product is meant to be used for electronic control of functions for spa baths. Please read all of the

instructions carefully before enjoying the spa. WARNING: Operating the system without water will cause severe

damage. Contains electronic components, shock hazard. Does not contain user serviceable parts. Do not try to repair

the control unit. Contact your dealer or service center for help. Follow all user instructions.

I. Installation

Open the door / cover according to the instructions and connect the power supply correctly.

Warning

A. Installation is only to be made by qualified persons.

B. Read the instructions carefully before beginning the installation.

C. We are not responsible if the product does not work or is damaged when the

instructions are not followed during installation.

D. Ensure that the system is not damaged during transportation when it is unpacked.

Note!

A. 1 x 16A (Read "Interlocked system between the heater and pumps"), 2 x 16A or 3 x 16 should be connected

to the control system. Do not connect the power before the installation is complete.

B. Install a maintenance switch close to the control system for use during maintenance work.

C. An earth switch must be installed. Check that the earth switch works when the power is connected.

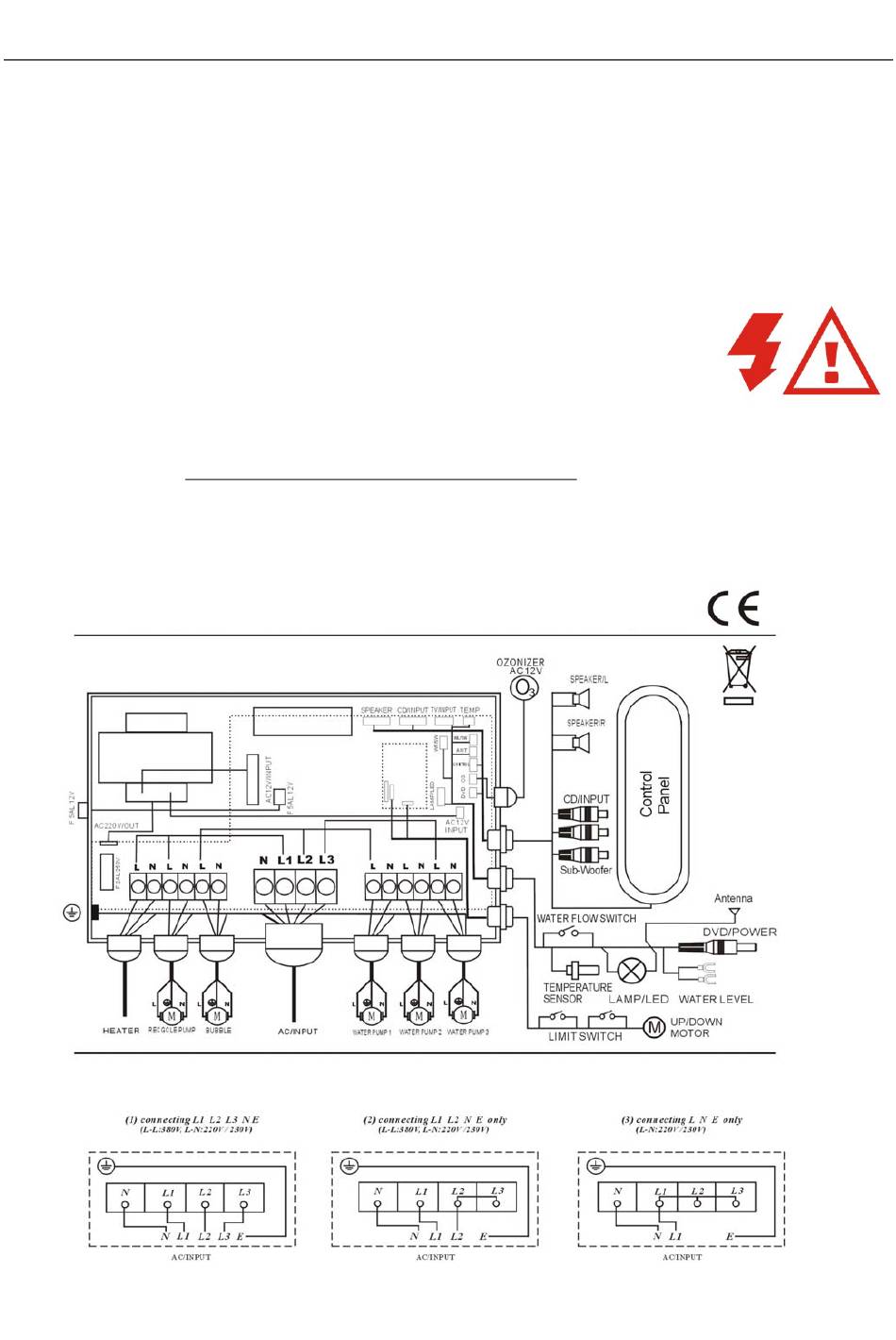

SG0007B Sketch Of Linking Wires For The System

WIRING DIAGRAM 3-phase, 2-phase, 1-phase

USER MANUAL for the SG-0007B SYSTEM

(Figure 1)

Table of Contents

Do you have a question about the SG-0007B and is the answer not in the manual?

Page 1 USER MANUAL for the SG-0007B SYSTEM This product is meant to be used for electronic control of functions for spa baths. Please read all of the instructions carefully before enjoying the spa. WARNING: Operating the system without water will cause severe damage.
Page 2 USER MANUAL for the SG-0007B SYSTEM II. Operating instructions (Fig 2)  ON/OFF key (power key): Connect the power supply and press the ON/OFF key. All the control systems are now ready to run (indicator light is on), and the circulation and Ozone disinfection system (if one exists) will start working automatically (if the water temperature is not at the pre-set temperature, the heating system will start to work in 60 seconds).
Page 3 USER MANUAL for the SG-0007B SYSTEM function is optional). The panel now shows a DVD symbol at the same time (Under DVD status, press the +/- key to adjust the volume of the DVD). Press for the fourth time to show the detected water temperature.
Page 4 USER MANUAL for the SG-0007B SYSTEM Manual working mode: Turn on the spa, then press and hold the key for 3 seconds to enter manual mode (the indicator light on the key will show GREEN when in manual mode, indicator key 3 will light up). If selected the filtration pump (and thus the filtration) is on continuously, 24h per day without stopping in between.
