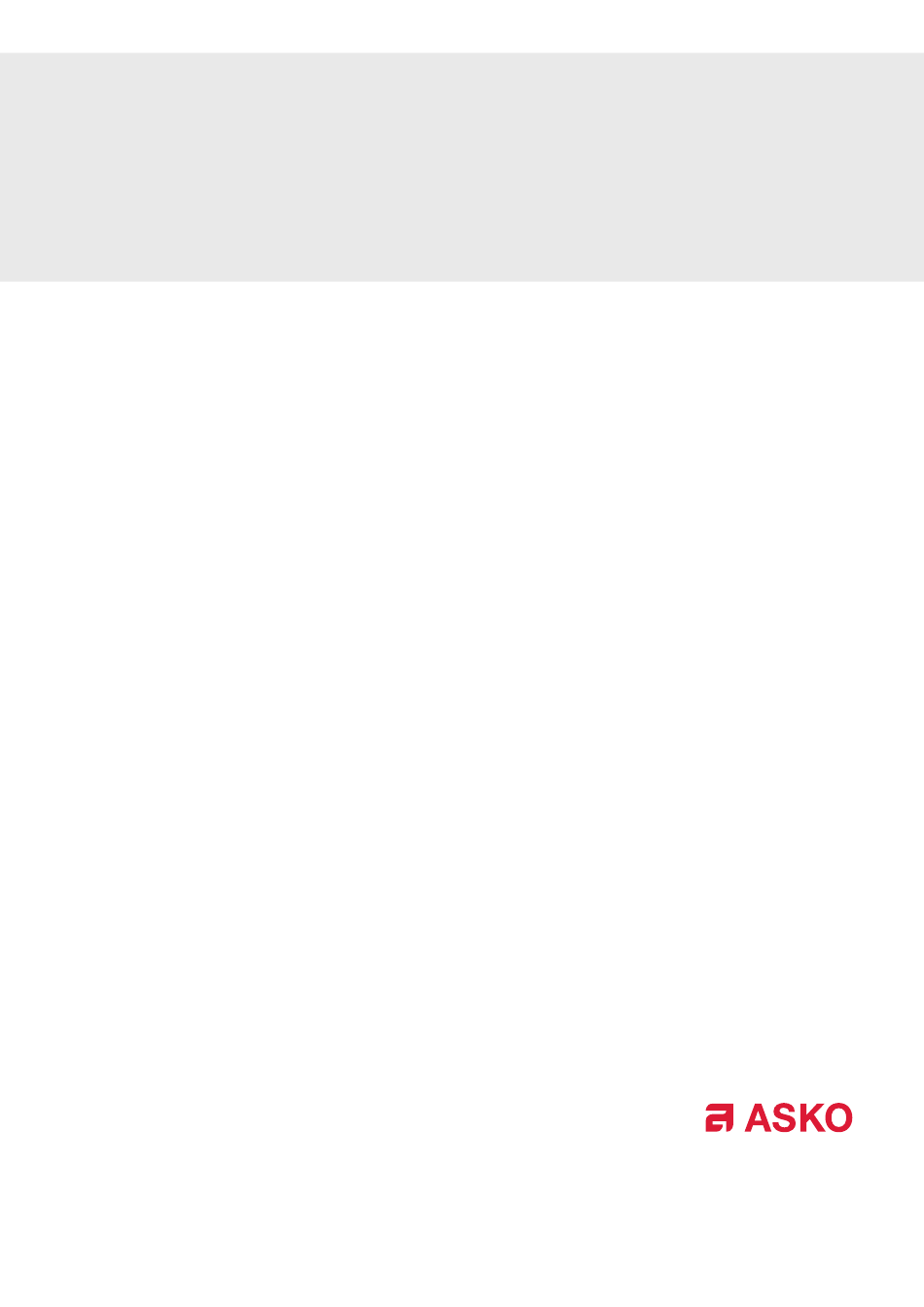

Operating Instructions
Tumble dryer
Dear Customer,
Thank you for choosing this quality product from ASKO.
We hope it will meet your expectations and fulfil your needs
for many years to come. Scandinavian design combines clean
lines, everyday functionality and high quality. These are key
characteristics of all our products and the reason they are greatly
appreciated throughout the world.
To ensure that you get the most out of your new machine, we
recommend that you read the operating instructions before using
the machine. The operating instructions also contain information
on how to avoid damaging the environment.
ASKO
PROFESSIONAL
TDC112V
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Asko TDC112V
Summary of Contents for Asko TDC112V
- Page 1 Operating Instructions Tumble dryer Dear Customer, Thank you for choosing this quality product from ASKO. We hope it will meet your expectations and fulfil your needs for many years to come. Scandinavian design combines clean lines, everyday functionality and high quality. These are key characteristics of all our products and the reason they are greatly appreciated throughout the world.
- Page 2 Contents Before using your machine for the first Error messages time Technical information Language selection Technical data Laundry labels Standard tests Safety instructions Service Safety Before contacting the service Installation division Packing material Installation Recycling Installation Child safety Electrical installation General Door hanging Child-safe start...
- Page 3 Before using your machine for the first time Language selection You will be prompted to select the display language when you have connected your machine and start it for the first time. Do as follows: 1. Turn the programme selector to choose from: US English, English, Svenska, Dansk, Norsk, Suomi, Français, Deutsch, Italiano, Espanol, Русский, Nederlands.
- Page 4 Safety instructions Read the operating instructions Safety and keep them in a safe place! • The machine must not be used for drying items that have been dry-cleaned at home or fabrics that may contain residues of flammable liquids. • The tumble dryer is protected by an overheating cut-out.
- Page 5 Child safety General Activating/deactivating Child-safe start. WARNING! Do as follows to open the settings menu: 1. Turn off the machine using the main power Do not allow children to play with switch. the tumble dryer. 2. Press the Stop button and switch on the •...
- Page 6 Description of the tumble dryer Main power switch Lint filter Panel Outer door Type plate...
- Page 7 Advice and tips before you tumble-dry Static electricity Here are some tips that may help you before you begin tumble-drying. To reduce the risk of static electricity in the laundry after tumble drying you can: Have the clothes been spun? •...
- Page 8 Tumble drying Below are step-by-step instructions to help you achieve the best possible tumble-drying results. Sort your fabrics You will achieve the most uniform drying results if the items are made of the same type of material. Do up zips and buttons, fasten belts, sort the items and adjust the load and temperature.
- Page 9 Tumble drying Select the programme Start Stop Programme selector Programme name Select a programme by turning the programme selector. The selected programme is shown in the display window. Guidelines as to what specific programmes can be used for: Auto extra dry (low temperature) The Auto extra dry, Auto dry and Auto normal Energy Save.
- Page 10 Tumble drying Programme chart Here we present the energy and time consumption of a few different programmes. The table shows the effect of using different spin speeds when washing the load. Consumption can vary depending on room temperature, humidity, load, variations in the power supply and selected options. For the consumption values given below, the requirements are as follows: Temperature of intake air: 23 °C...
- Page 11 Tumble drying Press the Start button Drying programme finished Remaining drying time The text Done appears on the display An estimate of the remaining drying time when the programme is finished. will be shown on the display a few minutes after Backlighting the drying programme starts.
- Page 12 Settings You can carry out the following settings • Language • Child-safe • Audible Volume • Heater 2 How to choose the settings: Do as follows to open the settings menu: 1. Turn off the machine using the main power switch. 2.
- Page 13 Care and cleaning Cleaning the lint filter 3. Use your hand or a soft cloth to remove the lint The lint filter must be cleaned after each load. from all sides of the filter. If necessary, use a 1. Grasp the filter holder handle and pull it damp sponge and a small amount of washing- towards you to open the lint filter.
- Page 14 Troubleshooting The machine will not start Drying takes too long • Check that the lint filter is not blocked. See the Check • Care and cleaning chapter. • that the door is properly closed. • that the main power switch is on. Error messages •...
- Page 15 Technical information Technical data Height: 850 mm Width: 595 mm Depth: 585 mm Weight (net): 40 kg Cylinder volume: 112 l Max. drying capacity: 7 kg Speed: 50-55 rpm Rated power: See type plate. Drum material: Stainless steel Outer casing material: Powder-coated and hot-galvanized sheet steel or stainless steel.
- Page 16 Service Before contacting the service division See the Troubleshooting and Care and cleaning chapters to see whether you can rectify the problem. If you need to contact the service division, make sure that you know the model designation, type designation and serial number. The model designation (1) can be found on the first page of the operating instructions and on the machine panel.
- Page 17 Installation Installation separate installation instructions included in the set of documents. Electrical installation If the machine is delivered from the factory with a plug attached it can be connected to an earthed wall socket. Otherwise, a permanent connection using a multipolar circuit breaker must be made by a qualified professional.
- Page 18 Door hanging Hinge pins (top and bottom) Locking hook Cover plate Hinges (left + right side) Plastic plugs (on the upper and lower Plinth edges)
- Page 19 Door hanging You can choose whether the door is hung on the 7. Switch the catch (magnetic lock) and the right or the left. cover plate. First loosen the screw holding the catch (magnetic lock) in place. Then use Follow these instructions: a flat-bladed screwdriver to remove the cover 1.
- Page 20 Quick guide Fabrics Select a programme and any options • Dry fabrics of the same type together to ensure that they dry as evenly as • Turn the programme selector to the possible. required programme. Turn on the main power Press the Start button switch Load the garments...
