Warning
Risk of injury!
Scratched glass in the appliance door may develop
into a crack. Do not use a glass scraper, sharp or
abrasive cleaning aids or detergents.
The hinges on the appliance door move when
Risk of injury!
opening and closing the door, and you may be
trapped. Keep your hands away from the hinges.

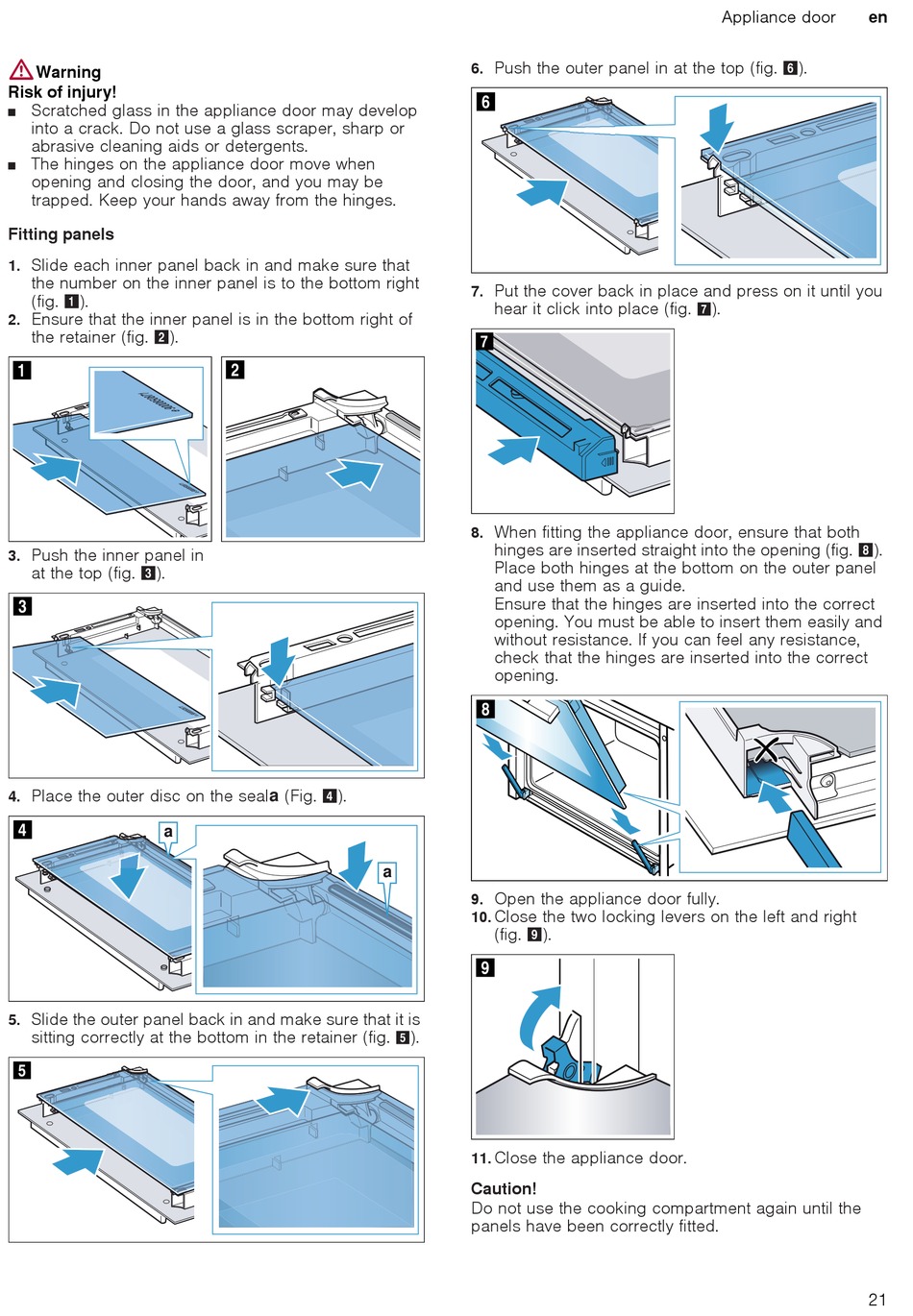

Fitting panels
Slide each inner panel back in and make sure that
1.
the number on the inner panel is to the bottom right
(fig.
).
!
Ensure that the inner panel is in the bottom right of
2.
the retainer (fig.
).
"
Push the inner panel in
3.
at the top (fig.
).
#
Place the outer disc on the seal‚ (Fig.
4.
Slide the outer panel back in and make sure that it is
5.
sitting correctly at the bottom in the retainer (fig.
Push the outer panel in at the top (fig.
6.
Put the cover back in place and press on it until you
7.
hear it click into place (fig.
When fitting the appliance door, ensure that both
8.
hinges are inserted straight into the opening (fig.
Place both hinges at the bottom on the outer panel
and use them as a guide.
Ensure that the hinges are inserted into the correct
opening. You must be able to insert them easily and
without resistance. If you can feel any resistance,
check that the hinges are inserted into the correct
opening.
).
$
Open the appliance door fully.
9.
Close the two locking levers on the left and right
10.
(fig.
).
%
Close the appliance door.
11.
Caution!
Do not use the cooking compartment again until the
panels have been correctly fitted.
'
).
)
Appliance door
en
).
&
).
).
(
21
