9. Wiring Method

The output wire and input wire should be separated.
·
The output wire and input wire should not be pulled in such a manner that it will render mechanical stress to the
·
unit.
If the input and output lines are long and thin, it may affect the operation of the power supply. Check thoroughly that
·
there is no influence before using.

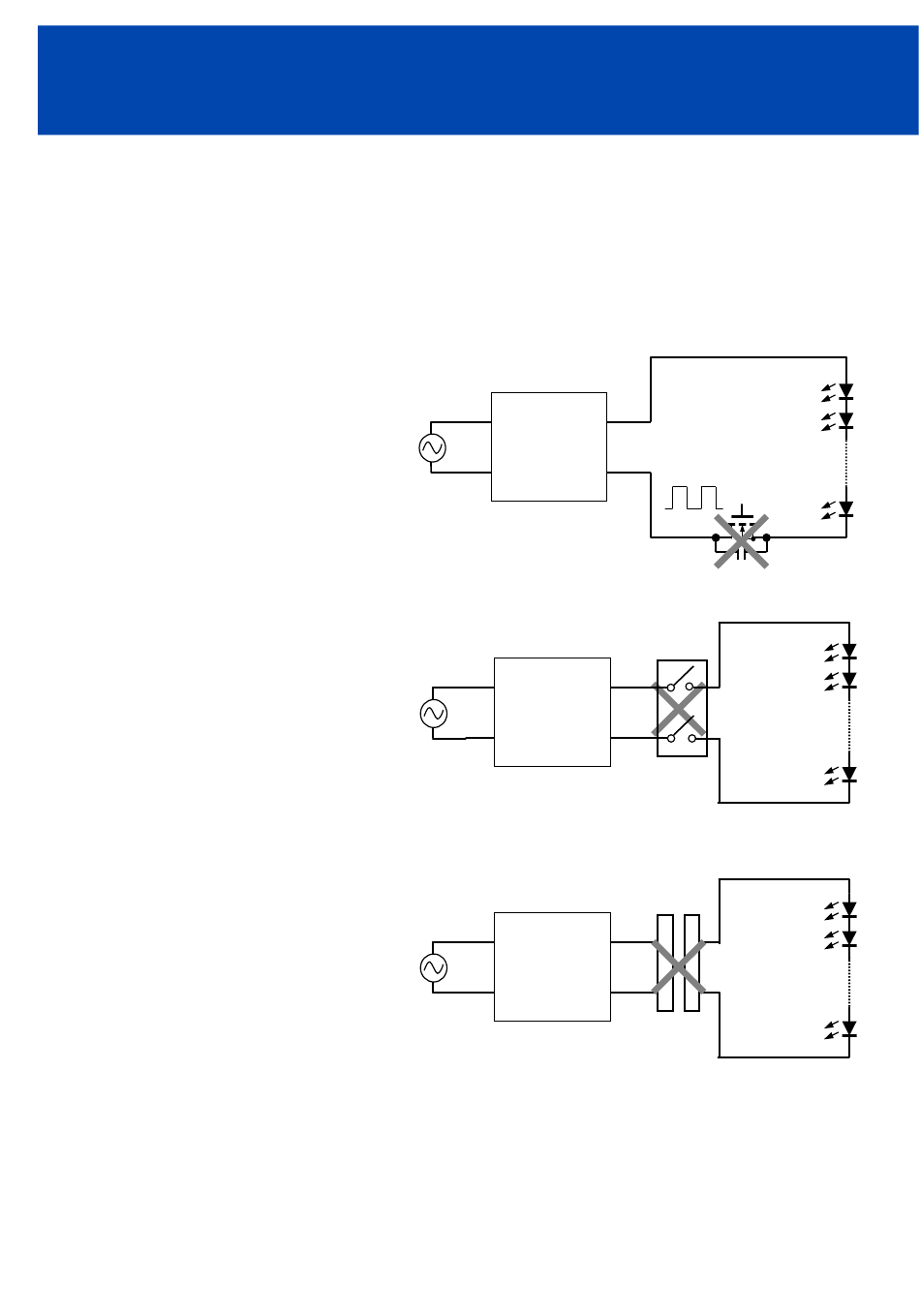

10. Light modulation control
Never adjust light modulation control by the PWM switch (etc.) that is connected to the output side of ELC series.
·
This might cause damage to the LED.
11. Switch (Relay)
· Never use switch (relay) at the output side.
This might cause damage to the LED.
12. LED load connection
· Never make LED wiring connections while the AC power is connected.
This might cause damage to the LED.
L
ELC12
Series
AC
N
L
ELC12
Series
AC
N
L ELC12
Series
AC
N
- 8 -
TDK-Lambda
ELC12 Series
INSTRUCTION MANUAL
