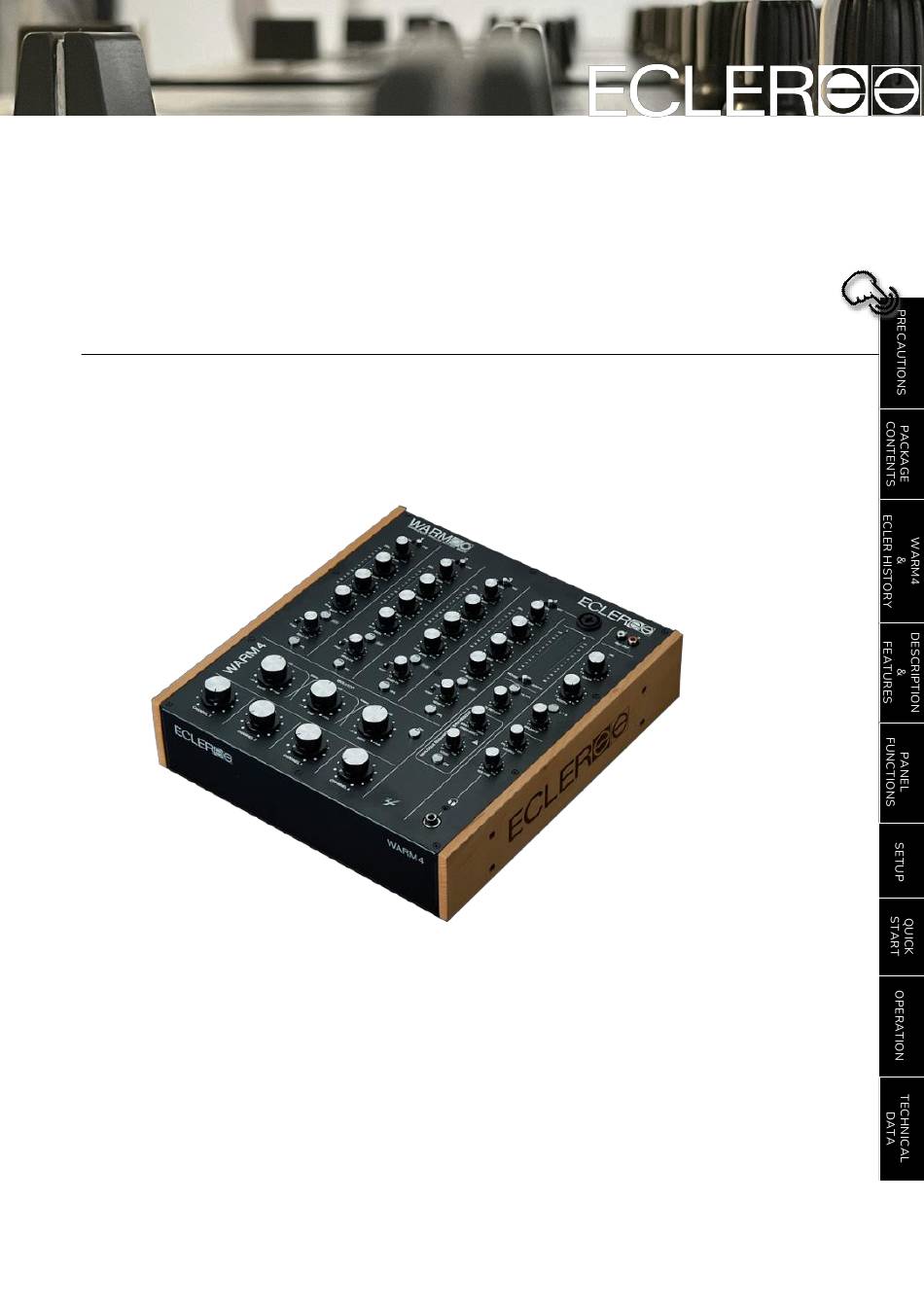

- Page 1 WARM4 DJ MIXERS Four Channel Analogue Rotary Mixer USER MANUAL 50-0438-0101 WARM4...
-
Page 2: Table Of Contents
PRECAUTIONS ..........................3 Important Remark ........................3 Important Safety Instructions ....................4 Cleaning ............................. 4 PACKAGE CONTENTS ....................... 5 WARM4 and ECLER HISTORY ....................5 DESCRIPTION & FEATURES ....................7 Main Features ........................... 7 PANEL FUNCTIONS ........................8 SETUP ............................10 Audio Input Connections ..................... -
Page 3: Precautions
1. PRECAUTIONS 1.1 Important Remark The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. -
Page 4: Important Safety Instructions
1.2 Important Safety Instructions Read these instructions. 12. Unplug the device during lightening sorts or when unused for long 2. Keep these instructions. periods of time. 3. Heed all warnings. Refer all servicing to qualified 4. Follow all instructions. personnel. Servicing is required 5. -
Page 5: Package Contents
• Warranty card. 3. WARM4 and ECLER HISTORY Although the origins of the company date from 1965, ECLER presented its first mixer back in the 70s: the A4, a simple 4 channel mixer oriented to Super 8 film sound edition. The company grew in the 70s with the boom of disco and tourism. - Page 6 In WARM4 you will also find the 4th order Isolator filter already included in WARM2, as well as 4 mixing channels, 3-band full EQ cut per channel and Alps metal shaft high quality potentiometers.
-
Page 7: Description & Features

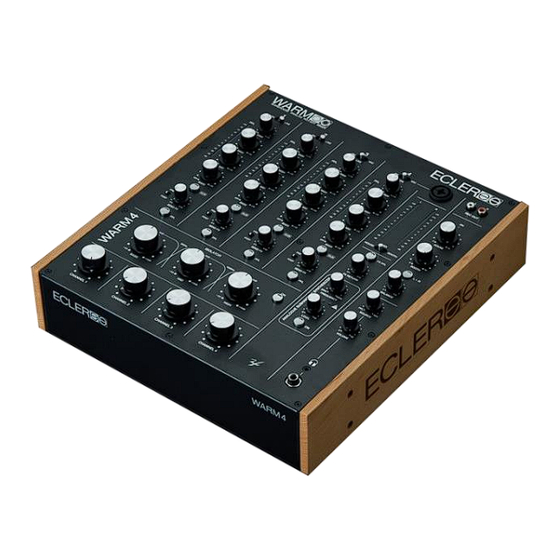

WARM4 is a professional four channel analogue rotary DJ mixer, designed and manufactured by ECLER in Barcelona. Featuring 4 phono/line channels, 2 MIC inputs, classic sharp filters and a 4th order Isolator. WARM4 includes an unique feature, an Analogue Subharmonic Synthesizer selectable per channel, specially designed to generate and reinforce ultra-low frequencies. -
Page 8: Panel Functions
5. PANEL FUNCTIONS... - Page 9 LED indicator ON 28. PFL/MIX monitoring control, SOURCE Input Selector (PHONO, LINE MIC) 29. Monitor Headphones Volume control Input sensitivity adjust, TRIM 30. Stereo Jack Headphones Treble control, HIGH 31. LED VU meter Channel 1 Midrange control, MID 32. Phono Input, PHONO 1 Bass control, BASS 33.
-
Page 10: Setup
6. SETUP WARM4 is conceived as club mixer to be placed between turntables or digital players. We recommend to place it in a comfortable position for the end user, without placing it in direct contact with the turntables to avoid transmitting shocks and vibrations during use. -
Page 11: Line Inputs
Low impedance (200 to 600 ohm) monophonic microphones must be used. For non balanced microphones we recommend monophonic jack plugs although stereo ones are also suitable if the ring is short-circuited to the sleeve. The WARM4 includes 18V Phantom power for condenser microphones. An internal jumper allows disabling the phantom power. -
Page 12: Booth Output
6.2.2 BOOTH Output Commonly used as an independent local "Booth" output for the DJ. This stereo BOOTH has balanced XLR3 (43) and unbalanced RCA (44) connections and its level is set at 0dBV (1Vrms) but can be changed to +12dBV (4Vrms) through internal dip-switch (look at Configuration Diagram). -
Page 13: Quick Start
7. QUICK START Install and connect the WARM4 mixer as described in Setup chapter. This Quick Start guide explains a simple procedure to route and headphone monitoring a turntable. 1. Set the controllers to their initial position Set Channel 1 TRIM, HIGH, MID and BASS (3, 4, 5 and 6) rotary controls to their central position. - Page 14 Adjust the input level Move the TRIM (3) control until the VU-meter shows 0dB. Send the signal to the HOUSE Rotate the channel 1 potentiometer (13) clockwise at its maximum. Monitor the output with your headphones Adjust the VOLUME controller (29) to obtain a comfortable monitoring volume. Now you should hear music with your headphones.
-
Page 15: Operation
(1) indicator will be lit in green. Even if the typical bump noise of audio devices during the start- up is minimized in the WARM4 thanks to the internal anti-bump circuits, it is always recommendable to turn on the devices using the following sequence:... -
Page 16: Isolator
NOT using it live. Use equalization and isolator carefully; by boosting too much the low frequency range, you can induce an excessive displacement of the loudspeakers membrane. Ecler is not liable for any failure of third-party devices due to improper use of this functionality. - Page 17 Larry Levan was the best conductor of the Paradise Garage orchestra, and Ecler want to dedicate WARM4 to him, adding a very powerful feature that was part of the Paradise Garage sound system under the control of the DJ, and that has never been included in a DJ mixer before: the Analogue Subharmonic Synthesizer.
-
Page 18: Monitoring System
The combined use of Isolator and subharmonic synthesizer, if not used properly, can be very dangerous for the loudspeakers. Ecler is not liable for any failure of third-party devices due to improper use of this functionality. -
Page 19: Sending To External Effects Units Fx Send/Return
This signal send can be configured either PRE or POST fader with the PRE/POST toggle switch (8). 8.2.8 Potentiometers The WARM4 is equipped with original Japanese ALPS blue velvet and RK09L metal shaft potentiometers that offer extremely soft and smooth transitions both for channels and isolator controls. -
Page 20: Further Considerations
The use of active circuitry can yield, depending on the configuration, to a significant noise level. The WARM4 have been specifically designed with a very reduced noise figure. Anyway, the noise level will always depend by the correct use and installation of the mixer and by the correct gain chain. -
Page 21: Technical Data
9. TECHNICAL DATA 9.1 Technical Specifications WARM4 AUDIO PERFORMANCES Inputs Number of Inputs LINE 4 Stereo Unbalanced Inputs PHONO 4 Stereo Unbalanced Inputs MICRO 2 Mono Balanced Inputs FX RETURN 1 Stereo Unbalanced Input Connectors type LINE 1-2-3-4 RCA STEREO... - Page 22 Tone Filter cut frequency at -6dB BASS 200Hz (slope 12dB/oct) 200Hz÷6.8kHz TREBLE 6.8kHz Isolator cut frequency at -6dB BASS 300Hz (slope 24dB/oct) 300Hz÷4kHz TREBLE 4kHz Analogue Subharmonic Synthesizer Input selective 50÷120Hz filter Harmonics 25÷60Hz synthesis Max Output level +12dBV Outputs Number of Outputs HOUSE 1 Stereo Balanced Outputs...
- Page 23 MISCELLANEOUS Control Mode Rotary with Alps Blue Velvet Potentiometers and Alps RK09L potentiometers Phantom Voltage 18VDC/5mA Max (Default ON) Input VU-Meter LED 12 segments (-38dBV ÷ +10dBV) House-Mix-Booth VU-Meter LED 12 segments (-30dBV ÷ +20dBV) Subharmonic Output VU-Meter LED 3 Segments (-20dBV / 0dBV / +4dBV) ELECTRICAL Power Supply Internal...
-
Page 24: Mechanical Diagram
9.2 Mechanical Diagram All measurements are in mm. -
Page 25: Configuration Diagram
9.3 Configuration Diagram Depending on the requirements of the devices connected to the mixer outputs, it is possible to change the output level by increasing it by 12dB. To do this, remove the right wooden panel and follow the instructions below. - Page 27 For technical queries contact your supplier, distributor or complete the contact form on our website, in Support / Technical requests. Motors, 166‐168 | 08038 Barcelona, Spain | (+34) 932238403 | eclerdj@ecler.com | www.eclerdj.com...
