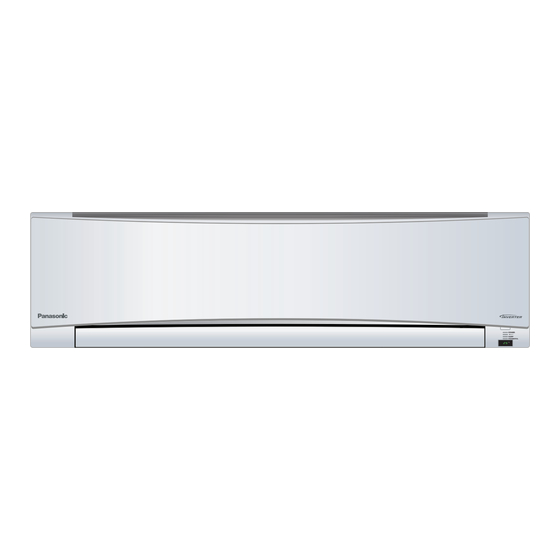

Summary of Contents for Panasonic CS-NU12VKYW Series
Page 1
CS-SU12VKYW series CS-SU18VKYW series CU-SU18VKYW series CS-SU24VKYW series CU-SU24VKYW series Operating Instructions Air Conditioner Thank you for purchasing Panasonic Air Conditioner. Installation instructions attached. Before operating the unit, please read these operating instructions thoroughly and keep them for future reference. ACXF55-24570-AB...
Page 2
ACXF55-2457̲OL.ai 2 1/27/2020 6:59:21 PM ACXF55-2457̲OL.ai 2 1/27/2020 6:59:21 PM To confirm Press SET or CLOCK again • Operating the unit at 24 °C or higher degrees may save energy. • Default set temperature is 24 °C in COOL mode as per country guidelines. Use remote control around 7 m from the remote control receiver of the indoor unit.
ACXF55-2457̲OL.ai 4 1/27/2020 6:59:22 PM ACXF55-2457̲OL.ai 4 1/27/2020 6:59:22 PM Safety precautions To prevent personal injury, injury to others or property damage, please comply with the following: WARNING Incorrect operation due to failure to follow instructions below may cause harm or damage, the seriousness of which is classified as below: Indoor unit and outdoor unit This appliance is not intended for use by This appliance is filled with R32 (mild...
Page 5
ACXF55-2457̲OL.ai 5 1/27/2020 6:59:22 PM ACXF55-2457̲OL.ai 5 1/27/2020 6:59:22 PM Remote control Precaution for using R32 refrigerant The basic installation work procedures are the same as Do not allow infants and small children to play conventional refrigerant (R410A, R22) models. with the remote control to prevent them from accidentally swallowing the batteries.
Page 6
ACXF55-2457̲OL.ai 6 1/27/2020 6:59:22 PM ACXF55-2457̲OL.ai 6 1/27/2020 6:59:22 PM Safety precautions Prevent water leakage by ensuring drainage 2. Servicing pipe is: 2-1. Service personnel • Any qualifi ed person who is involved with - Connected properly, working on or breaking into a refrigerant - Kept clear of gutters and containers, or circuit should hold a current valid certifi cate - Not immersed in water from an industry-accredited assessment...
Page 7
ACXF55-2457̲OL.ai 7 1/27/2020 6:59:22 PM ACXF55-2457̲OL.ai 7 1/27/2020 6:59:22 PM 2-4. Presence of fi re extinguisher 2-8. Checks to electrical devices • If any hot work is to be conducted on the • Repair and maintenance to electrical refrigeration equipment or any associated components shall include initial safety parts, appropriate fi re extinguishing checks and component inspection equipment shall be available at hand.
Page 8
ACXF55-2457̲OL.ai 8 1/27/2020 6:59:23 PM ACXF55-2457̲OL.ai 8 1/27/2020 6:59:23 PM Safety precautions 4. Repair to intrinsically safe components 8. Removal and evacuation • Do not apply any permanent inductive or • When breaking into the refrigerant circuit to make repairs – or for any other purpose – conventional capacitance loads to the circuit without procedures shall be used.
Page 9
ACXF55-2457̲OL.ai 9 1/27/2020 6:59:23 PM ACXF55-2457̲OL.ai 9 1/27/2020 6:59:23 PM 10. Decommissioning 12. Recovery • Before carrying out this procedure, it is • When removing refrigerant from a system, essential that the technician is completely either for servicing or decommissioning, familiar with the equipment and all its details. it is recommended good practice that all •...
ACXF55-2457̲OL.ai 10 1/27/2020 6:59:23 PM ACXF55-2457̲OL.ai 10 1/27/2020 6:59:23 PM AUTO - For your convenience Unit run with optimised settings. POWER POWER SLEEP SLEEP POWERFUL POWERFUL You can change the temperature according to your comfort. COOL - To enjoy cool air To reduce power consumption during COOL mode, use curtains to screen off sunlight and outdoor heat.
Page 11
ACXF55-2457̲OL.ai 11 1/27/2020 6:59:23 PM ACXF55-2457̲OL.ai 11 1/27/2020 6:59:23 PM If AUTO is set, the louver swings up/down automatically. • To cancel ON or OFF timer, press then press • If timer is cancelled manually or due to power failure, you can restore the timer again by pressing then press •...
ACXF55-2457̲OL.ai 12 1/27/2020 6:59:24 PM ACXF55-2457̲OL.ai 12 1/27/2020 6:59:24 PM Dust filters *Filter *PM2.5 Filter Dust filters Every 2 weeks • Wash/rinse the dust filters gently with water to avoid damage to the filter surface. • Dry the dust filters thoroughly under shade, away from fire or direct sunlight. •...
ACXF55-2457̲OL.ai 14 1/27/2020 6:59:25 PM ACXF55-2457̲OL.ai 14 1/27/2020 6:59:25 PM BEE Regulation Testing Guidelines Cooling Test Mode for Full Load (100%) and Half Load (50%) • Turn on the main power supply to unit. 1) Mode : Select ‘COOL’ 2) Temperature : a) 16 ºC for Full Load (100%) : b) 17 ºC for Half Load (50%) 3) Air Swing et vane position to 3rd step from top...
Panasonic service center when disposing of this product. Customer care number ( Toll free ) : 1800 103 1333 ,1800 108 1333 Please see the Panasonic website for further information on collection centers, etc. or call the customer care toll-free number http://www.panasonic.com/in/corporate/sustainability/panasonic-india-i-recycle-program.html Do’s &...
