Summary of Contents for Johnny Vac JVC56RIDERN

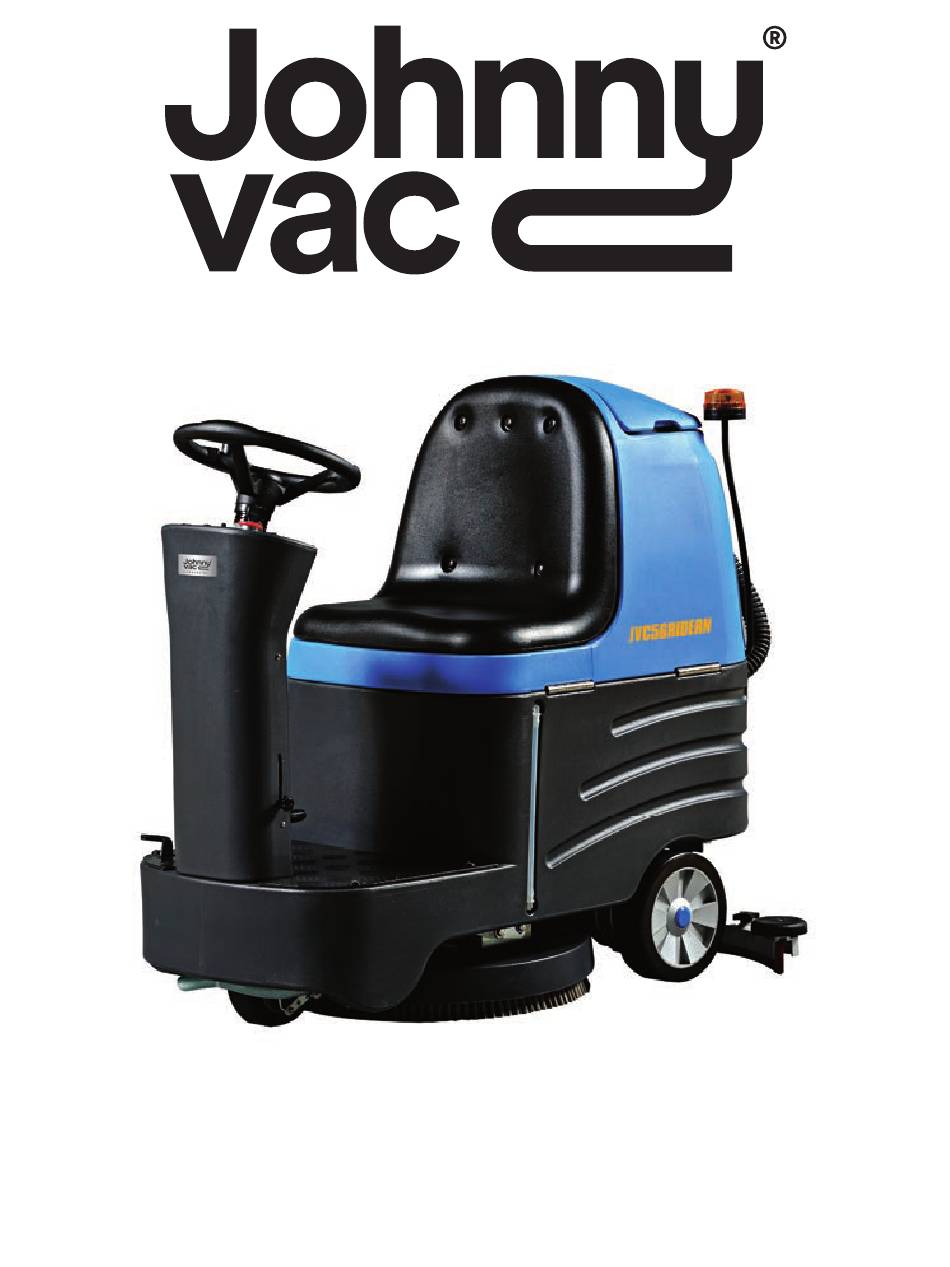

- Page 1 U S E R G U I D E JVC56RIDERN Rider Scrubber - 22"...
- Page 2 All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if instructions are not followed. READ ALL INSTRUCTIONS BEFORE USING THE UNIT - 2 - JVC56RIDERN User Guide...
- Page 3 All units sold by Johnny Vac have a user manual that is an integral part of the device sold. Please read this instruction manual carefully before using your device. Photos are included in this manual to help you visualize the informations.
-
Page 4: Table Of Contents
• Recovery Tank Sewage Sensor ....20 • Battery Discharge Indicator......21 • Overload Reset Switch ......... 21 • Reversing Indicator........22 • Timer............22 • Drain The Recovery Tank ...... 22 - 24 - 4 - JVC56RIDERN User Guide... -
Page 5: Safety Precautions
WARNING: It is important not to touch the brushes when they are in operation. Please turn off the unit before performing any repairs. JVC56RIDERN User Guide - 5 -... - Page 6 - Do not power spray or hose off the machine. Electrical malfunction may occur. - Use the parts provided or approved by Johnny Vac. - Maintenance should be performed by qualified maintenance personnel. - Never repair any part of the unit that differs from its original design.
-
Page 7: Safety Labels
Please read the manual when operating the machine. Located on the seat panel WARNING LABEL DO NOT use flammable materials in the tank in case WARNING LABEL of explosion or fire. Authorized service technicians only - 7 - JVC56RIDERN User Guide... -
Page 8: Machine Components
M A C H I N E C O M P O N E N T S 1. Steering wheel 2. Foot pedal 3. Front wheel 4. Brush disc 5. Water level tube 6. Squeegee assembly 7. Reversing light 8. Discharge hose 9. Large wheel 10. Water valve handle - 8 - JVC56RIDERN User Guide... -
Page 9: Symbols On Control Panel
S Y M B O L S O N C O N T R O L P A N E L Main power Brush Loading / Horn button Forward and Speed control switch Unloading switch backward switch button - 9 - JVC56RIDERN User Guide... -
Page 10: How This Machine Works
NOTE: The type of brush head or cleaning pad is determined by the quantity and type of contamination particles and type of dirt. For special suggestions, please refer to the brush information section of this manual or contact the Johnny Vac service team. - 10 -... -
Page 11: Brush Information
Pad holder and pad - It is used to scrub floor and painted ground to make it bright and clean. Attached information: • Pad holder and pad: 350mm, 13 inches pad holder. • Brush model: 350mm, 13 inches brush. - 11 - JVC56RIDERN User Guide... -
Page 12: Components Installation
11. Notice battery temperature when charging in case of danger and damages to the batteries cause by excessive heat. 12. DO NOT use batteries at insufficient voltage. Charge the batteries to full capacity before using. - 12 - JVC56RIDERN User Guide... -
Page 13: Install Squeegee Assembly
4. As is shown in the following figure, connect suction hose with the squeegee assembly. Squeegee assembly has been set up before delivery. For any adjustment of squeegee assembly, please refer to Section Install Squeegee in this manual. PROPER INSTALLATION OF SUCTION PIPE WRONG INSTALLATION OF SUCTION PIPE - 13 - JVC56RIDERN User Guide... -
Page 14: Brush And Cleaning Pad Installation
(as shown in Figure 2). Press the uninstall/install brush switch and the brush motor starts to rotate and then the brush is installed successfully (as shown in Figure 3 and 4). Figure 1 Figure 2 Figure 3 Figure 4 - 14 - JVC56RIDERN User Guide... -
Page 15: Fill Solution Tank
NOTE: When filing the solution tank with a bucket,, make sure that it is clean. DO NOT use the same bucket for filling and draining he machine. ATTENTION: For conventional scrubbing, only use recommended cleaning detergents. Machine damage due to improper detergent usage, such as washing powder, will void the manufacturer's warranty. - 15 - JVC56RIDERN User Guide... -
Page 16: Machine Operation
Pick up oversized debris in advance before cleaning. Pick up pieces of wire, string ,twine, etc (that may be wrapped around the scrubbing brush). Make a plan for scrubbing in advance. Try to arrange long runs with minimum stopping and starting. Do an entire floor or section at one time. - 16 - JVC56RIDERN User Guide... -
Page 17: Scrubbing
3. Lay the brush and squeegee assembly down manually. Tum the water valve switch to an appropriate water flow and adjust to appropriate driving speed. Step down the pedal to start scrubbing the floor. - 17 - JVC56RIDERN User Guide... - Page 18 2 times after a pause and the machine still cannot run, which indicates that the automatic brake does not reset, pulling t he electromagnetic brake handle back once, the automatic brake will reset and the machine can be used normally.) - 18 - JVC56RIDERN User Guide...
-
Page 19: During Operation
DO NOT operate the machine in areas where the temperature exceeds 43°C (110°F). Scrubbing function cannot be used in areas where the temperature is lower than 0°C (32°F). Maximum rated slope is 7% during operation. Maximum rated inclination for transporting the machine is 19.25%. - 19 - JVC56RIDERN User Guide... -
Page 20: Water Gauge Tube Of Solution Tank
The recovery tank full indicator will shut off the power supply of vacuum motor without disabling scrubbing functions when the tank is full. Please drain it timely to guarantee scrubber's proper operation. Full indicator shield Recovery tank full indicator - 20 - JVC56RIDERN User Guide... -
Page 21: Battery Discharge Indicator
When overload reset switch triggers power failure, please confirm the cause of power failure and make the motor cool down, and then manually press down the overload reset switch button. Please contact the authorized service center if the machine needs to be repaired. Overload reset switch - 21 - JVC56RIDERN User Guide... -
Page 22: Reversing Indicator
1. Drive the machine to a solution disposal drain. 2. Turn the ON/OFF key switch off. FOR SAFETY: Stop the machine on a level surface, turn it off and pull out the key before leaving or maintaining. - 22 - JVC56RIDERN User Guide... -
Page 23: Drain The Tanks
DO NOT rinse the screen filter directly with a hydraulic gun, as is indicated by the arrow. - 23 - JVC56RIDERN User Guide... - Page 24 9. Open the solution tank lid from behind and power water into the tank to clean it. 10. Check whether the screen filter is clean, if not, remove the transparent cover counterclockwise with a special wrench, then remove screen filter and fix it again after cleaning. - 24 - JVC56RIDERN User Guide...
-
Page 25: Battery Charge
LED1 GOES OUT + LED2 CHARGE COMPLETED LED1 / LED2 TURNS GREEN + FAN STOPS NOTE 1. Load short-circuits 2. Reversed connection SITUATIONS WHEN 3. Battery cable short-circuit LED2 TURNS RED 4. Over-heat : LED2 turns Orange - 25 - JVC56RIDERN User Guide... -
Page 26: Battery Charger Fault - Codes
5. In general, the operation interface of machine will raise the alarm in the event of insufficient electricity. In this case, please get the batteries charged timely, otherwise, fault above will occur. - 26 - JVC56RIDERN User Guide... -
Page 27: Machine Maintenance
M A C H I N E O V E R V I E W 1. Reverse light 6. Direction wheel 2. Solution tank 7. Control pannel 3. Squeegee 8. Stering 4. Driving wheels 9. Run/stop pedal 5. Brush 10. Batteries handle compartiment - 27 - JVC56RIDERN User Guide... -
Page 28: Maintenance List
(check it every 100 operating Driving motor hours after 500-hour initial operation and examination) Duty caster Check damages or abrasion Note: More frequent maintenance is needed if the machine works in extremely dusty environment. - 28 - JVC56RIDERN User Guide... - Page 29 FOR SAFETY: Stop the machine on a level surface and turn it off before leaving or servicing. Check the brush and drive wheel hubs daily for entanglement. In addition, the brushes should also be checked for damage and abrasion. - 29 - JVC56RIDERN User Guide...
-
Page 30: Squeegee Blade
Squeegee assembly can be removed from squeegee support during transportation. Unscrew the hold-down nut of squeegee assembly counterclockwise to avoid damage. Remove suction hose Unscrew the hold-down the nut counterclockwise - 30 - JVC56RIDERN User Guide... -
Page 31: Squeegee Blade Replacement
FOR SAFETY: Stop the machine on a level surface, turn it off, and remove the key before leaving or servicing. 3. Remove squeegee assembly from the machine. 4. Release the layer snap joint of the squeegee assembly. - 31 - JVC56RIDERN User Guide... - Page 32 STEP - 1 STEP - 2 - 32 - JVC56RIDERN User Guide...
- Page 33 M A C H I N E M A I N T E N A N C E STEP - 3 STEP - 4 STEP - 5 STEP - 6 7. Fix the squeegee to squeegee support together with suction HOSE. - 33 - JVC56RIDERN User Guide...
- Page 34 Adjust the squeegee blade to an optimal status according to actual demands. - 34 - JVC56RIDERN User Guide...
- Page 35 45° with the ground. Adjust the squeegee blade following Step 2, 3 and 4 if two sides of blade need to be adjusted. - 35 - JVC56RIDERN User Guide...
-
Page 36: Push, Tow And Transport
2.Add 2 gallons (8 L) propylene glycol/recreational vehicle (RV) anti-freezing agent to the solution tank without dilution. 3. Power the machine on, operate solution flow system. When anti-freezing agent flows to scrub head, power the machine off. - 36 - JVC56RIDERN User Guide... -
Page 37: Troubleshooting
Drain solution tank, remove the filter Solution tank filter clogged for cleaning, and then reinstall Improper use of detergent or Contact service personnel brush of JOHNNY VAC Recovery tank full Empty recovery tank Solution tank empty Refill solution tank Poor scrubbing... -
Page 38: Speci Cations
Driving motor 0.40 Type Smart Charger 220 / 110V Duty Caster Position Type Dimension Front wheel (1) Solid 235 mm (0D) x 80 mm width Rear wheels Solid 257 mm (0D) x 80 mm width - 38 - JVC56RIDERN User Guide... - Page 39 S P E C I F I C AT I O N S MACHINE DIMENSIONS 1050MM 1200MM 560MM - 39 - JVC56RIDERN User Guide...
- Page 40 Do not return the unit to the retailer before having spoken with us. Our most precious wish is that you really love your vacuum cleaner! In case of problems, contact our experts at 1 800 361-2043 or by email at info@johnnyvac.com - 40 - JVC56RIDERN User Guide...
