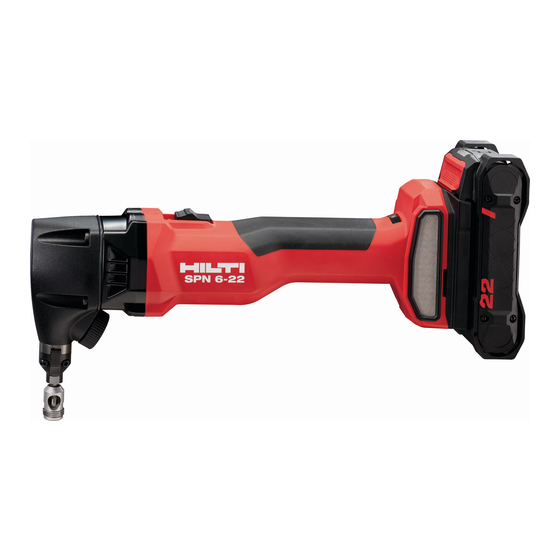

Hilti NURON SPN 6-22 Manual

Hide thumbs Also See for NURON SPN 6-22:
Table of Contents

Advertisement

Quick Links

Download this manual
SPN 6­22
English
1
‫ת י‬
‫ר ב‬
‫ע‬
16

Advertisement

Table of Contents
loading

Related Manuals for Hilti NURON SPN 6-22

Summary of Contents for Hilti NURON SPN 6-22

  • Page 1 SPN 6­22 English ‫ת י‬ ‫ר ב‬ ‫ע‬...
  • Page 6 SPN 6­22 Original operating instructions ........‫ת...

  • Page 7: Information About The Documentation

    Comply with the operating instructions Instructions for use and other useful information Dealing with recyclable materials Do not dispose of electric equipment and batteries as household waste Hilti Li­ion battery Hilti charger 1.2.3 Symbols in illustrations The following symbols are used in illustrations: These numbers refer to the illustrations at the beginning of these operating instructions.

  • Page 8: Product-Dependent Symbols

    The type designation and serial number are printed on the rating plate. ▶ Write down the serial number in the table below. You will be required to state the product details when contacting Hilti Service or your local Hilti organization to inquire about the product. Product information...
  • Page 9 Electrical safety ▶ Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. ▶ Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators.
  • Page 10 Battery tool use and care ▶ Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. ▶ Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
  • Page 11 Allow the battery to cool down. If it is still too hot to touch after an hour, the battery is faulty. Consult Hilti Service or read the document entitled "Instructions on safety and use for Hilti Li-ion batteries".
  • Page 12 Hilti recommends the batteries stated in the table at the end of these operating instructions for this product. • For these batteries, use only Hilti chargers of the type series stated in the table at the end of these operating instructions. Items supplied Nibbler, Torx wrench, operating instructions To help ensure safe and reliable operation, use only genuine Hilti spare parts and consumables.
  • Page 13 Status indicators of the Li­ion battery Hilti Nuron Li-ion batteries can indicate state of charge, fault messages and the battery's state of health. 3.5.1 Indicators for state of charge and fault messages WARNING Risk of injury by a falling battery! ▶...

  • Page 14: Technical Data

    Technical data The nibbler comes with the SPN­CN, SPN­RN or SPN­RL accessory tool as standard. The individual accessory tools are also available as optional accessories and are compatible with every as-delivered version of the power tool. SPN 6-22 SPN­CN SPN­RN SPN­RL Rated voltage 21.6 V...
  • Page 15 Fall arrest WARNING Risk of injury by falling tool and/or accessory! ▶ Use only the Hilti tool tether recommended for your product. ▶ Prior to each use, always check the attachment point of the tool tether for possible damage. 2327535...
  • Page 16 Comply with the national regulations for working at heights. As drop arrester for this product, use only a combination of the Hilti retaining strap and the Hilti tool tether #2261970. ▶ Secure the retaining strap to the installation openings for accessories. Check that it holds securely.

  • Page 17: Operation

    2. Remove the accessory tool from the housing. Adjusting the stroke rate ▶ Set the stroke rate by turning the adjusting knob for motor speed. Operation Observe the safety instructions and warnings in this documentation and on the product. Switching on 1.

  • Page 18: Optional Accessories

    To help ensure safe and reliable operation, use only genuine Hilti spare parts and consumables. Spare parts, consumables and accessories approved by Hilti for use with your product can be found at your Hilti Store or online at: www.hilti.group...
  • Page 19 4. If the following equipment exists, also take this action: Option: SPN­RL ▶ Insert the pushrod extension between the pushrod and the punch and grease it. 5. Install the accessory tool. → page 10 Changing the die Option: SPN­CN 1. Push the cover ring up and out of the groove. 2.

  • Page 20: Troubleshooting

    ▶ Switch the product off immedi- very hot. ately, remove the battery, keep it under observation, allow it to cool down and contact Hilti Service. Product does not develop full A battery with inadequate capacity ▶ Use a battery with adequate power.

  • Page 21: Manufacturer's Warranty

    ▶ Cover the terminals with a non-conductive material (such as electrical tape) to prevent short circuiting. ▶ Dispose of your battery out of the reach of children. ▶ Dispose of the battery at your Hilti Store, or consult your local governmental garbage disposal or public health and safety resources for disposal instructions.
  • Page 22 ‫י ל‬ ‫ש‬ ‫ה‬ ‫ל ן‬ ‫י א‬ ‫ן‬ - ‫ו י‬ ‫ם ו‬ ‫י ת‬ ‫י ל‬ ‫ת‬ ‫ל ל‬ ‫ו ס‬ Hilti ‫ן ע‬ ‫ט‬ ‫מ‬ Hilti ‫ם י‬ ‫ר ו‬ ‫י א‬ ‫ב‬ ‫ם‬ ‫י ל‬ ‫מ‬ ‫ס‬...
  • Page 23 ‫ו מ‬ ‫ש‬ ‫י‬ ‫נ כ‬ ‫ט‬ ‫ה‬ ‫ד‬ ‫ו ע‬ ‫י ת‬ ‫ה‬ Hilti Entwicklungsgesellschaft mbH | Zulassung Geräte | Hiltistraße 6 | 86916 Kaufering, Germany ‫ת‬ ‫ו ח‬ ‫י ט‬ ‫ב‬ ‫ם י‬ ‫י ל‬ ‫מ‬ ‫ש‬ ‫ח‬...
  • Page 24 ‫ל ב‬ ‫כ‬ ‫ה‬ ‫ת‬ ‫ו ע‬ ‫צ‬ ‫מ‬ ‫א‬ ‫ב‬ ‫י ל‬ ‫מ‬ ‫ש‬ ‫ח‬ ‫ה‬ ‫ה‬ ‫ד‬ ‫ו ב‬ ‫ע‬ ‫ה‬ ‫י‬ ‫ל כ‬ ‫ת‬ ‫א‬ ‫ם‬ ‫י ר‬ ‫ת‬ ‫ל‬ ‫א‬ ‫: ה‬ ‫מ‬ ‫ג ו‬ ‫ד ל‬ ‫, ד‬...
  • Page 25 ‫מ‬ ‫ש‬ ‫ח‬ ‫ב‬ ‫ת‬ ‫ו ח‬ ‫י ט‬ ‫ב‬ ‫ק‬ ‫ב‬ ‫א ו‬ ‫ת‬ ‫ו ח‬ ‫ל‬ Hilti ‫ל‬ ‫ש‬ ‫ת ו‬ ‫ד ב‬ ‫ע‬ ‫מ‬ ‫ב‬ ‫ה‬ ‫ק‬ ‫י ד‬ ‫ב ל‬ ‫ר י‬ ‫ד ס‬ ‫ן פ‬...
  • Page 26 ‫ם‬ ‫י ד‬ ‫ע ו‬ ‫י מ‬ ‫ו‬ ‫ל א‬ ‫ם‬ ‫י ל‬ : ‫כ‬ SPN-RL ‫- ו‬ SPN-RN Hilti Nuron ‫, ם‬ ‫י י ל‬ ‫מ‬ ‫י ט‬ ‫פ‬ ‫ו א‬ ‫ם‬ ‫י ע‬ ‫ו צ‬ ‫י ב‬ ‫ג‬...
  • Page 27 ‫ט‬ ‫ה‬ ‫ת‬ ‫מ‬ ‫ר‬ ‫ת‬ ‫א‬ ‫ג‬ ‫י צ‬ ‫ה ל‬ ‫ת‬ ‫ו ל‬ ‫ו כ י‬ Hilti Nuron ‫ל‬ ‫ש‬ ‫ן‬ - ‫ו י‬ ‫ם ו‬ ‫י ת‬ ‫י ל‬ ‫ת ו‬ ‫ל ל‬ ‫ו ס‬ ‫ה‬ ‫א‬...
  • Page 28 SPN 6-22 SPN­RL SPN­RN SPN­CN ‫ט‬ ‫ל ו ו‬ 21.6 ‫ט‬ ‫ל ו ו‬ 21.6 ‫ט‬ ‫ל ו ו‬ 21.6 ‫ב ו‬ ‫ק נ‬ ‫ח‬ ‫ת‬ ‫מ‬ ‫ג‬ ‫" ק‬ ‫ג‬ ‫" ק‬ ‫ג‬ ‫" ק‬ ‫ה‬ ‫ל ל‬ ‫ו ס‬ ‫א‬...
  • Page 29 ‫ה ד‬ ‫ו ב‬ ‫ע‬ ‫ה‬ ‫י‬ ‫ל כ‬ ‫ש‬ ‫כ‬ ‫ה‬ ‫ע‬ ‫י צ‬ ‫פ‬ ‫ת‬ ‫נ כ‬ ‫ס‬ Hilti ‫ך ל‬ ‫ש‬ ‫ר צ‬ ‫ו מ‬ ‫ה‬ ‫ר‬ ‫ו ב‬ ‫ע‬ ‫ץ ל‬ ‫מ‬ ‫ו מ‬ ‫ה‬ ‫ל‬ ‫ש‬...
  • Page 30 ‫ה‬ ‫ד‬ ‫ו ב‬ ‫ע‬ ‫ה‬ ‫י‬ ‫ל כ‬ ‫ת‬ ‫נ ק‬ ‫ת‬ ‫ה‬ ‫ת ו‬ ‫ר י‬ ‫ה ז‬ ‫! ה‬ ‫ע‬ ‫י צ‬ ‫פ‬ ‫ת‬ ‫נ כ‬ ‫ס‬ ‫ד ח‬ ‫ו‬ / ‫א‬ ‫ו ד‬ ‫ו א‬ ‫מ‬ ‫ם‬...
  • Page 31 ‫( ם‬ ‫ש‬ ‫ג ב‬ ‫ה‬ ‫ת‬ ‫ו א‬ ‫ח‬ ‫י נ‬ ‫ה ל‬ ‫ו א‬ ‫ם‬ ‫י מ‬ ‫ב‬ Hilti ‫ל‬ ‫ש‬ ‫ת‬ ‫ו ר‬ ‫י ש‬ ‫ל‬ ‫ה נ‬ ‫פ ו‬ ‫ק י‬ ‫ל ד‬ ‫א ל‬ ‫ל כ‬...
  • Page 32 ‫פ‬ ‫ה‬ ‫ך‬ ‫ר ו‬ ‫צ ל‬ www.hilti.group ‫: ת‬ ‫ב‬ ‫ו ת‬ ‫כ ב‬ ‫ו א‬ ‫ך ל‬ ‫ש‬ Hilti Store ‫- ב‬ ‫א‬ ‫צ‬ ‫מ‬ ‫ת‬ ‫ך ל‬ ‫ש‬ ‫ר צ‬ ‫ו מ‬ ‫ה‬ ‫ר‬ ‫ו ב‬ ‫ע‬...
  • Page 33 ‫ב צ‬ ‫מ‬ ‫ה‬ ‫י ו ו‬ ‫י ח‬ ‫ל‬ ‫ב ל‬ ‫ם‬ ‫י ש‬ ‫ה‬ ‫ל ק‬ ‫ת‬ ‫ל‬ ‫כ ב‬ Hilti ‫ל‬ ‫ש‬ ‫ת‬ ‫ו ר‬ ‫י ש‬ ‫ל‬ ‫ה‬ ‫נ פ‬ ‫, ך‬ ‫מ‬ ‫צ‬ ‫ע‬ ‫ב‬...
  • Page 34 ‫ח‬ ‫א‬ ‫ה‬ ‫ר ו‬ ‫ז ח‬ ‫י מ‬ ‫ה‬ ‫ת‬ ‫ר ב‬ ‫ח‬ ‫ל‬ ‫ה‬ ‫נ פ‬ ‫ו א‬ Hilti Store ‫- ב‬ ‫ה‬ ‫ל ל‬ ‫ו ס‬ ‫ה‬ ‫ת‬ ‫א‬ ‫ק ל‬ ‫ס‬ ◀ ‫ם‬ ‫י ר‬ ‫מ‬...
  • Page 40 *2327535* 2327535 Hilti = registered trademark of Hilti Corp., Schaan Pos. 1 | 20211214...
