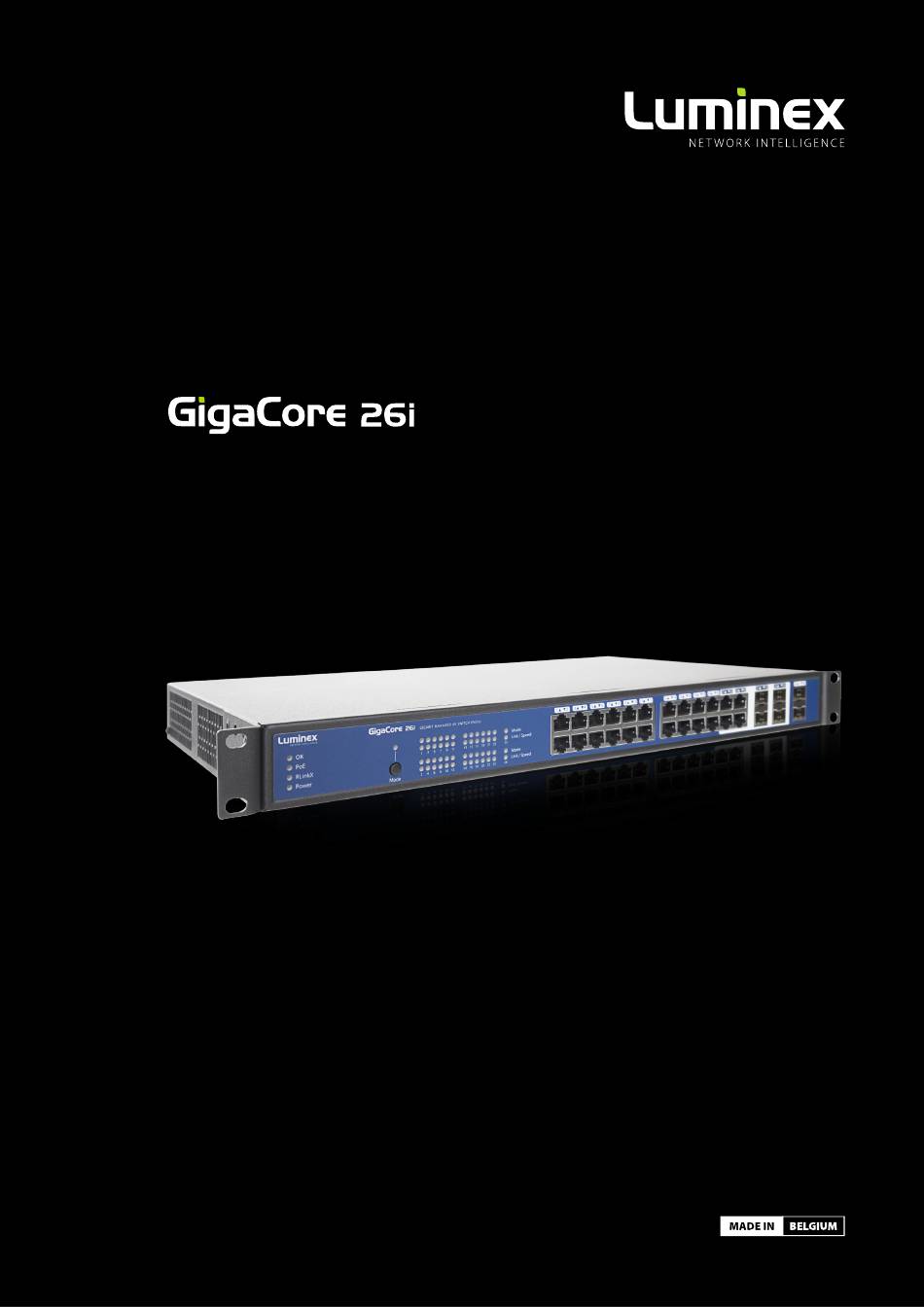

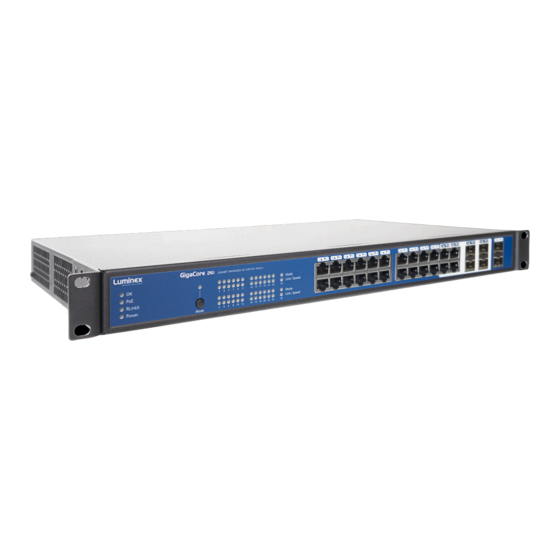

Description: User Manual GigaCore 26i.
REVISION: 20220812-REV 2.8.8
USER MANUAL
GIGACORE PRODUCT FAMILY
GigaCore 26i
Thanks for choosing Luminex

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GigaCore 26i and is the answer not in the manual?

Questions and answers

Related Manuals for Luminex GigaCore 26i

Summary of Contents for Luminex GigaCore 26i

  • Page 1 Description: User Manual GigaCore 26i. REVISION: 20220812-REV 2.8.8 USER MANUAL GIGACORE PRODUCT FAMILY GigaCore 26i Thanks for choosing Luminex...
  • Page 2 IMPORTANT NOTICE: DO NOT MODIFY THIS UNIT! This product, when installed as indicated in the instructions contained in this manual, meets FCC requirements. Modifications not expressly approved by Luminex Lighting Control Equipment nv may void your authority, granted by the FCC, to use the product.
  • Page 3 Returning under warranty Please contact your dealer when products need to return to Luminex for repair. Luminex can only accept returns accompanied by a valid RMA number issued by Luminex and requested by your dealer or distributor. Any product returned to Luminex must be packaged in a suitable manner to ensure adequate protection of the parts.
  • Page 4 ƒ To prevent your product from overheating, do not operate it in an area that exceeds the maximum recommended ambient temperature of 50°C for the GigaCore 26i and 40°C for the GigaCore 26i with PoE.
  • Page 5 Important safety IntructIons POWER CABLE: Use only approved power cables. If you have not been provided with a power cable for your system or for any AC powered option intended for your system, purchase a power cable that is approved for use in your country.

  • Page 6: Table Of Contents

    Table of contents GENERAL INFORMATION WARRANTY INFORMATION IMPORTANT SAFETY INSTRUCTIONS 1 APPLICATIONS 2 INSTALLATION Mounting the device ......9 Rack mount .
  • Page 7 6 TECHNICAL SUPPORT 7 TECHNICAL SPECIFICATIONS GigaCore 26i Without PoE ......35 GigaCore 26i With PoE .
  • Page 8 1. Applications A few examples of applications where the GigaCore 26i can be used: ƒ Convention centers ƒ Architectural lighting ƒ Multimedia shows ƒ Schools ƒ Theme parks ƒ Theaters, operas ƒ Festivals, tours ƒ ..Typical Applications: PTPv2 / Precision Time Protocol...

  • Page 9: Installation

    RACK MOUNT In case you want to mount your GigaCore 26i and GigaCore 26i with PoE in a standard 19-inch rack, you need 4 rack screws to mount the device. 2.2 power up the device Power-up the device with a power cable with IEC connection (J) (please contact your local dealer if you do not have a suitable power cable at hand).

  • Page 10: Description

    (A) Status LEDs ƒ OK: Indicates the general status of the switch. ƒ PoE: Indicates the status of the PoE functionality and the PoE supply (GigaCore 26i with PoE only). ƒ RLinkX: Indicates the RLinkX status. ƒ Power: Indicates the status of the power supply.

  • Page 11: Led Indicators

    2 | INSTAllATIoN 2.4 leD indicators There are various LEDs on GigaCore 26i and GigaCore 26i with PoE. Here is a list of the LEDs, the possible colours, and the meaning of each colour: Switch LED Status Meaning OK (General status LED) Green All OK.

  • Page 12: Connection To The Web Interface

    2 | INSTAllATIoN 2.5 connection to the web interface ƒ The GigaCore 26i IP address can be found at the rear of the unit. ƒ Set your computer with a compliant IP address (do not use the same IP address!).

  • Page 13: Installing Mini Gbic (Sfp) Transceivers

    2 | INSTAllATIoN 2.7 Installing mini GbIc (sfp) transceivers The GigaCore 26i is equiped with six SFP cages. These cages accept mini GBIC transceivers. Insert the transceiver into the SFP cage. Once properly engaged, the transceiver can’t be removed. Bail wire delatch...

  • Page 14: Connecting The Gigacore Redundant Power Supply Unit 400

    Only use the RPSU400 to connect to the GigaCore 26i or GigaCore 26i with PoE. The article number for the RPSU400 is LU 01 00061. One RPSU400 can monitor up to three GigaCore 26i or GigaCore 26i with PoE devices but can only supply power to one device.

  • Page 15: Gigacore Features Explained

    These features will be explained in the following paragraphs. 3.1 rlinkX RLinkX, which stands for Redundant Link by LumineX, is an automated system to easily create redundant paths between your GigaCore switches. Switches automatically create active and redundant paths, providing an effortless method to create safe networks.

  • Page 16: Groups (Vlans)

    3 | GIGACoRE fEATURES ExPlAINED 3.2 Groups (Vlans) The groups function allows the user to segment the network into several virtual networks (VLANs). The main benefit of this function is that no group will affect the other groups, on protocol level. The user can create several groups on the network, and each device included in a group will be able to communicate with devices in this group only.
  • Page 17 3 | GIGACoRE fEATURES ExPlAINED However, only one link is active between the switches, as the other link is used as redundant link. So, a maximum of 1000Mbps data transfer can be achieved on this link. In our example, we need 1600Mbps of throughput to transfer all four video streams between the switches.
  • Page 18 3 | GIGACoRE fEATURES ExPlAINED In some circumstances it might happen that several data streams will be forwarded to the same port. To know where the data stream will be forwarded to, you can have a look at our aggregation planning web page.

  • Page 19: Configuration

    Alternatively, you could configure your switch using Araneo. Araneo is available for Windows and MacOS and can be found in the download section of our website: http://www.luminex.be/download- araneo/. PLEASE KEEP IN MIND THE WEB INTERFACE OF A SWITCH CAN ONLY BE REACHED THROUGH A PORT...

  • Page 20: Global Page

    4 | CoNfIGURATIoN (C) Identify Clicking on the Luminex logo will identify your GigaCore in the network. The mode LEDs will flash green three times. (D) Main menu On the left-hand side, you can find the main menu. Click on any tab to reach the corresponding menu.
  • Page 21 4 | CoNfIGURATIoN 4.2.1 Device settings This menu allows you to change the IP and ID settings of the unit, and the brightness of the port LEDs. IP SETTINGS Assign here the IP mode and IP address of your switch. This IP address will be used to reach the switch’s web interface.
  • Page 22 4 | CoNfIGURATIoN 4.2.2 port settings This menu allows you to change the port’s speed, add a legend to each port and enable remote monitoring per port. The port speed drop-down menu offers the following options: ƒ Disabled: Disable the port. The port will appear greyed out on the top switch image. ƒ...
  • Page 23 4 | CoNfIGURATIoN If the offset occurs on the fiber port, the port mode LED will flash RED to indicate the problem. A message will also be displayed in Araneo and the webUI of the GigaCore. If the user does not opt for automatic reboot of the switch, then the affected fiber link will automatically get a different path cost in case it concerns a designated port.

  • Page 24: Rlinkx

    To provide users with a more advanced and efficient method to recover topology in case of a link failure, Luminex has developed a new method for best link cost calculation in an aggregated network, based on the available bandwidth per link.

  • Page 25: Groups (Vlans)

    4 | CoNfIGURATIoN This calculation method is the default one when using MultiLinkX. However, in case you would have to connect your aggregated links to an existing IT network, best is to select the usual path cost calculation based on RSTP. To select this method, click on the Advanced button and select RSTP as link cost.
  • Page 26 ƒ VID (VLAN ID): Luminex group technology relies on the 802.1Q VLAN protocol. By default, Luminex groups have a default VLAN ID of the group number x 100. If required, the user can change the VID of the group. Be aware that if you wish to change the VID you will have to change this on all the switches using this group.
  • Page 27 4 | CoNfIGURATIoN P2P - Peer to Peer. The P2P delay mechanism measures the delay between two nodes only independent of their states. Domain: please enter a value for your PTP domain here. Press Apply to submit your changes. You can have only one PTPv2 setup per switch, so in one group only. On the status page, a stopwatch will be displayed for every port set in the group associated to a PTPv2 domain.

  • Page 28: Poe (Lu 01 00048-Poe Only)

    4 | CoNfIGURATIoN MULTILINKX MultiLinkX (also known as link aggregation) allows you to gather several links together in order to increase the available bandwidth between switches. MultiLinkX is available for ISL ports only. To enable MultiLinkX you first select group zero (ISL) on the group page. Select the “Advanced” option and tick the box “Enabled”...
  • Page 29 4 | CoNfIGURATIoN POE SETTINGS The settings page allows you to assign the following PoE parameters to the RJ45 ports: ƒ Enable/Disable PoE per port. ƒ Assign a priority on the port. To change the PoE parameters of one or several ports please apply the following procedure: (A) Select the port(s) you wish to modify.

  • Page 30: Profile Manager

    4 | CoNfIGURATIoN 4.6 Profile manager The profile manager allows the user to easily save/recall/export or import a configuration. A profile will contain the following parameters: ƒ Device settings ƒ Port settings ƒ RLinkX settings ƒ Group settings ƒ PoE settings This way the user can create a comprehensive configuration for a switch, save it as a profile, and recall it later when needed.
  • Page 31 4 | CoNfIGURATIoN Your computer’s IP address needs to be set in the same subnet mask as the loaded profile’s IP. PLEASE KEEP IN MIND THE WEB INTERFACE OF A SWITCH CAN ONLY BE REACHED THROUGH A PORT ASSIGNED IN THE MANAGEMENT GROUP (FROM THE SWITCH YOU’RE CONNECTED TO, OR FROM ANOTHER SWITCH THROUGH AN ISL PORT) PAY ATTENTION THE PROFILE YOU’RE GOING TO RECALL IS NOT CHANGING YOUR LINK TO THE WEB INTERFACE OF THE SWITCH YOU’RE WORKING WITH ALSO PAY ATTENTION THAT THE IP ADDRESS THAT WILL BE RELOADED WITH THE PROFILE DOESN’T...

  • Page 32: Reset

    Default login: admin Default password: No password ƒ Factory Reset: With a factory reset the device is fully reset to the state it left Luminex and ALL data will be erased. Default login: admin...

  • Page 33: Factory Reset

    5 | RESET Be aware, releasing the mode button before the status LEDs start flashing green, or after the LEDs have stopped flashing red, will cancel the operation. Release the button = Release the button = Hold the mode button Reload default Reset Function...
  • Page 34 If you need to ask our team for more help or you need to return a device to Luminex for diagnostics or repair, you can also find the option on this page to request an RMA or start a support ticket.
  • Page 35 7. Technical Specifications GIGACORE 26I WITHOUT POE MECHANICAL Enclosure Robust all metal housing Dimensions (W x D x H) 482 x 270.31 x 44 mm Material thickness 2 mm Mounting type Rack mount Weight 3.5 kg Packaging dimensions 547 x 425 x 80 mm...
  • Page 36 7 | TEChNICAl SPECIfICATIoNS SWITCH FEATURES Boot time 26 s Redundant links Group function IEEE 802.2 IEEE 802.3 IEEE 802.3u IEEE 802.3x Flow Control IEEE 802.3ab Gigabit Ethernet IEEE 802.1p CoS IEEE 802.1d Spanning Tree IEEE 802.1w Rapid Spanning Tree Ethernet compliance IEEE 802.1s Multiple Spanning Tree IEEE 802.1Q VLAN...
  • Page 37 7 | TEChNICAl SPECIfICATIoNS POWER 100-240 VAC Power input 50-60 Hz 0.5 - 0.29 A Backup power input +12 VDC - 2.5A on Molex 14-pin connector Power consumption ENVIRONMENTAL Operating temperature 0 to +50 °C Storage temperature -10 to +70 °C Humidity (non condensing) 5 to 95% RH APPROVALS...
  • Page 38 7 | TEChNICAl SPECIfICATIoNS GIGACORE 26I WITH POE MECHANICAL Enclosure Robust all metal housing Dimensions (W x D x H) 482 x 270.31 x 44 mm Material thickness 2 mm Mounting type Rack mount Weight 4.0 kg Packaging dimensions 547 x 425 x 80 mm...
  • Page 39 7 | TEChNICAl SPECIfICATIoNS POWER OVER ETHERNET 802.3af Standards 802.3at 802.3af, 802.3at PoE Ports On ports 1-24 Total PoE power budget up to 370W - up to 330W for Rev A devices LLDP support User configurable: x Priority per port Power allocation x Consumption vs Class/LLDP based x Total power budget firmware limit - port shutdown at overload based on port priority...
  • Page 40 7 | TEChNICAl SPECIfICATIoNS Address learning / aging Self learning, Auto aging Switching throughput 52 Gbps IGMP Querrier Yes (V1, V2) IGMP Snooping Yes, enabled by default (V1, V2, V3) MANAGEMENT Configuration Built-in WebUI (easy/advanced) Network wide configuration Yes, with Araneo software Firmware upgrades Via WebUI or network wide with Araneo - contingency option with second firmware file stored POWER...
  • Page 41 6 | TEChNICAl SPECIfICATIoNS DISCLAIMER Luminex LCE operates a policy of continuous development. Luminex LCE reserves the right to make changes and improvements to any of the products described in this document above without prior notice. Specifications are subject to change without notice.
  • Page 42 Slamstraat 13 | 3600 Genk | Belgium | T +32 11 812 189 | info@luminex.be | www.luminex.be...
