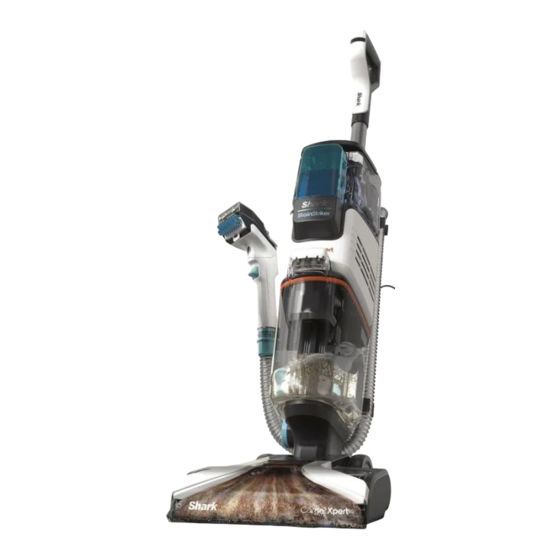

Related Manuals for Shark CarpetXpert
Summary of Contents for Shark CarpetXpert
- Page 1 EX200 WITH SERIES To view HOW-TO VIDEOS scan QR Code located on top of CarpetXpert Tank.
-
Page 2: Table Of Contents
Scan QR code using mobile device How to Use CarpetXpert with StainStriker � � � � � � � � � � � � � � � � � � � � � � � � � � � � 10... -
Page 3: Important Safety Instructions
Spaces that are enclosed and may brushroll cover in place. should be used with this appliance. contain explosive or toxic fumes or 13. Only use Shark® branded filters and 38. DO NOT immerse. To reduce risk of electric vapours (lighter fluid, petrol, kerosene, accessories. -
Page 4: What's Included
WHAT’S INCLUDED ASSEMBLY What’s Included: Shark® CarpetXpert, 355ml. Shark Deep Clean Pro Solution, 473ml. Insert pole into the top of unit until it clicks into place (fig. 1). Shark OXY Multiplier, Hose-Cleaning Tool, Hand Tool(s) Store the hose-cleaning tool by clipping it onto the pole (fig. 2). -
Page 5: Hose Assembly
FILLING THE TANKS Filling the CarpetXpert Tank (top clear tank) Lift the CarpetXpert Tank by the handle to detach it, then remove the cap. Add warm water to the tank up to the WATER fill line. Loop hose tightly into hose Loop hose tightly under the Do not use water hotter than 60°C (140°F). -
Page 6: Cleaning With Carpetxpert
If your model comes with the Shark® Pet stain trapping tool, use it to The Shark Pet Stain Trapping Tool is included with select models. This extracts unhygienic messes, preventing extract liquid messes until the cup is full, then remove the cup and fig. -
Page 7: Maintenance
MAINTENANCE MAINTENANCE Tip: Clean unit after every use to avoid odours and mould. HAND TOOLS Press the release button to detach tool. Pull tab to remove window and bristle strip. Wash tools with soap and water and allow them to Note: When turning off the power, it will take 2 to 3 seconds for the unit to clear the lines and air-dry before reinstalling. -
Page 8: Guarantee
If you further agree to receive communications from us, you can also receive tips and advice on how to get the best out of your Shark floorcare appliance and hear the latest news about new Shark technology and launches. - Page 9 Illustrations may differ from actual product. We are constantly striving to improve our products; therefore the specifications contained herein are subject to change without notice. © 2023 SharkNinja Operating LLC. SHARK is a registered trademark in the United Kingdom of SharkNinja Operating LLC.
Need help?
Do you have a question about the CarpetXpert and is the answer not in the manual?
Questions and answers
how to remove handle shark carpetXpert ex300 series
To remove the handle on a Shark CarpetXpert EX200 (which likely follows the same process as the EX300 series), insert an Allen key into the handle area, push it in, and then pull the handle out to remove it.
This answer is automatically generated
I turn shampooer on and it only runs for a couple of seconds
Possible causes for the Shark CarpetXpert shampooer to only run for a couple of seconds include:
1. Dirty or clogged water ports: The machine has two ports for clean and dirty water. If these are clogged, it may stop functioning properly.
2. Improper sealing: If the dirty water tank is not sealed correctly, it could trigger a safety shut-off.
3. Power button or trigger issues: The unit operates with a single power button and a handle trigger. If either is faulty, it may stop running.
4. Internal blockages: Debris or buildup in the internal system may interrupt operation.
5. Electrical issues: A problem with the motor or power supply could cause it to shut off quickly.
This answer is automatically generated
Bought a used shark carpet express an older one just pi ks up a little bit of dirty water it looks like there is no mechanical problem and I cleaned all filtets?
Your Shark CarpetXpert may not be picking up dirty water effectively due to one or more of the following reasons:
1. Dirty Water Tank Full: The machine will stop suction when the dirty water tank is full. Check the tank and empty it if it's near or above the fill line.
2. Incorrect Mode or Lever Position: Ensure the lever is moved back into the upright position before using the machine in upright mode.
3. Hose Not Stored Properly: Make sure the hose is correctly stored on the machine, as improper setup can affect suction.
4. Clogged or Blocked Path: The suction path or nozzle may be clogged. Check and clean as needed.
5. Cable Placement: Ensure the mains cable is clipped onto the handle to prevent running over it and causing damage.
Check these points to restore effective water pickup.
This answer is automatically generated
Can’t get the machine to draw up the water when in carpet cleaning mode.
The Shark CarpetXpert may not be drawing up water in carpet cleaning mode due to one or more of the following reasons:
1. The suction only occurs during the backward stroke; make sure you are pulling back to activate suction.
2. The nozzle may be clogged—ensure it is not blocked.
3. The dirty water tank may be full or not properly seated.
4. The unit may not be properly plugged in or powered on.
5. The hand tool lever should be in the down position if using the hand tool.
Check each of these to ensure proper operation.
This answer is automatically generated
How do I put the stain striker carpet expert in to dry mode
To switch the Shark CarpetXpert to quick dry mode, press the mode select button after using deep clean mode. Then, pass over the carpet a few times to help reduce dry time.
This answer is automatically generated
unit will not spray from hand held or carpet, both tanks have cleaner in them
The Shark CarpetXpert may not be spraying from the handheld or carpet attachments despite both tanks having cleaner due to the following reasons:
1. Tanks Not Properly Installed – Ensure the CarpetXpert Tank and StainStriker Tank are securely clicked into place.
2. Clogged or Blocked Spray Nozzle – Check for any clogs in the nozzle or tubing and clean them if necessary.
3. Hose Not Properly Attached – Make sure the hose is tightly looped and correctly inserted into the hose clip.
4. Low or No Pressure in Spray System – Air bubbles or trapped air in the system may prevent the spray from working. Try priming by pressing the spray trigger multiple times.
5. Pump or Motor Issue – If the machine is not making the usual spray noise, there could be a pump failure.
Checking these steps can help resolve the issue.
This answer is automatically generated
How do I get the handle back off
To remove the handle from the Shark CarpetXpert EX200, use an Allen key. Push the Allen key into the designated area and remove the handle.
This answer is automatically generated
Why does my brush roll still feel jammed. Is there a brush belt that could have broke? Help!
Flashing green lights which means Selector Lever Error in booklet accompanying my Shark CarpetXpert Ex200. Only second time I have used it, have cleaned everything I think. I keep moving the lever with no results.
