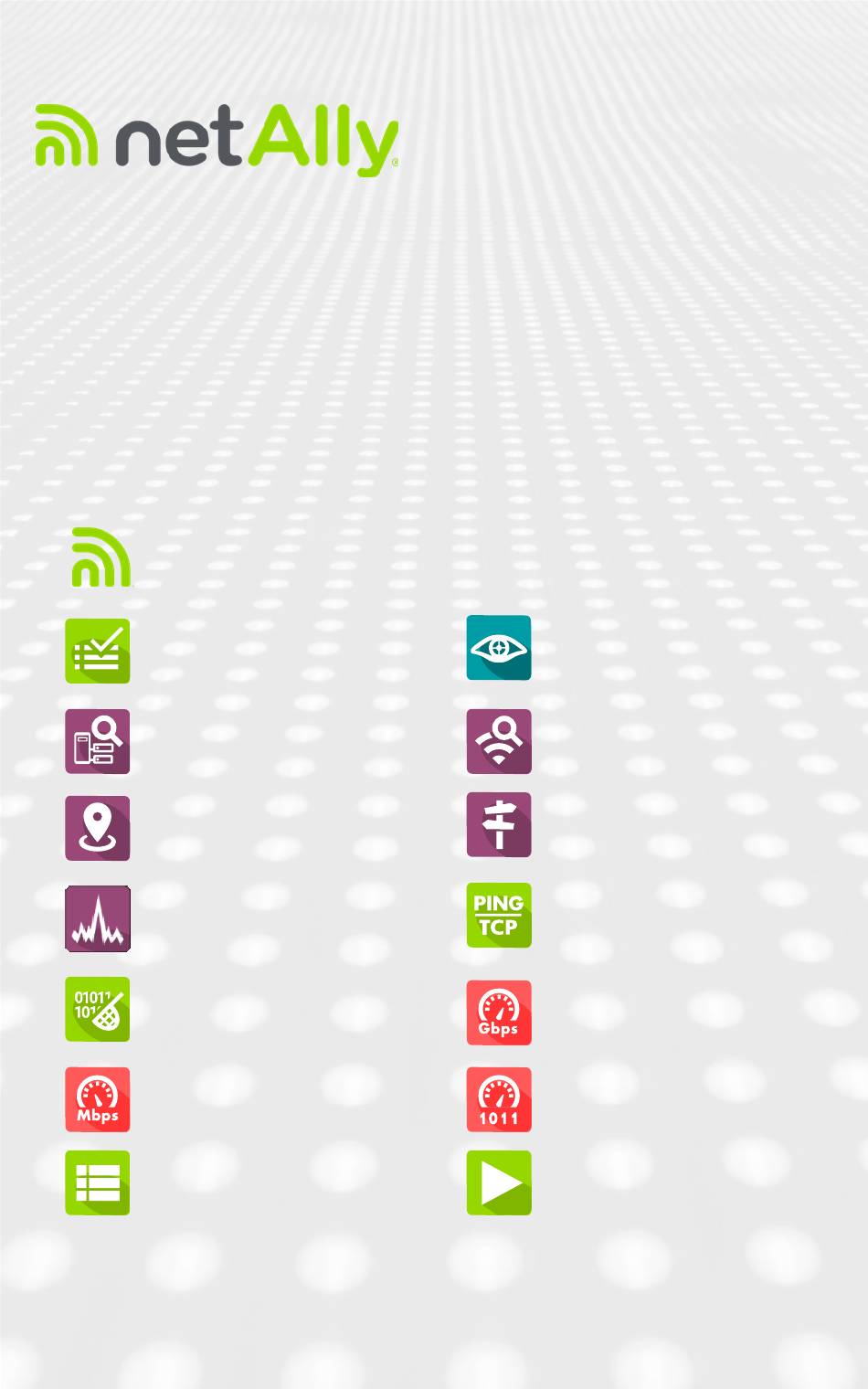

C

Tap a

link

to go directly to the app's chapter.

Scroll down to view the full list of Contents.

NetAlly Network Testing Apps

AutoTest

Discovery

AirMapper™

Spectrum

Capture

iPerf

Link-Live

Software v2.3 Published June 16, 2023

YBER

User Guide

S

COPE

Nmap

Wi-Fi

Path Analysis

Ping/TCP

Performance

LANBERT™

App Store

™

Table of Contents

Advertisement

Table of Contents

Need help?

Need help?

Do you have a question about the CyberScope and is the answer not in the manual?

Questions and answers

Summary of Contents for netAlly CyberScope

Page 1 ™ YBER COPE User Guide Tap a link to go directly to the app's chapter. Scroll down to view the full list of Contents. NetAlly Network Testing Apps Nmap AutoTest Discovery Wi-Fi Path Analysis AirMapper™ Ping/TCP Spectrum Capture Performance iPerf LANBERT™...
Page 2: Table Of Contents
Contents Contact Us Introduction How to Use this Guide Differences Between Models Buttons and Ports Charging and Power PoE Charging Safety and Maintenance Legal Notification Home and System Interface Home Screen Navigating the System System Status Bar and Notifications Notification Panel Apps Screen and Store Device Settings Quick Settings Panel...
Page 3 Sharing a Screenshot Changing the Device Language CyberScope Settings and Tools Navigation Drawer About Screen Exporting Logs Exporting Settings for All Apps Test and Management Ports Test Ports Selecting Ports Test and Port Status Notifications Test Port Notifications Management Port Notifications...
Page 4 Using a Micro SD Card Using a USB Drive Ejecting Storage Media Using a USB Type-C to USB Cable Updating Software Remote Access Using VNC Using Link-Live Remote Managing NetAlly App Settings Resetting Testing App Defaults Saving App Settings and Configurations...
Page 5 Importing and Exporting Settings Importing and Exporting Settings for All Apps Resetting CyberScope Factory Defaults158 CyberScope Feature Access Introduction to CyberScope Feature Access Controlling Feature Access Permanently Disabling Features Changing the Administrative Password183 CyberScope Testing Applications AutoTest App and Profiles...
Page 6 Periodic AutoTest Settings Running Periodic AutoTest Wired AutoTest Profiles Wired Profile Results PoE Test Results Wired Link Test Results 802.1X Test Results VLAN Test Results Switch Test Results Wired Profile FAB Wired Profile Settings PoE Test Settings Wired Connection Settings VLAN Settings Stop After HTTP Proxy...
Page 7 Wi-Fi Connection Settings Advanced (Wi-Fi Connection) Settings Channel Test Settings HTTP Proxy DHCP, DNS, and Gateway Tests DHCP or Static IP Test DNS Test Test Targets for Wired and Wi-Fi AutoTests Adding and Managing Test Targets AutoTest TCP Connect Test FTP Test Air Quality AutoTest Profiles Air Quality Profile Results...
Page 8 Introduction to Discovery Main Discovery List Screen Searching the Discovery List Filtering the Discovery List Sorting the Discovery List Security Auditing – Batch Authorization Refreshing Discovery Uploading Results to Link-Live Discovery Details Screens Top Details Card Lower Cards in Device Details Problems Addresses TCP Port Scan...
Page 9 Routers Switches Unknown Switches Network Servers Hypervisors Virtual Machines Wi-Fi Controllers Access Points (APs) Wi-Fi Clients VoIP Phones Printers SNMP Agents Network Tools Hosts/Clients Device Names and Authorization Assigning a Name and Authorization to a Device Discovery Settings Active Discovery Ports Extended Ranges ARP Sweep Rate Refresh Interval...
Page 10 Nmap Auto AP Grouping Rules Problem Settings TCP Port Scan Settings Wi-Fi Analysis App Wi-Fi Analysis and Discovery Wi-Fi App List Screens Wi-Fi App List Screens Filtering in the Wi-Fi App Sorting in the Wi-Fi App Clearing All Problems Setting Authorization Uploading Results to Link-Live Wi-Fi Details Screens Wi-Fi Problems Screen...
Page 11 Path Analysis Settings Populating Path Analysis from Another App Configuring Path Analysis Manually Running Path Analysis Path Analysis Results and Source CyberScope Cards Layer 3 Hops Layer 2 Devices Uploading Results to Link-Live Spectrum Test App Using the Spectrum Views...
Page 12 Uploading Results to Link-Live Spectrum Settings Changing Spectrum Views Saving Settings Changing Spectrum Settings Ping/TCP Test App Ping/TCP Settings Populating Ping/TCP from Another Configuring Ping/TCP Settings Manually Running Ping/TCP Tests Capture App Capture Settings Running and Viewing Captures Link-Live Cloud Service Getting Started in Link-Live Cloud Service Claiming the Unit...
Page 13 Configuring the Source CyberScope Configuring Performance Endpoints OneTouch 10G Performance Peer LinkRunner G2 Reflector LinkRunner AT Reflector NPT Reflector Software Running a Performance Test Performance Test Results Performance Service Detailed Results Uploading Results to Link-Live Running CyberScope as a Performance Peer...
Page 14 Running an iPerf Test Uploading Results to Link-Live LANBERT™ Test App LANBERT Settings Configuring LANBERT Generator Settings Configuring LANBERT Loopback Settings Running a LANBERT Test Uploading Results to Link-Live Specifications and Compliance CyberScope Specifications General Wireless Environmental Specifications CyberScope Certifications and Compliance...
Page 15: Contact Us
Colorado Springs, CO 80920 For additional product resources, visit: Cyberscope.netally.com/ For customer support, visit: NetAlly.com/Support Register your CyberScope Registering your product with NetAlly gives you access to valuable information on product updates, troubleshooting procedures, and other services. Register on the NetAlly Support...
Page 16: Introduction
Back to Title and Contents CyberScope User Guide Introduction The CyberScope is a rugged, handheld cyber security analyzer. The multi-function tools and various applications allow comprehensive site security surveying, analysis and reporting for your on-premises site networks. It features applications developed by NetAlly for network...
Page 17: How To Use This Guide
The guide is meant for users who are know- ledgeable about network operations, tests, and measurements. The CyberScope is also referred to as just CyberScope or the "unit" in this guide. blue links to go to their destinations.
Page 18 Introduction 3. Enter the search text. 4. Tap the find icon . This displays the text at the top of the screen. Tap the up and down arrows to search forwards and backwards for the text. In the image below, the user has searched on "LAN". Tap the highlight bars on the right to go to the corresponding manual text.
Page 19 Guide, Videos Manuals are also available for download at: https://www.netally.com/support/user- guides/ To view the User Guide on your CyberScope, you must have a network connection with access to the internet (see Connecting to Wi- Fi). When you tap on Guides > User Guide on the "Home Screen"...
Page 20 Introduction International Versions of This Guide A Chinese or English CyberScope user guide is available if you change the device language one of those languages. If you choose Japanese, the English user manual is used.
Page 21: Differences Between Models
Introduction Differences Between Models The Model number of your CyberScope appears on the About Screen and is printed on the back panel of your unit. This manual covers all models and identifies features specific to each model if there are differences. In general: CYBERSCOPE-CE: Supports 2.4 GHz, 5 GHz,...
Page 22: Buttons And Ports
Introduction Buttons and Ports Button and port functions on your CyberScope unit are described below. External Antenna Port 1G/10G Fiber Port USB Type-A Port RJ-45 Ethernet Port with Link and Activity LEDs RJ-45 Cable Test and Management Camera Port Volume...
Page 23 Introduction EATURE ESCRIPTION Connects to an SFP adapter Fiber Port and fiber cable for network 1G/10GBASE-X testing. NOTE: 100FX SFPs are not supported. Connects to a copper RJ-45 LAN Port Ethernet cable for network 10M/100M/1G/ testing 2.5G/5G/10G- Supports PoE (with com- BASE-T patible unit hardware) Green LED lit: Linked...
Page 24 Introduction EATURE ESCRIPTION Speaker Produces audio Press and hold to display menu for Power off or Restart Power Button Green LED: Unit is powered Red LED: Unit is charging Test and Management Ports for detailed explanations of the port functions. Updating Software for requirements on updating system software.
Page 25 Introduction The card should slide in easily when properly oriented. You may need a paperclip or thumbnail to carefully push the SD card in far enough to engage the spring mechanism for insertion and removal. Using a Kensington Lock The Kensington Lock slot is the right, front vent hole on the bottom of the unit, as shown below.
Page 26 Introduction...
Page 27: Charging And Power
Introduction Charging and Power Your CyberScope includes a USB-C 15V/3A power adapter. CAUTION: Only the NetAlly-supplied power adapter is supported. To begin charging the internal lithium-ion battery, plug the included power adapter into an AC outlet and the USB-C charging port on the left side of the unit.
Page 28 Introduction Negotiated PoE class levels 0-3 (≤ 15.4 W) provide some power to extend battery run time but not enough to charge the battery. Use the following steps to enable PoE charging: 1. Connect the top RJ-45 port on the unit to a network switch with PoE or to a PoE injector.
Page 29 Introduction unit or CyberScope detects a new copper link in the top Wired Test Port. Buttons and Ports for port locations and descriptions. Powering On To start up the unit, hold down the Power Button for approximately one second, until the Power Button LED turns green.
Page 30: Safety And Maintenance
Introduction Safety and Maintenance Observe the following safety information: Use only the Adapter provided or Power over Ethernet (PoE) to charge the battery. Ensure that the Adapter is easily accessible. Use the proper terminals and cables for all connections. CAUTION: To avoid possible electric shock or personal injury, follow these guidelines: Do not use the product if it is damaged.
Page 31 Introduction Use as directed. If this product is used in a manner not specified by the manufacturer, the protection provided by the product may be impaired. Safety Symbols Warning or Caution: Risk of damage to or destruction of equipment or software. Warning: Risk of electrical shock.
Page 32 Introduction toothpaste to water onto the affected surface with a bristled brush. CAUTION: Do not use solvents or abrasive materials that may damage the product.
Page 33: Legal Notification
NetAlly will make available open- source code components of this product, if any, at Link-Live.com/OpenSource. NetAlly reserves the right, at its sole discretion, to make changes at any time in its technical information, specifications, service, and support programs.
Page 34: Home And System Interface
Interface This chapter explains how to use the features of the system Home screen and user interface to navigate and organize your device. The CyberScope interface supports many of the operations typical of any hand-held device. Use dragging and swiping...
Page 35: Home Screen
Home and System Interface Home Screen Like other hand-held devices, your CyberScope Home screen is customizable. The image above shows the default configuration, but you can...
Page 36 Home and System Interface add, remove, and reorganize app icons and widgets to serve your purposes. You can also create more Home pages by tapping, holding, and dragging an app icon to the right from the main Home screen. See the Apps screen section for instructions on adding more apps to your Home pages.
Page 37: Navigating The System
Home and System Interface Navigating the System The navigation actions you can perform to move through screens and panels on the CyberScope are the same as those you would use to navigate many other phone or tablet devices. The main device navigation buttons appear at the bottom of the touch screen.
Page 38 Home and System Interface Swiping Touch and drag your finger or "swipe" up, down, left, and right to move through pages of the Home screen and applications, scroll up or down, and pull out navigation drawers and panels. Long Pressing Touch and hold or "long press"...
Page 39 Home and System Interface You can also long press on text on most screens to open options for copying and sharing the text. Left-Side Navigation Drawer In the Files app, tap the Menu icon swipe right to open the navigation drawer. It displays the folders in your file system.
Page 40 NOTE: In the Files app, you may need to tap the action overflow icon at the top right and select Show Internal Storage to navigate to the CyberScope folder and sub- folders, as shown above. See the Navigation Drawer topic for additional information.
Page 41: System Status Bar And Notifications
System Status Bar and Notifications The Status Bar across the top of the screen displays notification icons from the system as well as CyberScope-specific icons related to your network connections and test statuses. Test and Port Status Notifications for details...
Page 42 Home and System Interface Swipe (touch and drag) downwards on the Status Bar at very top of the screen to slide down the Notification Panel. Tap the title and down arrow on a noti- fication (or swipe down on it) to expand the box and view more details or options.
Page 43 Home and System Interface Swipe left on a notification to dismiss it. NOTE: Because they are essential to the CyberScope testing functions, you cannot dismiss the test and management port- related test and port status notifications. Tap CLEAR ALL at the lower right of the...
Page 44: Apps Screen And Store
Home and System Interface Apps Screen and Store To access the apps that are not shown on the Home screen, swipe up on the Home screen or tap the up arrow icon The Apps screen displays all the apps on your device.
Page 45 App Info or access widgets you can add to the Home screen and other actions you can perform. App Store From the Home Screen or Apps Screen, open the NetAlly App Store to download third-party system applications to use on your CyberScope.
Page 46 Home and System Interface NOTE: Your unit must be "claimed" to Link- Live Cloud Service Link-Live.com to access the App Store. Tap the search icon to search for an App. Tap UPDATES to view available updates of installed apps. To request that an App be added to the App Store, visit the Apps page at Link-...
Page 47 Home and System Interface Live.com, and select the floating action button (FAB) at the lower right corner to Request or Upload an App.
Page 48: Device Settings
Home and System Interface Device Settings To access the system device settings, tap the Settings icon at the bottom of the Home screen.
Page 49: Quick Settings Panel
Home and System Interface The device settings screen lets you adjust the display; adjust sound (including volume for external Bluetooth or USB speakers or headsets); set date and time; view installed applications and memory devices; connect to Wi-Fi; or reset to factory defaults.
Page 50 Home and System Interface Swipe down twice to open the full Quick Settings Panel. Touch and drag the slider control at the top of the panel to adjust the screen's bright- ness. Tap an icon in the panel to enable or disable the corresponding feature.
Page 51 Home and System Interface Touch and hold an icon to open the relevant device setting screen, if there is one. For example, touch and hold the Wi-Fi icon to open system's Wi-Fi settings or the Auto- Rotate icon to open Display settings. Tap the pencil icon at the bottom of the Quick Settings Panel to configure the icon...
Page 52 Home and System Interface Language Your device supports English, Japanese, and Chinese language displays. See "Changing the Device Language" on page 71 for information on changing the language. Back to Title and Contents...
Page 53: Connecting To Wi-Fi
Wi-Fi networks during testing. See Test and Management Ports for more information. To connect your CyberScope to a Wi-Fi network, access the system Wi-Fi Device Settings using either method below: Open the device Wi-Fi settings from the main Device Settings...
Page 54 Home and System Interface Internet > Wi-Fi. Open device Wi-Fi settings from the Quick Settings panel by dragging down the top Status Bar and tapping and holding (long pressing) the Wi-Fi icon. Either path opens the Wi-Fi settings screen.
Page 55 Home and System Interface 1. Ensure the Wi-Fi feature is On. 2. Tap an available Wi-Fi network in the list. 3. Enter the network's security credentials. (Most networks only require a password, but depending on the security settings, some may also require a company username, EAP type, authentication type, certificate, or other credentials.) 4.
Page 56: Captive Portals
Home and System Interface The Status Bar displays the Wi-Fi status icon at the top right of the screen. Captive Portals When you try to connect to a network with a Captive Portal requirement, this system noti- fication icon appears in the top Status Bar.
Page 57: Configuring For Enterprise Security
Home and System Interface Configuring for Enterprise Security Enterprise security requirements for WPA/WPA2/WPA3 Enterprise now require a CA certificate file to be imported to your unit. Some EAP types also require a client certificate and key. This procedure assumes that you are trying to connect to an AP using WPA2-E with PEAP.
Page 58 Home and System Interface Test Wi-Fi Management Using WPA2-E with PEAP Import the Client Certificate Before You Begin You may depend on your IT department to provide authorization certificates, which may be created by a Trusted Root Authority like VeriSign or DigiCert.
Page 59 (CA) file (in .pem format) onto a USB thumb drive. 2. Transfer the USB thumb drive to your CyberScope, and then copy the .pem file to the Downloads folder. 3. Open the Settings app. 4. Navigate to Security > Encryption &...
Page 60 Home and System Interface a. Tap the system BACK button to return to Encryption & credentials. b. Tap User credentials. c. Verify that the name of your CA file (for example, CA FreeRadius self-signed) is displayed. 8. If you are creating your own certificate: a.
Page 61 Home and System Interface emailAddress= admin@example.org b. On the same server, create a user login to access the enterprise server. For example, with a FreeRADIUS server, you would edit /etc/freeradius/users, locate the section for "# The canonical testing user", and then create the new user by inserting 2 lines: entuser1 Cleartext-Password := "randompw"...
Page 62 Home and System Interface 4. Scroll down to and then select the SSID of the enterprise server you wish to connect to using WPA2-E (for example, TEST-Ruckus- WPA2-E). 5. Configure the following WPA2-E options in the pop-up dialog: EAP method: PEAP Phase 2 authentication: MSCHAPV2 CA certificate: (use whatever name you chose for your CA certificate, for...
Page 63 1. Obtain a client certificate in .p12 format. Be sure it includes the private key. NOTE: Although the imported CA certificate is a .pem file, NetAlly recommends a .p12 file format for the client certificate. Below is a sample openssl command to convert a client certificate from .pem to .p12 format:...
Page 64 3. Copy the .p12 file to a USB thumb drive. 4. Transfer the USB thumb drive to your CyberScope, and then copy the .p12 file to the Downloads folder. 5. Open the Settings app. 6. Navigate to Security > Encryption &...
Page 65 Home and System Interface 10. (Optional) Verify the client certificate installed correctly: a. Tap the system BACK button to return to Encryption & credentials. b. Tap User credentials. c. Verify that the name of your client certificate file (for example, FreeRadius client) is displayed.
Page 66: Sharing
Home and System Interface Sharing The system Files app lets you share files from internal or external storage can to Bluetooth, a printer, or the Link-Live cloud service. You can upload one selected file or multiple files at once. NOTE: Many apps on your unit allow you to save settings and configuration information directly to Link-Live.
Page 67 Home and System Interface 4. Tap the share icon in the top toolbar to open the Share pop-up dialog. 5. Tap to choose a sharing method and follow the system prompts to share the file or files. a. If uploading to Link-Live, tap the Link-Live option.
Page 68 Home and System Interface b. Enter any Comments you would like attached to your file.
Page 69: Sharing A Screenshot
Link-Live.com.) See the Link-Live chapter for more information on using Link-Live with your CyberScope. Sharing a Screenshot To take and share a screenshot: 1. Press and hold the Power button and the Volume Down button at the same time for one second.
Page 70 Home and System Interface 3. Follow the procedure in Sharing to share the image using Link-Live, Bluetooth, or another configured application.
Page 71: Changing The Device Language
Home and System Interface Changing the Device Language The CyberScope supports Chinese, English, and Japanese language displays. To change the device's interface language: 1. Go to the Device Settings screen by tapping the Settings icon at the bottom of the Home screen.
Page 72 Home and System Interface the top (number 1) place on the list. The CyberScope displays the chosen languages, as available, in the priority order shown on the Language preferences screen. NOTE: The CyberScope supports Chinese, English, and Japanese. This user guide supports Chinese and English.
Page 73: Cyberscope Settings And Tools
Back to Title and Contents CyberScope User Guide CyberScope Settings and Tools The CyberScope features a common set of tools General Settings that apply to multiple NetAlly apps and testing behaviors. This chapter covers settings, icons, and notifications specific to CyberScope.
Page 74: Navigation Drawer
General Settings and Tools Navigation Drawer Many system apps, including the NetAlly test apps, contain additional settings, tools, and information in a "navigation drawer" that slides out from the left side of the screen. To open the navigation drawer: Tap the menu icon at the top left of one of the testing application screens.
Page 75 General Settings and Tools As an example, the AutoTest navigation drawer (above) provides access to the enabled AutoTest profiles, AutoTest Settings, General Settings, and the About screen. Settings for each specific app are described in the chapter for the app.
Page 76: About Screen
General Settings and Tools About Screen The About screen displays the model number, serial number, MAC addresses, software versions, SFP details, and current AllyCare contract status for your CyberScope.
Page 77: Exporting Logs
General Settings and Tools If a User-Defined MAC is enabled in an NetAlly apps' General Settings or in the "Wired Profile Settings" on page 248, (User-defined) appears next to the MAC address on the About screen. Exporting Logs The About screen contains the Export Logs...
Page 78: Test And Management Ports
General Settings and Tools Test and Management Ports The CyberScope has two wired RJ-45 copper ports, a fiber port, and two Wi-Fi radios, each with specific test or management functions described in this section.
Page 79 General Settings and Tools Wired Test Ports Internal Wi-Fi Test Port Internal Wi-Fi Management Wired Port Management Port...
Page 80: Test Ports
1) Wired Test, 2) Wi-Fi Test, 3) Wired Management, and 4) Wi-Fi Management. The Wi- Fi test radio is controlled by in general settings in NetAlly applications such as AutoTest and AirMapper. The Wi-Fi management radio is set up by system network settings. See "Selecting...
Page 81 If the AutoTest app is not currently open, the last Wired Profile in the profile list runs automatically when you power on the unit or CyberScope detects a new copper link in the Wired Test Port. Wired fiber connections and...
Page 82 General Settings and Tools The Use Wi-Fi test port option must be enabled for the test ports to function. (Enabled is the default setting.)
Page 83 General Settings and Tools NetAlly also recommends that you enable all Wi- Fi Bands and Channels before setting up Wi-Fi Test Profiles: 1. Tap the Wi-Fi Bands and Channels option to open the Wi-Fi Bands and Channels screen.
Page 84 General Settings and Tools 2. Tap the Wi-Fi band(s) option to open a selection screen, and then enable all available bands. 3. Tap the option for each frequency band to open a selection screen, and then enable all available channels for each band. This process makes it easier to set up the Wi-Fi Test Profiles, which you can limit to specific channels, APs, SSIDs, etc.
Page 85: Selecting Ports
AutoTests, packet captures, or Performance tests. Selecting Ports Some of the individual NetAlly testing apps let you select which port interface to use for tests or analysis. For example: You may want to verify that you are getting a...
Page 86 General Settings and Tools Each port can connect to different networks. For example, an organization might have one network for visitors and another for staff. You can use multiple ports to check connectivity on each network without the need to link and relink through a single interface.
Page 87 General Settings and Tools The last listed Wired Profile runs auto- matically when you start up the CyberScope if a connection is available.
Page 88: Test And Port Status Notifications
On each notification, you can tap the title and down arrow to expand the box and view more details or options. Various CyberScope icons appear in your Status Bar, as listed in the following sections. NOTE: Read Test and Management Ports descriptions of the port functions.
Page 89: Test Port Notifications
Fiber port. NOTE: If both the fiber and top copper ports are connected to an active network, the CyberScope uses the fiber link as the "Wired Port" for testing. The Wi-Fi Test Port status displays with the wireless channel number under a Wi-Fi or Link icon.
Page 90 General Settings and Tools CyberScope is scanning for discovery, Wi-Fi analysis, or air quality measurements, the channel number changes dynamically to show which channel is currently being scanned. When the CyberScope unit connects to an AP on a Wi-Fi channel, the channel number is static, and the Link icon displays above it.
Page 91: Management Port Notifications
General Settings and Tools Management Port Notifications A Management Port connection is established through the left-side RJ-45 Management port and/or the main system Wi-Fi adapter.
Page 92: Discovery Notifications
General Settings and Tools A Wired Management Port connection is established through the left-side RJ-45 Man- agement port. Its details are displayed under the Management Port notification (above). A Wi-Fi Management Port connection is established via the main system Wi-Fi adapter. Its details are displayed under the Management Port notification.
Page 93: Poe
General Settings and Tools enabled for discovery are connected or AutoTest is running. Discovery is temporarily disabled when AutoTest is running. Indicates that your unit is connected to a Power over Ethernet source. See Charging. VNC/Link-Live Remote A remote VNC connection is active through a standalone VNC client and/or the Remote function in Link-Live Cloud...
Page 94: Cyberscope General Settings
General Settings and Tools CyberScope General Settings CyberScope's General Settings control test and management-related connections that affect multiple test apps. Access the General Settings from the left-side navigation drawer in the NetAlly testing apps, such as AutoTest, Discovery, Capture, iPerf, etc.
Page 95: Wi-Fi
General Settings and Tools Wi-Fi The Wi-Fi General Settings control functions of Wi-Fi Test Port functions. Use Wi-Fi test port: Enable or disable Wi-Fi tests, connections, and measurements in the testing apps, including AutoTest Wi-Fi Profiles and the Wi-Fi analysis app.
Page 96 General Settings and Tools NOTE: This setting does not disable the main system device Wi-Fi function, which controls the Wi-Fi Management port connection. See Device Settings to disable the system Wi-Fi. Country: Set the country code for your unit. This setting controls which channels can be scanned and which channels are reported as illegal or which may have Dynamic Frequency Selection...
Page 97 General Settings and Tools Channel changes do not affect these apps: AutoTest results (linking), Wi-Fi Capture, AirMapper (active surveys) Tap the Dwell Time field to adjust the amount of time the CyberScope stays on each channel to gather data.
Page 98 MAC address. When enabled, an additional User-Defined MAC field appears under the toggle setting. Tap the lower field to enter your desired MAC address for the CyberScope. When a User-Defined MAC is enabled, (User-defined) appears next to the MAC address on the About screen and on relevant test result screens.
Page 99 General Settings and Tools NOTE: Both Wi-Fi and Wired test ports have their own User-Defined MAC settings.
Page 100: Wired
General Settings and Tools Wired Wired General Settings control functions of the Wired Test Port. Use Wired test port: Enable or disable wired tests, connections, and measurements in the testing apps, including AutoTest Wired Profiles. NOTE: the tester reboots when you leave the General Settings screen after you toggle this...
Page 101 Charge Battery via PoE: (Available if supported by tester hardware.) This setting is enabled by default. If you do not want your CyberScope unit to charge when connected to a switch with PoE, tap the toggle button to disable. An AutoTest...
Page 102: Management
MAC address. When enabled, an additional User-Defined MAC field appears under the toggle setting. Tap the lower field to enter your desired MAC address for the CyberScope. When a User-Defined MAC is enabled, (User-defined) appears next to the MAC address on the About screen and on relevant test result screens.
Page 103 General Settings and Tools Tap VNC to open the VNC settings screen and configure your unit's VNC connections for remote operation. Using VNC for more information about connecting to a VNC client or Link-Live Remote.
Page 104 VNC clients and display VNC options. Port number: Tap to enter a port number other than the default. Password: Tap to enter a password, which a VNC user must enter to access the CyberScope interface remotely.
Page 105 Web viewer port: Tap to enter a port number other than the default. Link-Live Remote This setting enables or disables the CyberScope's remote control function in Link- Live Cloud Service at Link-Live.com. NOTE: The Link-Live Remote feature is only available to customers with an active AllyCare subscription.
Page 106: Preferences
DHCP: This setting controls IP address assignment of the RJ-45 Wired Management Port on the left side of the CyberScope. By default, DHCP is enabled. Tap this field and tap the toggle button to disable DHCP and enter static IP information.
Page 107: Trending Graphs
General Settings and Tools Trending Graphs Many of the CyberScope testing apps feature time-based line graphs of recorded meas- urements, which you can pan and zoom to view different time intervals. For example, the image below shows the Signal and Utilization graphs...
Page 108 General Settings and Tools The graphs update in real time and then save and display data for up to 24 hours (depending on test type and/or link status). A legend indicates the measurements that correspond to each plotted color. For another example, the image below shows Capture app graph.
Page 109 General Settings and Tools To pan, or move backward and forward in time, touch and drag (swipe) left and right on each graph. To zoom in on a specific point, double tap the point on the graph. The view zooms in 2x (or displays half the amount of time) for each double tap.
Page 110 General Settings and Tools Capture Discovery – Interface Statistics Wi-Fi – RF and Traffic Statistics Performance iPerf...
Page 111: Common Icons
General Settings and Tools Common Icons The icons below appear in multiple NetAlly test and system apps. Menu Icon - opens the left navigation drawer or other menus Refresh Icon - restarts testing and measuring on the current screen Settings Icon - opens configuration...
Page 112 General Settings and Tools For explanations of the CyberScope icons that appear in the Status Bar at the top of the screen, Test and Port Status Notifications. Floating Action Button (FAB) and Menu Many system applications, including NetAlly's AutoTest and Discovery apps, feature a Floating Action Button or "FAB"...
Page 113 General Settings and Tools See the chapter for each app for descriptions of the FABs specific to that app. For example, see Discovery App Floating Action Menu describes the Discovery FAB in more detail.
Page 114: Common Tools
Browse to internet addresses using a web browser application. CyberScope has the Chromium browser pre-installed. Telnet/SSH Starting with v1.1, CyberScope has the JuiceSSH application pre-installed. Both the AutoTest and Discovery apps provide options to start a Telnet or SSH session using the current device address.
Page 115 General Settings and Tools As a third-party app, JuiceSSH contains its own tutorials. For additional help, tap the action overflow button at the top right of the JuiceSSH app screen, and select View our FAQ.
Page 116: Camera And Flashlight
General Settings and Tools Camera and Flashlight The camera lens and flash are located on the back of the unit. (See Buttons and Ports.) The Camera application is located in the Apps screen and on the Home screen by default. Tap the icon to open the camera app and take a photo, which you can then share...
Page 117: Software Management
CyberScope User Guide Software Management This chapter explains how to save and transfer files, reset app and device defaults, update your software, and remotely access your CyberScope. Tap a link below to skip to a topic: Managing Files Updating Software...
Page 118: Managing Files
See also Sharing. Files Application The Files app allows you to access the files saved on your CyberScope. Tap the icon at the bottom of the Home Screen (or from the Apps screen) to manage your files.
Page 119 Software Management Tap a folder or file to open it. Long press on folders or files to select multiple and to view additional file man- agement operations in the top toolbar, including the Share and Delete buttons. Tap the action overflow icon to see even more actions, such as to create a new folder, move a file, delete an item, and to show or...
Page 120 Software Management Open the left-side navigation drawer easily navigate through the top-level folders and attached storage devices.
Page 121: How To Move Or Copy A File
Software Management How to Move or Copy a File 1. Long press on a file to select it. You can then select more files as needed by tapping them. 2. Tap the overflow icon at the top right. 3. Select Copy to... or Move to..Your selected action button appears at the bottom of the...
Page 122: Using A Micro Sd Card
Using a Micro SD Card To use a Micro SD card for storage, insert it into Micro SD card slot on the left side of your CyberScope. See Inserting a Micro SD card. A Micro SD card icon appears in the Status Bar at the top of the screen.
Page 123: Using A Usb Drive
Micro SD card from the USB port to avoid potential corruption of your storage device's file system. Using a USB Drive Insert a USB flash drive into the USB port on the top of the CyberScope.
Page 124 Software Management A USB icon appears in the Status Bar at the top of the screen. Pull down the top Notification Panel to reveal the USB drive notification. Tap the notification title or down arrow to expand the notification and display additional options: The USB storage location is now available from Files...
Page 125: Ejecting Storage Media
Using a USB Type-C to USB Cable 1. Plug a USB-C cable into the USB-C port on the left side of the CyberScope, and connect to a PC or tablet. 2. On the CyberScope Unit, open the system device settings by tapping the Settings...
Page 126 Software Management 4. On the Connected devices screen, select USB. 5. In the pop-up dialog, tap Transfer files to enable file transfer.
Page 127 NOTE: CyberScope does not charge through a USB cable connected to a PC. 6. On a PC or tablet, navigate to the Cyber- Scope folder, and then move, copy, and paste files to and from the CyberScope's file system. CAUTION: Use the system EJECT function...
Page 128: Updating Software
Live.com. Then your CyberScope can find and download software updates. See Getting Started Link-Live. The first time you claim your CyberScope to Link-Live, a software update may be available. If so, an update icon appears in the Status Bar. Slide down the...
Page 129 Software Management 1. To check for available software updates at any time, open the Link-Live App from Home screen. 2. In the Link-Live App, tap the menu icon or swipe right to open the left-side navigation drawer. 3. Tap Software Update. The Software Update screen opens and displays the version number of any available updates.
Page 130 Software Management 4. Tap Download + Install (or Download + Reinstall) to update the operating system and NetAlly applications. The update downloads and installs automatically. When finished, the unit restarts. 5. After updating, check the Software Update screen again in case another update is still required.
Page 131 1. From your PC, copy the .zip file to a Micro SD card, and then insert the card into your CyberScope. 2. Power off your CyberScope unit. 3. Press and hold the Volume Up button, and then press the Power button. Continue to hold the Volume Up button until the Recovery screen appears.
Page 132 5. Use the volume buttons to highlight the correct update file on the Micro SD card, and then press the Power button to confirm. The CyberScope opens the Updater, installs the update, and then restarts with the update installed. This process can take 5 to 10 minutes.
Page 133: Remote Access
Test and Management Ports. The top notifications are the quickest way to find assigned IP addresses for your CyberScope ports. Swipe down from the Status Bar to view them.
Page 134 Software Management For a wired management connection, you must have an Ethernet cable with an active network connection plugged into the left-side RJ-45 Management Port. For a Wi-Fi Management Port connection, you must have the main System Wi-Fi settings configured to connect to a wireless network. When a remote session is active, the remote icon appears in the top Status bar, along with a notification.
Page 135: Using Vnc
General Settings > VNC to enable and configure VNC connections. To connect to CyberScope using a VNC client: 1. Get the IP address of a connected port (preferably a management port) by swiping down from the Status Bar at the top of the...
Page 136 CyberScope must be claimed. 2. Navigate to the Units page at Link- Live.com. 3. Select the CyberScope you want to remote control from the list of claimed units. 4. Click or tap the REMOTE icon at the top right of the page to open an embedded window containing the CyberScope interface.
Page 137 Software Management To use the Link-Live website while your remote session is active, you must open a new Link-Live tab or window. Back to Title and Contents...
Page 138: Managing Netally App Settings
Restoring CyberScope Factory Defaults. Resetting Testing App Defaults After you adjust settings in the NetAlly apps, you may need to reset an app's settings to the defaults. The following process resets all app- specific settings to the factory defaults. CAUTION:...
Page 139 Software Management Home Apps screen. 2. Tap App info.
Page 140 Software Management 3. On the App info screen, select Storage. (You can also access the App Storage screen from Device Settings > Storage > Internal shared storage > Other apps.) 4. On the Storage screen for the app you selected, tap CLEAR DATA.
Page 141 Software Management 5. When a dialog prompts you to delete the data, tap OK. All of the app's settings are reset to factory defaults.
Page 142: Saving App Settings And Configurations
Software Management Saving App Settings and Configurations Many of the NetAlly testing applications allow you to save and reload configured settings by selecting the save button that appears at the top right within the app's main screen. The following apps enable you to save and load...
Page 143 Software Management The following options display in a drop-down menu: Load: Open a previously saved and named settings configuration.
Page 144 Software Management Save As: Save the current settings with an existing name, or enter a new custom name. Import: Import a previously exported settings file. Export: Create an export file of the current settings, and save it to internal or connected external storage.
Page 145 NetAlly testing apps. Loading a saved default configuration within an app allows you to access the default settings without deleting other con- figurations. This strategy can be most useful for...
Page 146 Link- Live. USB and other devices NOTE: You can import and export settings only between the same kind of NetAlly products. For example, both units must be CyberScopes for a transfer to work.
Page 147 Software Management Tap the save button to import new app settings or export the currently active and selected app settings.
Page 148 Software Management Selected (checked) items in shared lists of configurations are the only ones exported when you choose Export Selected. This can include any checked items in submenus (such as AutoTest Test Targets or Community Strings in Discovery Settings). You can also select Export All to export all selected and unselected items.
Page 149 Software Management You can rename the export file as needed. Settings can be saved to any connected external or internal storage. See Managing Files for instructions on accessing folders and moving files. Settings are saved with the .o file extension.
Page 150 Software Management Selecting Import from an app opens the Files app, where you can navigate to and select the .o file you want to import. Imported settings configurations overwrite existing saved configurations with the same name that are already in the app. Transferring AutoTest Settings to Other Devices Using Link-Live You can use the Link-Live cloud service to...
Page 151 The devices to which you will transfer the settings file Make sure that you have claimed and updated the software for all CyberScope devices to which you want to transfer the settings. (You can use the Link-Live app or web site to do the claiming.
Page 152 Software Management Export the Settings File(s) This procedure is done on the device from which you are transferring the settings. 1. In the AutoTest app main page, tap the settings icon in the top right. This opens the list of profiles. 2.
Page 153 Software Management 4. Tap Export Selected To Link-Live (if you selected profiles) or Export All To Link-Live on the menu. This opens the save screen for Link-Live.
Page 154 Link-Live web site. 2. Click the main menu icon 3. Click on Settings to open the settings menu. 4. Select CyberScope to list the .o settings files available for your devices. 5. Select the settings file you want to transfer.
Page 155 Software Management Use Each Selected Unit to Import the Settings This procedure is performed on the device to which you want to apply the settings. 1. Wait for up to 30 seconds after the file was pushed from Link-Live. 2. Swipe (touch and drag) downwards from the Status Bar at the very top of the home screen to display the Notification Panel.
Page 156 7. Select the downloaded .o file to apply the new profile settings. Importing and Exporting Settings for All Apps Your CyberScope supports the importing or exporting of settings for all applications that allow import/export of settings. NOTE: You can import and export settings only between the same kind of NetAlly products.
Page 157 Software Management a. Tap Import CyberScope Settings . This opens the Files app to the default Settings folder. b. (Optional) Use the Files app to navigate to a different folder. c. Select the .nas settings file you want to import.
Page 158 4. On the System screen, tap Reset options. 5. On the Reset options screen, select an option based on the defaults you want to reset. Your CyberScope displays a list of the items that will be reset based on the option...
Page 159 7. Your unit may ask you to confirm a final time before resetting. If so, tap the final con- firmation button to reset your CyberScope's defaults. The unit then restarts with the factory default settings you selected. 8. Data on removable drives is not included in...
Page 160 Software Management want to use the Files application to delete any application settings, preferences, or other data that you have saved on an attached Micro SD card or a USB thumb drive. (Do not delete your backup files.) Back to Title and Contents...
Page 161 CyberScope User Guide CyberScope Feature Access This chapter explains how to semi-permanently and permanently control the availability of features on your CyberScope. Tap a link below to skip to your desired topic: Introduction to CyberScope Controlling Feature Availability Permanently Disabling Features...
Page 162 Access In addition to the broad set of wired and Wi-Fi test and measurement capabilities, the CyberScope provides the ability to semi- permanently and permanently disable certain features to meet a variety of security needs. These features are referred to as controlled features.
Page 163 CyberScope Feature Access Remote Control Wireless Management Wi-Fi Bluetooth Test Wi-Fi Documenting Nmap Packet Capture Network Discovery Camera Microphone Link-Live Cloud Service Link-Live Access Download from App Store...
Page 164 CyberScope Feature Access Removable Storage USB Access Both the USB Type-A port on the top of the unit and the Type-C port on the left side of the unit are deactivated when the USB Access feature is disabled. This means that there can be no data...
Page 165 CyberScope Feature Access Connectivity Apps Browser App The Chromium browser is removed when the Browser App feature is disabled. All NetAlly apps that normally provide access to the Chromium browser remove that option. Other apps cannot access the browser. NOTE: If the Browser App feature is re-...
Page 166 1x1 Dual-band 802.11ac + Bluetooth 5.0 wireless adapter and external Wi- Fi adapters, is deactivated when the Management Wi-Fi feature is disabled. All NetAlly apps that normally provide access to the Wi-Fi management port will remove access to the...
Page 167 Bluetooth is not possible. Test Wi-Fi The internal Wi-Fi Test Port is deactivated when the Test Wi-Fi feature is disabled. All NetAlly apps that normally provide access to the Test Wi-Fi port will remove access to the port. NOTE: See Test and Management Ports more information.
Page 168 Discovery for more information. Camera The built-in camera on your unit is deactivated when the Camera feature is disabled. NOTE: To provide additional security control, your CyberScope ships with a decal that you can use to cover the camera lens.
Page 169 Link-Live Cloud Service Link-Live Access Link-Live app is disabled when the Link-Live Access feature is disabled. All NetAlly apps and services that provide an interface to Link-Live will remove access. NOTE: The Link-Live Remote feature and the App Store app are also disabled when Link- Live Access is disabled.
Page 170 CyberScope Feature Access Controlling Feature Access The CyberScope supports disabling (and re- enabling) certain features to meet a variety of security needs. These features are referred to as controlled features. Use the Feature Access selection to manage feature access. It is accessible from the left-side...
Page 171 CyberScope Feature Access Select Feature Access to view the Feature Access status screen. This screen shows the current state of the controlled features.
Page 172 CyberScope Feature Access To change access to a controlled feature, tap the action overflow icon , and then tap the Settings option. When prompted, enter the Feature Access admin password, and then tap the OK button. The Feature Access screen shows the current state of the controlled features and lets you turn features off or on using the toggle.
Page 173 CyberScope Feature Access If changes are made, the Apply button at the top of the screen becomes active.
Page 174 CyberScope Feature Access Tap Apply as the first step in completing the changes. A message lists the pending feature changes. Select Yes to make the pending changes Select No to cancel the pending changes and return to the Settings screen After the changes are applied, the unit auto- matically restarts.
Page 175 CyberScope Feature Access Back to Title and Contents...
Page 176 When controlled features are permanently disabled, internal hardware modifications are made that prevent the disabled controlled features from operating. Please note that NetAlly does not accept product return requests from customers who want to re-enable permanently disabled controlled features.
Page 177 CyberScope Feature Access from customers who want to make controlled feature changes after the unit has been finalized. CAUTION: NetAlly does not accept product return requests from customers who want to make controlled feature changes after the unit has been finalized.
Page 178 CyberScope Feature Access NOTE: the Finalize option only becomes active when at least one controlled feature has been permanently disabled and there are no semi-permanently disabled controlled features. If Permanently Apply is selected, a message is displayed which identifies the pending actions:...
Page 179 CyberScope Feature Access CANCEL to discard the pending changes and return to the Settings screen After the changes are applied, the unit auto- matically restarts.
Page 180 CyberScope Feature Access If Finalize is selected, a message is displayed that identifies the pending actions: Select one of the following options: CHANGE PERMANENTLY to irreversibly apply the pending changes. Note that these changes are permanent and cannot be undone. In addition, the state of all the controlled features is permanently locked.
Page 181 CyberScope Feature Access After the changes are applied, the unit auto- matically restarts. To view the permanently disabled controlled features, visit the Controlled Edition Status screen.
Page 182 CyberScope Feature Access Back to Title and Contents...
Page 183 Changing the Administrative Password NetAlly recommends that you change the factory-set admin password when you configure CyberScope feature access to prevent non- administrative users from gaining access to the CyberScope Feature Access screen. To change the admin password, follow the...
Page 184 CyberScope Feature Access Enter the current admin password and tap OK to continue. (Select CANCEL to return to the Feature Access selection screen without making any changes.) The New Password entry screen is displayed. Enter the new password in both fields, and then...
Page 185 CyberScope Feature Access change. Note that you cannot complete the admin password change until the new password fields contain matching entries. (Select CANCEL to return to the Feature Access selection screen without changing the current admin password.) Back to Title and Contents...
Page 186 CyberScope Testing Applications This section of the User Guide describes the NetAlly-developed network testing apps. Each app is specially designed for fast analysis and intuitive operation to enhance and simplify your network tasks. Open the testing apps by selecting their icons...
Page 187 AutoTest App and Profiles AutoTest is the most comprehensive NetAlly testing application on CyberScope. You can quickly run a variety of test types and save their configurations and network credentials for access whenever you need them. The app is fully customizable with test "Profiles"...
Page 188 AutoTest App and Profiles AutoTest Chapter Contents This chapter describes AutoTest Profiles, screens, settings, and test results. AutoTest Overview Managing Profiles and Profile Groups Main AutoTest Screen Periodic AutoTest Wired AutoTest Profiles DHCP, DNS, and Gateway Tests Test Targets...
Page 189 AutoTest App and Profiles AutoTest Overview AutoTest consists of three distinct testing levels: Test Targets, Profiles, and Profile Groups. You can create as many Profile Groups, Profiles, and Test Targets as you need. At the bottom level is a set of individual Test Targets that connect to network services, such as a web app or FTP site.
Page 190 AutoTest App and Profiles A Test Target can be added to and used in any number of Profiles. A Profile contains a series of individual network tests. There are three different Profile types: Wired, Wi-Fi, and Air Quality. The Wired and Wi- Fi Profiles include connection tests and credentials for a Wi-Fi network or Wired VLAN.
Page 191 AutoTest App and Profiles Test multiple Wired VLANs on a trunk port. Test multiple Wi-Fi SSIDs from a single location. Test both wired and Wi-Fi access from a conference room. The graphic below shows each of these scenarios. Back to Title and Contents...
Page 192 Wi-Fi Profiles test wireless connections. Air Quality Profiles measure channel utilization and interference. Factory Default Profiles The CyberScope begins with a default version of the AutoTest profile types, which you can customize, delete, or replace for your purposes.
Page 193 AutoTest App and Profiles To customize each Profile with the required network settings and a custom name, tap the Profile name first, and then select the settings icon. NOTE: Tapping the settings icon on the main AutoTest screen (shown above) opens the AutoTest Settings and Profile Group screen, not the individual Profile settings.
Page 194 START on the main AutoTest screen or the Air Quality screen. For the default Wi-Fi Profile to run successfully, you must select an SSID and enter security cre- dentials before the CyberScope can connect to a network. Wi-Fi Profile Connection Settings.
Page 195 AutoTest App and Profiles The profile's configuration screen appears after you select the type of profile you want to add. See the topic for each profile type for a description of its settings. After you configure the profile settings, tap the back button at the bottom of the screen to open and run the new test profile.
Page 196 AutoTest App and Profiles . Open the Wi-Fi app from the Home screen. . Tap the menu button to select the SSIDs or BSSIDs list screen. . Tap an SSID or BSSID's card to open its Details screen. . Tap the FAB (floating action button) to open the floating action menu.
Page 197 AutoTest App and Profiles . In the floating action menu, tap Connect. A Wi-Fi Profile called "Connect to [SSID/BSSID]" is created in AutoTest.
Page 198 AutoTest App and Profiles The SSID, BSSID (if applicable), and Authentic- ation Type are auto-populated in the Wi-Fi Con- nection settings for the new profile. . Tap YES in the pop-up dialog to review and configure additional credentials.
Page 199 AutoTest App and Profiles . Enter any additional credentials, like the network Password. . After configuring, tap the back button return to and run the new Profile.
Page 200 AutoTest App and Profiles Profile Groups CyberScope also allows you to save Profile Groups. Profile Groups are simply the included list of test Profiles and the order in which they run when you start an AutoTest. (See AutoTest Overview for more explanation of Profile Groups.) You can configure and select Profiles...
Page 201 AutoTest App and Profiles AutoTest Settings Screen The AutoTest Settings screen contains the Periodic AutoTest and Profile Group settings.
Page 202 AutoTest App and Profiles You can perform these actions on the AutoTest Settings screen: Check or uncheck the boxes to include or exclude a test Profile from the currently active Profile Group. Tap the up and down arrows reorder the test Profiles on this and the main AutoTest screen for the Profile Group.
Page 203 AutoTest App and Profiles Save As: Save the current settings and Profile Group with an existing name or a new custom name. See also Saving App Settings Con- figurations. Import: Import a previously exported settings file. Export: Create an export file of the current settings, and save it to internal or connected external storage.
Page 204 AutoTest App and Profiles displays in the AutoTest app header and in the AutoTest Settings screen header. In the example below, the user saves a custom AutoTest configuration named "Springs Campus." The main AutoTest app screen now displays the custom name in the header.
Page 205 AutoTest App and Profiles Creating New Profile Groups To create a new Profile Group, follow these steps: 1. Go to the AutoTest Settings and Profile Group screen by tapping on the main AutoTest screen. 2. Uncheck the boxes for any Profiles you do not want included in the new Profile Group.
Page 206 , and select Save As. A dialog box opens, where you can enter the new name. 6. Enter a new Profile Group name, and tap SAVE. The CyberScope returns to the Profile Group screen with the new group name shown as the title.
Page 207 AutoTest App and Profiles...
Page 208 AutoTest App and Profiles When running the "Boulder Campus" con- figuration shown above, AutoTest first runs the Wired Profile over the Ethernet connection, next scans the wireless channels for Air Quality results, and then connects to "The Office Network #1" and remain connected to that network.
Page 209 AutoTest App and Profiles Main AutoTest Screen To open the AutoTest app, tap the AutoTest icon on the Home screen. Tap the START button on the main AutoTest screen to run all the Profiles in the currently active Profile Group. The AutoTest screens display icons that correspond to the type of profile, test, or measurement.
Page 210 AutoTest App and Profiles Green indicates a successful test or meas- urement within the set threshold. Yellow indicates a Warning condition. indicates test Failure. The number of warnings or failures within each test profile is also displayed in a colored circle to the right of each profile card: (2 Warnings, 1 Failure).
Page 211 AutoTest App and Profiles Periodic AutoTest The Periodic AutoTest feature allows you to run AutoTests at set time intervals. Periodic AutoTest Settings To enable and configure Periodic AutoTest, open AutoTest Settings and Profile Group screen, and tap Periodic AutoTest. The Periodic AutoTest settings screen displays.
Page 212 AutoTest App and Profiles Tap the Periodic AutoTest field to enable, and adjust the settings below as needed. Interval: Amount of time between each AutoTest Duration: Total length of time Periodic AutoTests run...
Page 213 AutoTest App and Profiles Add Comment: Enabling this setting allows you to attach a comment to the Periodic AutoTest result in Link-Live Cloud Service. The comment appears as a label on the Link-Live.com Results page. This setting and the Comment setting below are enabled by default.
Page 214 AutoTest App and Profiles The Periodic AutoTest Status is summarized at the bottom of the AutoTest screens. Passes and failures are reported for each run of the entire Profile Group, rather than individual Profiles. Periodic AutoTests are skipped if the previous interval's test is still running when the next time interval occurs, such that the next run could not start.
Page 215 AutoTest App and Profiles The Periodic AutoTest icon appears in the Status Bar when Periodic AutoTest is running or has completed. Drag down on the Status Bar to view the corresponding noti- fication. NOTE: AutoTest has priority control of the Test Ports, so other apps, including Discovery, Wi-Fi, Wi-Fi...
Page 216 AutoTest App and Profiles Wired AutoTest Profiles A Wired Profile runs a series of tests over your copper or fiber network connection.
Page 217 AutoTest App and Profiles Like the main AutoTest screen, Wired Profile tests are summarized on cards. Tap a card to view individual test screens. Each test icon (except the switch) displays green, yellow, or red to indicate the status of the completed test step: Success/Warning/Fail.
Page 218 AutoTest App and Profiles Wired-Profile-Specific Tests The following tests are specific to a Wired Profile: Wired Link 802.1X VLAN Switch...
Page 219 AutoTest App and Profiles The 802.1X card only appears if the 802.1X setting is enabled for the Wired Profile. The VLAN test card appears if the VLAN setting is enabled or if VLAN-tagged traffic is detected during the AutoTest. PoE, Wired Link, 802.1X, VLAN, and Switch Results are described next.
Page 220 AutoTest App and Profiles Skip to Wired Profile Settings. Skip to DHCP, DNS, and Gateway Tests. Skip to Test Targets. Back to Title and Contents...
Page 221 AutoTest App and Profiles Wired Profile Results The image below shows a completed AutoTest Wired Profile.
Page 222 AutoTest App and Profiles On the Wired Profile screens, you can perform these actions: Tap any of the test result cards, like PoE, Link, or Switch to open the individual test result screens. From any individual test screen, tap the settings icon to go directly to the settings for the current test.
Page 223 AutoTest App and Profiles need to rerun the Profile to re-establish link and enable additional actions. PoE Test Results The card for the Power over Ethernet (PoE) test displays the measured Voltage, Class, and Wattage. Refer to PoE Settings if needed. Tap the card to open the PoE results screen.
Page 224 AutoTest App and Profiles PoE Test Results Screen In addition to the information from the PoE card, the PoE test screen shows these results: Class Requested Class: Class selected in the PoE test settings...
Page 225 AutoTest App and Profiles Received Class: Class acknowledgment received from the switch TruePower™ Power: Measured wattage with load. NOTE: The PoE card displays additional TruePower™ results only if TruePower is enabled in the Wired Profile Settings. Voltage Unloaded: Measured voltage without load TruePower™...
Page 226 CyberScope can test and display information for link speeds up to 10G. For a Fiber connection, the Link test card shows the connection speed and duplex. The link icon turns yellow...
Page 227 AutoTest App and Profiles CyberScope has linked at a speed slower than the maximum advertised speed. The link is using half duplex. For links faster than 1G, CyberScope has detected a minimum SNR value below the set threshold. Tap the card to open the Link test screen.
Page 228 AutoTest App and Profiles Wired Link Test Screen The Wired Link test screen shows the following:...
Page 229 AutoTest App and Profiles Speed Advertised Speed: Speed capability as reported by the switch Actual Speed: Link speed as measured by CyberScope Duplex Advertised Duplex: Duplex capabilities reported by the switch Actual Duplex: Duplex in use as detected by CyberScope...
Page 230 AutoTest App and Profiles Delay Skew: Difference in propagation delay between sets of wired pairs. Channel A acts as the reference for the other channel meas- urements. SNR: Current signal-to-noise ratio on each channel Avg SNR: The average SNR measurement since link was established Threshold: Multi-Gigabit SNR Threshold from Wired Connection settings...
Page 231 AutoTest App and Profiles SFP Details (Fiber) The SFP Details are defined as follows: Wavelength: Wavelength (in nanometers) at which the fiber connection is operating Temperature: Temperature in degrees Celsius...
Page 232 AutoTest App and Profiles Voltage: SFP transceiver power supply voltage (~3.3 V) Tx Bias Current: Transmitter bias current Tx Power: Transmitter power Rx Power: Link receiver power Reference Power: The user can set a Reference Power by pressing the SET REFERENCE button. This sets the current Rx Power as the reference.
Page 233 AutoTest App and Profiles The card shows the EAP type selected in the Wired Connection settings and the username or certificate used. The 802.1X icon turns green if the connection is successful and yellow if 802.1X authentication fails. 802.1X Test Screen The 802.1X screen also shows the time it took for the authentication process to complete along with Result Codes.
Page 234 AutoTest App and Profiles Select the action overflow icon at the top right on the Connect Log screen to attach the log to its associated AutoTest result on the Link- Live website. You can also attach the Connect Log from the floating action menu on the main Wired Profile screen.
Page 235 AutoTest App and Profiles The top line on the VLAN test card shows the configured VLAN settings (image above) or "Untagged" (image below) if VLAN disabled but VLAN-tagged traffic is seen. Untagged indicates that no VLAN tag is present in either received or transmitted frames, also referred to as the Native VLAN.
Page 236 AutoTest App and Profiles VLAN Test Screen The VLAN test screen displays the real-time traffic the CyberScope detects on the top VLANs. Up to nine VLANs with the highest traffic are displayed as colored portions of the pie chart.
Page 237 The Switch test card displays the Nearest Switch and the port name. The Switch icon remains black if the test is successful. If the CyberScope does not detect any network traffic moving through the switch after 45 seconds, the switch icon turns...
Page 238 If the connection is lost while the Wired Autotest is running, the switch icon turns red. If the CyberScope was unable to identify the nearest switch, "Nearest Switch Not Found" displays on the Switch card. The CyberScope continues to search for the nearest switch, even after the AutoTest completes.
Page 239 AutoTest App and Profiles Each section represents a unique port advert- isement as defined by protocol type and MAC address.
Page 240 IP and MAC Addresses: Discovered switch addresses Location: Configured location reported by the switch. This field only appears if the CyberScope has SNMP access to the Nearest Switch. Contact: Configured contact person reported by the switch. This field only appears if the...
Page 241 AutoTest App and Profiles CyberScope has SNMP access to the Nearest Switch. Model: Switch model name and/or number Type: Discovery Protocol - CDP, LLDP, EDP, FDP, or SNMP. (First Seen) displays next to the protocol type first seen by the Cyber- Scope.
Page 242 AutoTest App and Profiles Switch: Below the Nearest Switch, other switches seen via advertisements or SNMP At the bottom of the switch test screen, tap the blue links or the action overflow icon open other apps or tools with the target (in this case, the Nearest Switch) pre-populated.
Page 243 For example, INTERFACE DETAILS opens the Interface Details screen for the Switch Port in Discovery app. NOTE: The Interface Details action link only appears in the Switch results if CyberScope has current Discovery data, and AutoTest was able to identify the nearest switch and connected interface.
Page 244 AutoTest App and Profiles Chromium browser, and Telnet or SSH opens the JuiceSSH app. DHCP, DNS, and Gateway Results Results for these tests operate the same in both Wired and Wi-Fi profiles. DHCP, DNS, and Gateway Tests Target Tests See the Test Targets topic for information on target test results.
Page 245 AutoTest App and Profiles The Test Targets option opens the Test Targets screen, where you can add Ping, TCP Connect, HTTP, and FTP target tests to the current profile. Add Connection Log opens a Link-Live sharing screen that allows you to custom name the log file before saving to the test result.
Page 246 AutoTest App and Profiles Tap the field to enter your desired log name, and tap SAVE TO TEST RESULT to upload. Add Comments also opens a Link-Live sharing screen where you can enter comments.
Page 247 AutoTest App and Profiles Tap the fields to enter your desired comments, and tap SAVE TO LAST TEST RESULT to upload them. The Add Picture function lets you open the Gallery or Camera app to select or take a photo that is then uploaded and attached to your test result.
Page 248 AutoTest App and Profiles Wired Profile Settings These settings control the wired test port connection, PoE test, the thresholds for Pass/Warning/Fail results, and any user-added test targets. Tap the settings icon on the Wired profile screen, or add a new Wired profile, to configure the profile's settings.
Page 249 AutoTest App and Profiles On the Wired Profile settings screen, tap each field described below as needed to configure the profile. Changed settings are automatically applied. When you finish configuring, tap the back button to return to the profile. Name Tap the Name field to enter a custom name for the profile.
Page 250 NOTE: CyberScope automatically negotiates Cisco UPOE over LLDP, up to 51 W. LLDP must be enabled on the switch for nego- tiation to succeed. If the UPOE Class is selected on your CyberScope but LLDP is not...
Page 251 AutoTest App and Profiles enabled on your Cisco switch, negotiation fails. LLDP This toggle button appears if Class 4 (25.50 W) is selected. Enable this setting if LLDP is enabled on the switch you are testing. Class 4 LLDP must be enabled on the switch for AutoTest to detect it successfully.
Page 252 AutoTest App and Profiles TruePower™ TruePower validates that the Switch (Power Sourcing Equipment) and cabling can provide the requested power under load by applying a load equivalent to the selected class to mimic a Powered Device (PD). Tap the toggle button to enable the TruePower feature.
Page 253 MACs, 802.1X settings, and multi-gigabit SNR threshold. Speed/Duplex Tap to select the speed and duplex option that you want to test your network against. The default is Auto negotiation. When speed is set to Auto, CyberScope auto- negotiates to the highest possible speed/duplex...
Page 254 AutoTest App and Profiles supported by the link partner. You can select a fixed speed/duplex for the copper interface. For 10 and 100 Mbps you can optionally force the speed and duplex. This setting does not force the link speed/duplex on the fiber interface, but does control which speed is attempted first when using a multi-rate SFP.
Page 255 MAC address (if any) defined in " Wired" on page 100 section of the General Settings. ) Tap the lower field to enter your desired MAC address for the CyberScope. When this user-defined MAC is enabled, (User-defined)
Page 256 AutoTest App and Profiles appears next to the MAC address on the About screen and on relevant test result screens. You can use this feature for tasks such as testing ACL lists (for example, finding out if specific MAC addresses are allowed on the network) or for determining if specific IPv4 addresses should be assigned to specific MAC addresses.
Page 257 AutoTest App and Profiles EAP Type Tap to select a different EAP type if needed. The default is PEAP MSCHAP V2. Certificate This setting appears if one of the following EAP types is selected in the setting above: EAP TLS, PEAP TLS, or TTLS EAP TLS.
Page 258 AutoTest App and Profiles Username This field appears along with multiple authen- tication types. Tap the Username field to enter your username. Password This field appears along with multiple authen- tication types. Tap the Password field to enter the network password. Alternate ID Enter an Alternate ID if necessary.
Page 259 AutoTest App and Profiles VLAN Settings Tap to open the VLAN settings screen. Slide the toggle to the right to enable VLAN testing. Enabling this setting also enables a VLAN test card on the Wired AutoTest results screen. Once enabled, VLAN ID and VLAN Priority fields appear.
Page 260 AutoTest App and Profiles Wait For Network Traffic Wait for Network Traffic controls whether there is any delay after link comes up before proceeding to the next step. When enabled there...
Page 261 AutoTest App and Profiles is a delay waiting for packets to be forwarded from the network by the nearest switch. This is useful for switches that are configured to search for networking loops prior to forwarding traffic. On networks with very little traffic, the user may choose to disable this delay.
Page 262 Profile results screen. HTTP Proxy The Proxy control lets you specify a proxy server through which the CyberScope establishes a network connection. In AutoTest, these settings are used when HTTP Proxy is enabled in an HTTP Test Target.
Page 263 AutoTest App and Profiles Tap each field to open a pop-up keyboard and enter the appropriate Address, Port, Username, and Password. Tap OK to save your entries. Back to Title and Contents...
Page 264 AutoTest App and Profiles Wi-Fi AutoTest Profiles A Wi-Fi Profile runs a series of tests by connecting to a selected wireless network.
Page 265 See the Wi-Fi Profile Settings topic for instruc- tions. After connecting to a network during a Wi-Fi connection test, CyberScope remains connected until you run another Wi-Fi or Air Quality Profile or open the Wi-Fi app. Wi-Fi Test Port linkage is...
Page 266 AutoTest App and Profiles indicated in the top Status Bar with this noti- fication icon, , which also shows the connected channel. NOTE: When running an AutoTest Profile that connects to a network with a Captive Portal, a system notification icon appears in the top Status Bar.
Page 267 AutoTest App and Profiles long as CyberScope remains connected to the wireless network. Link (Connection), Channel, and AP Results are described next. Skip to Wi-Fi Profile Settings. Skip to DHCP, DNS, and Gateway Tests. Skip to Test Targets. Back to Title and Contents...
Page 268 AutoTest App and Profiles Wi-Fi Profile Results The image below shows a completed AutoTest Wi-Fi Profile.
Page 269 AutoTest App and Profiles This Profile connects to SSID "The Office Network #1." The Profile is displaying one Warning condition from a timeout of the second Gateway ping. On the Wi-Fi Profile screens, you can perform these actions: Tap any of the test result cards, like Link , Channel, or AP, to open the...
Page 270 AutoTest App and Profiles The rest of this topic describes the individual test cards and screens using the Wi-Fi Profile results for the "LRG" SSID shown below.
Page 271 AutoTest App and Profiles Wi-Fi Link Test Results The Wi-Fi link test card indicates whether you can connect to the configured network at your current location. The Wi-Fi Link card displays the SSID, current signal strength (dBm), link speed (Mbps), and number of roams. Refer to Wi-Fi Connection Settings if needed.
Page 272 AutoTest App and Profiles Wi-Fi Link Test Screen The Wi-Fi Link test screen shows these results: SSID Security: Security protocol in use on the network...
Page 273 BSSID: BSSID of the access point Channel: Channel number on which the AP is operating Last Roam From: If the CyberScope has roamed to a new AP, the previous AP's name, BSSID, and Channel display. AP: Channel number on which the AP is...
Page 274 Channel: Channel number on which the AP is operating Wi-Fi Link Trending Graphs CyberScope's trending graphs operate similarly across different testing apps, allowing you to pan and zoom to view different time intervals. Swipe, double tap, and move the slider to adjust the graph views.
Page 275 AutoTest App and Profiles The Wi-Fi Link Test graphs save and display data for up to 24 hours in the past if the unit stays linked. The default time interval shown is 2 minutes. Under each graph, a legend table displays the Current, Minimum, Maximum, and Average meas- urements.
Page 276 AutoTest App and Profiles measurements from the last second. Min, Max, and Avg columns show cumulative meas- urements. Signal (dBm) graph: Plots the signal strength in dBm of the connected AP. Green vertical bars - The tester roamed to a new AP.
Page 277 AutoTest App and Profiles Utilization (%) graph: Plots percentage of the connected channel's capacity being used by 802.11 devices and by non-802.11 interference. Green vertical bars - The tester roamed to a new AP.
Page 278 AutoTest App and Profiles Retries (% of packets) graph: Plots percentage of transmitted packets that are retry packets Retry Rate % - The percentage of total packets that are retry packets. Retry Pkts - The number of retry packets seen in the current sample cycle. Total Pkts - The total number of packets transmitted in the current sample cycle.
Page 279 AutoTest App and Profiles PHY TX Rate (Mbps) graph: Plots the physical transmission rate. The green horizontal dotted line shows the AP's maximum TX rate. Ping or TCP Connect Response Time graph: This graph displays on the Link test screen if you run a Ping or TCP Connect test, using the Ping/TCP app, over the Wi-Fi test port...
Page 280 AutoTest App and Profiles Follow these steps to view the Response Time graph: 1. Tap the blue PING hyperlink at the bottom of the Link test screen. This opens the Ping/TCP app with the Interface set to Wi-Fi Port and Protocol set to Ping. 2.
Page 281 AutoTest App and Profiles Connect Log The Connect Log shows the Wi-Fi connections, including driver activity, supplicant, and the DHCP process. The Connect Log can be especially helpful for identifying linking or roaming problems. Select the action overflow icon at the top right on the Connect Log screen to attach the log to its associated AutoTest result on the Link-...
Page 282 AutoTest App and Profiles floating action menu on the main Profile screen. See Wi-Fi Profile FAB below. Channel Test Results The Channel card shows the channel on which the AP is operating and the current 802.11 and Non-802.11 utilization. Refer to Channel Test Settings if needed.
Page 283 AutoTest App and Profiles Channel Test Screen The Channel Test results screen indicates the Center Frequency and Frequency Range of the connected channel along with a real-time Utilization graph. Results: The channel Utilization (%) graph updates in real time for as long as the unit is still...
Page 284 AutoTest App and Profiles connected to the network. The graph saves and displays data for up to 24 hours if the unit stays linked. To pan and zoom on the graphs, you can swipe, double tap, and move the slider. See the Trending Graphs topic for an overview of the graph controls.
Page 285 The AP card shows the AP's name and the SSID of the network it is supporting. The AP name or address shown is based on what the CyberScope is able to gather from the device and network. If the AP has a...
Page 286 AutoTest App and Profiles AP Test Screen In addition to the AP name and SSID, the AP test screen shows the following: Device Name: AP's name or address IP Address: The AP's assigned IP address. If none could be determined, the field displays dashes --.
Page 287 AutoTest App and Profiles SSID: Name of the network on which the AP is operating Security: Security protocol in use on the network Roams: Number of times the unit has roamed and connected to a different AP 802.11 Channel(s): Channel or channels the AP is operating on.
Page 288 AutoTest App and Profiles on the connected channel and AP, or start a Telnet or SSH session using the AP's IP address. DHCP, DNS, and Gateway Results Results for these tests operate the same in both Wired and Wi-Fi profiles. DHCP, DNS, and Gateway Tests.
Page 289 AutoTest App and Profiles The Test Targets option opens the Test Targets screen, where you can add Ping, TCP Connect, HTTP, and FTP target tests to the current profile. Add Connection Log opens a Link-Live sharing screen that allows you to custom name the log file before saving to the test result.
Page 290 AutoTest App and Profiles Tap the field to enter your desired log name, and tap SAVE TO TEST RESULT to upload. Add Comments also opens a Link-Live sharing screen where you can enter comments.
Page 291 AutoTest App and Profiles Tap the fields to enter your desired comments, and tap SAVE TO LAST TEST RESULT to upload them. The Add Picture function lets you open the Gallery or Camera app to select or take a photo that is then uploaded and attached to your test result.
Page 292 AutoTest App and Profiles Wi-Fi Profile Settings These settings control which network is tested, how the CyberScope connects, thresholds for Success/Warning/Fail results, and any user- added test targets. To configure the profile settings, tap the settings icon on the Wi-Fi Profile screen, or...
Page 293 AutoTest App and Profiles On the Wi-Fi Profile settings screen, tap each field described below as needed to configure the profile. Changed settings are automatically applied.
Page 294 AutoTest App and Profiles NOTE: If you add a new Wi-Fi profile from the Wi-Fi Analysis app, the Profile Name, SSID, and Authentication type are auto-populated. Creating a Wi-Fi Profile from the Wi-Fi Analysis App. When you finish configuring, tap the back button to return to the profile.
Page 295 AutoTest App and Profiles SSID Tap to enter an SSID or select from the list of discovered SSIDs. If you do not enter a custom Name for the Profile, the SSID is displayed as the Wi-Fi Profile's name. Authentication If you selected an SSID from the drop-down list of discovered SSIDs in the setting above, or...
Page 296 AutoTest App and Profiles created a "Connect to [SSID]" profile from the Wi-Fi app, the Authentication type is auto- matically selected. If needed, tap to open the Authentication dialog and select the correct security type for the network. The following settings depend on the Authentic- ation type.
Page 297 AutoTest App and Profiles PEAP MSCHAP V2. Tap to select a different EAP type if needed. Username This field appears along with multiple authen- tication types. Tap the Username field to enter your username. Certificate This setting appears if you selected one of the following EAP types: EAP TLS, PEAP TLS, or TTLS EAP TLS.
Page 298 AutoTest App and Profiles This screen displays all the certificates that have been imported to AutoTest via the Wired or Wi-Fi Profile settings. Tap the radio button to the left of an imported certificate to select and use it with the current Profile.
Page 299 The CyberScope supports 1-way client authentication only; mutual authen- tication, Server, and CA/Root certificates are not supported. While CyberScope can perform a key exchange, it does not authenticate the server certificate. Tap here to skip the following "How to"...
Page 300 AutoTest App and Profiles CyberScope's internal file system. 1. Make the certificate file available on your CyberScope unit by saving it to a USB drive or Micro SD card inserted into your unit or by transferring to the file system using a USB-C cable or email.
Page 301 AutoTest App and Profiles 3. In AutoTest > Wi-Fi Connection or Wired Connection settings, tap the Certificate setting to open the Certificates screen. 4. Tap the floating action button (FAB) open the Import Certificate dialog box.
Page 302 AutoTest App and Profiles 5. Tap Click to select beneath the Certificate field to open the Files app. 6. In the Files app, navigate to the folder or storage device where your certificate file is...
Page 303 AutoTest App and Profiles saved. Tap the menu button to open the left-side navigation drawer and access the storage devices. In the image above, the user is navigating to a USB flash drive. 7. Navigate to the required certificate file, and tap to select it.
Page 304 AutoTest App and Profiles After you select the file, the Files app closes, and the Import Certificate dialog displays the chosen certificate file. 8. Enter the certificate’s password if it is password protected. 9. Tap IMPORT.
Page 305 AutoTest App and Profiles 10. If desired, tap the fields to edit the Name and Description of the certificate. The name defaults to the certificate file name. 11. Tap the back button to return to the Cer- tificates list screen. The newly added cer- tificate appears selected in the list.
Page 306 AutoTest App and Profiles Advanced (Wi-Fi Connection) Settings BSSID Enter or select a specific BSSID for the Wi-Fi Profile to prevent the CyberScope from roaming to a new AP while linked.
Page 307 Settings. Roam Threshold This threshold controls the Signal Strength (in dBm) at which CyberScope stays connected and looks for another AP on the network with a stronger signal. If found, it disconnects from the current AP and connect to the AP with a stronger signal.
Page 308 AutoTest App and Profiles Tap each field to select a new value or enter a custom one. Each threshold also has a toggle button that allows you to disable grading based on that measurement entirely.
Page 309 AutoTest App and Profiles Signal Level Thresholds: Measured signal from the AP Signal-to-Noise (SNR) Thresholds: Ratio of measured AP signal to noise level detected on the channel Retries Thresholds: Retry frames as a percentage of total transmitted frames Transmit Rate (TX) Thresholds: Measured rate as a percentage of the AP's maximum throughput rate Alternate ID...
Page 310 AutoTest App and Profiles 802.11 Utilization Threshold (%) This threshold controls the Success/Warning/Fail gradings for the percentage of the connected channel's capacity being used by 802.11 devices.
Page 311 AutoTest App and Profiles Tap the toggle button to enable or disable test grading based on 802.11 utilization. Tap Warning or Failure to select or enter custom percentage values for Warning or Failure results. Non-802.11 Utilization Threshold (%) This threshold controls the Success/Warning/Fail gradings for the percentage of the connected channel's capacity...
Page 312 Test Targets to learn more. HTTP Proxy The Proxy control lets you specify a proxy server through which the CyberScope establishes a network connection. In AutoTest, these settings are used when HTTP Proxy is enabled in an HTTP Test Target.
Page 313 AutoTest App and Profiles Tap each field to open a pop-up keyboard and enter the appropriate Address, Port, Username, and Password. Tap OK to save your entries. Back to Title and Contents...
Page 314 AutoTest App and Profiles DHCP, DNS, and Gateway Tests These tests are included in both Wired Wi-Fi AutoTest Profiles, and the settings and results fields are the same for each Profile type. Access AutoTest's DHCP, DNS, and Gateway settings from either the Wired or Wi-Fi Profile settings screens, or by tapping the settings button from the full results screen for each...
Page 315 AutoTest App and Profiles DHCP or Static IP Test The DHCP (Dynamic Host Configuration Protocol) test indicates whether the CyberScope receives an IP address assignment from the DHCP server. DHCP Settings – IP Configuration Access the DHCP test settings from the Wired or...
Page 316 DHCP and enter static IP addresses. (DHCP only) Response Time Threshold This field only appears if DHCP is enabled. The Response Time Threshold controls how long the CyberScope waits for a DHCP server response before failing the Link and DHCP tests.
Page 317 AutoTest App and Profiles Static IP Address The Static IP address fields for Subnet Mask, Default Gateway, and Primary and Secondary DNS Servers only appear if DHCP is disabled. Tap each field to open a pop-up number pad and enter the static addresses as needed. Tap OK to save your entries.
Page 318 AutoTest App and Profiles DHCP Test Results When DHCP is enabled, the DHCP test card and results screen are displayed in the Profile. The DHCP Test card displays the DHCP server's IP address and the total time for the discover, offer, request, and acknowledgment to complete.
Page 319 AutoTest App and Profiles DHCP Test Results Screen Device Name: The discovered name of the DHCP Server, or, if no name could be discovered, the IP address IPv4 Address: IP address of the server...
Page 320 Subnet: Combination of the subnet mask and the offered IP address Lease Time: The amount of time the IP address is leased to the CyberScope by the DHCP server Expires: Expiration date and time of the IP address Relay Agent: If a BOOTP DHCP relay agent is present, this field shows its IP address.
Page 321 IP networks. End User Response Time table and chart: Breakdown of the times for the process of acquiring a DHCP IP address Offer: Time between when the CyberScope sent the discovery and received an address offer from the DHCP server...
Page 322 Total Time: Total amount of time consumed by the DHCP process Threshold: The DHCP Response Time Threshold from the DHCP test settings, which controls how long the CyberScope waits for a DHCP server response before failing the DHCP test. End User Response Time: A pie chart...
Page 323 AutoTest App and Profiles The additional actions available on the DHCP test screen include opening the Path Analysis, Ping/TCP, or Capture apps populated with the DHCP server address, browsing to the IPv4 address in the web browser, starting a Telnet or session, or viewing the Connect Log.
Page 324 AutoTest App and Profiles The Static IP card displays the configured IP and Subnet addresses. Tap the card to open the test results screen. The Static IP test screen displays the configured addresses.
Page 325 AutoTest App and Profiles Subnet: Combination of the subnet mask and the offered IP address Subnet Mask: Used to determine which addresses are local and which must be reached via a gateway Gateway: Resolved hostname of the Gateway or its IP address if no name could be discovered IP Address: IP address of the Gateway DNS (1 and 2): Names and IP addresses of Primary and Secondary DNS servers...
Page 326 AutoTest App and Profiles IP Address In Use By: Shows the name of the device currently using the configured static IP address. Tap the blue underlined link to open a Discovery Details screen for the device. MAC Address: MAC of the device using the IP address Back to Title and Contents...
Page 327 For overview information, see DHCP, DNS, and Gateway Tests. The DNS (Domain Name System) server test checks the performance of DNS servers resolving the specified URL. The CyberScope obtains DNS addresses through DHCP or static address con- figuration. DNS Test Settings...
Page 328 Tap the field to switch between IPv4 and IPv6. Lookup Time Threshold This threshold controls how long the CyberScope waits for a response from the DNS server(s) before the test is failed. The default is 1 second. Tap the field to select or enter a new...
Page 329 AutoTest App and Profiles DNS Test Results The server name and lookup time for DNS 1 are shown on the DNS test card. Tap the card to open the DNS test results screen. DNS Test Results Screen Lookup Name: Name resolved by the DNS servers...
Page 330 AutoTest App and Profiles Threshold: Lookup Time Threshold from the DNS test settings DNS #: Name of the listed DNS server Lookup IP: Resolved IP address Lookup Time: Time to receive the IP address after the lookup request sent Results Codes: Final status of the test (Success or Failure) for each DNS server blue links or the blue action overflow icon...
Page 331 AutoTest App and Profiles populated with the name and IP address of DNS 1, or Browse to the Primary DNS server in your web browser. Gateway Test For overview information, see DHCP, DNS, and Gateway Tests. This test indicates whether the default Gateway could be successfully pinged and identifies the address of the current IPv4 and IPv6 routers.
Page 332 The only other setting for the Gateway Test is the timeout threshold, which indicates how long the CyberScope waits for a response from the gateway before grading the test as a fail. Tap the field to select one of the value options, or enter a custom value.
Page 333 AutoTest App and Profiles Gateway Test Results Screen IPv4 Gateway Name: Resolved hostname of the Gateway or its IP address if no name could be discovered IPv4 Address: Internal IPv4 address of the Gateway...
Page 334 IPv6 Address: Router's IPv6 address (if available) IPv6 Gateway Name: Name advertised by the IPv6 router (if available) Protocols: Routing protocols the CyberScope used to obtain the Gateway data Ping Results Response Times from the three Pings sent to the gateway...
Page 335 AutoTest App and Profiles blue links or the blue action overflow icon at the bottom of the test results screens to run the Gateway TEST AGAIN, open another app, Browse to the Gateway's IPv4 Address, or start a Telnet or SSH session to the Gateway.
Page 336 Test Targets for Wired and Wi-Fi AutoTests AutoTest Target tests are user-assignable endpoints to which CyberScope attempts to connect each time the AutoTest profile runs. These tests ensure availability of internal or external websites, servers, and devices to users of your network.
Page 337 AutoTest App and Profiles Adding and Managing Test Targets To add test targets to AutoTest profiles and manage your saved targets, open the Test Targets screen from either the Wired Wi-Fi Profile Settings or by tapping the FAB Wired Wi-Fi Profile results screens.
Page 338 AutoTest App and Profiles On the Test Targets screen, you can perform these actions: Select the checkboxes for each Target you want to include in the current profile. Tap the up and down arrows to reorder the saved Test Targets on this screen and the main AutoTest Profile screen.
Page 339 AutoTest App and Profiles Tap the action overflow icon to Duplicate or Delete a target test. CAUTION: When you delete a Test Target, you delete it from all Profiles. To remove a Test Target from the current profile, simply uncheck it. Tap the icon to add a new target...
Page 340 AutoTest App and Profiles Tap any target test name to open that test's settings. You can then enter a custom test name, test type, target address, or thresholds. For more information on settings,...
Page 341 AutoTest App and Profiles see: Ping Test TCP Connect Test HTTP Test FTP Test Nmap Test Target Test Results Screens The Target Test type icons display green, yellow, or red to indicate the status (or grade) of the completed test portions: Success/Warning/Fail. As an example, in the Ping test image below, the entire Ping test is graded with a Warning because the third Ping was not returned within the Timeout Threshold configured in the...
Page 342 AutoTest App and Profiles The third Response Time displays two dashes -- to indicate that no response was received, and under the Results heading, the yellow dot points out the third Response Time as the reason for the Warning. Additionally, the third Result Code lists "Timeout error"...
Page 343 AutoTest App and Profiles After the Target test has completed, tap any of the blue links to perform additional actions, including opening other testing apps. Tap the blue linked Device Name to open a Discovery Details app screen for the selected device.
Page 344 AutoTest App and Profiles AutoTest Ping Test A Ping test sends an ICMP echo request to the selected target to determine whether the server or client can be reached and how long it takes to respond. The AutoTest Target Ping Test sends three Pings to the target and reports the response times.
Page 345 AutoTest App and Profiles Ping Test Settings Name: This field allows you to assign a custom name to the test. The name appears on the target test card in the profile. Device Name: Enter the IP address or URL of the server you want to ping.
Page 346 Do Not Fragment: Tap the toggle button to enable. Timeout Threshold: This threshold controls how long the CyberScope waits for a response from the target before failing the test. Ping Test Results The Ping card shows the Ping test name entered in the Ping test settings and the three Ping response times from the target.
Page 347 AutoTest App and Profiles AutoTest Ping Results Screen Device Name: Hostname or address of the target device IPv4 or IPv6 Address: IP address of the target device MAC Address: Target device's MAC address. The two dashes -- indicate that no MAC address was provided from the server.
Page 348 Lookup Time: How long it took to resolve the URL into an IP address Response Times: How long it took for the CyberScope to receive a response from the target after sending each of the three Pings Threshold: The Timeout Threshold indicated...
Page 349 AutoTest App and Profiles blue links or the blue action overflow icon at the bottom of the test results screens to run the Ping TEST AGAIN, open another testing app, Browse to the Ping target address in your web browser, or start a Telnet or SSH session.
Page 350 AutoTest App and Profiles AutoTest TCP Connect Test A TCP Connect test opens a TCP connection with the selected target to test for port availability using a 3-way handshake (SYN, SYN/ACK, ACK). The AutoTest Target TCP Connect test runs three connection tests and reports the response times.
Page 351 IP Protocol Version: IPv4 is used by default. Tap the field to switch between IPv4 and IPv6. Port: Specify the TCP port number for the CyberScope to use to connect to the target. Timeout Threshold: This threshold controls how long the CyberScope waits for a response from the target before failing the test.
Page 352 AutoTest App and Profiles AutoTest TCP Results Screen Device Name: DNS name of the device tested IPv4 or IPv6 Address: IP address of the target device MAC Address: Device's MAC address. The two dashes -- indicate that no MAC address was provided.
Page 353 Lookup Time: How long it took to resolve the URL into an IP address Response Times: How long it took for the CyberScope to receive a response from the server for each of the three connect tests Threshold: The Timeout Threshold indicated...
Page 354 AutoTest App and Profiles Name This field allows you to assign a custom name to the test. The name appears on the target test card in the profile.
Page 355 Tap the toggle button to permit web redirects when trying to connect to the target. Response Time Threshold This threshold controls how long the CyberScope waits for a response from the URL before failing the test. Tap the field to change the value. Web Page Transfer Size...
Page 356 AutoTest App and Profiles Response Must Contain Text entered here functions as pass/fail test criteria based on the presence of the text string on a specified server or URL. To construct a text string, enter a word or several words with exact spacing.
Page 357 Return Code from the list. If your selected Return Code value matches the actual return code value, the test passes, and if CyberScope receives a different return code, the test fails. HTTP Proxy The Proxy control in target test settings uses the server address and port specified in the main profile settings.
Page 358 AutoTest App and Profiles The HTTP card shows the test name entered in the test settings and response time from the target. HTTP Test Results Screen Device Name: DNS name of the server tested...
Page 359 AutoTest App and Profiles IPv4 or IPv6 Address: IP address of the server MAC Address: Server's MAC address. The two dashes -- indicate that no MAC address was provided from the server. URL: The target URL Results Ping: A ping test runs simultaneously with the HTTP test, and this result field displays the Ping response time.
Page 360 AutoTest App and Profiles Data Transfer: Time to receive the data from the target server Total Time: The end user response time (EURT), which is the total time it took to download the web page. It is the sum of DNS lookup, TCP connect, data start, and data transfer time.
Page 361 AutoTest App and Profiles End User Response Time : Pie chart of the times for each phase of the test (DNS, Lookup, TCP Connect, Data Start, and Data Transfer) Results Codes: Final status of the test (Success or Failure) The HTTP test also shows the Return Code from the website server.
Page 362 AutoTest App and Profiles blue links or the blue action overflow icon at the bottom of the test results screens to run the HTTP TEST AGAIN, open another testing app, or Browse to the target address in your web browser. Captive Portal Connections The HTTP test supports connections through a network with a captive portal requirement.
Page 363 AutoTest App and Profiles notification appears to prompt you to enter the captive portal credentials. For the HTTP test to pass, you must select the notification and enter the required credentials on the portal website. Otherwise, the HTTP test fails, with a Result Code of "Captive portal detected (25)."...
Page 364 AutoTest App and Profiles HTTP test, and tap TEST AGAIN to receive valid results. Back to Title and Contents...
Page 365 AutoTest App and Profiles FTP Test The FTP test performs a file upload to or download from an FTP server, allowing veri- fication of server and network performance. The target can be an IPv4 address, IPv6 address, or URL. The results provide a complete breakdown of the overall file transfer time into its component parts.
Page 366 AutoTest App and Profiles Name This field allows you to assign a custom name to the test. The name appears on the target test card in the profile.
Page 367 AutoTest App and Profiles FTP Server Enter the IPv4 address or URL of the FTP server you want to test. If you enter an IP address, the DNS Lookup portion of the test is skipped. IP Protocol Version IPv4 is used by default. Tap the field to switch between IPv4 and IPv6.
Page 368 The test stops when the file has finished downloading. When the Direction setting is Put, the default transfer size of ALL causes the CyberScope to create and upload a file that is 10 MB. Direction Tap the toggle button to switch between a Get (download the File from the server) or Put (upload the File to the server) test.
Page 369 AutoTest App and Profiles Response Time Threshold This threshold controls how long the CyberScope waits for a response from the FTP server before failing the test. Tap the field to change the value. Username and Password Enter these credentials to access the target server you specified.
Page 370 AutoTest App and Profiles HTTP Proxy The Proxy control in target test settings uses the server address and port specified in the main profile settings. See Wired Profile Settings Fi Profile Settings. FTP Test Results The FTP card shows the test name entered in the test settings and response time from the target.
Page 371 AutoTest App and Profiles FTP Test Results Screen Device Name: Hostname of the server tested IPv4 or IPv6 Address: IP address of the server...
Page 372 AutoTest App and Profiles MAC Address: Server's MAC address. The two dashes -- indicate that no MAC address was provided from the server. Get File: File path and name entered in the settings that was transferred to or from the FTP server.
Page 373 AutoTest App and Profiles Data Transfer: Time to receive the file from the target server Total Time: The end user response time (EURT), which is the total time it took to download the web page. It is the sum of DNS lookup, TCP connect, data start, and data transfer time.
Page 374 AutoTest App and Profiles End User Response Time: Pie chart of the times for each phase of the test (DNS, Lookup, TCP Connect, Data Start, and Data Transfer) Results Codes: Final status of the test (Success or Failure) The FTP test also shows the Return Code from the server.
Page 375 AutoTest App and Profiles Nmap Test Nmap tests performs a wide variety of functions. See the Nmap App chapter for more information on setting up Nmap tests. Nmap Test Settings Nmap settings allow test grading criteria based on responses and return code in addition to the time threshold.
Page 376 AutoTest App and Profiles Nmap Test Tap this field to select a list of Nmap tests. The list consists of standard Nmap tests that are checked in the list on the main Nmap test screen. See Nmap Tests for more information. Target Tap this field to display the Target screen.
Page 377 AutoTest App and Profiles Tap the down arrow to select between a Name (such as a URL) or an IP address. Enter the name or IP address in the field and tap OK. IP Protocol Version - Tap to select either IPv4 or IPv6. Interface Tap this field to select the port on which to run the test (any, wired, Wi-Fi, management, etc.).
Page 378 AutoTest App and Profiles HTTP Password Auditing test, provided by NetAlly, gives the following results. Nmap Test: The name of the standard Nmap test that ran. Command: The Nmap command line that ran to produce the results.
Page 379 AutoTest App and Profiles Results This sample test checks for open ports at https.s- canme.nmap.org, a demonstration website for simple port scans provided by Nmap.org. The scanning locates several open ports that might be cause for concern and generates a warning. The open ports are colored yellow, as is the overall test icon.
Page 380 AutoTest App and Profiles Air Quality AutoTest Profiles Air Quality Profiles perform a scan of the channels in your wireless network to measure channel utilization and interference. Each table on the Air Quality results screen shows the top four channels in each band with the highest utilization, co-channel interference or adjacent channel interference, along with the number of APs operating on the channel.
Page 381 AutoTest App and Profiles The CyberScope scans the 2.4-GHz band first and displays results and then does the same for the 5-GHz band and then the 6GHz band if applicable.
Page 382 AutoTest App and Profiles Channel usage depends on the number of clients connected to the network and the amount of interference from devices like microwaves or smartphones using Bluetooth. Very high utilization or interference can affect network performance. Air Quality Profile Results The image below shows a completed Air Quality Profile test with two Warnings...
Page 383 AutoTest App and Profiles...
Page 384 AutoTest App and Profiles Air Quality test gradings are based on the Thresholds configured in the Profile's settings. In the case shown here, the Warnings and Failures occurred because of high Utilization and Co- channel Interference caused by the number of APs active on the top three 2.4 GHz channels: 1, 6, and 11.
Page 385 AutoTest App and Profiles...
Page 386 AutoTest App and Profiles Two dashes -- indicate that no Utilization was detected on the Channels shown. Co-channel Interference: Interference caused by multiple APs operating on the same channel that exceed the minimum Co-channel Interference AP Signal Level threshold in the settings. This measurement accounts for 40-MHz and 80-MHz...
Page 387 AutoTest App and Profiles channels in the 5-GHz band by counting an AP on its primary and each secondary channel. Adjacent Channel Interference: Interference caused by multiple APs operating on adjacent channels that exceed the minimum Adjacent channel Interference AP Signal Level threshold in the settings.
Page 388 AutoTest App and Profiles The Add Comments option opens a Link- Live sharing screen where you can enter comments. The Add Picture function lets you open the Gallery or Camera app to select or take a photo that is then uploaded and attached to your test result.
Page 389 AutoTest App and Profiles The settings for Air Quality are thresholds for grading the channel utilization and interference. On the Air Quality Profile settings screen, tap each field described below as needed to...
Page 390 AutoTest App and Profiles configure the profile. Changed settings are auto- matically applied. When you finish configuring, tap the back button to return to the profile. Name Tap the Name field to enter a custom name for the profile. This name appears on the main AutoTest screen profile card and the Air Quality profile screen header.
Page 391 AutoTest App and Profiles Grading Use the grading threshold controls to adjust the values that determine Warning/Fail results for the corresponding utilization and co-channel interference and adjacent channel meas- urements. Tap each Warning or Failure field to select a new value or enter a custom one. Each threshold also has a toggle button that allows you to disable grading based on that measurement entirely.
Page 392 AutoTest App and Profiles If the Combine Utilization setting is enabled in General Settings, there is only a single combined 802.11 and non-802.11 Utilization Threshold. Utilization measurements and thresholds are percentages of a channel's capacity. Co-channel interference measurements and thresholds are the number of APs operating on the same channel.
Page 393 AutoTest App and Profiles Back to Title and Contents...
Page 394 Back to Title and Contents CyberScope User Guide Nmap App Nmap is a powerful utility for network discovery and security auditing. You can scan networks, send packets, analyze responses, and run scripts to assess network security and diagnose vul- nerabilities. Nmap tests can run against single hosts or large-scale networks.
Page 395 Nmap App Nmap Chapter Contents This chapter describes Nmap tests, shows how to create tests, details test settings, shows how to run tests with the Nmap Runner, and gives examples of Nmap output. Introduction to Nmap Nmap Tests Nmap Settings Nmap Runner Nmap Output...
Page 396 Nmap App Introduction to Nmap Nmap uses raw IP packets to determine: What hosts are available on a network What services (application name and version) the hosts offer What operating systems (and versions) are running The type of packet filters or firewalls in use The Nmap app supports Nmap scripts to help you enhance Nmap functionality.
Page 397 Nmap App Network inventory, network mapping, main- tenance and asset management Security auditing by identifying new servers on a network Sending network traffic to network hosts and then analyzing responses and response time Finding vulnerabilities in a network Sending DNS queries and searching sub- domains Managing service upgrade schedules Monitoring host or service uptime...
Page 398 Nmap App Nmap Tests The main Nmap Tests screen displays a list of Nmap tests including predefined demonstration tests provided by NetAlly and any custom tests that you have created or imported.
Page 399 Nmap App Predefined Tests NetAlly provides the following predefined Nmap tests to that you can run as-is or copy and modify for your own purposes. These tests provide examples of Nmap features and cap- abilities on your test unit. Top 100 Ports: Scans and lists information for the 100 most common ports in use on a target that you provide.
Page 400 Nmap App wrapper for the custom-discovery-example.nse script. The example script documents the API between Discovery and the script. In this case, Discovery provides the script arguments. Discovery tests can run against every address that it can find on the target network and can be a powerful aid to network administrators.
Page 401 Nmap App tests are added to the list of tests. Tap Delete to delete the selected test. Creating a New Test To create a new Nmap test: 1. On the main Nmap Tests screen, tap the floating action icon . This creates a new blank test and opens the Nmap Test parameter screen.
Page 402 Nmap App Load opens a previously saved Nmap con- figuration. Save As saves the current configuration with an existing name or a new custom name. Import: Import a previously exported settings file. Export: Create an export file of the current settings, and save it to internal or connected external storage.
Page 403 Nmap App Editing Nmap Test Parameters To edit the basic parameters for a test, tap the test in the list on the main Nmap Tests screen. This displays the Nmap Test screen.
Page 404 For complete information on Nmap scripts, see https://nmap.org/nsedoc/scripts/. NOTE: You can create your own Nmap scripts in whatever environment you prefer, upload them to Link-Live, and then use Link-Live's Nmap features to push the scripts to your organization's CyberScope units.
Page 405 Nmap App Use Script - Tap to enable or disable the script options. Name - Tap the Name field to enter the script name: 1. Use the text editor to type the beginning of the script name. The Nmap app presents matching scripts as you type.
Page 406 Nmap App Graded Ports sample test uses this value: regex:\d+tcp +open Result Grade: Tap to choose either Warning or Error to designate the result of the Result Must Contain or Result Must Not Contain parameters. For example, the output results of the sample HTTP Password Auditing test colorize open ports yellow to indicate a warning condition.
Page 407 Custom Discovery Example provides a sample test that you can use to become familiar with how such tests are used with CyberScope. Regex Resources For more information about the form of regex used with CyberScope, see...
Page 408 Nmap App Running Nmap Tests The Nmap Runner runs tests, lets you edit run settings, and lets you upload results. 1. Begin on the main Nmap Tests screen, and tap the test you want to run. This opens the Nmap Test parameter screen, which lets you edit the parameters for the test.
Page 409 Nmap App 3. When you have changed any parameters that you want, tap TEST. This opens the Runner screen. 4. Tap the app settings icon to open the Nmap Settings screen to edit the run settings for this specific test. (This includes specifying the target if a target is required for the test.) NOTE: You can tap the test name link to...
Page 410 Nmap App b. Enter a more specific information about the test or results in the Job Comment field. c. Tap Save to Link-Live.
Page 411 Nmap App Nmap Runner Settings These Nmap runner settings specify the run-time settings for the test. These settings may change with each run of the test, in contrast to the more stable test parameters that get saved with the test. Mode Selects the method for running the test.
Page 412 Nmap App Command Line - Runs the test with an editable command line, starting with a default Nmap command. This mode is convenient if you know specific changes that you want to make to the command line options. Nmap Test (For Nmap Test mode only) Displays the name of the current test.
Page 413 Nmap App NOTE: Not all Nmap tests require targets. Include Target - Tap to enable or disable the target options. Target - Tap to open a text field to enter the target name. Tap the down arrow to select between a Name (such as a URL) or an IP address.
Page 414 Nmap App Interface Tap this field to select the port on which to run the test (any, wired, Wi-Fi, management, etc.). Test and Management Ports.
Page 415 Nmap App Nmap Output This section gives details of Nmap output and presents two examples of how you can use the NetAlly Nmap parameters to enhance the output appearance. There are also many output options in the Nmap utility, as documented at Nmap.org.
Page 416 Upload to Link- Live. Enter any desired comments or job comments on the upload screen, and then tap SAVE TO LINK-LIVE. Below are examples of how you can use the NetAlly Nmap parameters to grade and organize output appearance. Password Audit with Result Grade Warning: The first example shows part of a...
Page 417 Nmap App Password Audit with Result Grade Error: The second example also shows part of a results screen for the sample HTTP Password Auditing test as run against...
Page 418 Nmap App nmap.org. The Result Must Not Contain parameter is also set to the text "open", and the Result Grade parameter is set to Error. When the text "open" appears in the port results, the icon in the output header is colored red to indicate the error, as are the strings in the output results.
Page 419 Nmap App Password Audit with Regex Expression and Result Grade Error: The final example shows how you use regex with the HTTP Password Auditing test to organize and grade the...
Page 420 Nmap App output. The Result Must Contain parameter is set to "regex:PORT +STATE +SERVICE|[0-9]+ filtered|\d+ closed" to control spacing of the output results. The Result Must Not Contain parameter is set to "regex:open +ssh". The Result Grade parameter is set to Error. The partial results screen below shows the closed port data colored green due to meeting the regex criteria.
Page 421 Nmap App Back to Title and Contents...
Page 422 Wi-Fi, Path Analysis and connection tests. Devices are discovered in the local broadcast domains where the CyberScope is physically connected, as well as other configured subnets. By default, discovery processes run out of all...
Page 423 Discovery App Discovery Chapter Contents This chapter describes how the Discovery process and app screens work, shows examples of Discovery data, and details the Discovery settings. Introduction to Discovery Main Discovery List Screen Discovery Details Screens Device Types Device Names and Authorization Discovery Settings Problem Settings TCP Port Scan Settings...
Page 424 Discovery classifies each device as it is found. Up to 2,000 devices can be reported. The Discovery app also detects Problems with discovered devices, including Warning Failure conditions. The CyberScope's discovery process begins when the unit is powered on. A channel...
Page 425 Discovery App scanning notification in the top Status Bar indicates that the CyberScope is scanning Wi-Fi channels to passively discover devices on the wireless network. Once a network connection (wired or Wi-Fi, test or management) is established, the active discovery process begins.
Page 426 Discovery App Main Discovery List Screen The main Discovery screen lists all the devices the CyberScope has discovered.
Page 427 Discovery App Like in AutoTest and other CyberScope screens, the icons in Discovery change color to indicate a Warning Failure condition. Discovery also displays device icons in Blue to indicate Problem-related information that does not constitute a warning or failure, and...
Page 428 Discovery App navigation drawer to configure settings, and tap a device's card to view its details.
Page 429 Discovery List Cards The information displayed on each device card varies depending on the selected Sort element and the data the CyberScope was able to discover. The lower left field displays the characteristic by which the Discovery list is currently sorted. In the image above, the list is sorted by MAC address.
Page 430 Discovery App screen to search discovered devices.
Page 431 Discovery App Filtering the Discovery List Tap the filter button near the top left of the main Discovery screen to set filters that control which devices are displayed in the list. The Filters screen displays the number of devices or domains discovered for each category.
Page 432 Discovery App by checking the boxes. The main Discovery screen shows only those devices or IDs that fall under your chosen filter parameters. When filters are selected, those active filters are displayed at the top of the Filters screen. × Tap the button to the right of each filter to clear it.
Page 433 Discovery App Tap the clear filter icon at the top right to clear all filters. After you select a filter, the Filters screen displays results filtered for that characteristic. For example, in the image above, the user has selected the Network Tools device type. As a result, only those subnets, addresses, Wi-Fi bands, etc., with a discovered Network Tool remain selectable in the filters list.
Page 434 Discovery App The number of active filters displays to the left of the filter icon (3 active filters in the image above). Sorting the Discovery List Tap the Sort bar or down arrow to open the Sort drop-down menu.
Page 435 Discovery App Select a Sort option to order the devices based on your selected characteristic. The selected Sort option displays in the Sort bar above the device list, and the sort characteristic for each device is shown under the device type icon.
Page 436 Discovery App Reversing the normal sort order reverses the devices within the groups but does not change the order of the groups. Security Auditing – Batch Authorization Batch Authorization lets you extend filtering to organize devices into the following security categories: Authorized: For devices approved for use on your network...
Page 437 Discovery App Once categorized, it is simple to immediately identify any new devices on the network by filtering according to Authorization type. New devices are identified as Unspecified. To use the Batch Authorization feature, create a filter that identifies the devices you want to categorize.
Page 438 Discovery App NOTE: The initial selection on this screen defaults to the category with the highest count. If other categories have non-zero counts, selecting OK changes the author- ization setting for all devices to the selected category.
Page 439 Discovery App Select the appropriate security category. As in the example, if these devices belong to other offices, select Neighbor, and then tap the OK button. You can now sort the list of discovered devices and clearly identify the security category of the...
Page 440 Discovery App devices. Devices from other offices are identified as: Neighbor...
Page 441 Discovery App Assigning a Name and Authorization to a Device for more information on the Author- ization feature. NOTE: Batch Authorization operates on the default MAC address of a device. If a device has multiple MACs, authorization is set only on the default MAC address.
Page 442 Discovery App REFRESH DISCOVERY restarts the active discovery process without clearing the already discovered devices. CLEAR AND RERUN DISCOVERY clears the accumulated results and restarts the discovery process. Uploading Results to Link-Live Tap the action overflow icon at the top right of the main Discovery screen, and select Upload to Link-Live to send the current Discovery results to the Analysis page...
Page 443 Discovery App See the Link-Live chapter for more information. Back to Title and Contents...
Page 444 The available data and actions on the Details screens vary significantly depending on the device type, connections, and data the CyberScope was able to discover. In other words, only the discoverable information for each device is shown on the Details screen.
Page 445 Discovery App For the Switch screen shown above, Discovery was able to find an IP address but not a name for the switch.
Page 446 Discovery App Each Details screen shows additional information about the selected device, any Problems detected by the CyberScope, and counts for other connected or corresponding network elements. Each Details screen also has a FAB button that lets you take additional actions or run other applications on the device.
Page 447 The rest of the fields that appear on the top Details screen card depend on the device type and what the CyberScope can discover about the device. On the Discovery Details screens, you can tap...
Page 448 Discovery App NOTE: Non-underlined links open in the same app (in this case Discovery), and under- lined links open in a different app (in this case Wi-Fi) . The linked and underlined Cisco MAC address in the screen image above opens the Wi-Fi app's AP Details screen, where you can view the other...
Page 449 Data Fields on the Top Details Card The following fields may appear on the top card on a Device Details screen, depending on the device type and the information CyberScope was able to discover: Name: Discovered hostname(s) of the device.
Page 450 Discovery App Type(s): 802.11 media type(s) supported by the device Nearest Switch: Name or address of the switch identified as closest to the device Port: Physical port where the device is connected VLAN ID: ID of the VLAN the device is on Protocols: Routing protocols, discovered via packet analysis, operating on the device or network...
Page 451 Virtual Machine: Name of the virtual machine Guest OS: Operating system running on the virtual machine Memory Reservation: Amount of memory reserved for the virtual machine Last Seen: Time at which CyberScope most recently detected the device Back to Title and Contents...
Page 452 Discovery App Lower Cards in Device Details Tap any of the lower cards on a Device Details screen to view more discovered characteristics and "drill down" to specific Problems, Addresses, Interfaces, etc. for the selected device. Screens with a list, such as Addresses shown below, also offer Sort options.
Page 453 Discovery App The rest of this topic provides examples of each type of Details screen and options for additional analysis. Remember, you can tap any card with a right pointing arrow to open a new screen with more information about the device or char- acteristic.
Page 454 Discovery App Problems The Problems card shows the icon color of the highest severity problem, and the number of detected Warning, Failure or Error, Information, Resolved conditions for the device or network component. Tap the Problems card to view the Problems list screen (unless only 1 Problem is detected, in which case, the detailed Problem description opens, skipping the list screen).
Page 455 Discovery App Tap the sort field to sort the list by Severity or by the time when the problem was First Detected. On the Problems list screen, tap a Problem's row to read a detailed description. To clear a problem, tap the action overflow button at the top right of the Problem list or description screen, and then tap Clear Problem.
Page 456 Discovery App The Addresses card displays the number of each type of address discovered: IPv4, IPv6, MAC, and/or BSSID. Tap to view the addresses and related information. From the Addresses list screen, you can sort the list order and tap any of the discovered addresses to investigate the address further.
Page 457 Discovery App TCP Port Scan If you have run a TCP Port Scan (from the Discovery FAB) on a device or IP address, a TCP Port Scan card appears on the device's Details screen. This card lists open port numbers and shows the total quantity of open ports.
Page 458 Discovery App The top of the TCP Port Scan results screen shows the name or IP address of the tested device and the following fields: IP address: IP address of the device that was scanned...
Page 459 Discovery App Interface: Test or management port from which the test ran, set in the TCP Port Scan settings Scan List: List of port numbers tested Results Status: Current status of the port scan Port/Description: List of all the detected open ports with their descriptions See also TCP Port Scan...
Page 460 Discovery App The VLANs Details screen also shows the description with each VLAN ID. Interfaces Interface are discovered using SNMP. The Interfaces card shows the number of Up and Down interfaces and the total number of Interfaces to the right.
Page 461 Discovery App Tap the card to view the list of Interfaces. Like other Discovery list screens, the Interfaces list provides a number of Sort options, and the selected sort option affects the type of information displayed. The image above shows Interfaces sorted by Status (up or down).
Page 462 Discovery App Tap an Interface row to open a new Discovery Details screen for that Interface.
Page 463 Discovery App The Interface Details screen contains a description of the interface and information about its Status, Connected Device and Port, and Address. MTU: Maximum Transmission Unit, the maximum packet frame size configured on the interface port...
Page 464 Discovery App From this screen, you can tap the lower cards to review any discovery VLANs and Devices for the Interface as well as graphs of the Interface Statistics.
Page 465 Discovery App The Statistics screen displays real-time trending graphs of Utilization, Packet Discards, Packet Errors. See the Trending Graphs topic for an overview of the graphs' pan and zoom controls. Below the trending graphs are pie charts of Packet transfers to and from the Interface.
Page 466 Discovery App SNMP This card shows SNMP Uptime. Tap the card for additional details.
Page 467 SNMP: SNMP versions the device supports, Engine ID (for v3), and how the CyberScope is currently communicating with the device, along with credentials, including the Community String in use...
Page 468 Discovery App Resources The Resources card shows the percentages of CPU, memory, and storage usage on the device. This information is gathered via SNMP. Tap the card to view current and maximum resource utilization measurements.
Page 469 Discovery App By default, CyberScope displays a Warning condition if CPU, Memory, or Storage utilization is above 90%. You can adjust problem detection and thresholds in the Problem Settings accessed from the Discovery navigation drawer. SSIDs The SSIDs card appears in the Details for Wi-Fi Controllers.
Page 470 Discovery App On the SSIDs screen, each SSID is shown with its Security type(s) and any VLANs. SSIDs with a checkmark to the left are enabled, and those × with an are disabled.
Page 471 Details screens offers additional actions depending on the device type and connection available. Opening other NetAlly apps, such as Path Analysis, Ping/TCP, Capture, Nmap from a Details screen auto-populates the new app with the device's name and/or address. In this way, both the Discovery and...
Page 472 Discovery App Tap Add Test Target to create a new AutoTest target matching the currently selected device. A dialog first displays to select the test type, then the AutoTest app opens, displaying the newly added target’s settings. You can then further customize the target.
Page 473 Discovery App Auto-Populating Device Addresses When another app is opened from the FAB, the default address and name shown on the Details Card are the targets populated. For example, the Router shown in the Details screen below has multiple IPv4 and MAC addresses (which can be viewed by tapping the Addresses card).
Page 474 Discovery App When you open the FAB and select a different app, such as Path Analysis, only the address and name listed at the top of the Details screen are populated in the Path Analysis app.
Page 475 Discovery App To open another screen or app with a different address, open the Addresses card, and select another address to view its Details screen. Back to Title and Contents...
Page 476 Discovery App Device Types The Discovery app lists and analyzes the types of devices explained in this section. Different data may be available to the CyberScope depending on the device type, how it was discovered, and your configured settings. Discovery Settings...
Page 477 Discovery App Routers CyberScope discovers IP routers by monitoring traffic and querying hosts.
Page 478 Discovery App Switches Switches are also discovered by monitoring traffic and querying hosts.
Page 479 MAC addresses in that space. The CyberScope numbers the switches as they are discovered. (These numbers may change each time the discovery process runs.) The Unknown Switches Details screen shows the number of devices connected to the switch.
Page 480 Discovery App Network Servers Network servers include NetBIOS, DHCP, and DNS servers.
Page 481 Discovery App Hypervisors VMware hypervisors are discovered via SNMP. The hypervisor's SNMP agent must be enabled for the CyberScope to discover it and classify it as a hypervisor.
Page 482 Discovery App Virtual Machines VMware virtual machines are discovered from VMware client table in SNMP-enabled VMware hypervisors. Devices are also classified as Virtual Machines if they have a VMware MAC.
Page 483 Discovery App Wi-Fi Controllers CyberScope can discover SNMP enabled Wi-Fi controllers, including Cisco and Aruba Wi-Fi Controllers.
Page 484 Discovery App Access Points (APs) The CyberScope discovers APs through wireless packet analysis and SNMP queries with a linked connection through a management or test port. See also APs in the Wi-Fi analysis app. Back to Title and Contents...
Page 485 Discovery App Wi-Fi Clients Wireless clients are discovered through wireless packet analysis and SNMP queries with a linked connection through a management or test port. See also Clients in the Wi-Fi analysis app.
Page 486 Discovery App VoIP Phones VoIP discovery provides visibility into the VoIP and layer 2/3 configuration of the network.
Page 487 Discovery App Printers The CyberScope identifies IP printers via the SNMP Printer MIB and IPX printers via diagnostic requests and queries.
Page 488 SNMP agents are discovered using SNMP queries. See SNMP Configuration. NOTE: If CyberScope cannot discover the SNMP agents on your devices, they may be connected to another subnet, like a man- agement subnet. Solve this issue by adding the subnet to Extended Ranges.
Page 489 Discovery App Network Tools The CyberScope can also identify other NetAlly network testers, including CyberScope, AirCheck G2, OneTouch AT, LinkRunner (AT and G2), and Test Accessory. The image above shows several NetAlly tools as they appear in the main Discovery list.
Page 490 Discovery App CyberScope displays all the information it can gather about each tool on the Details screen. Hosts/Clients Other hosts and clients are discovered by traffic monitoring and querying. If a host cannot be identified as belonging to one of the other categories (Switch, Router, VoIP device, etc.)
Page 491 Discovery App NOTE: A MAC address that begins with LocalAdm indicates that the address has been locally randomized to prevent unau- thorized tracking.
Page 492 Discovery App Back to Title and Contents...
Page 493 Assigning a User Name and/or Authorization status does not change any of the information on the actual device, only how the device's information displays on the CyberScope on which the Name and Authorization are assigned. You only need to assign a Name and/or Author- ization to one BSSID or MAC address for a device with multiple addresses.
Page 494 Once set, the custom User Name is shown in other NetAlly apps wherever device information is displayed. The Authorization is displayed in the Discovery and Wi-Fi apps.
Page 495 Discovery App order), the devices with Authorizations of highest concern appear at the top. The image below shows a list screen sorted this way: Applying a Name and/or Authorization Access the Name and Authorization function from the floating action menu on a Discovery Details screen or a...
Page 496 Discovery App applied to the MAC address or BSSID displayed on the Details screen, as shown in this section. 1. Tap the on a Discovery or Wi-Fi Details screen for a device with a discovered MAC/BSSID.
Page 497 Discovery App The example above shows an AP's Details screen in the Discovery app. 2. Select Name and Authorization to open the dialog.
Page 498 Discovery App 3. In the Name and Authorization dialog, tap the User Name field to enter a customized name, if desired. In the image above, the user has entered the name "Conference Room AP."...
Page 499 Discovery App NOTE: It is possible to either enter a user name or select an Authorization. You do not have to do both. 4. Select the radio button to assign an Author- ization status as needed. 5. Tap OK to apply. Once applied, the User Name and Authorization are displayed on the Discovery Details screen.
Page 500 Discovery App The user-assigned name for the AP and Author- ization for the BSSID also appear on the Wi-Fi BSSID Details screen, as shown below.
Page 501 Discovery App NOTE: If different Authorization statuses are assigned for different BSSIDs or MAC addresses on the same device, the Author- ization of highest concern appears on the device's Details screens. Changing or Clearing a User Name or Authorization Open the Name and Authorization dialog again for the same BSSID or MAC address on a device to reassign or clear the assigned User Name or Authorization.
Page 502 Name and Authorization dialog, clear the User Name field and leave it blank, and select the Unspecified Authorization. Then, tap OK. Revising or Importing authname.txt Custom Names and Authorizations are stored in the authname.txt file in the CyberScope's internal storage .settings folder, accessible from Files app.
Page 503 Show Internal Storage to navigate to the CyberScope folder and sub- folders. If desired, you can manually edit this file on the CyberScope unit, or you can create a new...
Page 504 Link-Live to your test unit.) NOTE: Your CyberScope can parse ? wildcard characters in the authname.txt file (although * wildcard characters are not allowed). The default authname.txt file on your unit contains instructions on how to format your...
Page 505 18b169-c84600, Flagged, Who is this? The line 18b169-c84600, Flagged, Who is this? would result in a Discovery details for the device as follows: To edit the authname.txt file on the CyberScope, third-party apps, such QuickEdit Text Editor, are available from the NetAllyApp Store...
Page 506 Discovery App Refreshing Discovery in the Discovery app or restarting your unit. Back to Title and Contents...
Page 507 Discovery App Discovery Settings Discovery configurations include SNMP settings, Community Strings and the order in which they are used, Credential Sets, Ports, Extended Ranges, and process intervals. Access the Discovery settings screen by sliding out the left-side navigation drawer or tapping the menu icon , and selecting Discovery Settings.
Page 508 Discovery App (Tap here to skip to Problem Settings, TCP Port Scan, or back to General Settings.) To adjust Discovery Settings: 1. On the Discovery Settings screen, tap each field described in this topic, as needed, to...
Page 509 Discovery App select or enter your required configuration elements. 2. When you finish configuring, tap the back button to return to the main Discovery List screen. 3. Then, Refresh Discovery from the action overflow menu to apply the new con- figuration.
Page 510 Discovery App After you have saved a configuration, the custom name you entered appears in the title of the Discovery Settings screen. In the image below, a user has saved a custom configuration named "South Campus," which replaces the "Discovery Settings"...
Page 511 The network address of the switch and router SNMP agents in the remote subnet, e.g. a management subnet. Configure both SNMP Credential Sets and Extended Ranges to ensure that the CyberScope always discovers management subnets, regardless of your network port connections.
Page 512 Discovery App Tap the field to open the Extended Ranges list screen. Check or uncheck the boxes to include or exclude an extended range from the current Discovery configuration. Unchecked Extended Ranges do not affect the default Discovery behavior in the current...
Page 513 Discovery App configuration, but they may be used in other Discovery configurations (like Community Strings and Credentials). Tap any Extended Range's row to edit its address and subnet. Tap the FAB to add new extended ranges. Active vs. Restricted Subnets For each configured Extended Range, you can tap the toggle button to switch from Active to Restricted.
Page 514 Discovery App meaning the CyberScope will not communicate with devices within the restricted range. Restricted Ranges take precedence regard- less of the order in which they are listed on the Extended Ranges screen. You can Restrict a part of a configured Active Extended Range.
Page 515 Discovery App Tap the drop-down menu to select a previously Discovered Subnet. The Address field is auto- matically populated with your selection. Subnet Mask Tap this field to select a subnet mask. If you select an already Discovered Subnet, the Subnet Mask is also pre-populated.
Page 516 Discovery App This setting can prevent the CyberScope from shutting down ports that sense too many ARPs being sent. Refresh Interval This setting controls the time between runs of the Discovery process. By default, Discovery runs every 90 minutes. Tap the Refresh Interval field to select a different interval, up to 8 hours.
Page 517 SNMP agents on your interconnect devices, such as switches and routers. The Discovery Settings allow you to enter the SNMP community strings and credential sets the CyberScope uses to communicate with those devices. SNMPv1/v2 Tap the toggle button to enable or disable SNMPv1 and v2 queries.
Page 518 Discovery App The CyberScope uses the checked strings in the order shown on this screen. If it does not receive a response from the queried device using one string, it sends the next string. NOTE: This screen and others in the...
Page 519 Check or uncheck the boxes to include or exclude a string from use in the current Discovery configuration. Tap the up and down arrows change the order in which the CyberScope uses the strings to query a device. Tap the action overflow icon to Duplicate or Delete a Community String.
Page 520 Credentials configured in the next setting. NOTE: If this setting is enabled, but no SNMPv3 credentials are configured, the CyberScope discovers the engine IDs of all SNMPv3 agents. This is a good way to discover if a device supports SNMPv3. Credentials...
Page 521 Discovery App This screen interface works like the Community Strings screen above. CyberScope uses the Credentials in the order shown. Check or uncheck the boxes to include or exclude a set of Credentials from use in the current Discovery configuration.
Page 522 Discovery App Tap the FAB to add new credentials. On the Credentials Sets screen, tap each field to select or enter the credentials required. Name Tap the Name field to enter a custom name for the Credential Set.
Page 523 256. If needed, enter the appropriate Privacy Password. SNMP Query Delay This function controls how long your CyberScope waits between SNMP queries to key tables that can cause CPU spikes in the SNMP agents, including the ARP cache, IP address table, routing tables, and FDB tables.
Page 524 You can select a 1 or 5 second delay if needed. Devices Discovered Through Other Devices By default, CyberScope discovers devices from SNMP tables of other devices. If you do not want Discovery to automatically find devices from SNMP tables of the device types listed here, you...
Page 525 Discovery App Routers and Subnets When the Routers and Subnets checkbox is enabled, any discovered routers are included in discovery results. In addition, if Discovery has SNMP access to a discovered router, its routing tables are read, and the next hop routers are added to the Discovery list.
Page 526 SNMP neighbor tables of other devices to the Discovery list. For example, when CyberScope is reading the CDP and LLDP caches of one switch, it contains other switches. If this option is enabled, the CyberScope adds those other switches, even if they are not in discovery ranges.
Page 527 Discovery App Wi-Fi Clients When the Wi-Fi Clients checkbox is enabled, discovery adds any wireless clients it finds in SNMP tables of APs and Wireless LAN Controllers. Enabling this option along with Switches provides best chance of finding all Wi- Fi clients.
Page 528 Discovery App such as high utilization, discards, or errors on all discovered interfaces and device resources. The selected time Refresh Interval is the minimum time between each run of the Device Health tests. Tap the field to disable Device Health testing or to change the interval from the default of 10 minutes to 30 or 60 minutes.
Page 529 Nmap Tests screen.) Auto AP Grouping Rules This feature allows you to adjust the AP Grouping Rules that control how the CyberScope groups BSSIDs with their Access Points, such that they are grouped appropriately for your AP types and environment.
Page 530 Tap the setting to open the AP Grouping Rules list screen. The image below shows the six default AP Grouping Rules on the CyberScope. The Prefix filters in all of the default grouping rules are set to 000000-000000.
Page 531 Discovery App As with other settings list screens on the CyberScope, you can enable or disable, add, delete, and edit the grouping rules from this screen.
Page 532 Discovery App Check or uncheck the boxes to include or exclude a rule from use in the current Discovery configuration. Tap the action overflow icon to Duplicate or Delete a rule. CAUTION: When you delete a rule, you delete it from all saved Discovery configurations. To remove a rule from those used by the current Discovery configuration, simply uncheck it.
Page 533 Discovery App Name If desired, enter a custom name for a default or new rule. If you intend to use a Prefix filter, a best practice would be to name the rule with the AP manufacturer's name. Prefix filter Use the Prefix filter to create a rule for a specific AP manufacturer's BSSID scheme, meaning a rule for just one AP manufacturer prefix.
Page 534 Discovery App Filter mask The Filter mask specifies what parts of the BSSIDs are compared when determining AP groupings. For example, default Grouping Rule 1 has a Filter mask of FFFFFF-FFFFC0, so any BSSIDs that vary only by the lower six bits are grouped together.
Page 535 Discovery App Problem Settings The Problem settings determine which issues are detected and displayed by both the Discovery and Wi-Fi Analysis apps as well as the thresholds for enabled problems, such as Packet Discards and Utilization. Access the Problem Settings screen by sliding out the left-side navigation drawer or tapping...
Page 536 Discovery App (Tap here to go to Discovery Settings or back to General Settings.) Problems are categorized as Network, Wi-Fi, or Security. NOTE: The Wi-Fi Problems configured here also control the Problems detected and displayed in Wi-Fi Analysis app. As with Discovery Settings, you can save, load, import, and export configured Problem Settings...
Page 537 Discovery App All Problem types are enabled by default. Tap the toggle button to the right to disable each one. Tap the red , yellow , or black information icons to the right of each Problem to read a detailed description and recommended actions.
Page 538 (Run the scan by tapping on a Discovery Details screen and then tapping TCP Port Scan.) The CyberScope scans many ports simultaneously and reports the open port's numbers. Access the TCP Port Scan Settings by sliding out...
Page 539 You can enter port numbers or ranges, separated by commas. Timeout Threshold: Tap this field to select a value for how long the CyberScope waits for a response from each port or to enter a custom value. The scan ends after all the ports in the...
Page 540 Discovery App respond, and then the results screen lists the ports that responded within the threshold. See also the TCP Port Scan results card and screen. Back to Title and Contents...
Page 541 Wi-Fi networks. Wi-Fi discovery begins when you power on the CyberScope, and measurements update with each channel scan cycle. The CyberScope supports 802.11a/b/g/n/ac/ax technologies. CyberScope can also detect and indicate the 802.11ax media type (known as Wi-...
Page 542 Wi-Fi Analysis App The Wi-Fi app features separate screens that list and display characteristics of the different devices and elements of your wireless environment. Tap a link below to go directly to the description of the screen listed: Channels Map Channels SSIDs BSSIDs...
Page 543 Profile), the port unlinks and resumes scanning when you open the Wi-Fi Analysis app. Wi-Fi Analysis is enhanced with data gathered by Discovery. When the CyberScope is linked to a network through any of the other three ports (Wi-Fi Management, Wired Test, or Wired...
Page 544 Wi-Fi Analysis App Wi-Fi App List Screens To switch between the different Wi-Fi app screens, tap the menu icon (or swipe right) to open the left-side navigation drawer.
Page 545 Wi-Fi Analysis App The Wi-Fi app's navigation drawer displays a real-time count (in parentheses) of each wireless component CyberScope has detected. Tap an option to open the corresponding screen. NOTE: The General Settings for Wi-Fi control which channels and bands are scanned to populate the Wi-Fi screens.
Page 546 Wi-Fi Analysis App Like in AutoTest and other CyberScope screens, the icons in Wi-Fi analysis change color to indicate a Warning Failure condition. The app also displays icons in Blue to indicate Problem- related information that does not constitute a...
Page 547 Wi-Fi List Cards The information displayed on each card varies depending on the selected Sort characteristic and the data the CyberScope was able to discover. For example, a card on the Channels list screen displays the channel number, frequency, connected APs, and utilization.
Page 548 In the image above, the Channels list is sorted by Client Count. If a device is grayed out, the CyberScope no longer detects a signal from it. The client card shown below indicates that the "Rspbry" client cannot be detected currently.
Page 549 Wi-Fi Analysis App Filtering in the Wi-Fi App Each Wi-Fi Analysis screen has different Filter options that are appropriate for the network component type you are analyzing. Tap the filter button near the top left of the Wi-Fi screens to set filters that control which network components are displayed.
Page 550 Wi-Fi Analysis App filter the Channels Map > Overlap screen, as shown below: The number in parentheses shows how many active network characteristics are detected for each category. (The example shows (5) active Channels, (9) SSIDs, and so on.) Tap a category to select filters by tapping the checkboxes or radio buttons.
Page 551 Wi-Fi Analysis App Under each category, the number of discovered APs is shown for each characteristic. (In the example above, there are (3) Security types detected and (9) APs using the WPA2-P Security type.) In this example, the Overlap screen shows only those APs that fall under your chosen filter parameters.
Page 552 Wi-Fi Analysis App When filters are selected, those active filters are displayed at the top of the Filters screen. × Tap the button to the right of each filter to clear it. Tap the clear filter icon at the top right to clear all filters.
Page 553 Wi-Fi Analysis App If the screen is a list, like the APs screen below, the screen title shows the number of filtered devices out of the total discovered devices (5 filtered devices out of 16 total).
Page 554 Wi-Fi Analysis App Sorting in the Wi-Fi App Tap the Sort bar or down arrow to open the Sort drop-down menu. Each list screen supports relevant Sort options based on what you are viewing. The APs screen Sort options are shown below as an example.
Page 555 Wi-Fi Analysis App Select a Sort option to order the list based on your selected characteristic. The selected Sort option displays in the Sort bar above the list, and the sort characteristic for each item is shown under the type icon and name.
Page 556 Wi-Fi Analysis App IPv6, and MAC addresses appear below, respect- ively. Reversing the normal sort order reverses the devices within the groups but does not change the order of the groups. Refreshing Wi-Fi Tap the action overflow icon at the top right of the screen in any of the Wi-Fi screens (Channels Map, Channels, SSID, APs, BSSIDs, or Clients), and select Refresh Wi-Fi to clear and...
Page 557 Wi-Fi Analysis App Clients), and tap Clear All Problems to clear all detected problems on all Wi-Fi lists. Wi-Fi Problems Screen for more information. Setting Authorization You can also use the Authorization to sort the BSSID and Clients lists. From the BSSID or Clients list screen, tap the action overflow icon at the top right and select Set Authorization to see how these devices are currently...
Page 558 Wi-Fi Analysis App "Wi-Fi Details Screens" on page 560 for more information. Uploading Results to Link-Live Tap the action overflow icon at the top right of the screen in any of the Wi-Fi screens...
Page 559 Wi-Fi Analysis App (Channels Map, Channels, SSID, APs, BSSIDs, or Clients), and tap Upload to Link-Live to send the current Wi-Fi results to the Analysis page Link-Live.com. NOTE: Discovery app results automatically upload with the Wi-Fi results. See the Link-Live chapter for more information.
Page 560 Wi-Fi Analysis App Wi-Fi Details Screens Tapping any card on a list screen—SSIDs, APs, BSSIDs, Clients, or Interferers —opens the Details screen for that device or network ID. On the Wi-Fi Details screens, you can tap any blue linked name or address to open a Discovery or Wi-Fi app screen for the linked device.
Page 561 (in this case Discovery). Each Details screen shows additional information about the selected item, any Problems detected by the CyberScope, and counts for other connected network devices or IDs. See also Data Fields on the Top Details Card in the Discovery chapter.
Page 562 Wi-Fi Analysis App The Channel Details screen above shows how many SSIDs, APs, BSSIDs, Clients, or Interferers are detected on Channel 64. Tap the lower cards in Wi-Fi Details to open a list screen that is...
Page 563 Wi-Fi Analysis App filtered for the network component you are examining. If you select BSSIDs on the Details screen for Channel 64, the BSSIDs screen opens and filters for BSSIDs found on Channel 64 only. See the topics for each Wi-Fi app screen type (SSIDs, APs, etc.) for more discussion of the cor- responding Details screen.
Page 564 Wi-Fi Analysis App The Problems card shows the icon color of the highest severity problem, and the number of detected Warning, Failure, Information, and Resolved conditions for the device or network component. Tap the card to open the Problems screen.
Page 565 Clear Problem. Problem Settings in the Discovery app to select which Wi-Fi Problems are detected and displayed by your CyberScope. RF and Traffic Statistics Overview The Channel, BSSID, and Client Details screens can display RF and Traffic Statistics if any traffic...
Page 566 Wi-Fi Analysis App This section describes the common elements of the RF and Traffic Statistics screen. See the topic for each type of Details screen for differences. The RF and Traffic Statistics card shows the Channel number or the Signal strength of the strongest AP on the channel and the channel's Utilization percentage.
Page 567 Wi-Fi Analysis App Strongest AP: The AP on the channel with the strongest signal Under each graph, a legend table displays the Current, Minimum, Maximum, and Average...
Page 568 Wi-Fi Analysis App measurements. The Current column contains measurements from the last second. Min, Max, and Avg columns show cumulative meas- urements gathered during the time the RF and Traffic screen has been open. Tap the refresh button at the top of the screen to clear and restart the measurements.
Page 569 Wi-Fi Analysis App Retries (% of packets) graph: Plots percentage of transmitted packets that are retry packets. Retry Rate % - The percentage of total packets that are retry packets Retry Pkts - The number of retry packets...
Page 570 Wi-Fi Analysis App Total Pkts - The total number of transmitted packets Locating Wi-Fi Devices You can use your CyberScope to locate APs and Wi-Fi clients from the Channels Map screen for BSSIDs and Clients. To begin a location action: 1.
Page 571 Wi-Fi Analysis App 5. Tap Locate. This opens the Locate screen and causes your CyberScope to "listen" for the BSSID or Client wireless devices you...
Page 572 Wi-Fi Analysis App want to find using either the internal antennas or the optional external antenna (sold separately or in kits).
Page 573 See Using the Internal Antennas to Locate below. In large, open areas, the external antenna can help locate devices more quickly. See Using the Optional External Antenna below. Locating with the Internal Antennas CyberScope uses the internal antennas by default.
Page 574 Wi-Fi Analysis App 1. Navigate to the RF and Traffic Statistics screen for the BSSID (AP) or client you need to locate. 2. (Optional) Tap the speaker icon to toggle the audible tone on or off. 3. Divide the area you want to search into four sections.
Page 575 Visit NetAlly.com for purchasing information. 1. If using the Directional Tri-band (2.4, 5, and 6 GHz) external antenna, screw the antenna's RP-SMA connector into the antenna port on the top of the CyberScope (shown below). If using the Dual-band (2.4...
Page 576 Wi-Fi Analysis App and 5 GHz) Flag antenna, screw the external antenna cord into the antenna port.
Page 577 Wi-Fi Analysis App 2. On the RF and Traffic Statistics screen, tap the External Antenna toggle to enable the external antenna. 3. (Optional) Tap the speaker icon to toggle the audible tone on or off. 4. Divide the area you want to search into four sections.
Page 578 Wi-Fi Analysis App connector to angle the antenna so that the "target" silkscreen on the antenna points toward your search area, as shown below. Point the antenna towards each corner of the area. To get the best measurements, hold it at a constant height and above barriers such as cubicle walls.
Page 579 Wi-Fi Analysis App 7. For the Dual-band Flag antenna, point the front edge of the antenna toward your search area, as shown below.
Page 580 Wi-Fi Analysis App 8. Go to the middle of the section with the strongest signal. 9. Repeat steps 4 through 7 until you find the device. Back to Title and Contents...
Page 581 Wi-Fi Analysis App Channels Map The Channels Map screens provide charts of channel utilization with AP coverage and overlap. Swipe right or left or tap the tab names to switch between the chart types: Map, Map 6E, or Overlap.
Page 582 Wi-Fi Analysis App Map and Map 6E Tabs The Map and Map 6E tabs display a bar graph of 802.11 and non-802.11 utilization, retry percentage, APs for each channel, clients for each channel, and illegal channels. (The Map 6E tab is for 6 GHz channels only.) Blue vertical bars show the percentage of each channel's capacity used by 802.11 devices (light blue) and non-802.11 inter-...
Page 583 Wi-Fi Analysis App Yellow bars next to the blue bars show the percentage of retries. Channel numbers are listed on the x-axis and utilization percentage on the y-axis. AP counts for the APs' primary channel are shown in dark red at the top of the column for each channel.
Page 584 Wi-Fi Analysis App Channel Details screen lets you examine the addresses and devices operating on the channel and perform a deeper analysis. Spectrum link opens the Spectrum app, a Wi-Fi spectrum analyzer that provides data about signal strength and noise. Overlap Tab Tap Overlap to view access point channel, coverage, and overlap.
Page 585 Wi-Fi Analysis App Tap the Filter icon near the top left to open the Overlap Filters screen to control...
Page 586 Wi-Fi Analysis App what APs are displayed. You can select filters for channels, SSIDs, Signal, SNR, 802.11 type, or Security. Tap an AP on the graph to select it and its primary channel. This highlights the area covered by the channel and lists the channel information above the graph.
Page 587 Wi-Fi Analysis App Double-tap the graph to zoom in or use "pinch" gestures with your thumb and forefinger. Tap the Restore icon or reverse the pinch gesture to return to the full graph. The image below shows a zoomed-in view with the AP named "Technico:54a65c- a2b35b"...
Page 588 Wi-Fi Analysis App Tap the blue channel selectors at the bottom to view a different Wi-Fi band (2.4, 5 and 6 GHz) and channel range on the graph. Tap the action overflow button to open AP Details Channel Details screens for the selected AP or Channel or to open the Spectrum Test App.
Page 589 Wi-Fi Analysis App Filtering in the Wi-Fi App for an explanation of the Overlap screen's filtering options.
Page 590 Wi-Fi Analysis App Channels The Channels list screen displays the char- acteristics of the wireless Channels as they are scanned in your location.
Page 591 Wi-Fi Analysis App You can Filter Sort the list to determine which Channels are shown and their order. Refer to the Wi-Fi App List Screens topic if needed. By default, Channels are ordered by channel number, and each card shows the channel frequency, number of APs, and total Utilization percent.
Page 592 Wi-Fi Analysis App Channel Details The Channel Details screen displays the channel's Center Frequency under the icon,...
Page 593 Wi-Fi Analysis App along with the Frequency Range, Width, and Band. Dynamic Frequency Selection (DFS) channels also display an Attributes field that indicates DFS. Channel RF and Traffic Statistics The RF and Traffic Statistics card appears when there is an active AP and Utilization on the channel.
Page 594 Wi-Fi Analysis App Open the Capture app to record a packet capture on the channel. Open the Channels Map screen with the current channel selected. Open the Spectrum app to view signal meas- urements for the channel.
Page 595 Wi-Fi Analysis App SSIDs The SSIDs list screen shows all the network SSIDs the CyberScope has discovered.
Page 596 Wi-Fi Analysis App You can Filter Sort the list to determine which SSIDs are shown and their order. Refer to the Wi-Fi App List Screens topic if needed. By default, SSIDs are ordered by Signal strength, and each card shows the network security status and number of APs on the network.
Page 597 Wi-Fi Analysis App SSID Details In addition to the Signal and Security Type, the SSID Details displays the AP on the network with the strongest signal, 802.11 Types that the APs in...
Page 598 Wi-Fi Analysis App the network support, and the time the CyberScope last detected activity on the network (Last Seen). CyberScope can detect and display 802.11 types a/b/g/n/ac/ax. SSID FAB Tap the on the SSID Details screen to Connect to the network.
Page 599 Wi-Fi Analysis App Creating a Wi-Fi Profile from the Wi-Fi Analysis App in the AutoTest chapter for a more detailed description of this process. Back to Title and Contents...
Page 600 Wi-Fi Analysis App The APs list screen displays all the Access Points discovered operating on your wireless networks. You can Filter Sort the list to determine which APs are shown and their order.
Page 601 Wi-Fi Analysis App Refer to the Wi-Fi App List Screens topic if needed. By default, APs are ordered by Signal strength, and each card shows the Signal strength in dBm and the AP's manufacturer prefix. Tap an individual AP's card to open the AP Details screen.
Page 602 Wi-Fi Analysis App AP Details The AP Details screen shows the 802.11 Types the AP supports, the AP's Security Type, and the...
Page 603 Wi-Fi Analysis App time the AP was last detected (Last Seen) by the CyberScope. Tap the lower cards to view the network IDs, Channels, and Clients associated with the AP. Wi-Fi Problems for more information about the Problems card. Back to Title and Contents...
Page 604 Wi-Fi Analysis App BSSIDs The BSSIDs list screen shows the BSSID addresses discovered in your wireless environment.
Page 605 Wi-Fi Analysis App You can Filter Sort the list to determine which BSSIDs are shown and their order. Refer to the Wi-Fi App List Screens topic if needed. By default, BSSIDs are ordered by signal strength, and each card shows the signal strength, SSID, and channel number on which the BSSID operates.
Page 606 Wi-Fi Analysis App Tap a BSSID's card to open the Details screen. BSSID Details...
Page 607 Wi-Fi Analysis App In addition to the characteristics on the BSSID cards, the Details screen displays the following information: User-assigned Authorization status (if set) Supported 802.11 Types Signal-to-Noise ratio (SNR) measurement Network Security type QBSS station count and channel utilization Time activity was Last Seen on the BSSID BSSID Details also includes cards that link to Rates and Capabilities details, the Wi-Fi Clients...
Page 608 Wi-Fi Analysis App This screen shows advanced information about the transmit and receive rates and 802.11 cap- abilities reported by the beacon.
Page 609 802.11ac capabilities are gathered from VHT capabilities in the beacon. 802.11ax capabilities are gathered from HE capabilities in the beacon. 802.11ax Rates and Capabilities CyberScope can also report Advanced 802.11ax (Wi-Fi 6) capabilities it sees in the beacon.
Page 610 Wi-Fi Analysis App Clients Tap the Clients card to open the Wi-Fi Clients list screen.
Page 611 Wi-Fi Analysis App BSSID RF and Traffic Statistics Tap the RF and Traffic Statistics card to open the RF and Traffic Statistics screen. This screen displays the BSSID and channel number at the top of the screen as well as informational graphs.
Page 612 Wi-Fi Analysis App The screen also displays separate graphs for BSSID Retries and Channel Retries:...
Page 613 Wi-Fi Analysis App BSSID FAB The floating action button on the BSSID screen lets you Locate the wireless device, Connect to the BSSID, record a packet Capture of the...
Page 614 Wi-Fi Analysis App network traffic with the current BSSID on the connected channel, and assign or change its Name and Authorization.
Page 615 Wi-Fi Analysis App Selecting Locate opens the Locate BSSID screen. See Locating Wi-Fi Devices. Tapping Connect opens the AutoTest and creates a new Wi-Fi profile called "Connect to [BSSID]." See Creating a Wi-Fi Profile from the Wi-Fi Analysis App in the AutoTest chapter for a more detailed description of this process.
Page 616 Wi-Fi Analysis App Clients The Clients list screen displays the wireless clients the CyberScope has discovered connected to your wireless networks.
Page 617 If a Client is probing, two dashes -- display where the SSID would appear. The Clients screen also shows specific icons for NetAlly testers, like the CyberScope icon shown in the image above. Tap a Client's card to open the Details screen.
Page 618 Wi-Fi Analysis App Client Details The top Client Details card for a connected Client displays the following information:...
Page 619 Wi-Fi Analysis App Client's IP and MAC addresses. User-assigned Authorization status (if set) Supported 802.11 media Types Signal-to-Noise ratio (SNR) measurement Name of the AP to which the Client is connected SSID of the network to which the Client is connected BSSID on which the Client is operating Network Security type Time the Client was Last Seen by the Cyber-...
Page 620 Wi-Fi Analysis App Client RF and Traffic Statistics Tap the RF and Traffic Statistics card to open the RF and Traffic Statistics screen. This screen displays the client's ID or address and channel number at the top of the screen as well as informational graphs.
Page 621 Wi-Fi Analysis App RF and Traffic Statistics Overview in the Wi- Fi Details Screens topic for an explanation of the common elements of this screen. The Signal graph shows the signal in light blue, noise in dark blue, and a calculated SNR.
Page 622 Breaks in the Client RF and Traffic graphs may occur if the Client is not consistently trans- mitting, so there is no data for CyberScope to display during those times. The Clients RF and Traffic Statistics screen also...
Page 623 Wi-Fi Analysis App Clients FAB Tap the on the Client Details screen to Locate the client device, to open the Capture app to record a packet capture of traffic going to...
Page 624 Wi-Fi Analysis App and from the client, or to assign or change its Name and Authorization. Select Locate to open the Locate Client screen. See Locating Wi-Fi Devices. Select Capture to open the Capture app populated with the Channel and MAC address of the client.
Page 625 Bluetooth devices discovered operating on your wireless networks. NOTE: This list requires that Bluetooth is enabled in your CyberScope system settings. To verify, swipe down from the Status Bar at very top of the screen to open the system Notification Panel to see if the Bluetooth disabled icon is displayed.
Page 626 By default, Bluetooth devices are ordered by Signal strength. Each card shows the device address, signal strength in dBm (top right), and company name (bottom right). NOTE: Your CyberScope considers a device inactive if it is not seen in over 1 minute.
Page 627 Wi-Fi - Bluetooth Device details screen. If the device continues to be inactive, CyberScope considers the device obsolete and removes it removed from the list. Tap an individual Bluetooth device card to open the Wi-Fi - Bluetooth Device screen.
Page 628 Wi-Fi Analysis App Bluetooth Device Details The Wi-Fi - Bluetooth Device screen shows the following: Address RSSI...
Page 629 Wi-Fi Analysis App Manufacturer company name and ID Beacon type (Eddystone-UID, Eddystone- URL, iBeacon, or None), beacon-specific information (depending on the beacon type), and transmit power (if applicable) Any advertised flags or data Last seen date/time. Back to Title and Contents...
Page 630 Back to Title and Contents CyberScope User Guide ™ AirMapper The AirMapper Site Survey application enables you to perform a Wi-Fi survey of an indoor or outdoor location and upload it to Link-Live Cloud Service. On Link-Live.com, you can view heatmaps and Wi-Fi measurements for each data collection point.
Page 631 AirMapper™ App AirMapper Settings Setting up the AirMapper app to perform a survey involves naming the survey, loading a floor plan image, specifying its dimensions, setting scanning mode, and overriding bands and channels. Only .png and .jpg image files types are supported.
Page 632 AirMapper™ App Configuring an AirMapper Survey Name Tap the Name field to enter a custom name for your AirMapper project. This name is uploaded to Link-Live to identify this survey project.
Page 633 Floor Plan NOTE: You can configure floor plans on Link-Live and then send them to your CyberScope. A noti- fication appears when a new floor plan arrives: The new floor plan is added to the existing floor plans but is not automatically selected.
Page 634 AirMapper™ App 2. Select a floor plan or load a new floor plan by tapping the floating action button using the file selector to navigate to the new map image file, and then tapping the file to select it. This displays the Floor Plan menu.
Page 635 AirMapper™ App 3. Fill out the remaining fields for the Floor Plan as needed: Name: Enter a name for this floor plan. This field defaults to the file name. Imported File: The original image file name. Dimensions: Tap this option to display the floor plan with two markers.
Page 636 AirMapper™ App General Settings for the test apps, accessed from the left-side navigation drawer .) When finished, tap to return to the Floor Plan menu. Signal Propagation: Tap to enter a value for the propagation radius for the survey sample points.
Page 637 AirMapper™ App dwell time. This gives an exact meas- urement. However, in congested envir- onments any beacons not seen during the dwell time are not included in that sample point. 3. Connected (Active) collects data from the linked connection of the Wi-Fi Test port. NOTE: Selecting this method disables the AirMapper settings for Dwell Time and Override Bands and Channels.
Page 638 AirMapper™ App Override Bands and Channels (Enabled for passive survey modes only.) Tap Override Bands and Channels to enable selection of different bands and channels than the values defined in General Settings. (These override settings are used only for AirMapper site surveys.) Enabling this setting displays the Wi-Fi Bands and Channels setting.
Page 639 AirMapper™ App Note: Selecting a subset of channels and bands lets you exclude scans of unneeded channels from the survey. This improves survey performance and reduces the amount of data collected. Changing Settings after Starting You can reopen the AirMapper settings to change the Floor Plan >...
Page 640 AirMapper™ App Note: NetAlly does not recommend that you change the band, channel, or dwell time settings after you have started a survey. The survey results for the multiple settings can create confusing or less reliable results. If you wish to...
Page 641 AirMapper™ App Collecting AirMapper Data Your selected floor plan appears on the main AirMapper screen. Tap START to begin the survey. A message displays the survey type, radio, and Bluetooth status. This message appears each time you begin or restart or return to the survey from another app.
Page 642 AirMapper™ App To collect data, travel around your site, and tap the map at your current location to scan the enabled wireless channels in that spot. Do not move from that location until the scan is complete and the data point on the screen turns from red to green.
Page 643 AirMapper™ App...
Page 644 Use swiping and pinch-to-zoom gestures to pan and zoom the map. While the CyberScope is scanning, the Signal Propagation circle is red. Once the scan is complete, the circle turns green. The completed data points in the AirMapper app are always green.
Page 645 AirMapper™ App Watch the Wi-Fi status icon in the top status bar to see the channels the CyberScope is scanning in real time. NOTE: To adjust the Dwell Time, meaning the amount of time the CyberScope lingers on each channel gathering data, enable the...
Page 646 Collect data as you would a passive survey described above. If the connection is lost, the link notification changes to an X. CyberScope continuously tries to reconnect to the SSID. Survey points taken during this unlinked time are displayed in Yellow. These indicate areas where there is not coverage for that SSID.
Page 647 AirMapper™ App of survey you are taking. This information is viewable only on Link-Live. Adding Comments Long press on the floor plan to add a comment. A context menu appears. Tap Add Comment. A dialog appears to enter your comment. Tap OK to add the comment.
Page 648 AirMapper™ App menu appears. If two survey points overlap, the closest survey point is selected. Tap Delete Survey Point. NOTE: There is no undo for deleting a survey point. Once deleted, it cannot be recovered. Uploading AirMapper Surveys to Link-Live When you tap the upload icon , select Upload to Link-Live to display the Link-Live sharing...
Page 649 AirMapper™ App comment (such as a note about the overall job status). NOTE: When you upload data from a survey (or save it locally), your unit also upload- s/saves a Discovery analysis file to assist with data analysis on Link-Live. When you upload an active survey, the connection log is also uploaded.
Page 650 AirMapper™ App Enter any Comments or Job Comments you want attached to your AirMapper result in Link- Live, and tap SAVE TO AIRMAPPER FILES.
Page 651 AirMapper™ App NOTE: The Job Comment remains the same until you delete or change it. The current survey remains on the AirMapper screen until you Clear Survey, allowing you to add additional points if needed and re-upload. Export AirMapper Data to AirMagnet Survey PRO Survey data can be exported as a .amp file for import into AirMagnet Survey PRO version 10 for...
Page 652 AirMapper™ App You can copy the file to external storage at a later time using the Files app. Load and Save AirMapper Settings The entire survey configuration can be saved as named settings using the disk icon in the title bar.
Page 653 AirMapper™ App Back to Title and Contents...
Page 654 (and off-net devices) are connected to each other along a path. All switches are pre-discovered through SNMP queries. When the measurement is complete, CyberScope shows the number of hops to the destination device. A maximum of 30 hops can be reported.
Page 655 Path Analysis App Introduction to Path Analysis Path Analysis combines Layer 3 and Layer 2 measurements. The Layer 3 measurement combines the classic Layer 3 IP (UDP, ICMP, or TCP) traceroute measurement with a view of the path through the Layer 2 switches. The Layer 2 measurement discovers switches between the router hops by looking for the routers' MAC addresses in the switch forwarding...
Page 656 CyberScope. The default destination is www.- google.com. Populating Path Analysis from Another App Like other CyberScope testing apps, when you open Path Analysis from another app, like Discovery, the address of the network component you were viewing in the previous app is pre-populated as the Path Analysis Destination.
Page 657 Device Name: Tap to enter the IP address or DNS name of the Path destination. The default is www.google.com. Interface: This setting determines the CyberScope port from which the port scan runs. Tap the field to select a port. (See Selecting Ports for explanations of the different ports.)
Page 658 Path Analysis App Port is selected, available links are used in the order shown in the Interface dialog above. Test and Management Ports for explan- ations of the different ports and how to link. Protocol: Tap to select the Connect (TCP), Ping (ICMP), or Echo (UDP/7) protocol for your Path Analysis.
Page 659 Path Analysis App Running Path Analysis Tap the START button at the top of the app screen to begin a Path Analysis. NOTE: CyberScope must be linked on the Interface (Port) selected in the app's settings. Test and Management Ports for help.
Page 660 Path Analysis App Like AutoTest, Path Analysis results are presented on cards. The top card shows the main test details, the second card shows information for the source device (your CyberScope), and the following cards show the...
Page 661 Wi-Fi app and further examine the linked element. Path Analysis Results and Source CyberScope Cards The top Path Analysis results card shows the path's Destination address at the top, followed by the three response times from the TCP Connect, Ping, or Echo tests.
Page 662 Path Analysis App Device Name: Resolved DNS name or IP address of the destination entered in the settings IP Address: IPv4 address of the target des- tination Interface: The Interface option selected in the settings Protocol: The Protocol selected in the settings (TCP, Ping, or Echo) TCP Port: The port number used for a TCP Connect Protocol.
Page 663 Path Analysis App Source CyberScope Card This CyberScope card displays the port from which the Path Analysis ran. For Wired Test or Management port analyses (shown above), this card displays connection speed and duplex. For Wi-Fi port analyses, the card displays the SSID and channel number.
Page 664 Path Analysis App The example image above shows the SSID, Channel, and other Wi-Fi information the CyberScope can display after running a Path Analysis over Wi-Fi. The image below shows the source CyberScope card from a Wired Path Analysis, which displays...
Page 665 Path Analysis App Beneath the CyberScope source card, the Hop cards show Layer 2 and Layer 3 devices determined to be in the Path. Layer 3 Hops Each Layer 3 Hop card displays the device type icon, DNS name (if discovered), and IP address.
Page 666 Path Analysis App Tap the card to view the hop Details screen. No Reply Sometimes Path Analysis displays Hop cards with "No Reply" (as shown below). This result means that the device in that portion of the path did not send an ICMP TTL timeout response.
Page 667 Path Analysis App Split Route Path Analyses may obtain a "Split Route" result (as shown above), meaning that two or three...
Page 668 Tap a Split Route card to view the DNS names and IP addresses of the responding routers. Layer 3 Interfaces and Statistics Statistics for Interfaces on Layer 3 devices may be identified and measured if the CyberScope has SNMP access.
Page 669 Path Analysis App Tap a Hop card to see a summary of Interface Details and Statistics, if they are available. See also Layer 2 Switch Interfaces and Statistics below. Network Problems in Path Analysis The Hop cards can also show detected Problems based on the Problem Settings in the Discovery...
Page 670 Path Analysis App Tapping the blue linked switch name opens a Discovery Details screen for the switch, where the user can investigate the cause of the Warning. Layer 2 Devices Layer 2 devices can be switches or APs. Layer 2 Switches The image below displays an example of a Path Analysis to a device on the local broadcast domain with two switches in the Layer 2 portion...
Page 671 Path Analysis App The CyberScope is able to identify these Layer 2 switches and their interfaces because it has configured SNMP access to the switches.
Page 672 Path Analysis App The switch cards display the In and Out Interface IDs, VLAN ID, and the link speed and duplex (if detected) of the interfaces. Tapping a Layer 2 card opens a Details screen for the device. A Layer 2 Details screen displays the device name and IP address at the top.
Page 673 Interface Details screen in the Discovery app. Statistics for Interfaces on Layer 2 switches may be identified and measured if the CyberScope has SNMP access. In/Out: Indicates the interface type and name. The interface name often contains the physical port number where the switch is connected to the network.
Page 674 Path Analysis App Errors: Percentage of packets containing errors Layer 2 APs If the Layer 2 path starts or ends with a Wi-Fi device, its AP is shown as a Layer 2 device in the path. A Layer 2 AP card indicates the connected network SSID, channel, and 802.11 type in use.
Page 675 Path Analysis App No layer 2 devices discovered In some cases, the CyberScope does not discover Layer 2 devices between Layer 3 devices. There may not be any Layer 2 devices, or CyberScope might not have SNMP access to those switches.
Page 676 Path Analysis App has not found any switches with SNMP access to determine if the switches are in the path. If this is an unexpected result, check and verify your SNMP Configuration Extended Ranges in the Discovery app settings. Uploading Results to Link-Live Tapping the UPLOAD TO LINK-LIVE link on the top card opens the Link-Live...
Page 677 Path Analysis App Path Analysis results are uploaded to the Analysis page on Link-Live. Back to Title and Contents...
Page 678 Back to Title and Contents CyberScope User Guide Spectrum Test App The Spectrum Application is a dual-band Wi-Fi spectrum analyzer that measures Wi-Fi signal information to provide data about signal strength as well as noise. This application requires the NXT-1000 Portable Spectrum...
Page 679 Tap the Refresh icon to clear the current graph and start new measurements. To get more accurate test results, NetAlly recommends that you turn off your device's test and management Wi-Fi and Bluetooth. (The Spectrum app notifies you if these services are turned on.)
Page 680 3. Tap Use Wi-Fi test port to set it to Disabled. To turn off management Wi-Fi and Bluetooth: 1. Swipe down from the top of the CyberScope screen to display the system icons. 2. Tap the Wi-Fi- icon until it indicates that Wi-Fi is off .
Page 681 Spectrum Test App Using Common View Actions Use these actions in each Spectrum view to change the view details: Pause: Tap the Pause icon to stop updates of the display. This can help you examine patterns and anomalies without updated data overriding your current view. Resume: Tap the Resume icon to cancel a pause and continue live data updates.
Page 682 Spectrum Test App The Real Time view displays the frequency, the frequency's current value, the average value, and the highest measured value (Max-Hold). If you have a specific frequency detail marker, double-tapping on the marker erases it. (You can reset the marker by single-tapping the graph again.) Zoom in: Double-tap the view graph to zoom in to a narrower band around a particular...
Page 683 Spectrum Test App Saving results: see "Uploading Results to Link-Live" on page 686. Frequency Spectrum View This display uses the color spectrum to present a heatmap of the frequency band you have chosen, showing the density of recent RF meas- urements. Blues and greens ("cool"...
Page 684 Spectrum Test App Darkest blue indicates infrequent RFs while red indicates the continuous presence of RF at that amplitude. Waterfall View The Waterfall display draws new data at the top of the display as it scrolls older data downwards over a 2-minute interval. This provides a visu- alization of RF activity over time.
Page 685 Spectrum Test App measurements, and lighter colors show higher amplitude signals. More colors indicate more activity. For example, in the waterfall shown above, a speed test is running on Channel 8. The waterfall has two view types. Use Current to detect instantaneous RF. To smooth the data and see overall usage, change the type to Average 5 Sweeps, which averages five sweeps for each new line of...
Page 686 Spectrum Test App The yellow line indicates the current values. The blue line indicates the average values, which are calculated using all measurements accumulated since the graph was last cleared. The green line indicates the highest measured value (Max-Hold). Uploading Results to Link-Live To send your Spectrum results to the Link-Live website, tap the action overflow icon...
Page 687 Spectrum Test App Link-Live sharing screen opens. The system creates a file name automatically using the date. You can also enter optional Comments and Job Comments to attach to the results file. The results are displayed as images on Link- Live.com.
Page 688 Spectrum Test App Spectrum Settings The Spectrum navigation drawer allows you to change the data views, change frequency bands, change the Waterfall display type, and save settings. Changing Spectrum Views To change the Spectrum view: 1. Tap the Menu icon to open the Spectrum navigation...
Page 689 Spectrum Test App Spectrum Settings screen. This opens a menu for you to Load, Save As, Import, or Export any changes you make to the settings. See "Saving App Settings and Configurations" on page 142 for more information. Changing Spectrum Settings The Spectrum settings allow you to change the frequency band and to change the waterfall view type.
Page 690 Spectrum Test App 1. Tap Wi-Fi Band. This opens a selection box. 2. Tap the button for the frequency band you want, and then tap OK to return to Spectrum Settings. 3. Tap OK to return to Spectrum Settings. 4. Tap the back button to return to the Spectrum view.
Page 691 Spectrum Test App 4. Tap the back button to return to the Spectrum view. Back to Title and Contents...
Page 692 Back to Title and Contents CyberScope User Guide Ping/TCP Test The Ping/TCP test app runs a Ping or TCP Connect test to your chosen target, allowing you to monitor connectivity changes. A Ping test sends an ICMP echo request to the...
Page 693 Ping/TCP Test App Ping/TCP Settings To configure a test, you can manually enter a hostname or IP address in the settings, or you can select Ping or TCP Connect from another testing app's device screen. Populating Ping/TCP from Another App When you open the Ping/TCP app from another app, the address is pre-populated as the Ping or TCP target device.
Page 694 Ping/TCP Test App If the Ping/TCP app is opened from this screen, the IPv4 address from the Discovery app is already configured as the Ping/TCP target.
Page 695 Ping/TCP Test App...
Page 696 Ping/TCP Test App Configuring Ping/TCP Settings Manually To configure the target and settings manually, open the app's settings...
Page 697 Frame Size (bytes): This setting only appears if the Ping Protocol is selected. It specifies the total size of the payload and header the CyberScope sends. Tap a radio button to select a new size, or enter a Custom Value from 64 to 1518 bytes.
Page 698 Tap OK to save it. Timeout Threshold: This threshold controls how long the CyberScope waits for a response from the target before the test is failed. Do Not Fragment: This setting only appears if...
Page 699 Ping/TCP Test App button to enable. See the Frame Size setting description above. Back to Title and Contents...
Page 700 (Test or Management Port) to run Ping and TCP Connect tests. Icons in the top Status Bar indicate whether and how your CyberScope is connected. See Connection Notifications descriptions of the connection status icons, and select the appropriate Interface (or Any Port)
Page 701 Ping/TCP Test App Device Name: Hostname or address of the target device IPv4 or IPv6 Address: IP address of the target device...
Page 702 Port: The port number used for the TCP Connect test. This field does not appear in Ping test results. Interface: The CyberScope Test or Management Port from which the test is running Results Started: Time the test started...
Page 703 Ping/TCP Test App To pan and zoom on the graph, you can swipe, double tap, and move the slider. See the Trending Graphs topic for an overview of the graph controls. Response: Table display of the Current, Minimum, Maximum, and Average response time measurements Limit: The Timeout Threshold from the Ping/TCP app's settings...
Page 704 Back to Title and Contents CyberScope User Guide Capture Packet capture is the process of recording network traffic in the form of packets as data streams back and forth over Wi-Fi or wired connections. Packet captures can help you analyze network problems, debug client/server...
Page 705 The default Wired capture saves all the packets sent from the local switch to the CyberScope. The default Wi-Fi capture saves the packets seen on channel 1. If you open the Capture app from another NetAlly test app, Capture filters are auto- matically applied.
Page 706 Capture App When the Capture app opens, filters are already set with the BSSID, Channel, and Channel Width from the Wi-Fi app.
Page 707 Capture App The Capture settings are saved until you clear the filters or open the app with new filters applied. Tap the settings icon in the Capture screen to configure capture settings.
Page 708 Capture App File Size Limit: Tap this field to specify a size for the capture file. The default size is 1 MB, and largest size allowed is 1000 MB. The capture stops when the captured file reaches this size.
Page 709 Capture App When capture is running, the capture screen displays the current file size as data is captured. Slice Size: Tap this field to select a specific frame slice size or enter a custom value. The Slice Size setting limits how much of each packet is captured.
Page 710 For example, if you set up a filter to capture traffic to and from IP 10.250.0.70 on Port 80, and then you enable NOT, the CyberScope captures all traffic except traffic to and from 10.250.0.70 on port 80.
Page 711 Capture App Running and Viewing Captures To start Capturing, tap START at the top of the app screen. The current Status of the capture and any applied filters are shown under the capture type (Wired or Wi-Fi). The image above indicates that the app captures traffic for IP 10.200.72.19 only.
Page 712 Capture App Tap STOP to stop the running capture before it reaches the File Size Limit. The Wired graph plots the type and number of packets being captured while the capture is running and includes Unicast, Broadcast, and Multicast packet types.
Page 713 Capture App To pan and zoom on the graphs, you can swipe, double tap, and move the slider. See the Trending Graphs topic for an overview of the graph controls. Wi-Fi captures graph the Management, Control, and Data Frame Types.
Page 714 Capture App In the test shown above, the app has captured all three Wi-Fi Frame Types on channel 6 with the BSSID shown. The Total measurements in the table below the graph represent all frames seen, while the Captured frames are those that fall within the filter parameters.
Page 715 Capture App Once a capture is completed, the Save Capture dialog appears automatically. Tap the Save icon to reopen this dialog. Captures are saved as .pcap files. Tap any of the fields in the dialog to enter changes.
Page 716 Save to: By default, capture files are saved in the Downloads folder in the CyberScope file system, but you can also save them to a Micro SD card or USB storage device or choose a different folder by tapping the Save to field.
Page 717 Back to Title and Contents CyberScope User Guide Link-Live Cloud Service Link-Live Cloud Service is a free, online system for collecting, tracking, organizing, analyzing, and reporting your test results. AutoTest results are automatically uploaded once your CyberScope is claimed.
Page 718 Link-Live Cloud Service The comprehensive CyberScope offers more features for analyzing your network in Link-Live than previous testers. Claim your CyberScope to Link-Live.com to access these functions: Check for software updates and update your CyberScope software. Download third-party applications from the...
Page 719 Getting Started in Link- Live Cloud Service To start, create a user account at Link-Live.com, and sign in. You can open the Link-Live website in the CyberScope's web browser to create and manage your account. Claiming the Unit On Link-Live.com 1.
Page 720 3. When prompted by the instructions on the Link-Live website, enter the MAC address. After you claim your CyberScope to Link-Live, a software update may be available. If so, a noti- fication appears in the Status Bar . Open the...
Page 721 Results. You can automatically sort your results into folders in Link-Live using test Job comments. If your CyberScope is not connected to an active network, any test results, comments, or images are stored in memory (buffered) and uploaded once a connection is established.
Page 722 You may need to unclaim your unit from Link- Live to transfer it to another user or if you no longer want to send data to Link-Live.com. To unclaim your CyberScope from Link-Live, tap navigation drawer icon in the Link-Live...
Page 723 Link-Live Cloud Service AllyCare Code The AllyCare Code button appears at the bottom of the About screen next to the Export Logs button if your unit is not claimed.
Page 724 Link-Live Cloud Service Tap AllyCare Code to open a dialog to enter an AllyCare Activation Code. Private Link-Live Settings Use these settings only when your organization has deployed a private instance of Link-Live. Consult your IT organization for setting details. Back to Title and Contents...
Page 725 Link-Live Cloud Service Link-Live App Features The main Link-Live app screen on your CyberScope facilitates the claiming process, displays Link-Live related information, and allows you to enable or disable Link-Live.com uploads as needed. Link-Live App Screen...
Page 726 Link-Live Cloud Service The CyberScope unit's name that displays on the Link-Live.com is shown to the right of the Link- Live icon . You can change this name on the Link-Live.com Units page. Organization is the Link-Live organization where the unit is claimed.
Page 727 Tap the OPEN IN BROWSER link to open Link- Live.com on the CyberScope's web browser. The "(# buffered)" in the Link-Live screen header indicates the number of files stored in the device memory when no active network connection is available.
Page 728 Link-Live Cloud Service The buffered files displayed automatically upload to Link-Live.com once your CyberScope connects to an active network.
Page 729 If you do not want to send your results to the Link-Live website, you can still save results locally to your CyberScope as JSON files. Tap the Save Locally Only toggle field in the Link-Live app to save the JSON files to your unit.
Page 730 App Store on your CyberScope. With Save Locally Only enabled, options for uploading or saving to Link-Live (described in Link-Live and Testing Apps section below) still display in the NetAlly testing apps. However, the results are saved to the internal Link-Live...
Page 731 Link-Live Cloud Service storage folder, and not uploaded to Link- Live.com. Job Comment left-side navigation drawer for the Link-Live app lets you enter or change the Job Comment. The Job Comment attaches to all test results and files uploaded to Link-Live, until you change or delete it.
Page 732 Link-Live Cloud Service To enter or change the Job Comment in the Link-Live app: 1. With the Link-Live app open, tap the menu icon or swipe right from the left side of the screen.
Page 733 Note that the Job Comment field appears in other Link-Live sharing screens, allowing you to change it from multiple locations on the CyberScope. No matter where you change the Job Comment, it is updated everywhere on the unit. Software Updates...
Page 734 Link-Live Cloud Service System Notifications Link-Live can send messages to your test unit. They are displayed in the system Notification Panel. Link-Live and Testing Apps Once your unit is claimed, the Link-Live app works with several of the testing apps to upload test results, discovery and analysis data, comments, and images to the Link-Live website.
Page 735 Link-Live Cloud Service If your unit is not claimed to Link-Live.com or if Link-Live is disabled on the app screen, the links and buttons for uploading to Link-Live in the testing apps do not appear. Link-Live Sharing Screens Whenever you select a button or link, like those above, to Upload, Save, or Share to Link-Live, a...
Page 736 Link-Live Cloud Service The Link-Live sharing screen for a screenshot or other image allows you to attach it to the most recently run test result (AutoTest, Performance, iPerf, or Cable Test) (AutoTest or iPerf) on the...
Page 737 Link-Live Cloud Service Results page, or to the Uploaded Files page on Link-Live.com. Remember, the regular Comment field uploads only to the current result or file, while the Job...
Page 738 Link-Live Cloud Service Comment field uploads with all results and files until you change it. Sharing a Text File to Link-Live You can also select and share text by long pressing text on the unit's screen. Text files are attached to the last test results on Link- Live.com.
Page 739 Link-Live Cloud Service 2. Tap Select All if needed. 3. Tap SHARE. 4. Select the Link-Live icon to open the Link- Live sharing screen.
Page 740 Link-Live Cloud Service 5. Enter any comments as needed, and then tap SAVE TO LAST TEST RESULT. Back to Title and Contents...
Page 741 Back to Title and Contents CyberScope User Guide Performance Test The CyberScope's line rate Performance Test provides point-to-point performance testing of a traffic stream across wired IPv4 network infra- structure. This test quantifies network performance in terms of target rate, throughput, loss, latency, and jitter.
Page 742 Wired Profile must connect successfully to establish link on the port. When you start up the CyberScope, the last Wired Profile in the list of active AutoTest profiles runs automatically if an active Ethernet connection is detected on the top RJ-45 port. Otherwise, you may need to manually run a Wired AutoTest to link.
Page 743 The CyberScope can act as the controlling Source for the performance test or as a Peer for a test conducted by different source device, such as another CyberScope or a OneTouch AT 10G. Other NetAlly testers work with the CyberScope to perform network performance testing: OneTouch AT 10G can act as the Source or a Peer for Performance tests.
Page 744 Reflector PC application can also act as the reflector for a Performance test. Download the free NPT Reflector software from NetAlly.com/support/downloads. Select CyberScope from the drop-down menu to view the list of downloads. In this Chapter Performance Test Settings Configuring Performance Endpoints...
Page 745 Performance Test App Performance Test Settings The Performance app has both Performance settings that apply when the CyberScope is acting as the test source, and Peer settings that control the unit when it is acting as the test Peer. Access the settings by tapping the settings...
Page 746 Performance Peer opens the Peer results screen. Performance Settings control the performance test settings when the CyberScope is the source. Peer Settings control the CyberScope Performance Peer when another device is the source. See Running CyberScope as a Performance Peer.
Page 747 Performance Test App For example, you can configure Services for multiple endpoints at different locations and with different bandwidths. A user can also create multiple Services with different QoS priorities (using the Layer 3 options) to verify that loss does not occur over the higher priority stream. Saved Performance Tests and their Services work much like AutoTest Profile Groups, Profiles, and Test Targets.
Page 748 Performance Test App Tap the save icon to load, save, import, or export a settings configuration. Load: Open a previously saved settings con- figuration.
Page 749 Performance Test App Save As: Save the current settings with an existing name or a new custom name. Import: Import a previously exported settings file. Export: Create an export file of the current settings, and save it to internal or connected external storage.
Page 750 Performance Test App Once you save a Performance Test con- figuration, the custom name you entered appears at the top of the Performance Settings screen (above) and main Performance Test screen (below). Back to Title and Contents...
Page 751 Performance Test App Configuring the Source CyberScope Open the Performance Settings screen from the main Performance results screen or the left- side navigation drawer...
Page 752 QoS levels on your network. The Services configurations include the Endpoints, Frame Size, Bandwidth, Thresholds, and Options the CyberScope uses to measure and grade performance. Your collection of configured Services is available across all of your saved Performance Test configurations, and if you delete a Service, it is deleted from all Performance Tests.
Page 753 Performance Test App Check or uncheck the boxes to include or exclude Services in the list of active Performance tests. NOTE: You can run a Performance Test on up to eight Services at once. If you select more than eight Services, the Performance Test fails.
Page 754 Performance Test App Service Name Tap the Service Name field to enter a custom name for the endpoint and associated settings.
Page 755 Address, Type, and Traffic Flow. IPv4 Address: Tap the field to enter the IPv4 address of your endpoint device. Communication UDP Port: If needed, tap to enter a different UDP Port number. The default NetAlly performance test port is 3842.
Page 756 Performance Test App NOTE: The UDP port number entered here must match the port number used by your Peer endpoint device. Endpoint Type: Select Peer or Reflector depending on the type of endpoint you are using for the performance test. Traffic Flow: This setting only appears when Endpoint Type is set to Peer.
Page 757 Performance Test App Selecting Frame Size Mix creates traffic with variable frame size patterns, generated in a repeating sequence. Tap the edit icon revise the frame size pattern.
Page 758 Performance Test App On the Frame Size Mix keyboard shown above, each letter (a through h) is associated with a frame size. The default pattern is "abceg," meaning the traffic pattern follow a repeating sequence of 64, 128, 256, 1024, and 1518 bytes. Use the letter keys along with the arrows and backspace button to edit the mix sequence as desired.
Page 759 Performance Test App The u key enters a user-defined size into the mix. Select the field next to User Size: to enter your desired frame size, between 64 and 9600 bytes. Tap the u key to insert the new size where you want it in the pattern.
Page 760 Performance Test App If you are configuring a Reflector endpoint or you have selected Symmetrical Traffic Flow for a Peer endpoint, only one Target Rate is used. For a Peer with an Asymmetrical Traffic Flow configuration, you can select a different Upstream and Downstream Target Rate for each direction.
Page 761 99.98% of the source link rate when the traffic traverses a link and maximum clock differences occur between the two link partners. Thresholds Thresholds define the Pass/Fail criteria the CyberScope uses to grade the test. The...
Page 762 Performance Test App Performance Test thresholds are Frame Loss, Jitter, and Latency. If you are configuring a Reflector endpoint or you have selected Symmetrical Traffic Flow for a Peer endpoint, the same threshold values grade each traffic direction. For a Peer with an Asymmetrical Traffic Flow configuration, you can select different Upstream and Downstream thresholds.
Page 763 Performance Test App Tap each Threshold field to select or enter the maximum value allowed. If a measured value exceeds the threshold value, the test fails. Frame Loss Threshold: The Frame Loss Threshold is the percentage of frames that can be lost before the test fails.
Page 764 Performance Test App To test other VLANs, for example, those that make up a trunk port, configure the Layer 2 Options in your separate Services to test the cor- responding VLANs. Open Layer 2 Options in the Performance app settings to override the VLAN settings from AutoTest.
Page 765 Override VLAN Priority setting above is Enabled. Tap to select a VLAN Priority. Validate Priority: Tap the toggle button to enable the CyberScope to validate the selected VLAN priority. When the Validate Priority option is enabled, CyberScope checks the packets it receives to ensure that the priority field has been maintained from source to destination.
Page 766 Performance Test App priority or IP precedence to verify that loss does not occur on the higher priority streams. UDP Port: Tap to enter a specific UDP port number. This can help you simulate prioritized traffic on ports reserved for specific uses such as video, voice, or backup data or to match ports allowed by a firewall.
Page 767 Precedence Type other than the default of Normal (0). Validate QoS: When this setting enabled, the CyberScope checks received packets to ensure that the QoS field has been maintained throughout the route. If the QoS field has been altered, packets are counted as lost.
Page 768 Performance Test App Configuring Performance Endpoints CyberScope can run a Performance Test to any of the following Endpoints: Another CyberScope (Peer) A OneTouch AT 10G (Peer) A LinkRunner G2 or LinkRunner AT (Reflector) NPT Reflector Software (Reflector) See our website NetAlly.com...
Page 769 Performance Test App OneTouch 10G Performance Peer Follow these steps to set up a OneTouch 10G Performance Peer: 1. Ensure the OneTouch is connected to an active network via the top RJ-45 or Fiber test port and is plugged into AC power.
Page 770 3842. NOTE: The port number set on your endpoint must match the port number used by your source CyberScope. 5. Turn on Enable AutoStart to cause the Per- formance Peer function to start auto- matically when the OneTouch is powered 6.
Page 771 1. Ensure the LinkRunner is connected to an active network via the top RJ-45 or Fiber test port and is plugged into AC power. 2. Start the LinkRunner G2 testing application by tapping the NetAlly logo at the bottom of the screen.
Page 772 4. Select Reflector 5. Configure the Packet Type and Swap settings as required. The default settings, Packet Type: MAC + NetAlly and Swap: MAC + IP, are recommended to avoid any undesired traffic on your network. 6. Once the LinkRunner G2 Reflector has...
Page 773 Performance Test App LinkRunner AT Reflector Follow these steps to set up a LinkRunner AT (2000) Reflector: 1. Ensure the LinkRunner is connected to an active network via the RJ-45 or Fiber test port and is plugged into AC power. 2.
Page 774 5. On the Reflector Screen, Configure the Packet Type and Swap settings as required. The default settings, Packet Type: MAC + NetAlly and Swap: MAC + IP, are recom- mended to avoid any undesired traffic on your network. 6. Select Save to apply any changed settings.
Page 775 Follow these steps to set up the NPT Reflector PC application: 1. Download the software from NetAlly.com/support/downloads. Select CyberScope from the drop-down menu to view the list of downloads. 2. Install the Reflector on your PC by running the .exe file.
Page 776 PC during Performance testing. 6. Enter IP addresses for the interfaces you want to test against on the Endpoint Device screen in the CyberScope's Performance Test Services settings. Refer to the Help in the NPT Reflector software for additional information.
Page 777 Performance Test App Running a Performance Test Note the following before running: The Performance Test can only run from the Wired Test Port (top RJ-45 or Fiber port), and AutoTest Wired Profile must connect suc- cessfully to establish link on the port. If you receive a Status message such as "The wired test port is not linked"...
Page 778 Performance Test App Newly configured Services may not display on the main Performance Test screen until you tap START. To run your configured Performance Test, tap START on the main Performance screen. Performance Test Results...
Page 779 Performance results update every five seconds if you are using only Reflector endpoints, and/or an CyberScope Peer running v1.2 or newer software, with a test Duration of 4 hours or less. If you are running a 10 second test, all results display after 10 seconds.
Page 780 Performance Test App Performance Service Detailed Results The Service results screen displays detailed test characteristics and graphs of performance.
Page 781 Performance Test App Address: IP address of the endpoint Endpoint Type: Peer or Reflector Status: Current status of the test, including any error messages Rerunning Tests from Detailed Results You can rerun a Performance Test from the detailed results screen by tapping Start at the top of the screen.
Page 782 Performance Test App Touch and drag (or swipe) left and right on each graph to move backward and forward in time, and double tap or move the slider to zoom in and out. See the Trending Graphs topic for an overview of the graph's pan and zoom controls.
Page 783 Performance Test App different measurements. The Limit shown for each graph is the set Threshold from the cor- responding Service settings. Measurements that fall outside the Limit are indicated with a red dot next to the failing measurement. In the image above, the test has failed because Frames Lost Up was above the Limit.
Page 784 Performance Test App Throughput (Up/Down) (at Target Rate): Throughput is the measured bit rate based on the number of frames sent and frames received. The configured Target Rate from the Performance Settings is shown in parentheses next to the Throughput heading. In the image above, the configured Target Rate is 1 Mbps.
Page 785 Performance Test App Loss Frames Lost (Up/Down): Frame loss is quantified by the number of frames received subtracted from the number of frames sent. Limit: This is the Frame Loss Threshold for one interval. It is computed from the Frame Loss...
Page 786 Performance Test App Threshold, Frame Size, and Bandwidth settings for the Service. The Limit is also displayed on the graph as a horizontal red dotted line (if the measurements are close enough to the Limit value for it to appear on the graph). Loss Ratio: The percentage of total frames that were lost NOTE (for 10G Rate Performance tests): Low-...
Page 787 Performance Test App Latency Latency (Up/Down): Latency is the amount of time it takes for a packet to go from the source to the endpoint or from the endpoint to the source (in milliseconds). Latency is calculated by averaging the thousands of latencies measured during each interval.
Page 788 Performance Test App Jitter (Up/Down): Jitter is a measure of the variation in frame-to-frame latency in mil- liseconds. Peak Jitter: The highest measured Jitter. The Current column shows Peak Jitter from the last test interval, and Max shows the highest Jitter measured during the entire test.
Page 789 Performance Test App results to the Results page on Link- Live.com.
Page 790 Performance Test App An image file of a complete Service results screen, including all the graphs, can also be uploaded to Link-Live and attached to the main test results. From the main Performance test screen, tap a Service card to view the Service detailed results, then tap the action overflow icon at the top right of the screen, and select...
Page 791 Performance Test App See the Link-Live chapter for more information. Back to Title and Contents...
Page 792 Performance Peer In addition to running a Performance Test as the controlling source device, CyberScope can also act as a Peer for another CyberScope or a OneTouch AT 10G acting as the source and controller. To access the CyberScope Performance Peer,...
Page 793 Communication UDP Port. Tap the settings button on the Performance Peer screen to change the port number. The default NetAlly performance test port is 3842. NOTE: The UDP port number entered here must match the port number used by your source device.
Page 794 Performance Test App The screen displays real-time status, utilization, and rates for as long as the test is running. Status: The current status of the peer Utilization Rx: Receive percentage of the link speed Tx: Transmit percentage of the link speed...
Page 795 Performance Test App Address Link: Link speed and duplex of the estab- lished Wired Test Port connection IP Address: Address of the CyberScope to be entered into the controlling source device Port: UDP Communication port in use by the peer...
Page 796 Back to Title and Contents CyberScope User Guide iPerf Test iPerf is a standardized network performance tool used to measure UDP or TCP throughput and loss. The iPerf app runs an iPerf3 performance test to a NetAlly Test Accessory or an iPerf server endpoint.
Page 797 Learn more about the Test Accessory from NetAlly.com/products/TestAccessory. If you are using an iPerf server installed on a PC or other device as an endpoint, iPerf version 3 is required to run the CyberScope iPerf test. You can download iPerf server software from https://iperf.fr.
Page 798 Test App iPerf Settings To run an iPerf test, you must configure your CyberScope unit to communicate with your iPerf endpoint. You can manually enter an iPerf server address, or select a NetAlly Test Accessory's address in the iPerf settings.
Page 799 iPerf Test App the iPerf settings and results screens. In the example images here, the user has saved a custom iPerf configuration called "Server Room Endpoint." Test Accessories in Discovery You can start an iPerf test from the Details screen for a Test Accessory in the Discovery app using the floating action button.
Page 800 iPerf Test App Discovery list to open its Details screen. 2. Tap the floating action button ( FAB) to open the action menu.
Page 801 iPerf Test App 3. Select the iPerf app button to open the iPerf app with the IP address populated from the Test Accessory in Discovery. NOTE: You can also select Browse in the FAB menu to open the Test Accessory's Web Interface, where you can view its status and configure its settings.
Page 802 iPerf Test App Configuring iPerf Settings To configure the iPerf test settings manually, open the settings on the iPerf screen.
Page 803 IPv4 Address: Tap the field to enter or select the IPv4 address of the target iPerf server. Only IPv4 addresses are allowed for iPerf testing. A drop-down list in the IPv4 Address dialog shows all the Test Accessories the CyberScope has discovered through the discovery process, as...
Page 804 Test Accessories that are claimed to the same Link-Live organization as your CyberScope. NOTE: Clear the address field in the dialog to see the full list of discovered Test Accessory addresses. Port: The default iPerf3 port number is 5201.
Page 805 They specify the desired target bandwidth for the iPerf Test using the UDP protocol. Upstream and Downstream Thresholds: Thresholds are the values the CyberScope uses to grade the test as Pass or Fail. iPerf thresholds are throughput rates. The default is 10 Mbps.
Page 806 iPerf Test App Running an iPerf Test Ensure that you have an active link on the Interface (Test Port) from which you are running the iPerf test. Wired and Wi-Fi test ports require that an AutoTest Wired or Wi-Fi Profile has run to establish a link.
Page 807 iPerf Test App Test characteristics and status are displayed at the top of the iPerf results screen while the lower part of the screen displays a real-time graph of the TCP or UDP Upload and/or Download speeds.
Page 808 Device Name: Hostname or address of the iPerf server or Test Accessory. IP Address: IPv4 address of the iPerf server. Interface: The CyberScope Test Port from which the test is running. Results Duration: Configured Duration from the iPerf...
Page 809 iPerf Test App UDP Packet Loss Up and Down graphs: When running a UDP protocol test, the iPerf results also display graphs and tables of Packet Loss. Values for the number and percentage of packets lost are displayed in the table below the...
Page 810 iPerf Test App graph. The Packet Loss Up graph and table do not display measurements until results are received from the iPerf server at the end of the upstream test. Note that the Packet Loss Up number could be much less than the Packet Loss Down number. Uploading Results to Link-Live To send your iPerf results to the Link-Live...
Page 811 iPerf Test App Link-Live sharing screen opens and allows you to revise the auto-generated file name and attach comments to the iPerf result, which is displayed on the Results page on Link- Live.com. Back to Title and Contents...
Page 812 Back to Title and Contents CyberScope User Guide ™ LANBERT Test App LANBERT is a Bit Error Rate Testing application that transmits IEEE 802.3 data frames over LAN media and measures the number of frames sent, lost, and errored. The LANBERT app runs a loopback test on fiber...
Page 813 LANBERT™ Test App LANBERT Settings To run a test with LANBERT, you must configure the generator settings. If you are using this unit as an active loopback device, see Configuring LANBERT Loopback Settings. Configuring LANBERT Generator Settings To configure the LANBERT settings, open the settings icon on the LANBERT screen or tap the Menu icon...
Page 814 LANBERT™ Test App Tap each field to enter or revise selections as needed. Changed settings are automatically applied. When you finish configuring, tap OK or Cancel to return to the settings screen. When you finish configuring, tap the back button return to the LANBERT test screen.
Page 815 LANBERT™ Test App Speed: This setting sets the link speed at which the Ethernet frames are sent to and received from the loopback destination. You can choose 100 Mbps, 1 Gbps, 2.5 Gbps, 5 Gbps, 10 Gbps to match the capacity of the media you want to test.
Page 816 LANBERT™ Test App Random varies the frame size at random to simulate variations in real data. Tap the pencil icon to open an editing screen to enter a Custom Value for the frame size. Duration: Sets the time for the test. Presets range from 10 seconds up to 24 hours.
Page 817 LANBERT™ Test App Select a value from the presets: For a Grading Type of Count: 0 (no errors), 1, 10, 100, or 1000. For a Grading Type of Percent: 0.0% (no errors), 0.001%, 0.01%, 0.1%, or 1%. Disabled turns off grading of errors. Tap the pencil icon to open an editing screen to enter a Custom Value for the error...
Page 818 LANBERT™ Test App Configuring LANBERT Loopback Settings To configure this CyberScope as an active loopback device, select the LANBERT icon from the Home screen, then tap the Menu icon and select Loopback Settings. When you finish configuring, tap the back button return to the LANBERT test screen.
Page 819 It cannot function on wide-area networks or devices that use IP addresses to route traffic.) Plug one end of the LAN cable into the CyberScope Wired Test Port. Set up a loopback device at the other end of the LAN pathway to relay the received...
Page 820 LANBERT™ Test App A NetAlly EtherScope nXG or LinkRunner 10G with the LANBERT application running as the LANBERT Loopback. (Either device can function as the loopback relay and can collect data at the endpoint of the test.) See "LANBERT Settings" on page 813 for instructions on setting up the loopback settings.
Page 821 LANBERT™ Test App 2. Tap the START button. The Status shows the current activity:...
Page 822 LANBERT™ Test App Linking: the devices are setting up a connection. Waiting for loopback: the generator is waiting for a response from the loopback device. 3. On the loopback unit (if you are using an EtherScope nXG or LinkRunner 10G as the loopback device): a.
Page 823 LANBERT™ Test App or 10G. To pan and zoom on the graphs, you can swipe, double tap, and move the slider. See the Trending Graphs topic for an overview of the graph controls. 5. Let the test run to completion. The Status shows the test result (Success or Failure) and may display additional information, such as not connecting at the fastest...
Page 824 LANBERT™ Test App for more info about advertised speeds. Half versus full duplex ability. The following example below shows a successful test for an RJ-45 connector that transmitted frames at 10 Gbps at full duplex. The following example shows an unsuc- cessful test for an RJ-45 connector that transmitted frames at 100 Mbps at full duplex.
Page 825 LANBERT™ Test App SFP details are shown when using a fiber connection. These include: Wavelength Temperature Voltage Tx Bias Current Tx Power Rx Power Rx Reference Power Rx Power Difference SET REFERENCE button (displayed only while test is running): Latches the Rx Reference Power value to the current Rx Power value.
Page 826 LANBERT™ Test App reference power is reset or cleared on a power cycle. Loss figures are not displayed until the test ends. Severe Loss Seconds occur when the LANBERT generator detects ≥ 1% frame loss for one second. Uploading Results to Link-Live To send your LANBERT results to the Link-Live website, tap the action overflow button...
Page 827 LANBERT™ Test App Link-Live sharing screen opens. You can enter a file name (for active surveys only) and attach comments to the LANBERT results. The...
Page 828 LANBERT™ Test App results are displayed on the Results page on Link-Live.com. Back to Title and Contents...
Page 829 Back to Title and Contents CyberScope User Guide Specifications and Compliance This chapter contains device specifications and required compliance information.
Page 830 Specifications and Compliance CyberScope Specifications General 4.05 in x 7.67 in x 2.16 in Dimensions (10.3 cm x 19.5 cm x 5.5 cm) Weight 1.677 lbs (0.76 kg) Rechargeable lithium-ion battery Battery pack (7.2 V, 6.4 Ah, 46 Wh) Typical duration: 3-4 hours with all...
Page 831 WireView ID LEDs 2 LEDs (Activity and Link Indicators) Wireless CyberScope has two internal Wi-Fi Radios: Wi-Fi Testing – Wi-Fi 6/6E 2x2 MU- MIMO wireless radio, IEEE 802.11 a/b/g/n/ac/ax compliant. System Wi-Fi, Bluetooth, and Management – 1x1 Dual-band, IEEE 802.11 a/b/g/n/ac compliant, Wave 2 + Bluetooth 5.0 and BLE...
Page 832 Specifications and Compliance WiFi 6/6E 2x2 MU-MIMO Radio for Testing Applicant's Name NetAlly Model Number WNFQ-268AXI(BT) SparkLAN Communications, Manufacturer Inc. Manufacture Date 2021 Country of Origin Taiwan 64/128-bits WEP, WPA, Security WPA2, WPA3, 802.1x EXG-300 United States Regulatory EXG-300C China...
Page 833 Specifications and Compliance 802.11n: MCS0~15 Bluetooth: 1 Mbps, 2 Mbps, and up to 3 Mbps Operating Frequencies (Test Wi-Fi, 3 Bands) EXG-300/EXG-300E: The test unit receives on all of the frequencies in every country, but transmits only on the frequencies and channels allowed in the country.
Page 834 Specifications and Compliance 802.11ac: OFDM (BPSK, QPSK, 16-QAM, 64- QAM, 256-QAM) 802.11ax: OFDMA (BPSK, QPSK, 16-QAM, 64- QAM, 256-QAM, 1024-QAM) 802.11b: DSSS (DBPSK, DQPSK, CCK) 802.11g: OFDM (BPSK, QPSK, 16-QAM, 64- QAM) 802.11n: OFDM (BPSK, QPSK, 16-QAM, 64- QAM) Bluetooth: Header: GFSK Payload 2M: π/4-DQPSK Payload 3M: 8-DPSK...
Page 835 Specifications and Compliance 802.11ac, VHT160, MCS9: -62 dBm 802.11ax / 2.4 GHz, HE40, MCS 9: -67 dBm 802.11ax / 5 GHz, HE20, HE11: -64.5 dBm 802.11ax / 2.4 GHz, HE40, HE11: -63.5 dBm 802.11ax / 2.4 GHz, HE80, HE11: -59 dBm 802.11ax / 2.4 GHz, HE160, HE11: -56.5 dBm 802.11ax / 6 GHz, HE20, HE11: -63 dBm 802.11ax / 6 GHz, HE40, HE11: -61 dBm...
Page 836 Specifications and Compliance System 1x1 Wi-Fi/Bluetooth Adapter for Management Applicant's Name NetAlly Model Bluebean-A Manufacturer 8devices Manufacture Date 2019 Country of Origin United States 64/128-Bit WEP Key, WPA, Security WPA2, 802.1X (TKIP, AES) EXG-300 United States Regulatory Domain EXG-300C China EXG-300E World Mode +2.27 dBi in the 2.4-GHz...
Page 837 802.11ac 80 MHz: 32.5, 65, 97.5, 130, 195, 260, 292.5, 325, 390, 433.3 Mbps Operating Frequencies The CyberScope receives on all of the frequencies in every country, but transmits only on the frequencies and channels allowed in the country or if the unit detects the AP 802.11d domain.
Page 838 Specifications and Compliance 6.425 – 6.525 GHz (Channels 97E, 101E, 105E, 109E, 113E) 6.525 – 6.825 GHz (Channels 117E, 121E, 125E, 129E, 133E, 137E, 141E, 145E, 149E, 153E, 157E, 161E, 165E, 169E, 173E, 177E, 181E, 185E) 6.825 – 7.125 GHz (Channels 189E, 193E, 197E, 201E, 205E, 209E, 213E, 217E, 221E, 225E, 229E, 233E) Modulation...
Page 839 Specifications and Compliance External Directional Antenna Accessory Antenna type: patch directional Average gain: 2.4 GHz: +6.4 dBi, 5 GHz: +8.9 dBi, 6 GHz: +8.6 dBi RP-SMA connector Frequency range: 2400-2500, 4900-5925, 6000-7125 (MHz) Receive only antenna (no transmit allowed) Environmental Specifications 32ºF to 113ºF (0ºC to +45ºC) NOTE: The battery will not Operating...
Page 840 Specifications and Compliance Meets the requirements of Shock and MIL-PRF-28800F for Class 3 vibration Equipment IEC 61010-1:2010: Pollution Safety degree 2 Operating: 4,000 m; Storage: Altitude 12,000 m...
Page 841 Specifications and Compliance CyberScope Certifications and Compliance CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Complies with 47 CFR Part 15 requirements of Ž the U.S. Federal Com- munications Com- mission.
Page 842 Specifications and Compliance exposure limits. Also includes Japan Indoor Use Statement and Taiwan Regulatory Statement Ž FCC Notices RYK-WNFQ268AXBT, Contains FCC IDs WA7-9377 6158A-WNFQ268AXBT, Contains IC IDs 6627C-9377 This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules.
Page 843 Specifications and Compliance reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver.
Page 844 Specifications and Compliance The operation of this device is prohibited on oil platforms, cars, trains, boats, and aircraft, except that operation of this device is permitted in large aircraft while flying above 10,000 feet. Operation of transmitters in the 5.925-7.125 GHz band is prohibited for control of or communications with unmanned aircraft systems.
Page 845 Specifications and Compliance the internal function of the equipment itself. Class A: Equipment is suitable for use in all establishments other than domestic and those directly connected to a low-voltage power supply network that supplies buildings used for domestic purposes. There may be potential difficulties in ensuring electromagnetic com- patibility in other environments due to conducted and radiated disturbances.
Page 846 Specifications and Compliance autorisée aux deux conditions suivantes: (1) le dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce dispositif doit accepter tout brouillage reçu, y compirs un brouillage brouillage susceptible de provoquer un fonc- tionnement indésirable. Warning: IC Radiation Exposure Statement: This equipment complies with RSS-102 radiation exposure limits set forth for an uncontrolled environment.
Page 847 Specifications and Compliance Avertissement: les dispositifs fonctionnant dans la bande 5150-5530 MHz sont réservés uniquement pour une utilisation à l’intérieur afin de réduire les risques de brouillage préju- diciable aux systèmes de satellites mobiles utilisant les mêemes canaux. This radio transmitter has been approved by Innovation, Science and Economic Development Canada to operate with the antenna types listed in the SparkLAN WNFQ-...
Page 848 Specifications and Compliance un gain supérieur au gain maximum indiqué pour tout type répertorié sont strictement interdits pour une utilisation avec cet appareil. European Union (EU) Radiation Warning Statement and Con- formance Notices Warning: This equipment complies with EU radiation exposure limits set forth for an uncontrolled environment.
Page 849 Specifications and Compliance Directives: Directives 2014/53/EU, 2014/35/EU, and 2014/30/EU. Accessory Information: Adapter Model No.: FSP045-A1BR Input: AC 100-240 V, 50/60 Hz 1.2 A Output: DC 15 V, 3 A Battery: 3250 mAh, 7.2 V 6.4 Ah Japan Indoor Use Statement For Japan, the EXG-300E is restricted for indoor use in the 5150-5530 MHz band only.
Page 850 Specifications and Compliance 得擅自變更頻率、加大功率或變更原設計之特性及功能。 Article 14: The use of low-power radio frequency motors shall not affect flight safety or interfere with legal communications; if any interference is found, it shall be stopped immediately, and it shall be continued to be used until there is no interference.
Page 851 Specifications and Compliance Wireless information transmission equipment operating in the 5.25-5.35 kHz frequency band is limited to indoor use. 在5.25-5.35 秭赫頻帶內操作之無線資訊傳輸設備，限於室內使用。 Complies with United Kingdom and European Economic Area radiation exposure limits This equipment complies with the UK and EEA...
Page 852 6489-7987.2 MHz -41.58 dBm/RBW The device is restricted to indoor use only when operating in the 5295 to 6425 MHz frequency range. Hereby, NetAlly declares that the radio equipment CyberScope is in compliance with Radio Equipment Regulations 2017. Back to Title and Contents...
