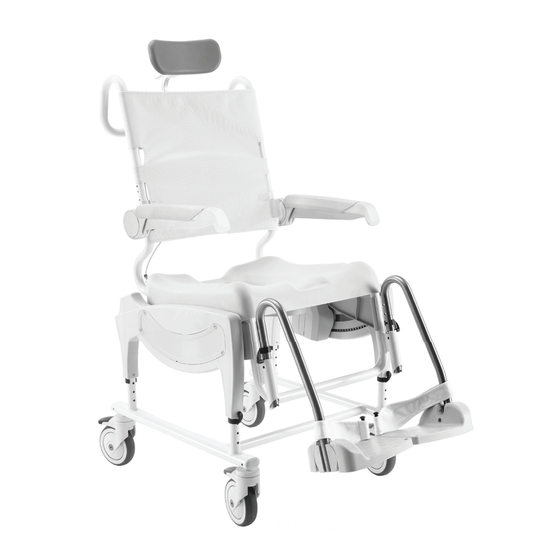

Invacare Aquatec Ocean VIP Ergo User Manual
Mobile shower - and toilet chair
Hide thumbs
Also See for Aquatec Ocean VIP Ergo:
- User manual (276 pages) ,
- Service manual (206 pages) ,
- User manual (292 pages)
Table of Contents
Related Manuals for Invacare Aquatec Ocean VIP Ergo
Summary of Contents for Invacare Aquatec Ocean VIP Ergo

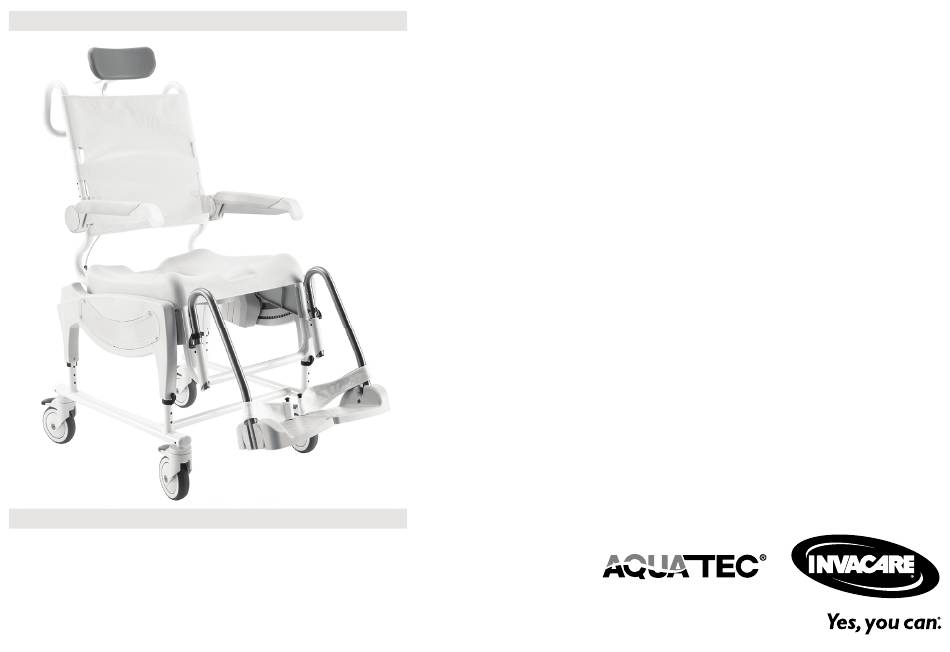

- Page 1 Aquatec® Ocean VIP Ergo Aquatec® Ocean Dual VIP Ergo en Mobile Shower- and Toilet Chair User Manual This manual MUST be given to the user of the product. BEFORE using this product, this manual MUST be read and saved for future reference.
- Page 2 All rights reserved. Republication, duplication or modification in whole or in part is prohibited without prior written permission from Invacare. Trademarks are identified by ™ and ®. All trademarks are owned by or licensed to Invacare Corporation or its subsidiaries unless otherwise noted.
-
Page 3: Table Of Contents
Contents 5.2 Turning Armrests....... 22 5.3 Swivelling the Footrests......22 5.4 Tilting the Seat Frame with Backrest . -
Page 4: General
Aquatec® Ocean VIP Ergo Aquatec® Ocean Dual VIP Ergo For more information about the product, for example 1 General product safety notices and product recalls, contact your Invacare distributor. See addresses at the end of this 1.1 Introduction document. This user manual contains important information about the In case of a serious incident with the product, you should handling of the product. -
Page 5: Warranty Information
UK. For further information about local standards and Triman Indicates recycling and sorting rules (only regulations, contact your local Invacare representative. See relevant for France). addresses at the end of this document. 1.5 Service Life 1.3 Warranty Information The expected service life of this product is five years when We provide a manufacturer’s warranty for the product... -
Page 6: Safety
– Before first use, clean the product thoroughly. – Due to regional differences, refer to your local Invacare catalogue or website for available options or contact your Invacare distributor. See addresses at the end of this document. -
Page 7: Labels And Symbols On The Product
E.g. the maximum user weight of one product in the combination may be lower. – Only use combinations allowed by Invacare. Contact your Invacare distributor for information. – Before use, read the user manual of each product and check the restrictions. - Page 8 Aquatec® Ocean VIP Ergo Aquatec® Ocean Dual VIP Ergo Reference number The following label is attached to the handle of the backrest: Product designation Label Description The identification label is attached to the inside of WARNING! the left side part. Risk of tipping over Labels on the Product –...
- Page 9 Safety The following labels are attached to the activation handles: Label Description Activation handle for seat tilting. Activation handle only for backrest tilting. 1652073-A...
-
Page 10: Product Overview
3.2 Main Parts of the Product 3 Product Overview 3.1 Intended Use Aquatec Ocean VIP Ergo and Aquatec Ocean Dual VIP Ergo are mobile shower- and toilet chairs with a seat tilt-in space function, stainless steel frame, individually adjustable seat height, tension adjustable backrest, flip up armrests and foldable angle-adjustable textured foot plates. - Page 11 Product Overview Toilet Pan Holder with Toilet Pan (optional) Clips (4x) for height adjustment Footrests with heel straps (2x) Clips (2x) for footrests Activation handle for seat tilting User manual Allen key Rear antitipper with screw, washer and mounting Toilet pan holder cap (2x) (Ocean Dual VIP Ergo only) Brake cover (2x) Toilet pan...
-
Page 12: Setup
Aquatec® Ocean VIP Ergo Aquatec® Ocean Dual VIP Ergo 4.2.1 Adjusting the Seat Height 4 Setup This section describes the assembly. Disassembly takes place 4.1 Safety Information in the reverse order. WARNING! WARNING! – Check the parts for transport damage before –... -
Page 13: Installing The Backrest
Setup WARNING! NOTICE! Risk of Injury – Firmly tighten the screws using the Allen key – Make sure that all four clips are securely supplied. fastened. – Check the screws regularly to ensure they are – Make sure that all four tubes are set to the fastened securely. -
Page 14: Installing The Activation Handle
Aquatec® Ocean VIP Ergo Aquatec® Ocean Dual VIP Ergo Loosening: 4.2.3 Installing the Activation Handle 1. Open the buckles B by squeezing the retaining lugs together (arrows). 2. Push the belts back a little through the buckle. 3. Fasten the belt buckles. 4. -
Page 15: Installing And Removing The Seat Plate
Setup 4.2.4 Installing and Removing the Seat Plate Installing Borem ipsum 1. Place the seat plate on the seat frame with the cutout to the front. 2. Press the seat plate down with the flat hand at the sides and then at the front and back until the seat plate snaps onto the seat frame. -
Page 16: Installing The Footrests
Aquatec® Ocean VIP Ergo Aquatec® Ocean Dual VIP Ergo 7. Remove securing clamp E with nuts F from the inside 14. Pass the open belt of the backrest cover on the outside of the backrest frame. of the backrest frame, close belt buckles and tighten all the belts. -
Page 17: Installing The Headrest
Setup 1. Insert the pin of the clip G from the outside into the 4.2.7 Installing the Headrest required hole on the footrest B. Make sure the clip engages around the tube. 2. Push the footrest into the guide H at the front of the side part until the pin of clip G engages in the groove A. -
Page 18: Installing The Rear Antitippers
Aquatec® Ocean VIP Ergo Aquatec® Ocean Dual VIP Ergo To adapt it to the user, the height adjustment tube can be fitted with the curve facing the front or the back. The headrest pad J can be removed and replaced by other pad shapes (optional). -
Page 19: Installing/ Removing The Brake Covers/ Clamping
Setup 4.2.9 Installing/ Removing the Brake Covers/ Clamping 1. Attach the brake lever cover A by pinning up the slot Protection Covers B to the small shaft C. 2. Position the lower part of the brake cover D at an angle from below over the brake housing E. -
Page 20: Assembling Accessories And Options
Aquatec® Ocean VIP Ergo Aquatec® Ocean Dual VIP Ergo 4.3 Assembling Accessories and Options 5. Place the lid on or remove it from the toilet pan. 6. Hold the toilet pan by its handle H and insert it from WARNING! the rear side between the toilet pan holder and the seat. -
Page 21: Usage
Usage 5 Usage WARNING! Risk of Tipping – Swivel the footrests to the side or fold up the 5.1 Safety Information foot plates before sitting down or standing up. – Before sitting down or standing up, turn the WARNING! front castors so that the lock is pointing –... -
Page 22: Turning Armrests
Aquatec® Ocean VIP Ergo Aquatec® Ocean Dual VIP Ergo WARNING! NOTICE! Risk of Tipping Risk of Damage to the Product – The shower- and toilet chair must only be – Do not lift the shower- and toilet chair using moved by using the push bar. the footrests, armrests or any accessories / options. -
Page 23: Tilting The Seat Frame With Backrest
Usage 5.4 Tilting the Seat Frame with Backrest Entry Position/Exit Position: 1. Slightly pull up the footrest A in the guide B until the NOTICE! pin of the clip D no longer engages in the groove C. – Never reach in the area between the side parts 2. -
Page 24: Tilting The Backrest (Ocean Dual Vip Ergo Only)
Aquatec® Ocean VIP Ergo Aquatec® Ocean Dual VIP Ergo 4. Set the required inclination by pushing down or pulling up the handle B. 5. Release the activation handle and let the pins of the tilting mechanism engage in the nearest holes. The seat frame is set at the currently set inclination. -
Page 25: Engaging/Disengaging The Castor Locks
Usage Increased force is needed for tilting backwards without seated user. Automatic tilting upwards without seated user when activation handle is pulled. 5.6 Engaging/Disengaging the Castor Locks CAUTION! Risk of Trapping/Squeezing All castor locks are foot-operated. – Do not operate the castor locks by hand. 1. -
Page 26: Transport
Aquatec® Ocean VIP Ergo Aquatec® Ocean Dual VIP Ergo 6 Transport 6.1 Safety Information The product can be dismantled for transport into the parts of the scope of delivery, see chapter 3.2 Main Parts of the Product, page 10. 1. Disassemble the product, see chapter 4 Setup, page 12 by following the assembly steps in reverse order. -
Page 27: Maintenance
– The product must be repaired by a qualified For cleaning and disinfection in clinical or long-term technician. care environments, follow your in-house procedures. – Damaged parts have to be replaced by a qualified technician. – Only use original Invacare spare parts. 1652073-A... -
Page 28: Cleaning Intervals
Aquatec® Ocean VIP Ergo Aquatec® Ocean Dual VIP Ergo 7.2.2 Cleaning Intervals Cleaning in a Clinical Environment In addition to cleaning as described above we NOTICE! recommend cleaning the product prior to the use by Regular cleaning and disinfection enhance smooth another patient, after ending of the period of use operation, increases the service life and prevents or on a regular basis (depending on which occurs... -
Page 29: Disinfection Instructions
Maintenance Cleaning the Toilet Pan (optional) The toilet pan can be cleaned in an autoclave at following temperatures/times: • 90 °C for 1 minute • 85 °C for 3 minutes • 80 °C for 10 minutes. 7.2.4 Disinfection Instructions In Domestic Care Method: Follow the application notes for the used disinfectant and wipe-disinfect all accessible surfaces. -
Page 30: After Use
Aquatec® Ocean VIP Ergo Aquatec® Ocean Dual VIP Ergo 8.3 Disposal 8 After Use Be environmentally responsible and recycle this product 8.1 Storage through your recycling facility at its end of life. Disassemble the product and its components, so the different WARNING! materials can be separated and recycled individually. -
Page 31: Troubleshooting
Troubleshooting 9 Troubleshooting 9.1 Identifying and Repairing Faults The following table provides information on malfunctions and their possible causes. If you cannot correct the malfunction using the solutions named, contact your provider directly. Malfunction Possible Cause Solution Difficulty in adjusting the seat height Dirt between the seat frame and the Disassemble the base frame and clean side part... -
Page 32: Technical Data
Aquatec® Ocean VIP Ergo Aquatec® Ocean Dual VIP Ergo 10 Technical Data 10.1 Dimensions and Weight Ocean VIP Ergo Ocean VIP Ergo XL* Ocean Dual VIP Ergo 480 mm 480 mm 1652073-A... - Page 33 Technical Data Ocean VIP Ergo Ocean Dual VIP Ergo Ocean VIP Ergo XL* 475 mm – 600 mm 533 mm – 658 mm 565 mm 645 mm 565 mm ca. 1052 mm – 1340 mm (in neutral seat position) ca. 1052 mm – 1202 mm (in neutral seat position) 1000 mm Tilted: 1520 mm...
-
Page 34: Materials
Aquatec® Ocean VIP Ergo Aquatec® Ocean Dual VIP Ergo Ocean VIP Ergo Ocean Dual VIP Ergo Ocean VIP Ergo XL* 172 mm Angle of inclination seat -5° – 40° Angle of inclination backrest — — 5° – 35° Turning diameter 2200 mm 1290 mm Reversing width... - Page 35 Notes...
- Page 36 800–333–6900 www.pro.invacare.ca www.invacare.co.uk www.invacare.eu.com www.invacare.com Australia: New Zealand: Invacare Australia Pty. Ltd. Invacare New Zealand Ltd Unit 18/12 Stanton Road, 4 Westfield Place, Mt Wellington 1060 Seven Hills, NSW 2147, New Zealand Australia Phone: 0800 468 222 Phone: 1800 460 460...
