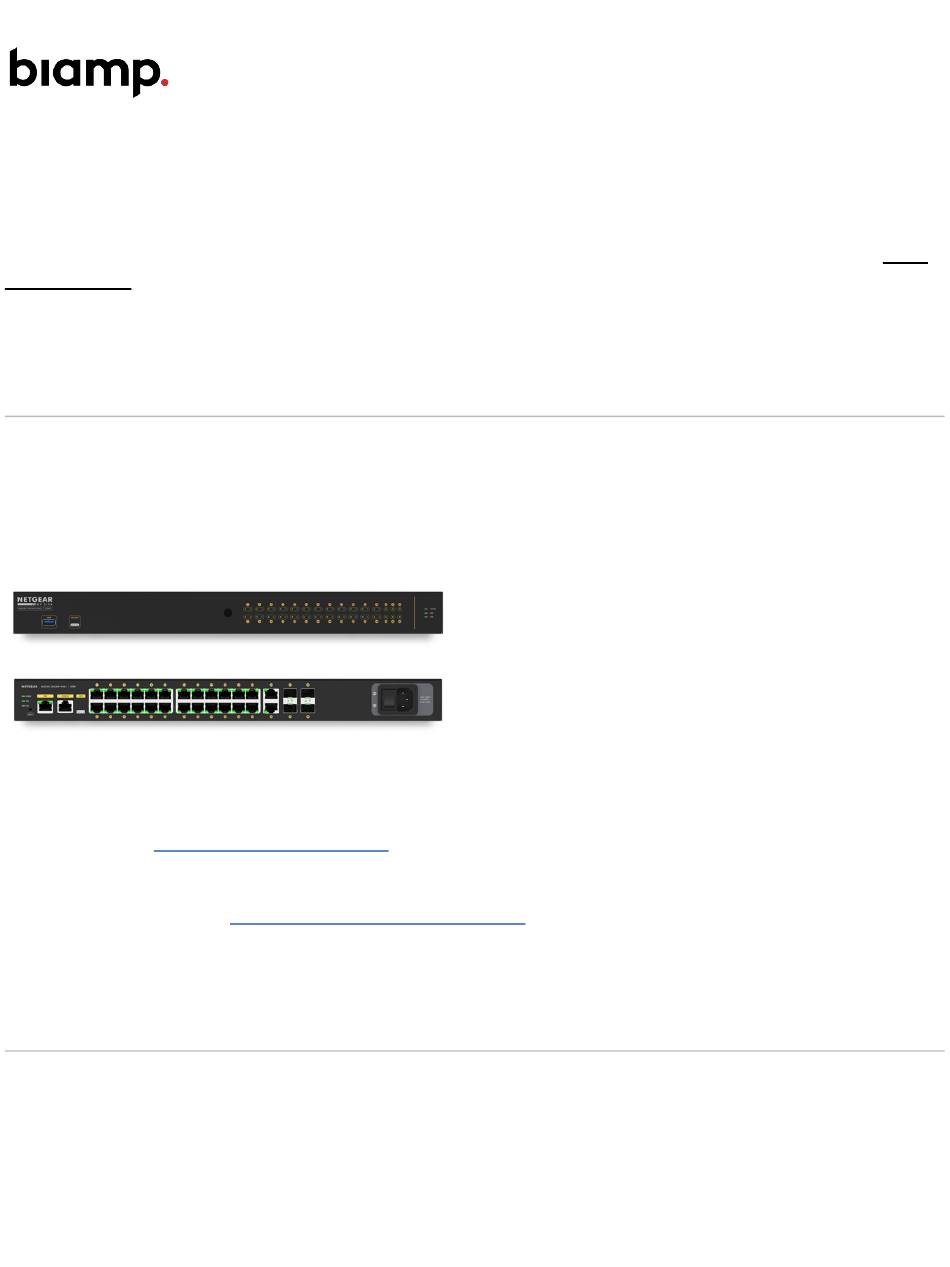

Netgear NMS-NG26GPX-AVB (M4250-26G4XF-PoE+)
switch configuration

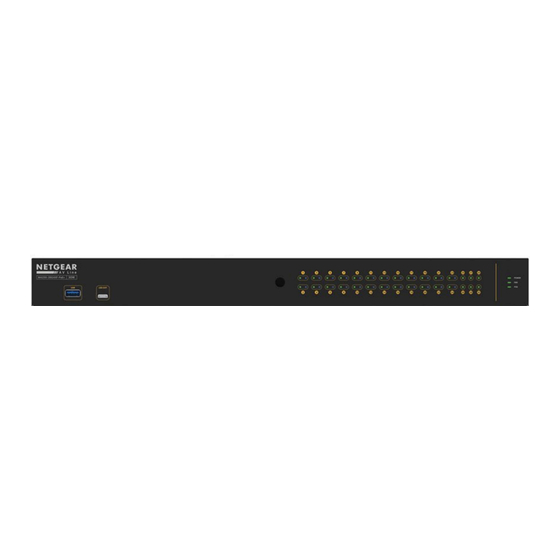

This article provides an overview of the Netgear M4250-26G4XF-PoE+ switch as sold under Biamp part number NMS-
NG10GPX-AVB.
Intended use and support
The switch supports AVB installations that include Tesira, Control, and Qt X products. The primary out-of-box
functionality focuses on AVB with Dante supported. The switch uses a default VLAN to support AVB devices and can
add additional profiles for a larger Dante, AVB, and Control design.
Specification: This specification outlines the features of the switch, default configuration, and sample topologies.
Netgear Support: Netgear offers design support through their Pro AV Design Services group. Biamp recommends
contacting them at
ProAVDesign@netgear.com
for network design support on any topologies that are not listed as
tested by Biamp or that require mixing M4250 switch models within a design.
Default Configuration File:
Biamp Default NMS-NG10GPX-AVB
Overview
The Netgear M4250 AV Line of switches provides a range of configurations supporting multiple audio and video
Ethernet protocols, including AVB, Dante, and AES67. In addition to a wide variety of industry-standard networking
features, this line of switches includes specific features tailored to the AV industry.
Copyright 2013-2020 Biamp Systems
http://support.biamp.com/
1
