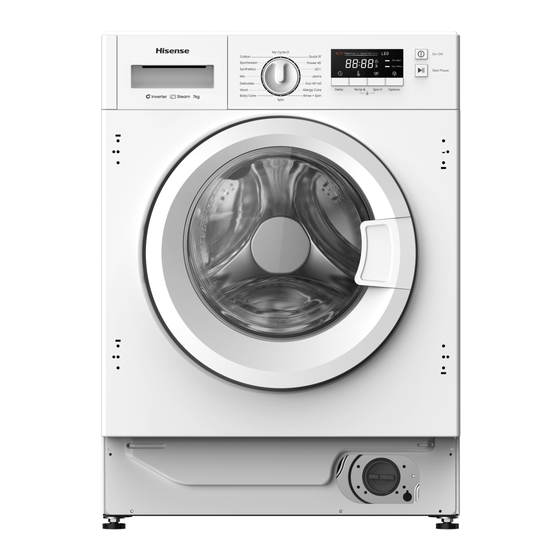

Hisense WF3M841BWI User's Operation Manual
  1. Manuals
  2. Brands
  3. Hisense Manuals
  4. Washer
  5. WF3M841BWI
  6. User's operation manual

Hisense WF3M841BWI User's Operation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
USER'S OPERATION MANUAL
Before operating this unit, please read this manual
thoroughly, and retain for future reference.
WF3M841BWI
WF3M741BWI
EN
English

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WF3M841BWI and is the answer not in the manual?

Questions and answers

Related Manuals for Hisense WF3M841BWI

Summary of Contents for Hisense WF3M841BWI

  • Page 1 USER’S OPERATION MANUAL Before operating this unit, please read this manual thoroughly, and retain for future reference. WF3M841BWI WF3M741BWI English...

  • Page 2: Table Of Contents

    CONTENTS SAFETY INSTRUCTIONS SPECIFICATIONS PRODUCT OVERVIEW QUICK START GUIDE PRODUCT INSTALLATION OPERATION INSTRUCTIONS CLEANING AND MAINTENANCE TROUBLE SHOOTING DISPOSAL AND RECYCLING BUILT-IN INSTALLATION Read all instructions and explanations before use.Follow the instructions carefully. Keep the operation instructions handy for later use. if the appliance is sold or passed on then ensure that the new owner always receives these operation instructions.

  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS Intended Use The product is intended only for home use and for textiles in household amounts suitable for washing. This appliance is for indoor use only and not intended for built in use. Only use according to these instructions. The appliance is not intended for commercial use. Any other use is considered as improper use.

  • Page 7: Specifications

    SPECIFICATIONS WF3M841BWI Model WF3M741BWI Power Supply 220-240V~,50Hz MAX.Current Standard Water Pressure 0.05MPa~1MPa Washing Capacity 7.0/8.0kg Dimension 595mm 825mm 495mm 915mm 135mm 555mm 545mm 975mm Weight 60kg Rated Power 1950W...

  • Page 9: Quick Start Guide

    QUICK START GUIDE CAUTION • Before washing, please make sure the machine is installed properly. • Your appliance was thoroughly checked before it left the factory. To remove any residual water and to neutralize potential odors, it’s recommended to clean your appliance before first use. For this reason, recommended to clean the inner drum by running the "Drum Clean"...
  • Page 17 Detergent Dispenser Pre wash Main wash Softener Release button to pull out the dispenser CAUTION • Detergent only need to be added in “compartment I ”after selecting pre-wash functio n. Programme Programme Baby Care Quick 15' Wool Power 45' Delicates Jeans Synthetics Eco 40-60...

  • Page 18: Operation Instructions

    OPERATION INSTRUCTIONS Detergent Recommendation Recommended washing Type of laundry Washing Wash cycles detergent and textile temp. °C Heavy-duty detergent White laundry made Cotton,Eco 40-60 40/60 with bleaching agents from boil-proof cotton and optical brighteners or linen Colour detergent without Coloured laundry 20/30/ Cotton, Eco 40-60, bleaching agent and optical...
  • Page 19 Control Panel On/Off Power on or off machine. Start/Pause Start or pause your program. Option Press buttons to change program parameters or select additional functions. Program Choose appropriate program according to the laundry type. Display The display shows settings, estimated remaining time, options and status messages.
  • Page 20 OPERATION INSTRUCTIONS Display Display Wash Time Delay Time spin Error Door Lock Extra Rinse Pre Wash Child Lock...
  • Page 21 Programmes Model: WF3M841BWI Load (kg) Default Time (h:min) Programme Quick 15' 0:15 0:45 1:01 Jeans 1:35 Eco 40-60 3:38 Allergy Care 1:48 Rinse+Spin 0:20 Spin 0:12 Baby Care 2:01 Wool 1:07 Delicates 0:50 1:20 Synthetics 3:18 Sportswear 0:47 Cotton 3:39 NOTE •...
  • Page 22 Programmes Model: WF3M741BWI Load (kg) Default Time (h:min) Programme Quick 15' 0:15 0:45 1:01 Jeans 1:35 Eco 40-60 3:28 Allergy Care 1:48 Rinse+Spin 0:20 Spin 0:12 Baby Care 2:01 Wool 1:07 Delicates 0:50 1:20 Synthetics 3:18 Sportswear 0:47 Cotton 3:39 NOTE •...
  • Page 23 Programmes WF3M841BWI Cycle Quick 15' Cold 0:15 0.030 Cold 70%/800 1:01 0.183 65%/1000 Allergy Care 1:48 0.569 65%/1000 1:20 0.754 65%/1000 Cotton 3:39 1.498 53%/1000 3:38 0.759 62.0 53.9%/1350 Eco 40-60 2:48 0.425 43.0 53.9%/1350 2:48 0.199 36.0 53.9%/1350 • The above data is for reference only, and the data may change due to different actual use conditions.
  • Page 24 WF3M741BW Cycle Cold 0:15 0.030 Cold 70%/800 Quick 15' 1:01 0.177 65%/1000 Allergy Care 65%/1000 1:48 0.540 Mixed 65%/1000 1:20 0.696 53%/1400 Cotton 3:39 1.392 53.9%/1350 3:28 0.675 57.0 EC 40-60 53.9%/1350 2:42 0.375 41.0 32.0 53.9%/1350 2:42 0.188 • The above data is for reference only, and the data may change due to different actual use conditions.
  • Page 25 Programmes 1) The highest temperature reached by the laundry in the wash cycle for at least 5 minutes. 2) Residual moisture after the wash cycle in water content percent and the spin speed at which this was achieved. 3) The Eco 40-60 programme is able to clean normally soiled cotton laundry declared to be washable at 40°C or 60°C, together in the same cycle.
  • Page 26 OPERATION INSTRUCTIONS Programmes are available according to the laundry type. Programmes Cotton Hard-wearing textiles, heat-resistant textiles made of cotton or linen. Power 45' Washing few and not very dirty clothes quickly. Wash synthetic articles, for example: shirts, coats, blending. While Synthetics washing the knitting textiles, detergent quantity shall be reduced due to its loose string construction and easily forming bubbles.
  • Page 27 OPERATION INSTRUCTIONS Option Default Default spin Additional Cycle speed (rpm) Temp.( functions My cycle 1400 Cold Quick 15' Delay Extra Delay, Rinse, Extra Delay, 1000 Rinse, Extra Jeans Delay, Wash, Rinse, Delay, Eco 40-60 1400 Extra Allergy Care 1000 Delay, Wash, Rinse, Extra...
  • Page 28 Delay Delay Set the Delay function: 1. Select a programme 2.Press the Delay button to choose the time(the delaying time is 0-24 h.) 3.Press [Start/Pause ] to commence the delay operation Delay On/Off Choose the Programme Setting time Start Cancel the Delay function: Press the [Delay ] button until the display be 0h.It should be pressed before starting the programme.
  • Page 29 OPERATION INSTRUCTIONS Child Lock To avoid mis operation by children. Temp. Spin Press [Temp.] and [Spin] On/Off Start/Pause 3 sec. till buzzer beep. CAUTION • Press the two button 3 sec. also to be released the function. • The “Child Lock” will lock all buttons except [On/Off]. •...
  • Page 30 Product Fiche Supplier's name or trade mark( ) ( ):HISENSE Model identifier( ): WF3M841BWI General product parameters: Parameter Value Parameter Value Height Width Dimensions in cm( ) ( ) Rated capacity( )(kg) Depth Energy efficiency index( ) Energy efficiency class( ) 51.9...
  • Page 31 Supplier's name or trade mark( ) ( ): HISENSE Model identifier( ): WF3M741BWI General product parameters: Parameter Value Parameter Value Height Width Dimensions in cm( ) ( ) Rated capacity( )(kg) Depth Energy efficiency index( ) Energy efficiency class( ) 51.5...

  • Page 32: Cleaning And Maintenance

    CLEANING AND MAINTENANCE Cleaning and Care WARNING • Always unplug the appliance and close the water tap before cleaning and maintenance. Cleaning the Cabinet Proper maintenance on the machine can extend its working life. The surface can be cleaned with diluted non-abrasive neutral detergents when necessary.
  • Page 33 Cleaning the Inlet Filter NOTE • Diminishing water flow is a sign that the filter needs to be cleaned. 1. Close the tap and remove 2. Clean the filter with a brush. the water supply hose from it. 4. Use a brush to clean the 3.
  • Page 34 CLEANING AND MAINTENANCE Cleaning the Detergent Dispenser 1. Press down the release [ ] on the softener cover and pull the dispenser drawer out of the recess. Clean the inside of the recess with a brush. 2. Lift the softener cover off the dispenser drawer and wash both items with water. 3.
  • Page 35 Cleaning the Drain Pump Filter WARNING • Be careful of the hot water! • Allow detergent solution to cool down. • Unplug the machine to avoid electrical shock before washing. • Drain pump filter can filter the yarns and small foreign matters from the washing. •...

  • Page 36: Trouble Shooting

    TROUBLE SHOOTING Whenever there is a problem with the appliance, check if you can solve it following the tables below. If the problem persists, please contact the customer service. Description Possible Cause Solution Appliance does Door is not closed Close the door properly not start properly.Clothes are and restart.

  • Page 37: Disposal And Recycling

    DISPOSAL AND RECYCLING Important Instructions for Environment Compliance with the WEEE Directive and Disposing of the Waster Product: This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waster electrical and electronic equipment (WEEE). This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life.
  • Page 38 Customer Service Spare parts for your appliance are available for a minimum of 10 years following EU COMMISSION REGULATION 2019/2023 ANNEX II Ecodesign requirements. In case of questions, please contact our local customer service center. WARNING Risk of electric shock •...

  • Page 39: Built-In Installation

    BUILT-IN INSTALLATION Appendix Self-tapping screws Hinges Counter magnet Spacer Fixed position paper (ST4*12) (M5*12) (ST4.8*15) Tool Screw driver Automatic driver Ruler Pencil Install Steps 600mm 580mm 825mm 152.5mm Overview Preparation and assembly of the door The door is open from left to right The door is open from right to left...
  • Page 40 1: Make the mark on the door Position Paper 2: Fixed position paper on the door. Position Paper Position Paper Left Open Right Open 3: Drill hole on the door 35mm...
  • Page 41 4: Installation the hinges and spacer 5:Installation the counter magnet Fix counter magnet on the cabinet cover Screw counter magnet on the cabinet cover 6: Installation the door WARNING • When installing the appliance into the kitchen ensure furniture ,if possible, the hoses are placed in either of the two recesses on the back of the appliance.
