Before you begin

Read all instructions before set up.
• Select a level site clear of rocks, branches, and other hard
or sharp objects, to install your tent.
WARNING: Keep clear of overhead power lines.
• Do not set up your tent under trees because of potential
lightning strikes or falling tree limbs in inclement weather.
• Secure with all stakes and guylines provided to prevent
property damage or personal injury.
• For best results in windy conditions, position narrow end of
tent into the wind.
• Enlist the help of at least one other person to assist you
when it is time to assemble the tent.

Pole Descriptions

No.
Description
1
Main Roof Pole, grey
2
Side Roof Pole, black
w/Red mark
3
Side Roof Pole, black
w/Yellow mark
4
Front & Rear Roof Pole, black
w/Green mark
5
Center Steel Leg Pole
w/ red mark
6
Side Steel Leg Pole
1

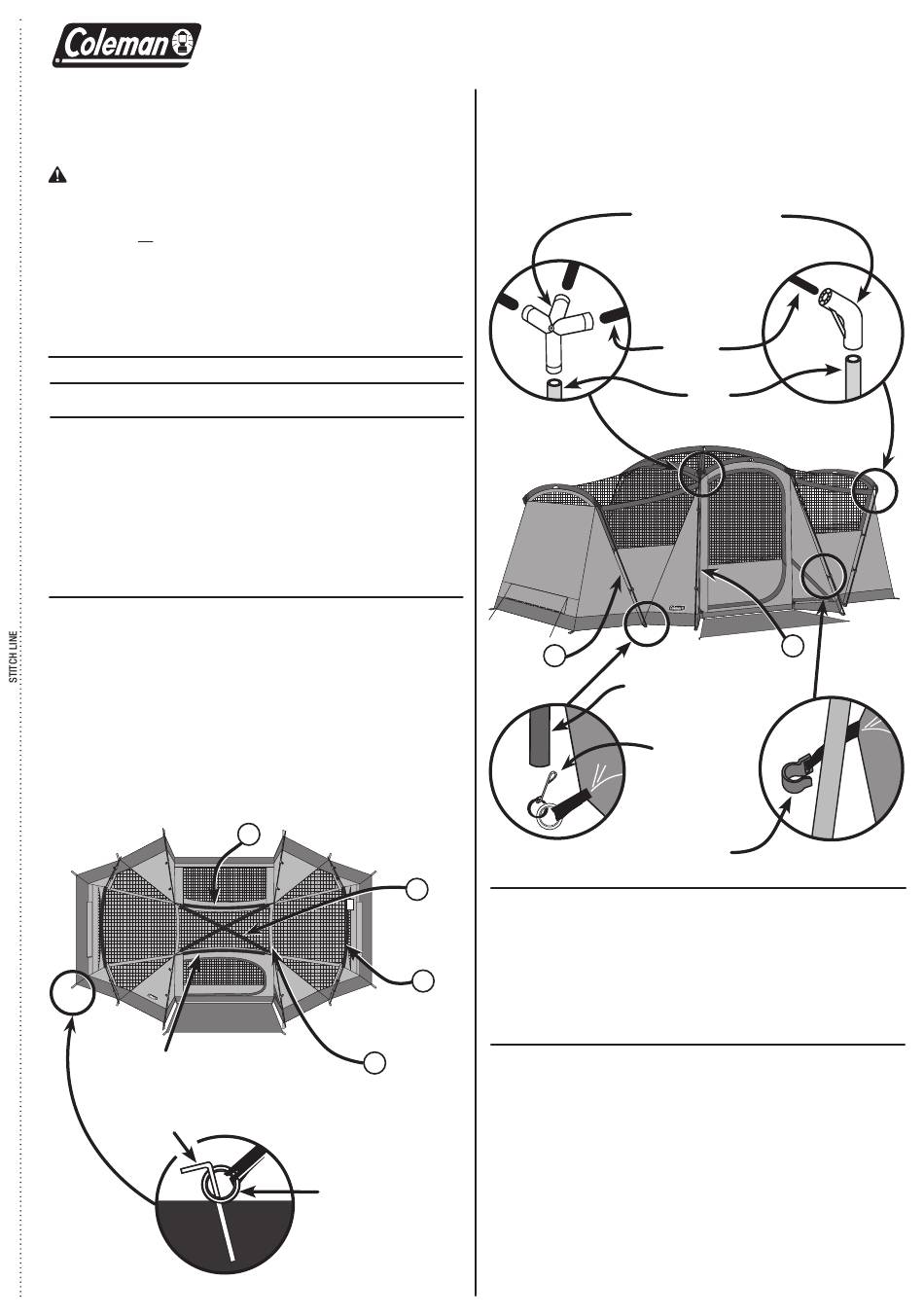

Layout & Positioning
of Tent and Poles
• Layout and position the tent with door facing desired direction. (Fig. 1)
• Stake down tent corners first through the stake rings. (Fig. 2)
• Keep the floor taut.
• Stake down the remainder of the stake rings.
• Assemble all poles by unfolding and interlocking the shock-corded
pole sections.
• Insert the body poles into the pole sleeves.
Fig. 1
Pole
Sleeve
Tent Stake
Fig. 2
TENT SETUP INSTRUCTIONS
Qty.
Pole
Pole
Repair Kit
Replacement Kit
2
5010000539
5010000549
2
5010000539
5010000549
2
5010000540
5010000548
2
5010000540
5010000548
4
N/A
5010000753
4
N/A
5010000761
4
1
2
Stake Ring
MODEL 2000005015
2

Connect Leg Poles

• Insert top poles and leg poles into pole connectors.
(Fig. 3, Fig. 4 and 5)
• Insert one pin into each leg pole. (Fig.6)
Fig. 5
6
Fig. 6
3
Attach Tent to Leg Poles
Using Clips
3
• Attach clips along the edges of tent to leg poles. (Fig. 7)
• Make any adjustments to the tent stakes, if needed.
4

Attach Rainfly

• Drape rainfly over tent. (Fig. 9)
• Connect the elastic loops with "S" hooks, (found at the rainfly
corners) to the frame poles. (Fig. 10)
• Secure rainfly with straps located on the underside of rainfly.
(Fig. 11)
• Attach and stake out guylines. (Fig. 12)
HINT: During setup, keep door zipped to keep proper tension
on fabric.
Pole Connector
Pole
Pole
5
Fig. 3
Pole
Pin
Clip
(continued on other side)
Fig. 4
Fig. 7
