Coleman 9271H133 Instructions

When You Are Ready To Set Up Your
Tent
–Select a level campsite clear of rocks,
branches and other hard or sharp objects.
–Do not set up your tent under trees.
–For best results in windy conditions,
position the end of tent into the wind.
–See owners manual for more tips.
1 Layout & Positioning
of Tent, Pole Assembly
–Layout and position tent with doors
facing desired direction. (illus. 1)
–Stake down tent corners, using
the tent stake loops.
Keep the floor taut.(illus. 2)
–Assemble all poles by interlocking
shock-corded poles.
–Insert the longer Center Frame Poles into
Center Pole Sleeves. The poles should cross
forming an "X" in the middle of tent. (illus. 1)
–Insert the shorter Side Frame Poles through the pole
sleeves located at the sides of tent. (illus. 1)
Connect Frame to Tent
2
–Unzip doors.
–Locate the Pin & Ring Systems on
either side of the front doors and the
corresponding Pin & Ring on the
back side of tent.
–Insert one end of Frame Pole onto
Pin & Ring System on tent stake
loop on either side of the doors. (illus. 3)
–Go to opposite end of pole diagonally
from starting point and gradually
apply pressure to the pole forming an
arch until you are able to insert the
Pin into pole end.
–Repeat for second pole.
–Attach tent frame clips to poles.

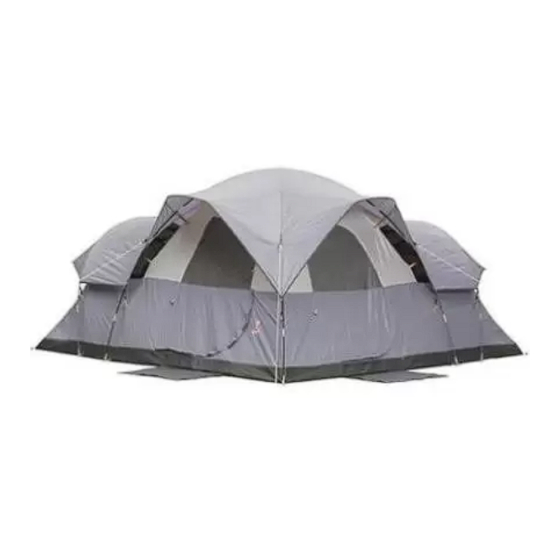

13'x13' Ridgeview
Instructions apply to Part Number 9271H133
Center Tent
Poles
Side Tent
Poles
Rainfly Pole
Rainfly Part No. 9271H103
Side pole
Sidepole
Part No. 9270A102
Part No. 9271A105
Part No. 9270A103

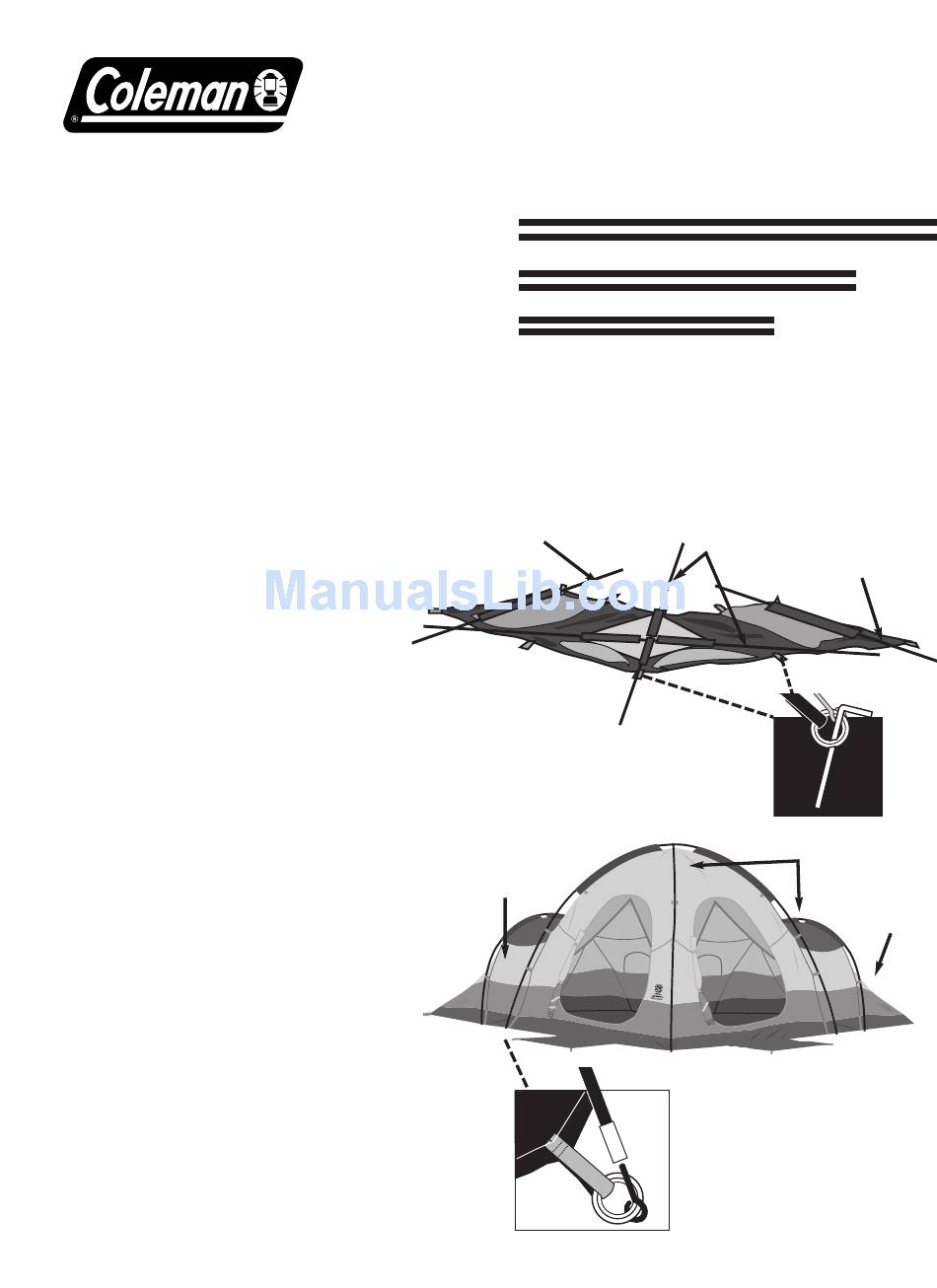

illus. 1
Center poles
Door
illus. 2
stake through
stake loop
illus. 3
Ring & Pin System
Side pole
Door
Tent
Center poles
Sidepole
illus. 4
Center section upright
