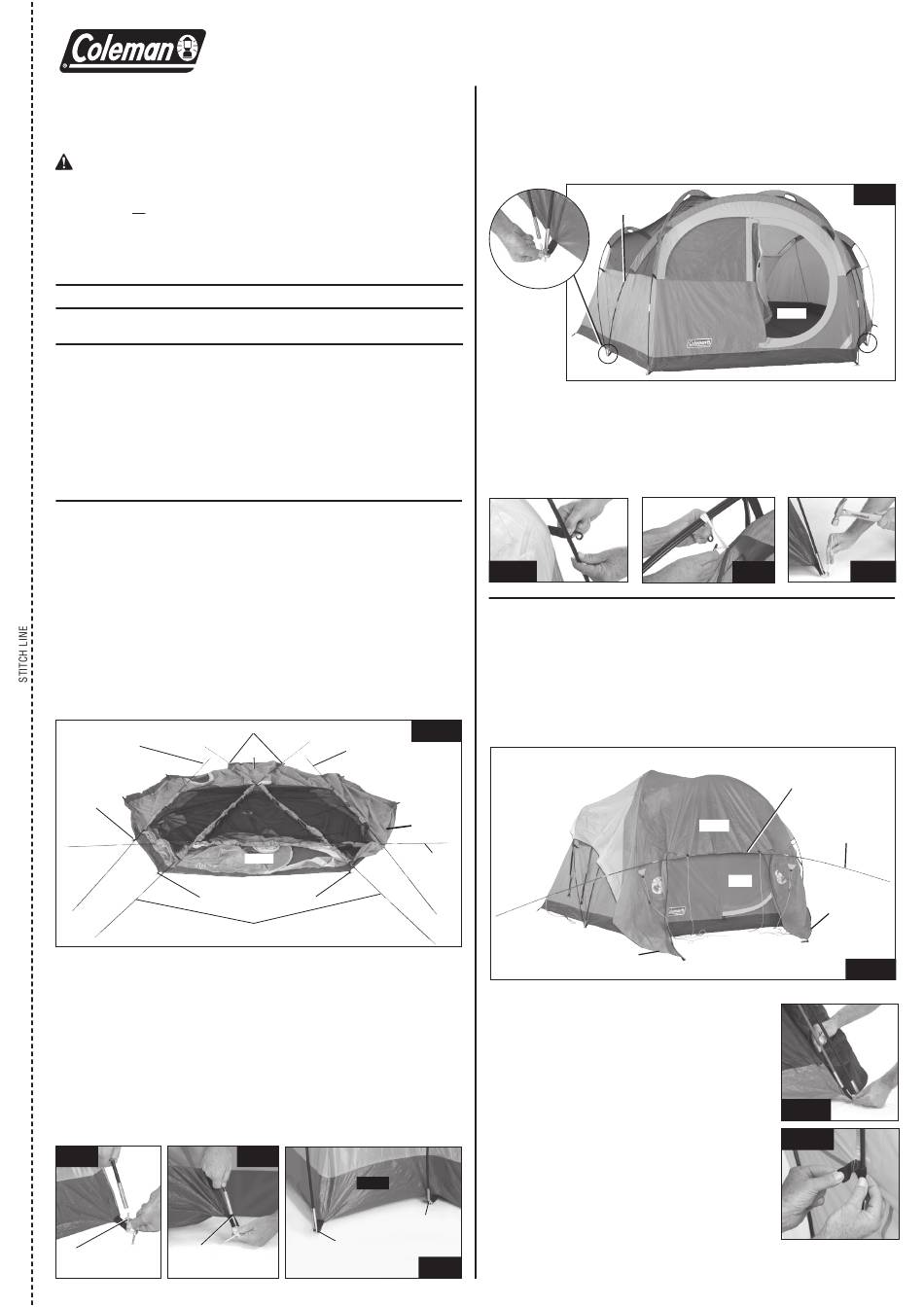

Coleman BAYSIDE 6 Quick Start Manual

Before you begin
Read all instructions before set up.
• Select a level site clear of rocks, branches, and other hard or sharp objects,
to install your tent.
WARNING: Keep clear of overhead power lines
• Do not set up your tent under trees because of potential lightning strikes or
falling tree limbs in inclement weather.
all stakes and guylines provided to prevent property damage or
• Secure with
personal injury.
• For best results in windy conditions, position narrow end of tent into the wind.
• Enlist the help of at least one other person to assist you when it is time to
assemble the tent.
Pole Descriptions
Description Qty.
Main Pole, black, thick 2
Front Pole, black with
green center insert 1
Side pole, black with
blue center insert 2
Rainfly Pole, black with
red center insert 1
To Set Up Tent
1. Unfold tent and spread out on a clean, level surface with the door
facing the desired direction. (Fig. 1)
2. Assemble all poles by interlocking the shock-corded,
sections together.
3. Insert long, black Main Poles through the black trimmed sleeves on
top of tent forming an X". (Fig. 1)
4. Insert front pole with green center insert through the green
trimmed sleeve located above door. (Fig. 1)
5. Insert shorter, black Side Poles with blue center insert through the
blue trimmed sleeves. (Fig. 1)
Pin for Main Pole (black, thick)
Side Pole (black with
blue center insert)
Pin for Side Pole
(black with
blue center
insert)
Front of Tent
Pin for Main Pole (black, thick)
Main Poles (black, thick)
6. Insert end of Main Poles (black, thick) into pins located in the front
corners of the tent. (Fig. 2 & 4)
7. Go to opposite end of each Main Pole and gradually apply pressure
to each forming arches. Insert the pin located at the outside corners
of the closet at the back of tent into each pole end. (Fig. 2 & 4)
8. Insert end of each Side Pole (black with blue center insert) into pin
located on the sides of the tent. (Fig. 3 & 4)
9. Go to opposite end of each Side Pole and gradually apply pressure
to form an arch. Insert the pin into pole end at the inside corners of
the closet. (Fig. 3 & 4)
Fig. 2
Pin for Main Pole (black, Pin for Side Pole (black with
thick) at front blue center insert) at sides
corners of tent of tent
BAYSIDE
.
Pole Pole Pole
Dia. Repair Kit Replacement Kit
9.5mm 5010000540 5010000548
9.5mm 5010000540 5010000548
8.5mm 5010000541 5010000547
8.5mm 5010000541 5010000547
Side Pole (black with
Closet
blue center insert)
Door
Fig. 3
Closet
Pin for Side Pole (black
with blue center insert)
at inside corners of
Pin for
closet
Main Pole (black,
thick) at outside
corners of closet
6 TENT
TM
10. Insert end of Front Pole (black with green center insert) (above door)
into remaining pin located on the side of the tent. (Fig. 5 & 5A)
11. Go to opposite end of Front Pole and gradually apply pressure to
form an arch. Insert the pin into pole end at the opposite side of
tent. (Fig. 5 & 5A)
Front Pole (black with
green center insert)
above door
5A
12. Attach frame clips along edges of tent to the Main & Side Poles. (Fig. 6)
13. Locate the straps with toggle & loop above closet at back of tent.
Wrap strap around black Main Poles where they cross; then insert
toggle through loop to secure. (Fig. 7)
14. Stretch tent until taut, then secure metal loops and web straps
located on all sides and corners of tent with stakes. (Fig. 8)
Fig. 6
To Attach Rainfly
1. Drape Rainfly over tent with maroon vestibule flaps located at the
front of the tent (see Fig. 9 on other side of this tag).
NOTE: Hook and loop fasteners, located on seams of underside of
Rainfly, should be centered over black Main Poles.
2. Insert the Rainfly Pole (black with red center insert) through sleeve with
red trim on underside of Rainfly above front door of tent. (Fig. 9)
Fig. 1
Pin for
Side Pole
(black with
blue center
insert)
Front Pole
(black with
green center
insert)
Vestibule Flap
3. Insert end of Rainfly Pole into pin on either
side of front door. (Fig. 10)
4. Go to opposite end of Rainfly Pole and
gradually apply pressure to form an arch.
Insert the pin into pole end at other side of
the door. (Fig. 10 & 13)
5. Locate all hook & loop fasteners on
underside of Rainfly and wrap around all
Main Poles, Side Poles & Rainfly Pole to
secure. (Fig. 11)
Fig. 4
MoDEl 2000005494
Door
Front of Tent
Fig. 7
Sleeve with Red Trim
Rainfly
Door
Front of Tent
Fig. 10
Fig. 11
(continued on other side)
Fig. 5
Fig. 8
Rainfly Pole (black
with red center insert)
Vestibule Flap
Fig. 9
