Coleman GALILEO 9276-141 Instructions

When You Are Ready To Set
Up Your Tent
–Select a level campsite clear of
rocks, branches and other hard or
sharp objects.
–Do not set up your tent under trees.
–For best results in windy conditions,
position the end of tent into the wind.
–See owners manual for more tips.
1 Layout & Positioning
of Tent, Pole Assembly
–Layout and position tent with doors
facing desired directions. (illus. 1)
–Unzip doors
–Stake down tent, using the rings on the
stake loops. Keep the floor taut.
–Assemble Frame Poles by interlocking
shock-corded poles. (three poles)
–Insert the longer black poles into Pole
Sleeves as shown below. They will curve
and come out on the same side that
they started. The shorter grey side pole
inserts into sleeves running
side to side (illus. 1).
Assembled
poles
inserted
through
pole
sleeves
Grey Side Pole
GALILEO™ 14'x10'
Instructions apply to Part Number 9276-141
Part No. 9276-202
Part No. 9276-203
Part No. 9276-204
illus. 1
Front Door
illus. 2
Tent stake
through ring
on stake loop
Main Tent Poles
Side Poles
Rainfly Poles
Rainfly
Part No. 9276-205
Connect Frame to Tent
2
–Insert one pin into the end of Main Tent
Pole at tent corner (illus. 3, illus. 4)
–Go to opposite end of pole and gradually
apply pressure to the pole forming an arch
until you are able to insert the pin into the
pole end. (works best with two people)
–Repeat for second pole
–Insert pin into the end of side pole, go to
opposite end of pole and apply pressure
until you arch the pole and can insert the
pin into the pole (illus. 3, illus. 4).

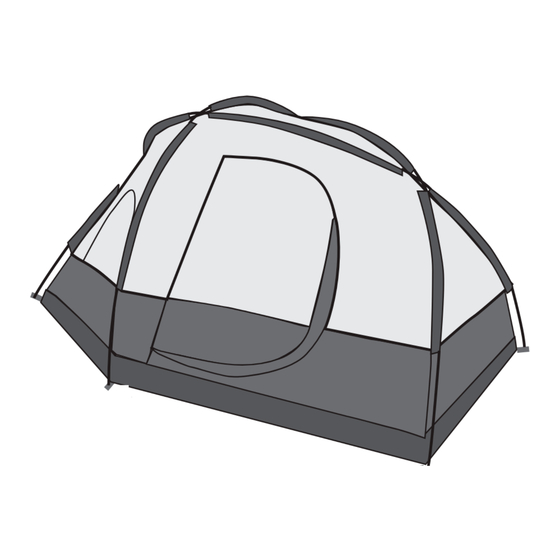

Tent frame
illus.3
Insert pin into pole end
illus. 4
set-up
