WMF 1500 S planning information – Dynamic Milk
Waste water connection
Optional:
Area for counter cut out connection
minimum 50x60 or Ø70
Water and power connection
Optional:
Area for counter cut out connection
minimum 50x60 or Ø70
Placement in hatched area is freely
selectable
http://www.wmf-kaffeemaschinen.de/fachplaner
WMF Group GmbH | Eberhardstraße 35 | 73312 Geislingen (Steige)
Optional feet
100 mm
Optional: pipe for grounds
disposal
70 x 120 x 250 mm
(extension with second
pipe possible)
Only with fix water
connection
3x1,5 mm
,
2
length appr. 1m
Optional: cut-out for
grounds through counter
Optional: cut-out for under
machine cooler milk hose
On site
On site
µ
Optional: vending unit
Card reader width 130 mm
Coin Checker and coin
changer 105 mm
Card reader and coin
changer height 500 mm
Coin Checker height 502
mm
Advertisement
Related Manuals for WMF 1500 S
Summary of Contents for WMF 1500 S
- Page 1 Placement in hatched area is freely selectable Optional: cut-out for under machine cooler milk hose Only with fix water On site connection 3x1,5 mm length appr. 1m On site http://www.wmf-kaffeemaschinen.de/fachplaner WMF Group GmbH | Eberhardstraße 35 | 73312 Geislingen (Steige)
- Page 2 For operating, service, and safety reasons the machine should be installed with a clearance Clearance from the building or non-WMF components of not less than 50 mm at the sides and 60 mm at the back. A minimum working space of 800 mm in front of the coffee machine is recommended.

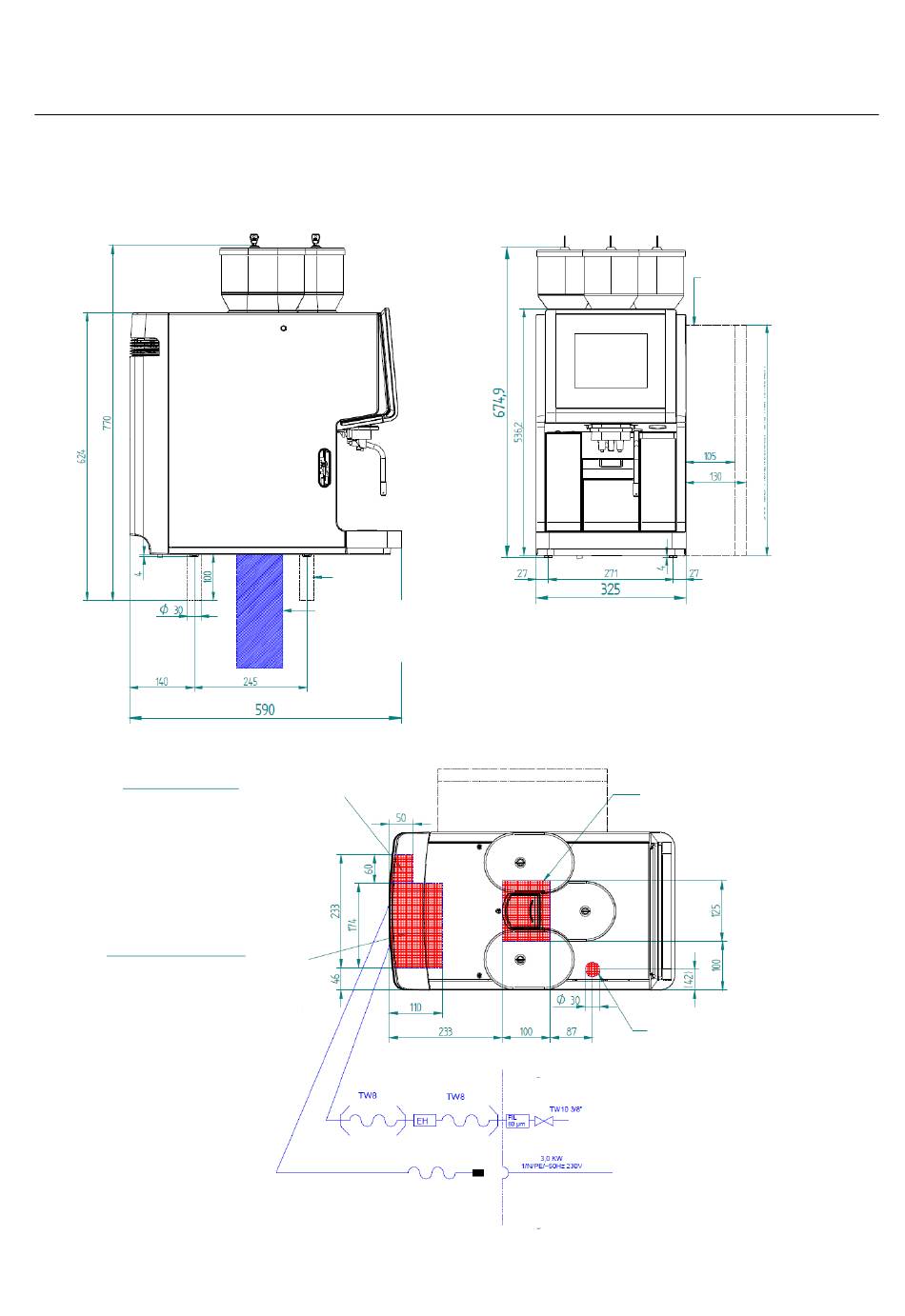

- Page 3 For connection from below through the counter a cut-out must be made in the hatched area on-site according to drawing (see top view). For drinking water with carbonate hardness above 5°dKH (carbonate hardness), a WMF water filter should be fitted upstream.
