VIGO VG01042 Quick Start Manual

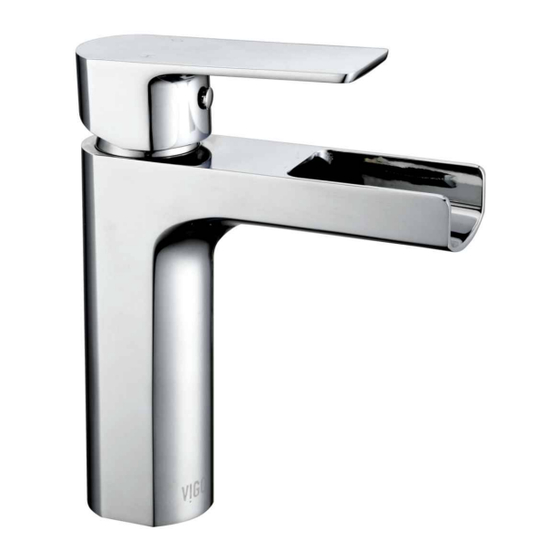

Single hole bathroom faucet
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
FAUCET SPECIFICATIONS
Single Hole Bathroom Faucet
Model VG01042
MODEL VG01042
FEATURES
PACKING LIST
Faucet Assembly
Metal Washer
Rubber washer
Two Metal braided hoses
Nut
NOTE: All faucets are compliant to CEC 2016 regulations. If you
have inquiries about your water flow, please email
techmail@vigoindustries.com.
DIMENSIONS
MODEL #
FAUCET
HEIGHT
VG01042
6 3/4"
SPOUT
HOLE
REACH
DIAMETER
4 3/4"
1 3/8"
4 3/4"
