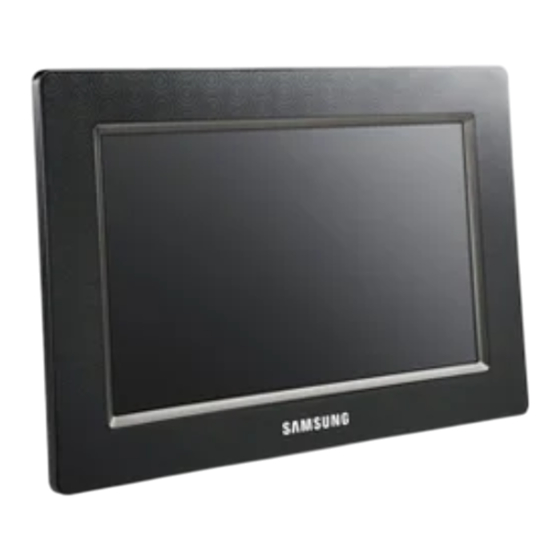

Samsung BT10PS/SPF-105V Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
BT10PS/SPF-105V

Advertisement

Table of Contents
loading

Related Manuals for Samsung BT10PS/SPF-105V

Summary of Contents for Samsung BT10PS/SPF-105V

  • Page 1 BT10PS/SPF-105V...

  • Page 2: Installation

    Using and Safety Symbols Power Installation Cleaning Safety Symbols Make sure to follow the directions below to prevent accidents and damage to the product. Failure to follow the accompanying directions may lead to serious injury or death. Failure to follow the accompanying directions may lead to minor personal injury or property damage. Using and Safety Symbols Power...

  • Page 3: Safety Symbols

    Do not connect more than one appliance to a single outlet, as an overheated outlet may cause fire. Do not use force to pull the power cord. Don't place anything heavy on the power cord, as this may cause electric shock or fire. Make sure to turn the power off and disconnect the power plug from the outlet before moving the product.
  • Page 4 When installing the product on a cabinet or shelf, do not let the front end of the product project beyond its front edge. Failing to do so, may cause the product to fall, resulting in a product malfunction or personal injury. Do not place the power cord near a heater, as the power cord may melt, causing electric shock or fire.
  • Page 5 such as paper or matches into the ports at the back of the product, as this may cause electric shock or fire. If water or any foreign substance enters the product, make sure to turn the product off and disconnect the power plug from the outlet, and contact a service center.
  • Page 6 (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household waste at the end of its working life. To prevent possible harm to the environment or damage to health from uncontrolled waste disposal, please separate this from other types of waste and recycle it responsibly to promote the sustainable reuse of material resources.
  • Page 7 Features Components Front Back Side Features Expansion of built-in memory using memory cards. Instant view of stored images. Background music function. Can be used with the battery for a specific period of time without being connected to a power outlet. Provides a Mini-Monitor function.
  • Page 8 USB cable Power cord Power Adapter (A-mini B type) Features Components Front Back Side Front The product color and shape may vary depending on the model. This product is a touch type product. If you lightly touch the button on the right of the product, the button light is turned on. When the button light is turned on, you can then operate each button's menu.
  • Page 9 Connect the power adapter to this jack. DC –In Jack Connect the power cord to the power terminal of the power adapter. Turns the product on or off. ] Power Button Hold down the power button for about 2 seconds. Stand You can use the product in a vertical or horizontal direction by using the rotating stand.
  • Page 10 Make sure to use the USB cable (A-mini B type) provided with the product when connecting your digital photo frame to a PC through the up stream terminal. Down stream terminal Connect your Digital Photo Frame to a USB-supported storage device.

  • Page 11: Memory Card

    Power Memory Card Connecting the Power Connect the adapter cable to the power terminal on the back of the product. Connect the power cord to the power adapter. Plug the power cord for the product into a nearby outlet. Press the [ ] button to turn on the power.
  • Page 12 (For more information on external devices and their cables, contact a relevant service center.) Samsung carries no liability for external device malfunctions caused by using any cable except the standard cables specified for each device. Some external products provide a cable that does not meet USB standards. Hence, they may cause a malfunction.
  • Page 13 Slide the card in the direction marked on the top of the card. Removing the memory card while playing MP3s, movies, or photos, may cause the product to operate abnormally. In this case, turn the product off and on.
  • Page 14 If no button is pressed for ten (10) minutes, Slideshow or Clock mode is activated. However, if a music file is being played, Clock mode is activated and the filename of that music file is displayed. You can switch to Clock mode even when the movie is paused. In some cases, you can switch to the Movie List screen.
  • Page 15 Display Description Displayed when the battery is being used with the power cable connected and the battery is being charged. Displayed when the battery is fully charged and the power cable is connected. Displayed when the battery is fully charged. Displayed when about 25% of the battery is consumed.
  • Page 16 If you press the Menu button, the menu of the selected item is displayed on the screen. Sub-Menu Menu Description Start Slideshow Play or pause a Slideshow. Copies the selected file to a different storage device. Copy At least one storage device must be connected. Copies all files to a different storage device.
  • Page 17 All Photos, Folder, Playlist, Tags, Dates, Rating Selects the category to arrange the photos by. Browsing Mode [Browsing Mode] is only displayed on a PC. The sub-menus of a mode are subjected to each mode. Slideshow Menu Sub-Menu Detailed Menu Menu Description Stop Slideshow...
  • Page 18 When the next slideshow is performed using the [Slideshow] button, the last played background music file is played as the background music. (The location priority of the music files to be played for the background music is: "Location of the last played background music file [Frame Memory] [USB]...
  • Page 19 If you press the Menu button, the menu of the selected item is displayed on the screen. Sub-Menu Menu Description All musics, Music in Folder, Shuffle all musics, Shuffle music in Folder, Repeat one music Play Mode Selects the play mode. Direct Functions Menu Description...
  • Page 20 Play Movie Plays a file. All movies, Movies in Folder, Shuffle all movies, Shuffle movies in Folder, Repeat one movie Play Mode Selects the play mode. Copies the selected file to a different storage device. Copy At least one storage device must be connected. Copies all files to a different storage device.
  • Page 21 Sub-Menu Detailed Menu Menu Description Month, Day, Year, Hours, Minutes, am/pm (when the Time Format is set to 12 Hours). Month, Day, Year, Hours, Minutes (when the Time Format is set to 24 Hours). Date and Time Sets the date and time. Time Zone You can select a time zone.
  • Page 22 Sub-Menu Detailed Menu Menu Description Network Settings Sets the network. The network information you set is displayed at the bottom. Network Proxy Required Yes, No You can set whether to use a proxy server. English, Deutsch, Español, Français, Italiano, Nederlands, Polski, Português, Language ,Svenska, Türkçe, You can select the language for the product.
  • Page 23 You can check the size of the photos in the addresses listed in Web Photos. Basic, Administrator Password, Date and Time, Network Settings Settings You can enter and change the product name, administrator password, time, and network proxy server, etc. Help Displays the help section for using Samsung Photo Frame Web Configuration.

  • Page 24: Initial Settings

    Initial Settings Settings for Sharing Photos on your PC - Configuring Your Windows Settings for Sharing Photos on your PC - Configuring Your Photo Frame Viewing the Photos from Windows Live Space Viewing the Photos via RSS Setting up Rating and Tags (VISTA:Tags, XP:Labels) on a PC I want to update firmware.
  • Page 25 3. Choose your Access Point The AP list is displayed. Select the SSID you want to connect to in the [Choose your Access Point] screen. If the SSID you want to connect to is not displayed, refresh the SSID list by pressing [Refresh] and then select the SSID. 4.
  • Page 26 Click [Add To Library] in the [Library] tab. In the [Add To Library] window, select [My personal folders] under the [Select the folders to monitor] section and select the folder containing photos and click [Add]. Select the folder to share and click [OK] to add When you click [OK], the [Add To Library] window is closed and the [Add to Library by Searching Computer] is displayed.
  • Page 27 In the [Library], select Recently added, All Pictures, Keywords, Date Taken, Rating, or Folder Settings and check whether the added photos exist in the library. Sharing Settings for Accepting Connections from Your Photo Frame In the [Library] tab, click on [Media Sharing]. In the [Media Sharing] window, check the [Share my media] checkbox under [Sharing Settings].
  • Page 28 If your network is a Private network, the [Available Device] list and the [Settings] button are displayed in the [Media Sharing] window. In the [Media Sharing] window, click [Settings]. The [Media Sharing-Default Settings] window is displayed. In the [Media Sharing-Default Settings] window, set the [Media Type] to [Picture], both [Star ratings] and [Parental ratings] to [All ratings] or a required rating under the [Default Settings]...
  • Page 29 If the Network icon is displayed, proceed to the Checking Computer Connections section described below. If it is not displayed, move to [Settings]-[Wireless Network(SSID)]. SSID : Service Set Identifier Select the SSID you want to connect to in the [Choose your Access Point] screen. If the SSID you want to connect to is not displayed, refresh the SSID list by pressing [Refresh] and then select the SSID.
  • Page 30 Digital Photo Frame in the [Password] item on the Welcome! page. Then click the [sign in] button. You can change the password (default: Admin) in the Settings of the Samsung Photo Frame Web Configuration. On the Samsung Photo Frame Web Configuration...
  • Page 31 In the Main screen of your Digital Photo Frame, go to [Photo]-[Windows Live Space]. A list of the spaces you have added to the Web Configuration will be displayed. Select a space. A list of albums in the selected space will be displayed.
  • Page 32 Preparations Digital Photo Frame Firmware update file. USB memory card or external memory devices(SD/MS) Please visit www.samsung.com for the latest firmware update. Connect USB If you are ready, connect the USB memory card to your PC. memory card Copy the firmware update file you downloaded to the USB memory card.
  • Page 33 Do not remove the USB, memory card during the update operation. Do not press any key during the update operation. Do not insert any other card during the update operation. Do not turn your Digital Photo Frame off during the update operation. You can identify whether the update operation has finished successfully or not by checking the firmware version of your Digital Photo Frame is changed to the version of the firmware update.

  • Page 35: Installation

    Installation Installing USB driver Installation Install the Application first before connecting the Digital Photo Frame to a PC. To Install the Frame Manager Software and USB Secondary Display - 1. Click the Frame Manager icon to run the setup file. 2.
  • Page 36 4. Click Next. 5. Click Install.
  • Page 37 When the PC is restarted the Frame Manager icon will appear in system tray. 7. To use the Samsung Digital Photo Frame as USB Secondary Display - Go to Control Panel -> Display -> Settings ->Select Samsung Mini-Monitor Display Card.
  • Page 38 NOTE : Never make this as primary monitor. 8. Press "Ok" or "Apply". Installation Installing USB driver Installing USB driver Now Switch on the device (Samsung Digital Photo Player) and connect the USB cable (provided in the box with the unit) to the PC.
  • Page 39 1. Connect the larger "standard USB" connector to the USB port of the PC. Connect the smaller "mini-USB" connector to the "PC" connector of the Samsung Digital Photo Fame. 2. Select "No, not this time" button. 3. Click on "Next" button.
  • Page 40 4. Click on "Next" button. 5. Select "Install from a list of specific location (Advanced)". Click on Next button.
  • Page 41 6. Select "Search for the best driver in these locations" option. Check "Include this location in the search:" Now click on "Browse" button to select the directory where the Frame Manager software is installed. (Refer to Frame Manager Installation step 3). 7.
  • Page 42 8. Press "Continue Anyway" button. 9. Press "Finish" button. 10. Now the system is ready to be used.
  • Page 43 If USB cable is not connected and Digital Photo Frame is switched on, it starts working as a Photo Album. To use the Samsung Digital Photo Frame device as a secondary USB Monitor, first install the frame Manger on the Windows XP computer. (Follow the Frame Manger Installation Guide for installation).
  • Page 44 How to switch current mode to another 1. Mini-Monitor To Mass Storage If the USB Cable is connected and Photo Frame is being used as Monitor, Right click on the Frame Manager System tray icon. From the Menu, Click on menu item Mass Storage. 2.

  • Page 45: Brightness Control

    degrees position. 5. Screen Refresh What is the Screen Refresh function? This is a function to refresh the screen every thirty (30) minutes to prevent afterimages from burning onto the panel in Mini-Monitor status. The default is set to "On". Brightness Control To control the brightness in Mini-Monitor Mode (i.e.

  • Page 46: Update Firmware

    Update Firmware To update the firmware from PC through USB cable, please ensure the following : SAMSUNG Digital Photo Frame must be connected with PC using USB cable Device Mode must be connected as Mini-Monitor or Mass Storage Do not disconnect USB cable during UPDATE operation Do not operate or switch of Digital Photo Frame Device during UPDATE operation Remove SD or CF card, USB stick, if inserted into device before running UPDATE.
  • Page 47 9. During the transfer of file/files, following progress bar will appear. 10. Following dialog will appear. 11. Please disconnect USB between PC and Photo Frame to start firmware update. 12. After this please wait for completion of update on device.

  • Page 48: Specifications

    Specifications Specifications Items Specifications Model Name SPF-105V Type 10"(26 cm)TFT Resolution 1024 x 600 Panel Contrast Ratio 500 : 1 Interface Digital 8 bit LVDS JPEG. MPEG4. WMV9 Supported Formats JPEG max Image Resolution 3000x2000(8Mb) (Progressive,CMYK JPEG is not supported.) Built-in Memory 64 MB Wi-Fi 802.11b/g 2.4GHz 54Mbps...
  • Page 49 The product design may differ according to the model, and specifications are subject to change without prior notice for product performance enhancement. Class B Equipment (Information Communication equipment for residential use) This product complies with the Electromagnetic Compatibility Directives for residential Use and can be used in all areas including common residential areas.

  • Page 50: Troubleshooting

    Declaration of Troubleshooting Terminology Service Centers Conformity Troubleshooting This section lists various problems and solutions encountered by users while using the digital photo frame. When encountering a problem, first check the list below and follow the suggested action if one matches your problem. If the problem still persists, contact or visit the nearest service center.
  • Page 51 [Windows Media Player] and check whether it is set to [Allow]. Check whether the FrameManager program is installed. The FrameManager icon is not displayed. Select Start- Programs - Samsung - FrameManager to restart FrameManager. Reboot your computer. Check whether the button lock function is activated.

  • Page 52: Declaration Of Conformity

    This product uses some software programs which are distributed under the GPL/LGPL license. Accordingly, the following GPL and LGPL software source codes that have been used in this product can be provided after asking to vdswmanager@samsung.com. This product uses some software programs which are distributed under the Qtopia license.
  • Page 53 for this free software. If the software is modified by someone else and passed on, we want its recipients to know that what they have is not the original, so that any problems introduced by others will not reflect on the original authors' reputations.
  • Page 54 a) Accompany it with the complete corresponding machine-readable source code, which must be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or, b) Accompany it with a written offer, valid for at least three years, to give any third party, for a charge no more than your cost of physically performing source distribution, a complete machine-readable copy of the corresponding source code, to be...
  • Page 55 The Free Software Foundation may publish revised and/or new versions of the General Public License from time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns.
  • Page 56 Court. Trolltech reserves all rights not specifically granted in this Agreement Declaration of Troubleshooting Terminology Service Centers Conformity Service Centers If you need a product service, contact or visit a Samsung service center. For services for network connection and the Server. Services Contacts...
  • Page 57 Samsung Electronics web site http://www.samsung.com If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center. North America U.S.A 1-800-SAMSUNG (7267864) http://www.samsung.com/us CANADA 1-800-SAMSUNG (7267864) http://www.samsung.com/ca MEXICO 01-800-SAMSUNG (7267864) http://www.samsung.com/mx Latin America ARGENTINE 0800-333-3733 http://www.samsung.com/ar...
  • Page 58 1300 362 603 http://www.samsung.com/au 800-810-5858 CHINA 400-810-5858 http://www.samsung.com/cn 010-6475 1880 HONG KONG : 3698-4698 http://www.samsung.com/hk 3030 8282 INDIA 1800 110011 http://www.samsung.com/in 1-800-3000-8282 INDONESIA 0800-112-8888 http://www.samsung.com/id JAPAN 0120-327-527 http://www.samsung.com/jp MALAYSIA 1800-88-9999 http://www.samsung.com/my NEW ZEALAND 0800 SAMSUNG (0800 726 786) http://www.samsung.com/nz PHILIPPINES 1800-10-SAMSUNG(726-7864) http://www.samsung.com/ph...
  • Page 59 TURKEY 444 77 11 http://www.samsung.com/tr U.A.E 800-SAMSUNG (726-7864) http://www.samsung.com/ae 8000-4726 Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
  • Page 60 This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
