Visionis VIS-ML1200LED-WH Installation & User Manual

Technology Within Your Reach
Installation User Guide
(Indoor Models)

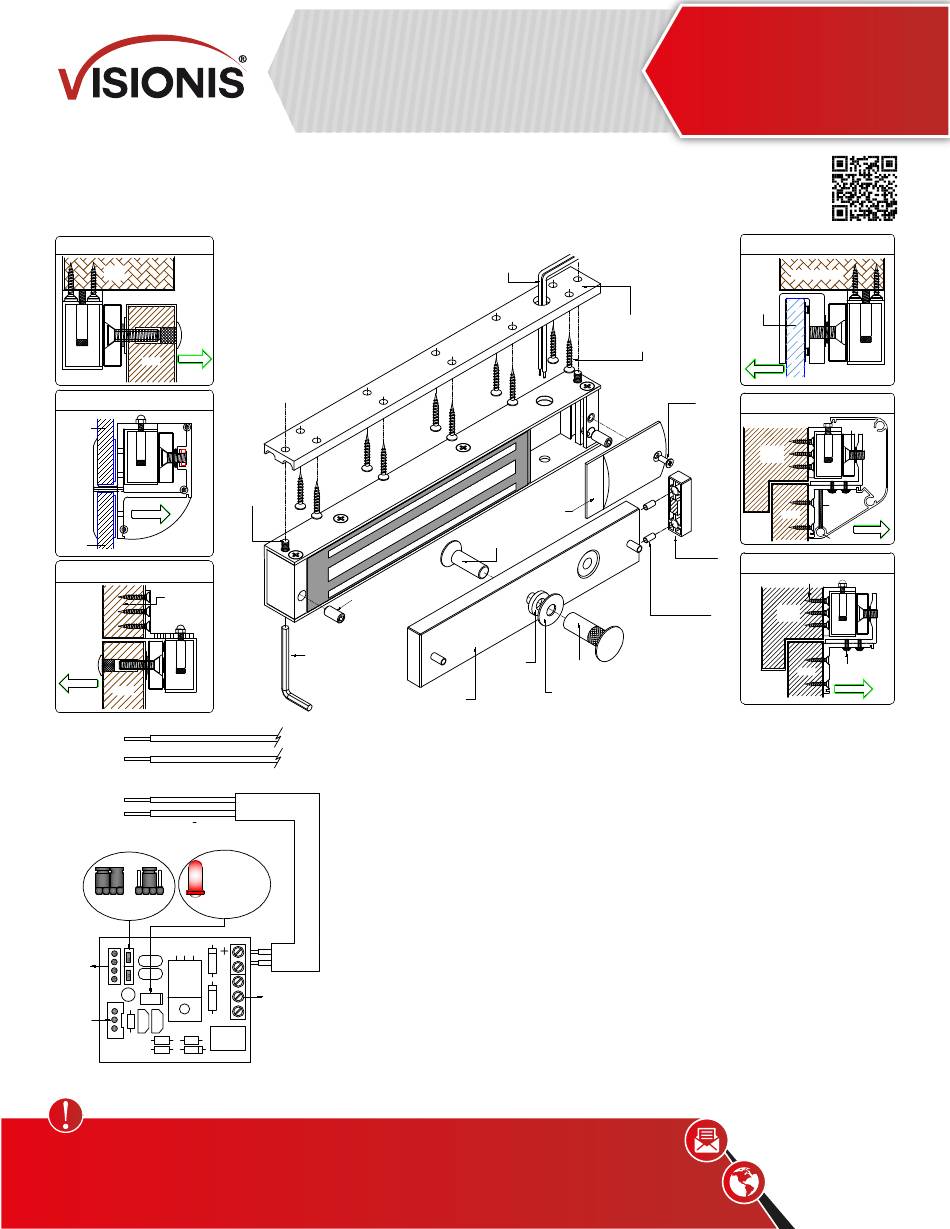

General Installation
Door
Frame
EM Lock
Out Swing
Door
DSU Bracket For
Glass Frame & Glass Door
Glass
Frame
EM Lock
In-Swing
Glass
Door
LS Bracket For
Out-Swing Door
Door
Frame
EM Lock
Out-Swing
Door
White Wire (Mag. Ctc.)
Door Contact Sensor
(Only for
White Wire (Mag. Ctc.)
Mag. Ctc. Models)
Red Wire (+)Ve
12 / 24 VDC
Power Input
Black Wire ( )Ve
12 VDC 24 VDC
(Only for LED Models)
Setting Setting
12 / 24 VDC
Power Output
Hall Effect
Sensor Input
(Only for LED
Models)
IMPORTANT!
Set the jumper position according to the power input
correctly before switch ON the power
Disclaimer: VISIONIS reserve the right to go ahead with any modifications of models or features or price without forewarning. All the
information and specifications stated in this document are current at the time of publication. Attention: We are not responsible for the
improper installation of this kit. If you are not handy with electrical equipment you should contact a professional electrician. You will also
need to check with your local Fire authority to see if you need anything else to comply with local Fire Codes. We are not responsible for
any damage or fees that can occur.
1200lbs Indoor
Electromagnetic Lock
White Color
Fixing Screw
x2
Anti Tamper
Nut x2
Allen Wrench
General Installation Steps & Maintenance
1. Drill the armature plate holes in the door using the sticker template provided.
2. Attach the armature plate to the door with the hardware provided as per the illustration.
3. With the door closed, mark the door frame at the edge of the armature in order to properly align
the electromagnet to the armature.
Gray Jacketed
4. Attach the mounting plate to the door frame using the self-tapping screws provided. Align the
Insulation
mounting plate with the mark from the previous instruction.
5. Insert the wires through the hole in the mounting plate and into the electromagnet unit. Attach the
electromagnet unit to the mounting plate with the Allen head fixing screw.
LED Status:
6. Screw in the anti-tamper nuts to prevent unauthorized access and to prevent the fixing screw from
> Green = Locked
> Red = Released
loosening over time.
> Off = No Input
7. Connect the power wires according to the instruction and test the system.
8. It is recommended that to apply a light coat of silicon lubricant to the mating surface on a monthly
basis to prevent rust.

Trouble Shooting

-
1. Sensor not functioning
N.O
- Improper attachment of electromagnet and armature plate
Hall Effect Sensor
N.C
Output
- Modification of the PCB
(Only for LED Models)
C
2. Door not locked
- Incorrect wiring or no power from power supply
3. Reduced holding force
- Poor contact of electromagnet and armature.
- Be sure armature is loose enough that it can fully contact electromagnet along the entire length.
- Mating surface is dusty or damaged.
- Improper input voltage or wire size.
12/24 VDC
Power
Cable Wire
PCB Cover
Armature
Screw
Rubber
Sexnut Bolt
Washer
Metal
Washer
Armature Plate
ref.
VIS-ML1200LED-WH
Scan the QR code to watch
the installation video
https://youtu.be/xSwbvApnXjw
Glass
Door
Mounting Plate
Self-tapping Screw x10
Out-Swing
Cover
Screw
Door
Frame
Mag. Ctc.
Magnet
Self Lock Pin
M3x12 - 2pcs
sales@visionistech.com
U1 Bracket For
Glass Door
Door Frame
EM Lock
ZL Bracket For
In-Swing Door With Cover
CSK M8 x16
EM Lock
M4 Set
Screw
Door
In-Swing
Ø8 AL Bush
ZL Bracket For
In-Swing Door
Self-tapping Screw
Door
Frame
EM Lock
P/H MC Screw
Door
M4 x 8
In-Swing
