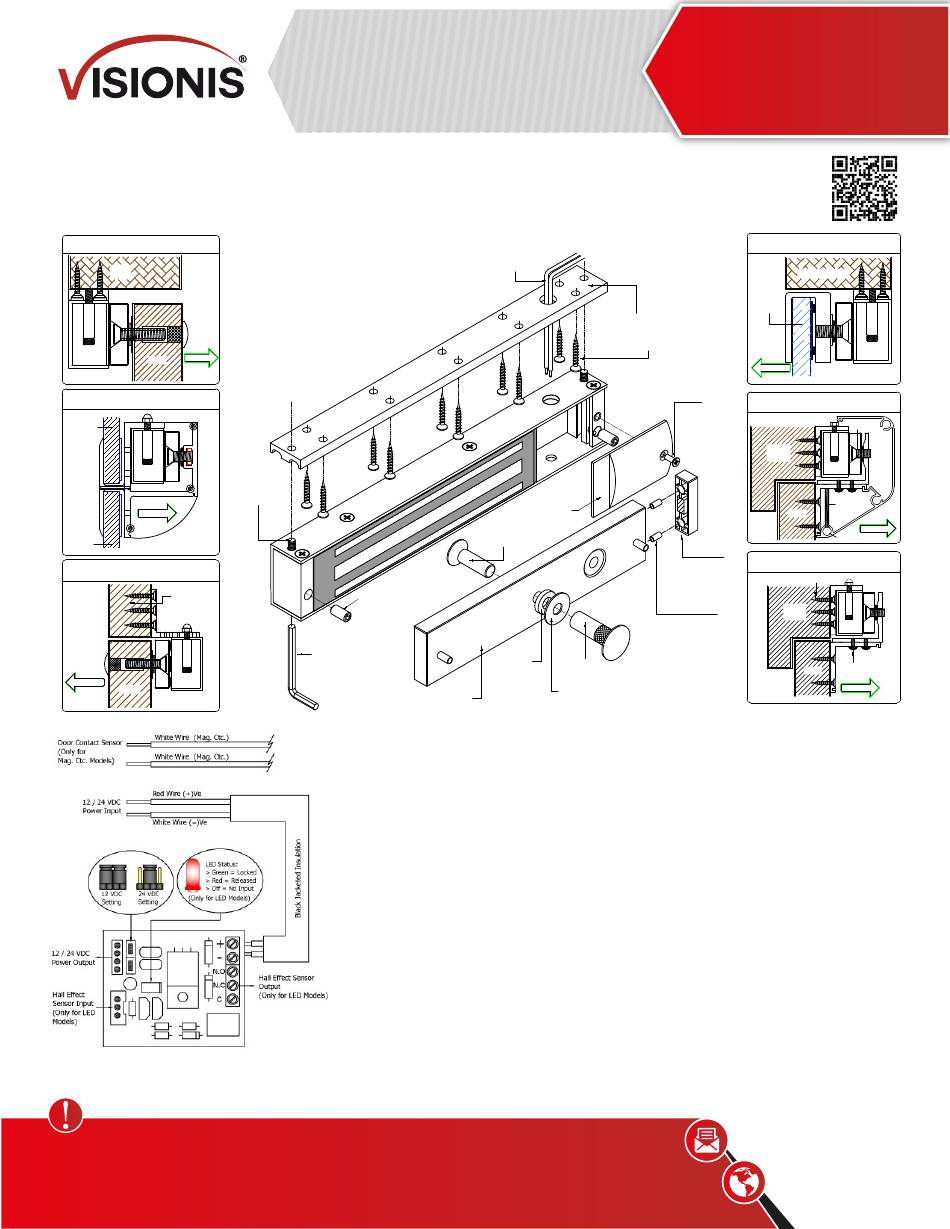

Visionis VIS-ML600LED-BL Installation & User Manual

Technology Within Your Reach
Installation User Guide
(Indoor Models)
General Installation
Door
Frame
EM Lock
Door Out Swing
DSU Bracket For
Glass Frame & Glass Door
Glass
Frame
EM Lock
In-Swing
Glass
Door
LS Bracket For
Out-Swing Door
Door
Frame
EM Lock
Out-Swing
Door
IMPORTANT!
Set the jumper position according to the power input
correctly before switch ON the power
Disclaimer: VISIONIS reserve the right to go ahead with any modifications of models or features or price without forewarning. All the
information and specifications stated in this document are current at the time of publication. Attention: We are not responsible for the
improper installation of this kit. If you are not handy with electrical equipment you should contact a professional electrician. You will also
need to check with your local Fire authority to see if you need anything else to comply with local Fire Codes. We are not responsible for
any damage or fees that can occur.
600lbs Indoor Electromagnetic
Lock - Black Color
Fixing Screw
x2
Anti Tamper
Nut x2
Allen Wrench
Armature Plate
General Installation Steps & Maintenance
1. Drill the armature plate holes in the door using the sticker template provided.
2. Attach the armature plate to the door with the hardware provided as per the illustration.
3. With the door closed, mark the door frame at the edge of the armature in order to properly align
the electromagnet to the armature.
4. Attach the mounting plate to the door frame using the self-tapping screws provided. Align the
mounting plate with the mark from the previous instruction.
5. Insert the wires through the hole in the mounting plate and into the electromagnet unit. Attach the
electromagnet unit to the mounting plate with the Allen head fixing screw.
6. Screw in the anti-tamper nuts to prevent unauthorized access and to prevent the fixing screw from
loosening over time.
7. Connect the power wires according to the instruction and test the system.
8. It is recommended that to apply a light coat of silicon lubricant to the mating surface on a monthly
basis to prevent rust.

Trouble Shooting

1. Sensor not functioning
- Improper attachment of electromagnet and armature plate
- Modification of the PCB
2. Door not locked
- Incorrect wiring or no power from power supply
3. Reduced holding force
- Poor contact of electromagnet and armature.
- Be sure armature is loose enough that it can fully contact electromagnet along the entire length.
- Mating surface is dusty or damaged.
- Improper input voltage or wire size.
Scan the QR code to watch
https://youtu.be/xSwbvApnXjw
12/24 VDC
Power
Cable Wire
Mounting Plate
Self-tapping Screw x10
PCB Cover
Armature
Screw
Self Lock Pin
M3x12 - 2pcs
Rubber
Sexnut Bolt
Washer
Metal
Washer
ref.
VIS-ML600LED-BL
the installation video
U1 Bracket For
Glass Door
Door Frame
Glass
Door
Out-Swing
Cover
ZL Bracket For
Screw
In-Swing Door With Cover
CSK M8 x16
Door
Frame
EM Lock
M4 Set
Screw
Door
Ø8 AL Bush
Mag. Ctc.
ZL Bracket For
Magnet
In-Swing Door
Self-tapping Screw
Door
Frame
EM Lock
P/H MC Screw
Door
M4 x 8
In-Swing
sales@visionistech.com
www.visionistech.com
EM Lock
In-Swing
