Visionis VS-SS600-G User Manual

Technology Within Your Reach

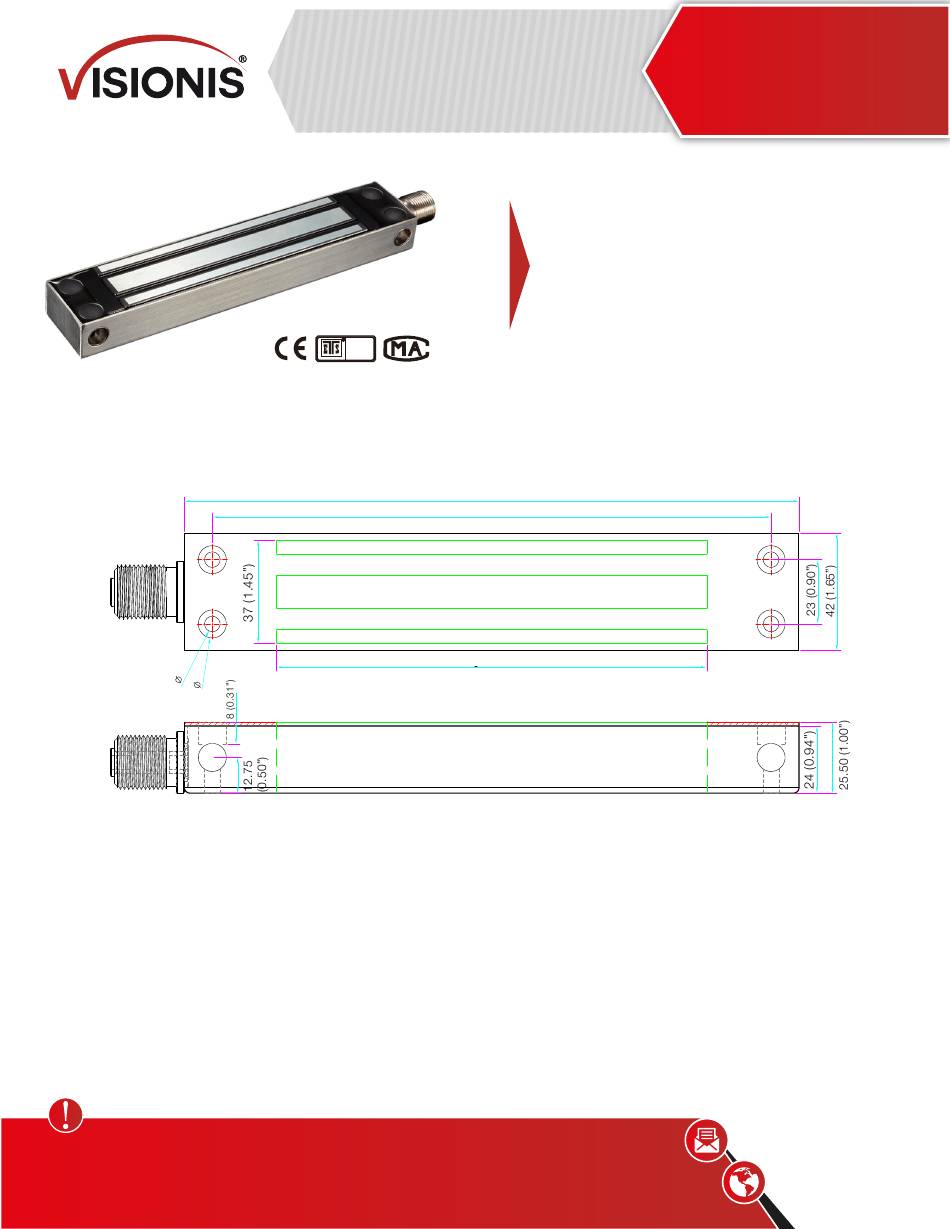

Dimensions

Units: mm (inches)
5.50 (0.21")

Notice:

Please read the following instructions before installation.
A. Please handle the lock carefully. Any damage of the surface or the armature plate will reduce the magnetic force.
B. Fix the lock on the door frame and the armature plate on the door leaf. The accessories can provide better
conjunction to the lock and the armature plate.
C. Please keep the door closed when you drill holes.
D. Fasten the screws of the lock.
E. The limit value of the reed switch of the door signal detection is 0.5A/30V DC. Don't overload.
F. Make sure the armature plate can be slightly shaken when locked, for the rubber washer need some spaces to
adjust the position of the armature plate and the lock.
G. Please select the correct wiring for DC 12V or DC 24V voltage input.
Disclaimer: VISIONIS reserve the right to go ahead with any modifications of models or features or price without forewarning. All the
information and specifications stated in this document are current at the time of publication. Attention: We are not responsible for the
improper installation of this kit. If you are not handy with electrical equipment you should contact a professional electrician. You will also
need to check with your local Fire authority to see if you need anything else to comply with local Fire Codes. We are not responsible for
any damage or fees that can occur.
600lbs Outdoor and Gate
Maglock
R
EMC
teste d
G e r m a n y
10 (0.39")

Features

Size: 220Lx42Wx25.5H(mm) -
•
8.66Lx1.65Wx1.00H(in.)
Holding Force: 280kg (600Lbs)
•
Input Voltage: 12 or 24VDC
•
Current: 12V/500mA or 24V/250mA
•
Suitable: Wooden door, Glass door, Metal
•
door, Fireproof door
Signal Output: Lock Signal NO/COM
•
Waterproof Level: IP-68
•
200 (7.87")
220 (8.66")
154 (6.06")
ref.
VS-SS600-G
