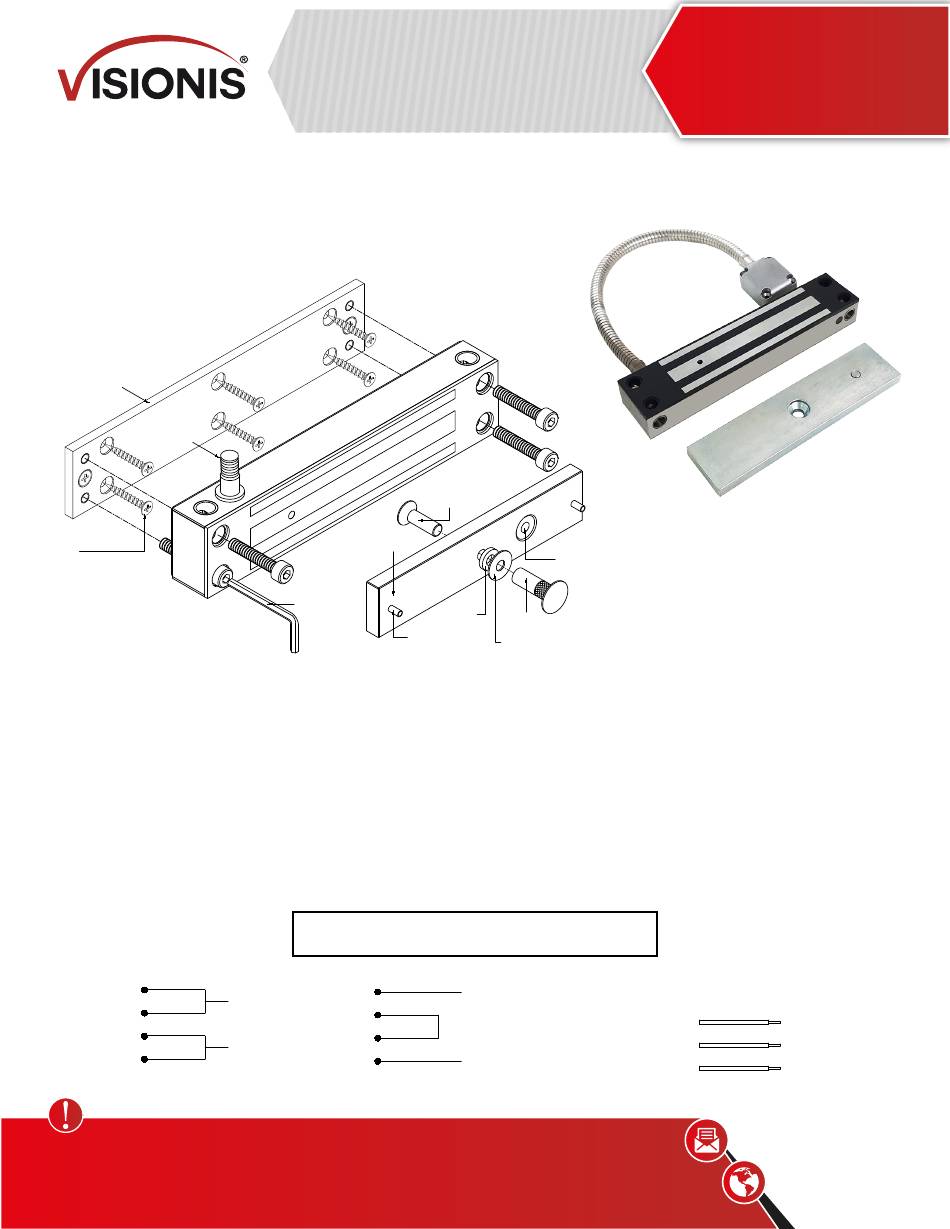

Basic Installation Concept & Accessories
Side Mounting
Mounting Plate
(Side Bar)
Armored Loop
Cable Wire
Self-tapping Screw
General Installation Steps & Maintenance
1. Drill the armature plate holes in the door using the sticker template provided.
2. Attach the armature plate to the door with the hardware provided as per the illustration.
3. With the door closed, mark the door frame at the edge of the armature in order to properly align the electromagnet to the armature.
4. Attach the mounting plate to the door frame using the self-tapping screws provided. Align the mounting plate with the mark from the
previous instruction.
5. Insert the wires through the hole in the mounting plate and attach the electromagnet unit to the mounting plate with the allen head
fixing screw.
6. Connect the power wires according to the instruction and test the system.
7. It is recommended that to apply a light coat of silicon lubricant to the mating surface on a monthly basis to prevent rust.
Wiring Instructions
RED
YELLOW
WHITE
BLACK
12 VDC
Disclaimer: VISIONIS reserve the right to go ahead with any modifications of models or features or price without forewarning. All the
information and specifications stated in this document are current at the time of publication. Attention: We are not responsible for the
improper installation of this kit. If you are not handy with electrical equipment you should contact a professional electrician. You will also
need to check with your local Fire authority to see if you need anything else to comply with local Fire Codes. We are not responsible for
any damage or fees that can occur.
800 Lbs Outdoor and Gate
Electromagnetic Lock with
Armored Door Loop
Installation User Guide (Outdoor Models)
Armature Plate
Allen Wrench
Before the power supply is switched on, set the wiring correctly.
+
RED
YELLOW
-
WHITE
BLACK
24 VDC
Armature
Screw
Anti Residual
Magnetism
Button
Rubber
Sexnut Bolt
Washer
Guide Pin
Metal
Washer
IMPORTANT!
+
-
ref.
VS-SS800-DL
REED SENSOR CONTACT
GREEN
NC
BLUE
NO
ORANGE
COM
