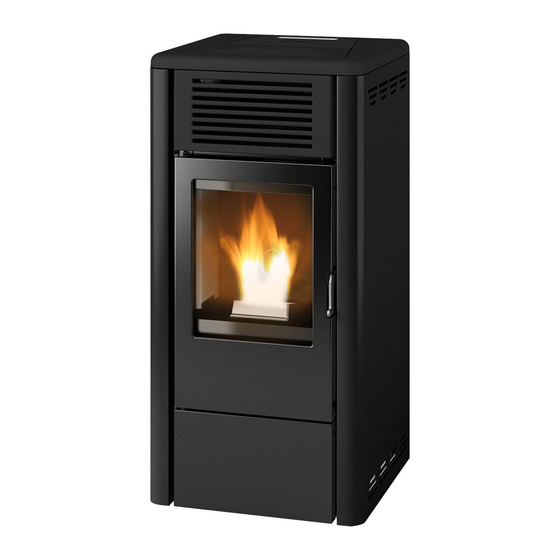

MCZ GIO' AIR 8 S1 Installation Manual

Sealed pellet stove
Hide thumbs Also See for GIO' AIR 8 S1:
Table of Contents

Advertisement

Quick Links

Download this manual
INSTALLATION GUIDE
EN
SEALED PELLET STOVE
GIO' AIR 8 S1
Instructions in English

Advertisement

Table of Contents
loading

Related Manuals for MCZ GIO' AIR 8 S1

Summary of Contents for MCZ GIO' AIR 8 S1

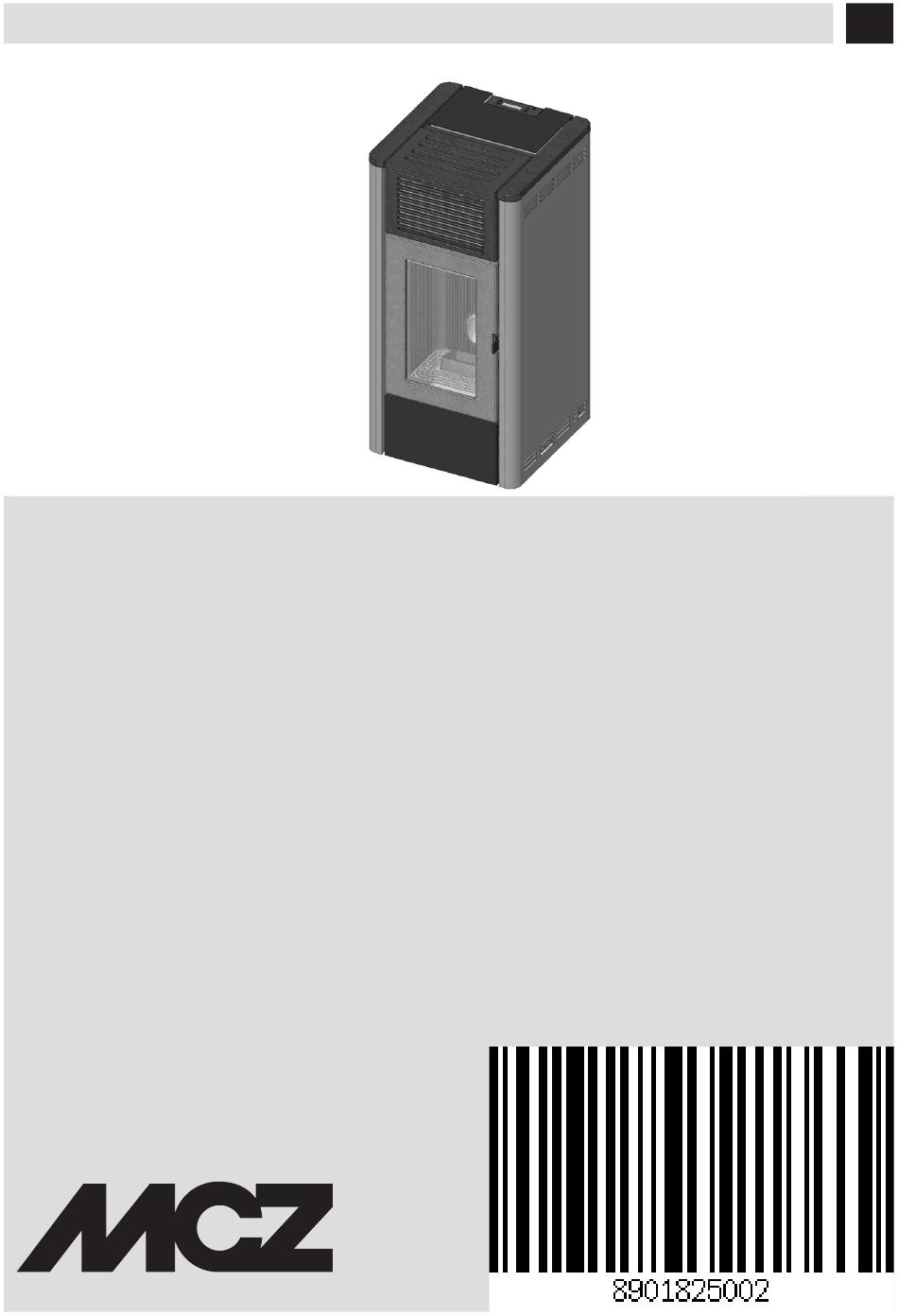

  • Page 1 INSTALLATION GUIDE SEALED PELLET STOVE GIO’ AIR 8 S1 Instructions in English...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS TABLE OF CONTENTS ....................II INTRODUCTION ......................1 1-WARNINGS AND WARRANTY CONDITIONS ..............2 2-INSTALLATION .......................11 3-DRAWINGS AND TECHNICAL FEATURES ..............19 4-INSTALLATION AND ASSEMBLY ................22 5-CONNECTION TO ADDITIONAL DEVICES ..............30 6-LOADING THE PELLETS ...................31 7-ELECTRICAL CONNECTION..................32 8-FIRST START-UP ....................33 9-CONTROL PANEL ....................35 10-MENU ITEMS AND OPERATION ................36 11-SAFETY DEVICES ....................45...

  • Page 3: Introduction

    No part of this manual may be translated into other languages, adapted and/or reproduced, even in part, in other mechanical and/or electronic form or media, for photocopies, recordings or other, without the prior written authorisation of MCZ Group Spa. The company reserves the right to make changes to the product at any time without prior notice. The owner company reserves its rights according to law.

  • Page 4: 1-Warnings And Warranty Conditions

    1-WARNINGS AND WARRANTY CONDITIONS SAFETY WARNINGS • The installation, electrical connection, operating test and maintenance must only be carried out by a qualified operator. • Install the product in compliance with the laws and regulations in force. • Only use the fuel recommended by the manufacturer. The product must not be used as an incinerator.
  • Page 5 1-WARNINGS AND WARRANTY CONDITIONS • Do not dry laundry on the product. Any drying racks or the like must be kept at a safe distance from the product. Fire hazard. • The product maintenance operations must be exclusively carried out by a qualified operator on a yearly basis.
  • Page 6 1-WARNINGS AND WARRANTY CONDITIONS • Do not allow the product to come into contact with water, it contains live electrical parts. • Do not wash the product with water (or other liquids) as they could penetrate inside the unit, damaging the electrical insulation with the risk of electrocution. • Do not use detergents to wash the stove, they could damage the aesthetic parts of the product.
  • Page 7 1-WARNINGS AND WARRANTY CONDITIONS • The sound pressure level of this appliance does not exceed 70 dB(A). • Live electrical parts: only power the product once it has been fully assembled. • Disconnect the product from the 230V power supply before performing any maintenance operations.
  • Page 8 1-WARNINGS AND WARRANTY CONDITIONS INFORMATION: • Please contact the retailer or qualified personnel for any information, problem or malfunction. • Only use the fuel specified by the manufacturer. • When the product is switched on for the first time, it is normal for it to emit smoke due to the paint heating up for the first time. Therefore make sure the room it is installed in is well-ventilated.
  • Page 9 1-WARNINGS AND WARRANTY CONDITIONS WARRANTY CONDITIONS For the duration, terms, conditions, limitations of the MCZ conventional warranty, please refer to the specific warranty card that is included with the product. Information for management of waste electrical and electronic equipment containing batteries and accumulators This symbol appears on the product, on the batteries, on the accumulators or on their packaging or on their documentation;...
  • Page 10 1-WARNINGS AND WARRANTY CONDITIONS WARNINGS FOR THE CORRECT DISPOSAL OF THE PRODUCT The owner is the sole party responsible for demolishing and disposing of the product. This must be performed in compliance with laws related to safety and environmental protection in force in his/her country. At the end of its working life, the product must not be disposed of as urban waste.
  • Page 11 1-WARNINGS AND WARRANTY CONDITIONS LEGENDA WHERE TO DISPOSE MATERIALS Metal Glass If there is any, to be disposed of separately based on the material used: Tiles or ceramics OUTER CLADDING Stone Glass ceramic (fire door): to be disposed of with inert or mixed waste If there is any, to be disposed of separately based on the material used: Tempered glass (oven door): to be disposed...
  • Page 12 Product Data Sheet required by Regulations (EU) 2015/1185 and 2015/1186 can be downloaded by scanning the QR code on this page (also found on the product label) or by accessing the website page www.mczgroup. com/support/mcz and following the simple instructions. Having specified the above, we highlight and report that: • This manual and technical data sheet, also available on our website, bear all of the specific indications and necessary and...

  • Page 13: 2-Installation

    2-INSTALLATION The instructions in this chapter refer explicitly to the Italian installation regulation UNI 10683. In any case, always observe the regulations in force in the country of installation. PELLETS The pellet is obtained from natural dried wood sawdust (without paint). The compactness of the material is guaranteed by the lignin contained in the wood itself, without glue or binders.
  • Page 14 2-INSTALLATION FOREWORD The heating system (generator + combustion air supply + combustion product expulsion system + any hydraulic/aeraulic system) must be installed in compliance with the laws and regulations in force , and carried out by a qualified technician, who must issue a declaration of conformity of the system to the system manager and shall undertake full responsibility for final installation and consequent good operation of the product.
  • Page 15 2-INSTALLATION MINIMUM DISTANCES Observe the distances from flammable objects (sofas, furniture, wood panelling, etc..) as specified in the following diagram. If objects considered to be particularly sensitive to heat are present, such as furniture, curtains or sofas, as a precaution, increase the stove clearances substantially to avoid possible deterioration due to the effect of heat.
  • Page 16 2-INSTALLATION In any case, ensure adequate distance to facilitate access during cleaning and extraordinary maintenance. If this is not possible, it must still be possible to distance the product from adjacent walls/elements. This operation must be performed by a technician qualified to disconnect the combustion product expulsion ducts and their subsequent restoration.
  • Page 17 2-INSTALLATION Below 15kW: Air duct diameter Maximum length Maximum length (smooth duct) (corrugated duct) 50mm 60mm 80mm 100mm Above 15kW: Air duct diameter Maximum length Maximum length (smooth duct) (corrugated duct) 50mm 60mm 80mm 100mm Technical Dept. - All rights reserved - Reproduction is prohibited...
  • Page 18 2-INSTALLATION Preparing the smoke expulsion system The combustion product expulsion system is a particularly important element for the proper operation of the appliance and must be correctly sized according to EN 13384-1. Its creation/adaptation/verification must always be carried out by a legally qualified operator and must comply with the regulations in force in the country where the appliance is installed.
  • Page 19 2-INSTALLATION Chimneypot The chimneypot, meaning the end part of the flue, must meet the following characteristics: • the smoke outlet section must be at least double the internal section of the chimney; • prevent the penetration of rain or snow; •...
  • Page 20 2-INSTALLATION EXAMPLES OF INSTALLATION (DIAMETERS AND LENGTHS TO BE SIZED) 1. Flue installation with hole for the passage of the pipe increased by: • minimum 100mm around the pipe if next to non-flammable parts such as cement, brick, etc.; or •...

  • Page 21: 3-Drawings And Technical Features

    3-DRAWINGS AND TECHNICAL FEATURES DRAWINGS AND CHARACTERISTICS GIO’ AIR 8 S1 STOVE DIMENSIONS Ø80 Ø48 Ø80 Ø48 Technical Dept. - All rights reserved - Reproduction is prohibited...
  • Page 22 3-DRAWINGS AND TECHNICAL FEATURES TECHNICAL CHARACTERISTICS GIO’ AIR 8 S1 Energy Efficiency Class Nominal output power 8.0 kW (6880 kcal/h) Minimum power output 2.5 kW (2150 kcal/h) Efficiency at Max 90.4% Efficiency at Min 92.0% Temperature of exhaust smoke at Max 196 °C Temperature of exhaust smoke at Min 103 °C...
  • Page 23 ACCORDING TO COMMISSION REGULATIONS (EU) 2015/1185 - (EU) 2015/1186 (PRODUCT FICHE) MCZ GROUP SpA Manufacturer: Trademak: Model Identifier: GIO' AIR 8 S1 Indirect heating functionality: Direct heat output (space heat output): Indirect heat output (water heat output): EN 14785:2006 CPR harmonised standard:...

  • Page 24: 4-Installation And Assembly

    4-INSTALLATION AND ASSEMBLY INSTRUCTIONS FOR PACKAGING DISPOSAL The material that the appliance’s packaging is made of must be managed correctly, in order to make collection, reuse, recovery and recycling easier, where possible. The table below illustrates the possible components that the packaging is made of, and the relative instructions for correct disposal. DESCRIPTION CODE MATERIAL SYMBOL...
  • Page 25 4-INSTALLATION AND ASSEMBLY Handle the product with suitable means paying attention to the applicable safety regulations in force. Do not turn the packaging over and handle the majolica parts with care. The stove is delivered in a single package. Open the package, remove the two screws “v” which secure the stove brackets to the pallet and then remove the bracket “S”...
  • Page 26 4-INSTALLATION AND ASSEMBLY Therefore, the end user is responsible for product storage, disposal or possible recycling in compliance with the relative applicable laws in force. Do not store the stove unit or its cladding without their packaging. Position the stove and connect it to the flue pipe. Remove the plastic clamp securing the top to the stove’s frame. If the stove needs to be connected to an outlet pipe which goes through the rear wall (to connect to the flue), take utmost care to make sure that the joint is not forced.
  • Page 27 4-INSTALLATION AND ASSEMBLY DISASSEMBLING THE TOP Lift the tank cover “B” and remove the top “A”. To remove the top “A”, simply lift it off its rubber supports and put it in a safe place until it is to be used again. Technical Dept.
  • Page 28 4-INSTALLATION AND ASSEMBLY REMOVING THE SIDE PANEL The stove is delivered fully assembled; if you need to remove the side panels for technical service or cleaning, proceed as follows: • raise the cover of the pellet tank “B” • remove the top “A” •...
  • Page 29 4-INSTALLATION AND ASSEMBLY DISASSEMBLING THE FRONT PANELS After removing the side panels “C” and “D”, proceed as follows: • Undo the four screws “v” and remove the upper front panel “E” • Undo the two screws “z” and remove the lower front panel “F” Put the panels “E”...
  • Page 30 4-INSTALLATION AND ASSEMBLY ACCESS TO THE ELECTRONIC BOARD The electronics board “m” is on the right side (handle side). If you need to access the board, you must remove the back side panel as explained above. ACCESS TO THE GEARMOTOR To access the gearmotor, you must remove the four screws “x”...
  • Page 31 4-INSTALLATION AND ASSEMBLY OPENING THE DOOR OF THE FIREBOX To open the firebox door, fit the cold handle “F” into its hole in the handle, and pull it outwards. Attention! The firebox door must be closed properly for the stove to work correctly. Only open the doors when the stove is switched off and cold.

  • Page 32: 5-Connection To Additional Devices

    5-CONNECTION TO ADDITIONAL DEVICES INSTALLING THE MODEM / PROGRAMMABLE THERMOSTAT (OPTIONAL) To install the thermostat and the mode, refer to their instruction manuals. The modem mounts to the stove’s back panel with adhesive velcro, while the programmable thermostat’s receiver “U” mounts onto the provided holes.

  • Page 33: 6-Loading The Pellets

    6-LOADING THE PELLETS LOADING THE PELLETS The fuel is loaded from the top of the stove by lifting the hatch “B” with the included cold handle “G”. Pour the pellets in slowly so that they are deposited at the bottom of the hopper. If loading pellets when the stove is running, open the door of the tank using the stove mitten that comes with the stove itself.

  • Page 34: 7-Electrical Connection

    7-ELECTRICAL CONNECTION ELECTRICAL CONNECTION First connect the power cable to the back of the stove and then to a wall socket. It is recommended to disconnect the power cable when the stove is not used. The cable must never come into contact with the smoke exhaust pipe or any other part of the stove. STOVE POWER SUPPLY Connect the power cable to the back of the stove and then to a wall socket.

  • Page 35: 8-First Start-Up

    8-FIRST START-UP PRECAUTIONS BEFORE START-UP GENERAL PRECAUTIONS Remove any objects that may burn from the brazier (manual, various adhesive labels or any polystyrene). Check that the brazier is positioned correctly and rests properly on the base. The first start-up may not be successful as the feed screw is empty and does not always manage to load the required amount of pellets in time to light the flame.
  • Page 36 8-FIRST START-UP depending on the heat stored in the structure, determined by the duration and the operating regime of the product throughout the day. When the internal temperature drops below the set thresholds, the fans for hot air and exhaust fume extraction will automatically switch off.

  • Page 37: 9-Control Panel

    9-CONTROL PANEL 1. Stove switch-on/switch-off 5. Decrease set temperature / programming functions. 2. Scrolling down through the programming menu 6. Increase set temperature / programming functions. 3. Menu 7. Display. 4. Scrolling up the programming menu Technical Dept. - All rights reserved - Reproduction is prohibited...

  • Page 38: 10-Menu Items And Operation

    10-MENU ITEMS AND OPERATION MAIN MENU Press key 3 (menu) to access. The options accessed are: • Date and Time • Timer • Sleep (only when stove is on) • Settings • Info Date and time configuration Configure the time and date as follows: •...
  • Page 39 10-MENU ITEMS AND OPERATION EXAMPLES OF PROGRAMMING 08:00 12:00 11:00 14:00 Stove on between 08:00 and 14:00 08:00 11:00 11:00 14:00 Stove on between 08:00 and 14:00 17:00 24:00 00:00 06:00 Stove on between 17:00 on Monday to 06:00 on Tuesday NOTES ON USE OF THE TIMER •...
  • Page 40 10-MENU ITEMS AND OPERATION OPERATING MODE ADJUSTMENTS MENU “Adjustments” menu settings determine the operation mode of the stove. To access the menu, proceed as follows: • Press the - + keys • Scroll with the <> arrows and select “Set Amb. T” or “Set Ventilation T” or “Set Flame” •...
  • Page 41 10-MENU ITEMS AND OPERATION SETTINGS MENU The SETTINGS menu is to configure use of the stove: a. Language. b. Cleaning (shown only when stove is off). Auger loading (shown only when stove is off). d. Tones. e. External thermostat (activation). Auto Eco (activation).
  • Page 42 10-MENU ITEMS AND OPERATION d - Tones This function is disabled by default. To enable it proceed as follows: • Press the “menu” key. • Use the arrow keys to scroll through and select “Settings” • Press “menu” to confirm. •...
  • Page 43 10-MENU ITEMS AND OPERATION h - Pellet Recipe This function is for adapting the stove to the type of pellet in use. As there are many types of pellet available on the market, operation of the stove can vary considerably according to the quality of the fuel. When the pellets clog up the brazier due to excess loading of fuel or when the flames are high even at low power, or when the flames are low, it is possible to decrease/increase the amount of pellets in the brazier: Available values:...
  • Page 44 10-MENU ITEMS AND OPERATION • Use the arrow keys to scroll through and select ‘’Component test’’ • Press “menu” to confirm. • Use the + - keys to select the test to be carried out. • Press ‘’menu’’ to confirm and ‘’ e sc’’ to exit. k - Chimney sweeper function (for maintenance operators only) - This function can only be activated when the stove is on and power is supplied, and it forces operation of the boiler at the parameters P5, with the ventilator (if present) in V5.
  • Page 45 10-MENU ITEMS AND OPERATION EXTERNAL THERMOSTAT CONNECTION (optional) The room thermostat is not included with the stove and must be installed by a qualified technician. CAUTION! The electrical wires must not come into contact with the hot parts of the stove. AMB.
  • Page 46 10-MENU ITEMS AND OPERATION Remote control (accessory - NOT SUPPLIED) LEGEND OF BUTTONS 1. Increase temperature set-point 4. Temperature/power switch and vice versa. 2.Decrease temperature set-point 5/6. Set power and ventilation 3. ON/OFF PLEASE NOTE Adjusting the temperature with the remote control has no effect if the external thermostat has been selected. Attention! Before using, remove the protection from the battery.

  • Page 47: 11-Safety Devices

    11-SAFETY DEVICES SAFETY DEVICES The product is fitted with the following safety devices PRESSURE SWITCH Monitors pressure in the smoke duct. It is designed to shut down the pellet feed screw in the event of an obstructed flue or significant back-pressure (from the wind).

  • Page 48: 12-Alarms

    12-ALARMS ALARM SIGNALLING When a condition occurs other than the one expected for regular operation of the stove, an alarm is triggered. The reason for the alarm is given on the control panel. The sound signal is not enabled for alarms A01-A02 in order not to disturb the user when there is an absence of pellets in the night tank.
  • Page 49 12-ALARMS NORMAL SHUTDOWN (on the panel: OFF with flashing flame symbol) When the shutdown key is pressed, or when there is an alarm signal, the stove enters the thermal extinguishing phase which involves automatic execution of the following phases. • Stop pellet loading •...
  • Page 50 12-ALARMS In the event that alarm A05 is triggered often, please note that: Smoke pressure switch intervention Check for chimney obstructions / door open Fuel loading hatch Close the hatch. Lower the fuel level in the tank. Safety devices alarm Open stove door Close the door you must check some points to verify the cause of the problem and possibly act on some adjustments and/or safety devices to restore the...
  • Page 51 12-ALARMS If all the above checks are negative, it is likely that the depression inside the stove drops due to poor performance of the flue, especially when the machine is operating at minimum speed for a long time. In this case it is possible to make small adjustments that allow you to increase the operating speed of the smoke fan to increase the depression inside the product, or make it less sensitive to the intervention of the pressure switch by changing its position mechanically.

  • Page 52: 13-Recommendations For Safe Use

    13-RECOMMENDATIONS FOR SAFE USE ONLY CORRECT INSTALLATION AND APPROPRIATE MAINTENANCE AND CLEANING OF THE APPLIANCE CAN GUARANTEE CORRECT OPERATION AND SAFE USE OF THE PRODUCT. We would like to inform you that we are aware of cases of malfunctioning of domestic pellet-fuelled heating products, mainly due to incorrect installation and use, as well as inadequate maintenance.

  • Page 53: 14-Cleaning

    14-CLEANING EXAMPLE OF A CLEAN BRAZIER EXAMPLE OF A DIRTY BRAZIER Only by properly servicing and cleaning the product is it possible to ensure its safety and correct operation. ATTENTION! All the cleaning operations of all parts must be performed with the product completely cold and the plug disconnected.
  • Page 54 14-CLEANING For the brazier to be cleaned properly, remove it from its housing completely and thoroughly clean all the holes and the grate on the bottom. If good quality pellets are used, you will normally only need to use a brush to restore the optimal operating conditions of the component.
  • Page 55 14-CLEANING PERIODIC CLEANING PERFORMED BY A QUALIFIED TECHNICIAN CLEANING THE HEAT EXCHANGER Half-way through the winter season, but especially at the end, the compartment through which the exhaust smoke passes will need to be cleaned. This cleaning process is mandatory in order to facilitate the general removal of all combustion residue, before it becomes very difficult to remove it due to the humidity compacting it over time.
  • Page 56 14-CLEANING CLEANING THE EXCHANGER CLEANING THE UPPER COMPARTMENT Clean the upper exchanger when the stove is cold and without cladding. After removing the cap for lower cleaning “N” (see previous paragraph), use a stiff rod or a bottle brush to scrape the firebox walls (see arrow) so that the ash falls into the lower compartment. Then remove the upper Calorite plate “H”;...
  • Page 57 14-CLEANING Use a stiff rod or a bottle brush to scrape the firebox walls (see arrow - at the right and left of the firebox respectively) so that the ash falls into the lower compartment. Use a vacuum cleaner nozzle to vacuum up any remaining ash and dust on the exchanger (see arrow). Technical Dept.
  • Page 58 14-CLEANING In the upper section, too, remove the front panel “E” (see the instructions in the dedicated paragraphs) and insert the nozzle of the vacuum cleaner to remove any deposits of dust. Then thoroughly clean the lower exchanger, replace any gaskets if needed, and reassemble.
  • Page 59 14-CLEANING CLEANING THE SMOKE DUCT AND GENERAL CHECKS Clean the smoke extractor system, especially around the “T” joints, elbows and any horizontal sections of the smoke duct. For information on periodically cleaning the flue, contact a skilled chimney sweep. Check the seal of the ceramic fibre gaskets on the door of the stove. If necessary, order new replacement gaskets from the retailer or contact an authorised service centre to carry out the operation.
  • Page 60 14-CLEANING SHUTDOWN (end of season) At the end of each season, before switching the product off, it is recommended to remove all the pellets from the tank with a vacuum cleaner with a long pipe. We recommend removing the unused pellet from the tank because it can retain humidity. Disconnect any combustion air ducting that can lead humidity inside the combustion chamber but, above all, ask the specialised technician to refresh the paint inside the combustion chamber with the special silicone spray paints (available at any store or CAT) during the necessary annual end of season scheduled maintenance operations.

  • Page 61: 15-Troubleshooting

    15-TROUBLESHOOTING ATTENTION! All repairs must only be carried out by a specialised technician, with the product switched off and the plug disconnected. ANOMALY POSSIBLE CAUSES SOLUTIONS The pellets are not fed into The pellet hopper is empty Fill the hopper with pellets. the combustion chamber.
  • Page 62 15-TROUBLESHOOTING ANOMALY POSSIBLE CAUSES SOLUTIONS Pellets accumulate in the brazier, the Insufficient combustion air. Clean the brazier and check that all the glass of the door gets dirty and the holes are clear. Perform a general cleaning flame is weak. of the combustion chamber and the smoke duct.
  • Page 63 15-TROUBLESHOOTING ANOMALY POSSIBLE CAUSES SOLUTIONS Incorrect combustion adjustment. Check recipe. No increase in temperature with stove in operation. Set flame 1 setting (level too low) Increase power from the settings menu. Poor pellet quality. Using pellets from the producer. Technical Dept. - All rights reserved - Reproduction is prohibited...

  • Page 64: 16-Circuit Board

    16-CIRCUIT BOARD AMB. H2O +TC- DISPLAY TERM. ENCODER FUMI OPT. +5V GND ENC LIVE ELECTRICAL CABLES SERIAL DISCONNECT THE POW- ER SUPPLY CABLE 230V BEFORE CARRYING OUT ANY OPERATIONS ON THE ELECTRICAL BOARDS ACC. SIC DEP. FUMI SCA COC. WIRING KEY 1.
  • Page 68 Via La Croce n°8 33074 Vigonovo di Fontanafredda (PN) – ITALY Telephone: +39 0434/599599 r.a. Fax: +39 0434/599598 Internet: www.mcz.it e-mail: info.red@mcz.it 8901825002 REV 0 24/05/2022...
