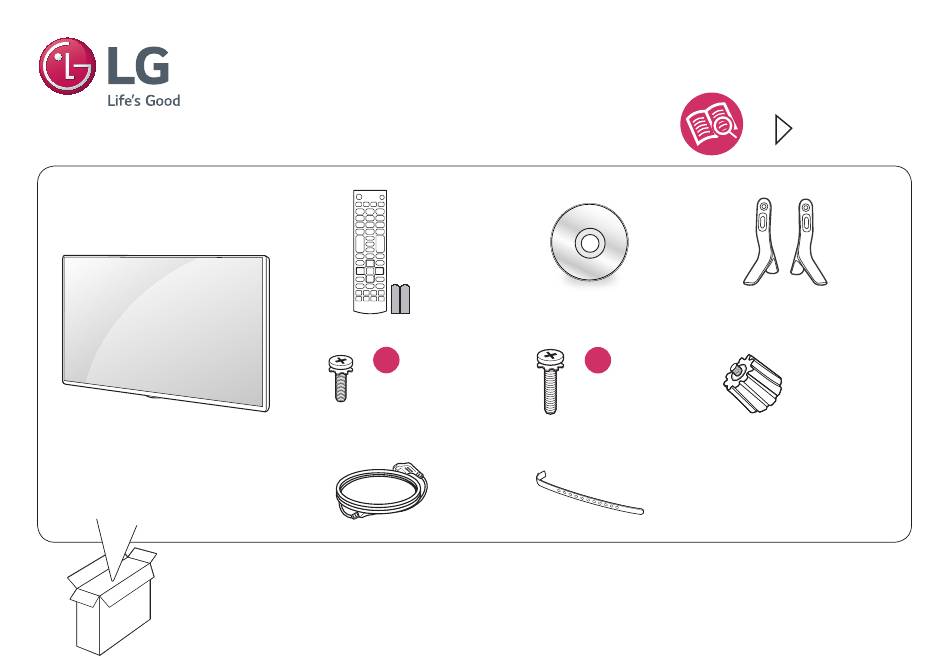

AAA
a
X 4
(M4 X L14)
42LX330*
42LX530*
b
X 4
(M4 X L20)
32LX330*
LED TV
LX330*
LX530*
www.lg.com
X 2
42LX330*
42LX530*

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LX330 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LG LX330 Series

Summary of Contents for LG LX330 Series

  • Page 1 LED TV LX330* LX530* www.lg.com (M4 X L14) (M4 X L20) 42LX330* 42LX330* 42LX530* 32LX330* 42LX530*...
  • Page 3 LX330*...
  • Page 4 LX530*...
  • Page 5 (MHEG / SERVICE) EXTERNAL SPEAKER OUT (RGB) OPTICAL DIGITAL RS-232C IN AUDIO OUT (CONTROL & SERVICE) AUDIO IN ANTENNA/ (COMPONENT/RGB/DVI) CABLE IN Satellite COMPONENT RGB IN (PC) AUDIO IN COMPONENT AUDIO IN (COMPONENT/RGB/DVI) (COMPONENT/RGB/DVI) RIGHT ( LEFT ( VIDEO AUDIO...
  • Page 6 (MHEG / SERVICE) EXTERNAL SPEAKER OUT (RGB) OPTICAL DIGITAL RS-232C IN AUDIO OUT (CONTROL & SERVICE) AUDIO IN ANTENNA/ (COMPONENT/RGB/DVI) Satellite CABLE IN COMPONENT RGB IN (PC)
  • Page 8 32LX330C-GA 42LX330C-GA 42LX530S-GA 732 x 481 x 207 961 x 612 x 218 961 x 612 x 218 (mm) 732 x 437 x 55.5 961 x 567 x 55.5 961 x 567 x 55.5 (mm) (kg) ) (kg)
  • Page 9 OWNER’S MANUAL Safety and Reference LED TV* * LG LED TV applies LCD screen with LED backlights. Please read this manual carefully before operating your set and retain it for future reference. www.lg.com...

  • Page 10: Safety Instructions

    Safety instructions Please read these safety precautions carefully before using the product. Make sure to connect Mains cable to compliant AC mains socket with Grounded earth pin. (Except for devices which are not grounded on WARNING earth.) Otherwise possibility you may be electrocuted or injured. Insert power cable plug completely into wall socket otherwise if not Do not place the TV and/or remote control in the following secured completely into socket, fire ignition may break out.
  • Page 11 Do not drop the product or let it fall over when connecting external Do not drop metallic objects such as coins, hair pins, chopsticks or wire devices. Otherwise, this may result in injury or damage to the product. into the product, or inflammable objects such as paper and matches. Children must pay particular attention.
  • Page 12 (optional parts) to the back of the product. When you install the set to use the wall mounting bracket (optional parts), fix Only use an authorized AC adapter and power cord approved by LG it carefully so as not to drop.
  • Page 13 When installing the antenna, consult with a qualified service When connecting external devices such as video game consoles, make technician. If not installed by a qualified technician, this may create a sure the connecting cables are long enough. Otherwise, the product fire hazard or an electric shock hazard.
  • Page 14 Protect the power cord from physical or mechanical abuse, such as When moving the product, make sure you turn the power off first. Then, being twisted, kinked, pinched, closed in a door, or walked upon. Pay unplug the power cables, antenna cables and all connecting cables. particular attention to plugs, wall outlets, and the point where the cord The TV set or power cord may be damaged, which may create a fire exits the appliance.
  • Page 15 Preparing NOTE You may find different brightness and color of the panel depending on •  Image shown may differ from your TV. your viewing position(left/right/top/down). •  Your TV’s OSD (On Screen Display) may differ slightly from that This phenomenon occurs due to the characteristic of the panel. It is not shown in this manual.

  • Page 16: Separate Purchase

    (Depending on model) •  When holding the TV, the screen should face away from you to avoid damage. LED Clock LG Audio Device LEC-003 AN-WF500 Wi-Fi/Bluetooth Dongle •  Hold the top and bottom of the TV frame firmly. Make sure not to hold the transparent part, speaker, or speaker grill area.

  • Page 17: Using The Joystick Button

    Mounting on a table Using the joystick button (Image shown may differ from your TV.) (Image shown may differ from your TV.) You can simply operate the TV functions, pressing or moving the joystick 1 Lift and tilt the TV into its upright position on a table. button up, down, left or right.

  • Page 18: Attaching The Tv To A Desk

    Adjusting the angle of the TV to suit B type) view (Depending on model) Swivel 20 degrees to the left or right and adjust the angle of the TV to suit your view. 20˚ 20˚ 2-Screws for Stand Fixing, 2-Washers for Stand Fixing, CAUTION 2-Nuts for Stand Fixing • ...

  • Page 19: Securing The Tv To A Wall

    LG recommends that wall mounting be performed by a qualified professional installer. We recommend the use of LG’s wall mount bracket. LG’s wall mount bracket is easy to move with cables connected. When you do not use LG’s wall mount bracket, please use a wall mount bracket where the device is adequately secured to the wall with enough space to allow connectivity to external devices.
  • Page 20 •  If you install the TV on a ceiling or slanted wall, it may fall and result in severe injury. Use an authorised LG wall mount and contact the local dealer or qualified personnel.

  • Page 21: How To Use Dual Lock

    Connections (notifications) How to use Dual Lock™ (Only when the item of the following form is provided) (This feature is not available for all models.) Connect various external devices to the TV and switch input modes to Fix the set-top box to the TV and use it when you want to. select an external device.

  • Page 22: Adapter Connection

    Adapter connection Speaker Output Setup (Depending on model) (Depending on model) CAUTION •  Please be sure to connect the TV to the AC-DC power adapter before connecting the TV’s power plug to a wall power outlet. CI module connection (Depending on model) View the encrypted (pay) services in digital TV mode.

  • Page 23: Network Setup

    Remote control Network setup Wired network connection (Depending on model) (Depending on model) The descriptions in this manual are based on the buttons on the remote This TV can be connected to a Pro:Centric server via the LAN port. After control.

  • Page 24: Control Buttons

    Adjusts the volume level. Accesses your favourite programme list. Shows programme guide. Mutes all sounds. Scrolls through the saved programmes. Moves to the previous or next screen. (POWER) Turns the TV on or off. Adjusts the brightness of the screen to reduce energy consumption.
  • Page 25 Licenses Supported licenses may differ by model. For more information about licenses, visit www.lg.com. Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. The terms HDMI and HDMI High-Definition Multimedia interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

  • Page 26: Open Source Software Notice Information

    •  Check the remote control sensor on the product and try again. LG Electronics will also provide open source code to you on CD-ROM •  Check if there is any obstacle between the product and the remote for a charge covering the cost of performing such distribution (such control.

  • Page 27: Specifications

    Software download information •  Use this information for LX540S, LX530S series. You can download the SuperSign Software and manual from LG Electronics website.  Visit https://www.lgecommercial.com/digital-signage/support/download/supersign for Software  & https://www.lgecommercial.com/digital-signage/support/download/supersign for manual. Software :   S uperSign W_Lite_Server_vX.X.X_Setup.zip  SuperSign C_vX.X.X_Setup.zip  SuperSign W_Editor_vX.X.X_Setup.zip  SuperSign W_Player_vX.X.X_Setup.zip Manual :   S uperSign W_Lite_Server_vX.X.X_Manual.zip  SuperSign C_vX.X.X_Manual.zip  SuperSign W_Editor_vX.X.X_Manual.zip  SuperSign W_Player_vX.X.X_Manual.zip Specifications CI Module Size (W x H x D) 100.0 mm x 55.0 mm x 5.0 mm Operating Temperature 0 °C to 40 °C  Operating Humidity Less than 80 % Environment condition Storage Temperature -20 °C to 60 °C...
  • Page 28 HDMI/DVI-DTV supported mode HDMI/DVI-PC supported mode (Use HDMI IN 1 for PC mode) Horizontal Vertical Resolution (Only LX33**, LX34**, LX53**, LX54**) Frequency (kHz) Frequency (Hz) Horizontal Vertical 31.469 59.94 Resolution 720 x 480 Frequency (kHz) Frequency (Hz) 31.5 720 x 576 31.25 640 x 350 31.468...

  • Page 29: Supported Video Formats

    Supported audio formats Supported video formats •  File type : mp3 •  Maximum: 1920 x 1080 @ 30p (only Motion JPEG 640 x 480 @ 30p) [Bit rate] 32 Kbps - 320 Kbps •  .asf, .wmv [Sample freq.] 16 kHz - 48 kHz [Video] MPEG-2, MPEG-4 Part2, DivX3.11, DivX4, DivX5, DivX6, [Support] MPEG1, MPEG2, Layer2 , Layer3 XViD, H.264/AVC, VC1(WMV3, WVC1), MP43...

  • Page 30: Supported Photo Formats

    Supported photo formats •  Category : 2D (jpeg, jpg, jpe) [Available file type] SOF0: Baseline, SOF1 : Extend Sequential, SOF2 : Progressive [Photo size] Minimum : 64 x 64, Maximum : Normal Type: 15360 (W) x 8640 (H), Progressive Type : 1920 (W) x 1440 (H) • ...
  • Page 31 Record the model number and serial number (Only DTV) of the TV. Refer to the label on the back cover and quote this information to your dealer when requiring any service. MODEL SERIAL...
  • Page 32 IR CODES This feature is not available for all models. Code Remote control Button Function Note (Hexa) GREEN Remote control Button Remote control Button (Power Remote control Button YELLOW (POWER) On/Off) Remote control Button BLUE Remote control Button TV/RAD Remote control Button SUBTITLE Remote control Button Remote control Button...

  • Page 33: External Control Device Setup

    EXTERNAL CONTROL Type of Connector : D-Sub 9-Pin Male DEVICE SETUP RS-232C Setup •  Image shown may differ from your TV. Connect the RS-232C (serial port) input jack to an external control device (such as a computer or an A/V control system) to control the product’s functions externally.

  • Page 34: Communication Parameters

    Command Reference List RS-232C Configurations (Depending on Model) 7-Wire Configurations (Standard RS-232C cable) DATA COMMAND1 COMMAND2 (Hexadecimal) 01. Power 00 to 01 02. Aspect Ratio (See p. 4) 03. Screen Mute (See p. 5) 04. Volume Mute 00 to 01 05.

  • Page 35: Transmission / Receiving Protocol

    Transmission / Receiving Protocol 01. Power (Command: k a) ► To control Power On/Off of the set. (Depending on Model) Transmission[k][a][ ][Set ID][ ][Data][Cr] Transmission Data 00 : Power Off 01 : Power On [Command1][Command2][ ][Set ID][ ][Data][Cr] Ack [a][ ][Set ID][ ][OK/NG][Data][x] ►...
  • Page 36 03. Screen Mute (Command: k d) 07. Brightness (Command: k h) ► To select screen mute on/off. ► To adjust screen brightness. You can also adjust brightness in the PICTURE menu. Transmission [k][d][ ][Set ID][ ][Data][Cr] Transmission [k][h][ ][Set ID][ ][Data][Cr] Data 00 : Screen mute off (Picture on) Video mute off...
  • Page 37 11. OSD Select (Command: k l) 15. Energy Saving (Command: j q) ► To select OSD (On Screen Display) on/off when controlling remotely. ► To reduce the power consumption of the TV. You can also adjust Energy Saving in PICTURE menu. Transmission [k][l][ ][Set ID][ ][Data][Cr] Transmission [j][q][ ][Set ID][ ][Data][Cr] Data 00 : OSD off...
  • Page 38 17. Equalizer (Command : j v) 19. Programme Add/Skip (Command: m b) ► To adjust equalize. ► To set skip status for the current Programme. Transmission [j][v][ ][Set ID][ ][Data][Cr] Transmission [m][b][ ][Set ID][ ][Data][Cr] Data 00 : Skip 01 : Add Ack [b][ ][Set ID][ ][OK/NG][Data][x] Data Frequency...
  • Page 39 22. Input select (Command: x b) * Real data mapping (Main Picture Input) 00 : Step 0 ► To select input source for main picture. Transmission [x][b][ ][Set ID][ ][Data][Cr] Step 10 (Set ID 10) Data Structure Step 15 (Set ID 15) 10 : Step 16 (Set ID 16) External Input...
