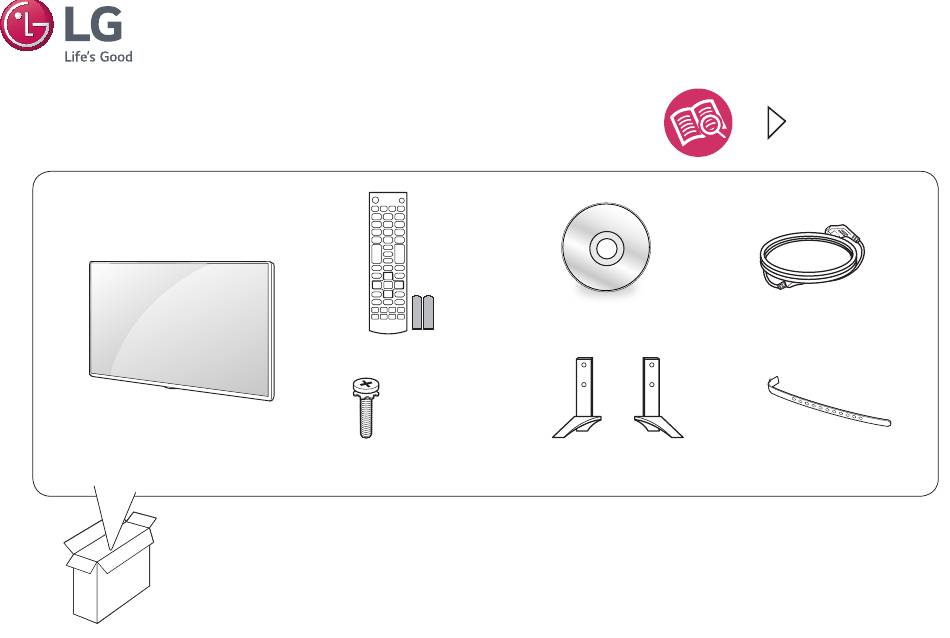

  • Page 1 LED TV LX31** www.lg.com (M4 X L14)
  • Page 3 LX330C, LX530S...
  • Page 4 OPTICAL DIGITAL AUDIO OUT RGB IN (PC) RS-232C IN (CONTROL & SERVICE) ANTENNA/ CABLE IN...
  • Page 5 OPTICAL DIGITAL AUDIO OUT RGB IN (PC) RS-232C IN (CONTROL & SERVICE) ANTENNA/ CABLE IN...
  • Page 7 43LX310C-TA 49LX310C-TA 971 x 624 x 198 1103 x 698 x 198 (mm) 971 x 575 x 58.7 1103 x 650 x 58.7 (mm) 13.4 (kg) 13.1 ) (kg)
  • Page 8 OWNER’S MANUAL Safety and Reference LED TV* * Disclaimer LG LED TV applies LCD screen with LED backlights. Please read this manual carefully before operating your set and retain it for future reference. www.lg.com...
  • Page 9 Safety instructions Please read these safety precautions carefully before using the product. Insert power cable plug completely into wall socket otherwise if not secured completely into socket, fire ignition may break out. WARNING Ensure the power cord does not come into contact with hot objects such as a heater.
  • Page 10 Keep the anti-moisture packing material or vinyl packing out of the Do not spray water on the product or scrub with an inflammable reach of children. Anti-moisture material is harmful if swallowed. If substance (thinner or benzene). Fire or electric shock accident can swallowed by mistake, force the patient to vomit and visit the nearest occur.
  • Page 11 (optional parts) to the back of the product. When you install the set to use the wall mounting bracket (optional parts), fix Only use an authorized AC adapter and power cord approved by LG it carefully so as not to drop.
  • Page 12 Only use the specified type of battery. This could cause damage to the Please follow the installation instructions below to prevent the product remote control. from overheating. •  The distance between the product and the wall should be more than 10 cm. • ...
  • Page 13 Avoid touching the screen or holding your finger(s) against it for long Contact the service centre once a year to clean the internal parts of the periods of time. Doing so may produce some temporary or permanent product. distortion/damage to screen. Accumulated dust can cause mechanical failure.
  • Page 14 Preparing NOTE Displaying a still image (e.g., broadcasting channel logo, on-screen •  Image shown may differ from your TV. menu, scene from a video game) for a prolonged time may cause •  Your TV’s OSD (On Screen Display) may differ slightly from that damage to the screen, resulting in retention of the image, which is shown in this manual.
  • Page 15 (Depending on model) •  When holding the TV, the screen should face away from you to avoid damage. AN-WF500 LG Audio Device Wi-Fi/Bluetooth Dongle •  Hold the top and bottom of the TV frame firmly. Make sure not to Maintenance hold the transparent part, speaker, or speaker grill area.
  • Page 16 Using the joystick button Mounting on a table (Image shown may differ from your TV.) (Image shown may differ from your TV.) You can simply operate the TV functions, pressing or moving the joystick 1 Lift and tilt the TV into its upright position on a table. button up, down, left or right.
  • Page 17 Adjusting the angle of the TV to suit B type ) view (Depending on model) Swivel 20 degrees to the left or right and adjust the angle of the TV to suit your view. 20˚ 20˚ 2-Screws for Stand Fixing, CAUTION 2-Washers for Stand Fixing, • ...
  • Page 18 LG recommends that wall mounting be performed by a qualified professional installer. We recommend the use of LG’s wall mount bracket. LG’s wall mount bracket is easy to move with cables connected. When you do not use LG’s wall mount bracket, please...
  • Page 19 Connections (notifications) •  Screw length from outer surface of back cover should be under 8 (Only 28LX53**) Wall mount Pad Connect various external devices to the TV and switch input modes to select an external device. For more information of external device’s connection, refer to the manual provided with each device.
  • Page 20 Adapter connection HDMI connection (Depending on model & country) HDMI ULTRA HD deep colour settings CAUTION (Only UX34**) •  Please be sure to connect the TV to the AC-DC power adapter •  SETTINGS PICTURE HDMI ULTRA HD Deep Colour before connecting the TV’s power plug to a wall power outlet. HDMI (1/2) ULTRA HD Deep Colour - On : Support 4K @ 50/60 Hz (4:4:4, 4:2:2, 4:2:0) Network connection...
  • Page 21 Other connections Connect your TV to external devices. For the best picture and audio Accesses your favourite programme list. quality, connect the external device and the TV with the HDMI cable. Shows programme guide. Some separate cable is not provided. Mutes all sounds.
  • Page 22 (POWER) Turns the TV on or off. Adjusts the brightness of the screen to reduce Shows programme guide. energy consumption. Displays and removes hotel interactive menu. Selects an AV mode. Views the information of the current programme and Changes the input source. screen.
  • Page 23 Laboratories. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to opensource@lge.com.
  • Page 24 Important information •  Use this information for LX540S, LX530S series. You can download the SuperSign Software and TV manual from LG Electronics website. Visit www.lgecommercial.com/supersign for Software & www.lgecommercial.com/supersigntv for TV manual. Software : SuperSign W_Server_Lite_vx.x.x_Setup.zip SuperSign C_v.X.X.X_Setup.zip SuperSign W_Editor_vx.x.x_Setup.zip Manual : SuperSign W_Server_Lite_vx.x.x_Manual.zip...
  • Page 25 HDMI-DTV supported mode RGB-PC, HDMI-PC supported mode Use HDMI IN 1 for PC mode (Except for UX34**) Vertical Horizontal Resolution Frequency Horizontal Vertical Frequency (kHz) Resolution (Hz) Frequency (kHz) Frequency (Hz) 31.46 59.94 640 x 350 31.46 70.09 640 x 480 31.50 60.00 720 x 400...
  • Page 26 Supported video formats Supported audio formats •  Maximum: 1920 x 1080 @ 30p (only Motion JPEG 640 x 480 @ 30p) •  File type : mp3 •  .asf, .wmv [Bit rate] 32 Kbps - 320 Kbps [Video] MPEG-2, MPEG-4 Part2, DivX3.11, DivX4, DivX5, DivX6, [Sample freq.] 16 kHz - 48 kHz XViD, H.264/AVC, VC1(WMV3, WVC1), MP43 [Support] MPEG1, MPEG2, Layer2, Layer3...
  • Page 27 Record the model number and serial number (Only DTV) of the TV. Refer to the label on the back cover and quote this information to your dealer when requiring any service. MODEL SERIAL...
  • Page 28 IR codes This feature is not available for all models. Code Code Function Note Function Note (Hexa) (Hexa) Remote control Button Remote control Button (POWER) BACK (Power On/Off) TV/RAD Remote control Button EXIT Remote control Button SUBTITLE Remote control Button Remote control Button AV MODE Remote control Button...
  • Page 29 External control device setup RS-232C Setup Type of Connector : D-Sub 9-Pin Male •  Image shown may differ from your TV. Connect the RS-232C (serial port) input jack to an external control device (such as a computer or an A/V control system) to control the product’s functions externally.
  • Page 30 RS-232C Configurations 7-Wire Configurations (Standard RS-232C cable) D-Sub 9 D-Sub 9 3-Wire Configurations (Not standard) D-Sub 9 D-Sub 9 Set ID Set ID number. “Real Data Mapping”. 1 Press SETTINGS or HOME to access the main menus. 2 Press the Navigation buttons to scroll to OPTION and press OK.
  • Page 31 Communication Parameters •  Baud rate : 9600 bps (UART) •  Stop bit : 1 bit •  Data length : 8 bits •  Communication code : ASCII code •  Parity : None •  Use a crossed (reverse) cable. Command Reference List (Depending on Model) DATA DATA...
  • Page 32 Transmission / Receiving Protocol Transmission [Command1][Command2][ ][Set ID][ ][Data][Cr] [Command 1] : First command to control the TV.(j, k, m or x) [Command 2] : Second command to control the TV. [Set ID] : You can adjust the set ID to choose desired monitor ID number in option menu. Adjustment range is 1 to 99. When selecting Set ID ‘0’...
  • Page 33 01 Power (Command: k a) 03 Screen Mute (Command: k d) ► To control Power On/Off of the set. ► To select screen mute on/off. Transmission[k][a][ ][Set ID][ ][Data][Cr] Transmission [k][d][ ][Set ID][ ][Data][Cr] Data 00 : Screen mute off (Picture on) Data 00 : Power Off 01 : Power On Video mute off...
  • Page 34 07 Brightness (Command: k h) 11 OSD Select (Command: k l) ► To adjust screen brightness. ► To select OSD (On Screen Display) on/off when controlling You can also adjust brightness in the PICTURE menu. remotely. Transmission [k][h][ ][Set ID][ ][Data][Cr] Transmission [k][l][ ][Set ID][ ][Data][Cr] Data Min : 00 to Max : 64 Data 00 : OSD off...
  • Page 35 18 Tune Command (Command: m a) Power Saving Function Level Description ► Select channel to following physical number. Transmission [m][a][ ][Set ID][ ][Data 00][ ] Power [Data 01][ ][Data 02][Cr] Minimum Data 00 : High channel data Power Data 01 : Low channel data Medium Power ex.
  • Page 36 22 Input select (Command: x b) * Real data mapping (Main Picture Input) 00 : Step 0 ► To select input source for main picture. Transmission [x][b][ ][Set ID][ ][Data][Cr] Step 10 (Set ID 10) Data Structure Step 15 (Set ID 15) Step 16 (Set ID 16) 10 : 64 :...
