Page 1

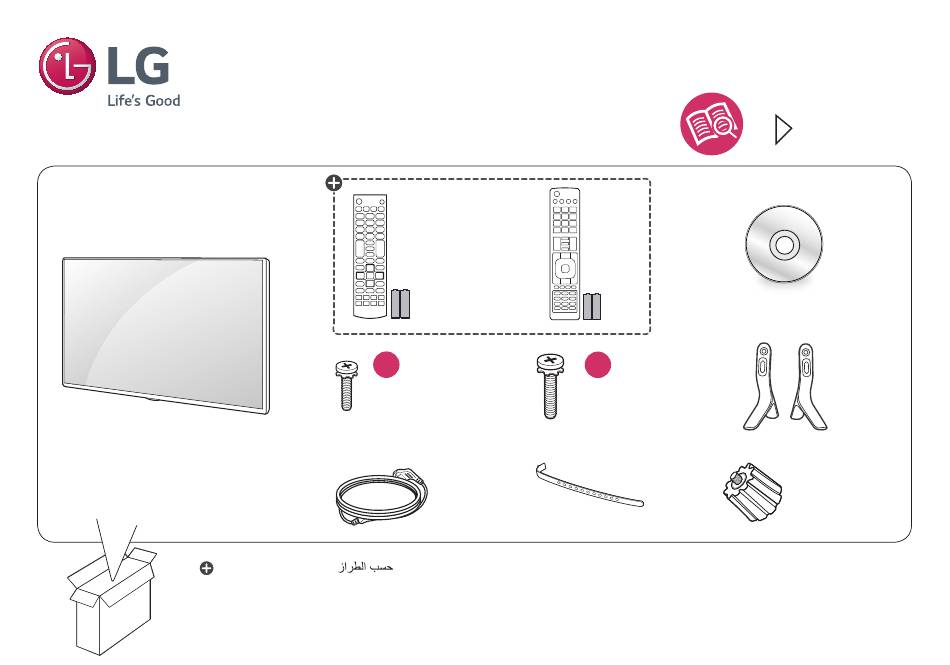

LED TV LX320* LX330* LX530* www.lg.com (M4 X L14) (M4 X L20) 42LX320* 32LX320* 42LX330* 32LX330* 42LX530* 42LX320* 42LX330* 42LX530* : Depending on model / / В зависимост от модела / Závisí na modelu / Selon le modèle / Abhängig vom Modell / Ανάλογα...
Page 6
LX330*, LX530* (MHEG / SERVICE) EXTERNAL SPEAKER OUT (RGB) OPTICAL LX330*, LX530* DIGITAL RS-232C IN AUDIO OUT (CONTROL & SERVICE) AUDIO IN ANTENNA/ (COMPONENT/RGB/DVI) Satellite CABLE IN COMPONENT RGB IN (PC) AUDIO IN COMPONENT AUDIO IN (COMPONENT/RGB/DVI) (COMPONENT/RGB/DVI) RIGHT LEFT VIDEO AUDIO...
Page 7
LX330*, LX530* (MHEG / SERVICE) EXTERNAL SPEAKER OUT (RGB) OPTICAL LX330*, LX530* DIGITAL RS-232C IN AUDIO OUT (CONTROL & SERVICE) AUDIO IN ANTENNA/ (COMPONENT/RGB/DVI) Satellite CABLE IN COMPONENT RGB IN (PC)
Page 8
English RIGHT LEFT DOWN Control port for Speaker out Česky KOSTRA PRAVÝ LEVÝ ZESÍLIT ZESLABIT Ovládací port výstupu pro reproduktor Español TIERRA DERECHA IZQUIERDA ARRIBA ABAJO Puerto de control para salida de altavoz Français DROITE GAUCHE HAUT Port de contrôle pour sortie haut-parleur Deutsch RECHTS LINKS...
Page 9
/ В зависимост от модела / Závisí na modelu / Selon le modèle / Abhängig vom Modell / Ανάλογα με το μοντέλο / : Depending on model / Típusfüggő / In base al modello / Zależnie od modelu / Dependendo do modelo / În funcţie de model / В зависимости от модели / U zavisnosti od modela / Ovisno o modelu / Odvisno od modela / En función del modelo / Modele bağlı...
Page 11
32LX320C-ZA 42LX320C-ZA 32LX330C-ZA 42LX330C-ZA 42LX530S-ZA 32LX320H-ZA 42LX320H-ZA 32LX330H-ZA 42LX330H-ZA 732 x 481 x 207 961 x 612 x 218 732 x 481 x 207 961 x 612 x 218 961 x 612 x 218 (mm) 732 x 437 x 55.5 961 x 567 x 55.5 732 x 437 x 55.5 961 x 567 x 55.5...
Safety instructions Please read these safety precautions carefully before using the product. Make sure to connect Mains cable to compliant AC mains socket with Grounded earth pin. (Except for devices which are not grounded on WARNING earth.) Otherwise possibility you may be electrocuted or injured. Insert power cable plug completely into wall socket otherwise if not Do not place the TV and/or remote control in the following secured completely into socket, fire ignition may break out.
Page 14
Do not drop the product or let it fall over when connecting external Do not drop metallic objects such as coins, hair pins, chopsticks or wire devices. Otherwise, this may result in injury or damage to the product. into the product, or inflammable objects such as paper and matches. Children must pay particular attention.
Page 15
(optional parts) to the back of the product. When you install the set to use the wall mounting bracket (optional parts), fix Only use an authorized AC adapter and power cord approved by LG it carefully so as not to drop.
Page 16
When installing the antenna, consult with a qualified service When connecting external devices such as video game consoles, make technician. If not installed by a qualified technician, this may create a sure the connecting cables are long enough. Otherwise, the product fire hazard or an electric shock hazard.
Page 17
Protect the power cord from physical or mechanical abuse, such as When moving the product, make sure you turn the power off first. Then, being twisted, kinked, pinched, closed in a door, or walked upon. Pay unplug the power cables, antenna cables and all connecting cables. particular attention to plugs, wall outlets, and the point where the cord The TV set or power cord may be damaged, which may create a fire exits the appliance.
Page 18
• The TV can be placed in standby mode in order to reduce the power consumption. And the TV should be turned off if it will not be watched for some time, as this will reduce energy consumption. • The energy consumed during use can be significantly reduced if the level of brightness of the picture is reduced, and this will reduce You may find different brightness and color of the panel depending on the overall running cost.
• Do not spray liquid onto the surface. If water enters the TV, it may (Depending on model) result in fire, electric shock, or malfunction. LED Clock LG Audio Device Power cord LEC-003 AN-WF500 Remove the accumulated dust or dirt on the power cord regularly.
Lifting and moving the TV Using the joystick button Please note the following advice to prevent the TV from being scratched (Image shown may differ from your TV.) or damaged and for safe transportation regardless of its type and size. You can simply operate the TV functions, pressing or moving the joystick • ...
Adjusting the angle of the TV to suit Adjusting the Menu view When the TV is turned on, press the joystick button one time. You can adjust the Menu items moving the joystick button up, down, left or (This feature is not available for all models.) right.
LG recommends that wall mounting be performed by a qualified professional installer. We recommend the use of LG’s wall mount bracket. LG’s wall mount bracket is easy to move with cables connected. When you do not use LG’s wall mount bracket, please use a wall mount bracket where the device is adequately secured to the wall with enough space to allow connectivity to external devices.
• If you install the TV on a ceiling or slanted wall, it may fall and result in severe injury. Use an authorised LG wall mount and contact the local dealer or qualified personnel.
How to use Dual Lock™ • When installing the wall mounting bracket, use the adhesive label provided. The adhesive label will protect the opening from (Only when the item of the following form is provided) accumulating dust and dirt. (Only when the label is provided) (This feature is not available for all models.) Provided Item Fix the set-top box to the TV and use it when you want to.
Connections (notifications) Adapter connection (Depending on model) CAUTION Connect various external devices to the TV and switch input modes to select an external device. For more information of external device’s • Please be sure to connect the TV to the AC-DC power adapter connection, refer to the manual provided with each device.
Speaker Output Setup Network setup (Depending on model) Wired network connection (Depending on model) This TV can be connected to a Pro:Centric server via the LAN port. After making the physical connection, the TV needs to be set up for network communication.
Remote control Adjusts the volume level. Accesses your favourite programme list. (Depending on model) Shows programme guide. The descriptions in this manual are based on the buttons on the remote Mutes all sounds. control. Please read this manual carefully and use the TV correctly. Scrolls through the saved programmes.
Page 28
(POWER) Turns the TV on or off. Adjusts the brightness of the screen to reduce Shows programme guide. energy consumption. Displays and removes hotel interactive menu. Selects an AV mode. Views the information of the current programme and Changes the input source. screen.
In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to opensource@lge.com.
Software download information • Use this information for LX540S, LX530S series. You can download the SuperSign Software and manual from LG Electronics website. http://partner.lge.com Software : SuperSign W_Lite_Server_vX.X.X_Setup.zip SuperSign C_vX.X.X_Setup.zip SuperSign W_Editor_vX.X.X_Setup.zip SuperSign W_Player_vX.X.X_Setup.zip Manual : SuperSign W_Lite_Server_vX.X.X_Manual.zip SuperSign C_vX.X.X_Manual.zip SuperSign W_Editor_vX.X.X_Manual.zip...
Page 31
HDMI/DVI-DTV supported mode HDMI/DVI-PC supported mode (Use HDMI IN 1 for PC mode) Horizontal Vertical Resolution (Only LX31**, LX32**, LX33**, LX34**, LX30**, LX53**, LX54**) Frequency (kHz) Frequency (Hz) Horizontal Vertical 31.469 59.94 Resolution 720 x 480 Frequency (kHz) Frequency (Hz) 31.5 720 x 576 31.25...
Supported photo formats • Category : 2D (jpeg, jpg, jpe) [Available file type] SOF0: Baseline, SOF1 : Extend Sequential, SOF2 : Progressive [Photo size] Minimum : 64 x 64, Maximum : Normal Type: 15360 (W) x 8640 (H), Progressive Type : 1920 (W) x 1440 (H) • ...
Page 34
Record the model number and serial number of the TV. (Only DTV) Refer to the label on the back cover and quote this information to your dealer when requiring any service. MODEL SERIAL...
Page 35
IR CODES This feature is not available for all models. Code Code Function Note Function Note (Hexa) (Hexa) Remote control Button Remote control Button (POWER) (Power On/Off) GREEN Remote control Button Remote control Button YELLOW Remote control Button Remote control Button Remote control Button BLUE Remote control Button...
EXTERNAL CONTROL Type of Connector : D-Sub 9-Pin Male DEVICE SETUP RS-232C Setup • Image shown may differ from your TV. Connect the RS-232C (serial port) input jack to an external control device (such as a computer or an A/V control system) to control the product’s functions externally.
Command Reference List RS-232C Configurations (Depending on Model) 7-Wire Configurations (Standard RS-232C cable) DATA COMMAND1 COMMAND2 (Hexadecimal) 01. Power 00 to 01 02. Aspect Ratio (See p. 4) 03. Screen Mute (See p. 5) 04. Volume Mute 00 to 01 05.
Transmission / Receiving Protocol 01. Power (Command: k a) ► To control Power On/Off of the set. (Depending on Model) Transmission[k][a][ ][Set ID][ ][Data][Cr] Transmission Data 00 : Power Off 01 : Power On [Command1][Command2][ ][Set ID][ ][Data][Cr] Ack [a][ ][Set ID][ ][OK/NG][Data][x] ►...
Page 39
07. Brightness (Command: k h) 03. Screen Mute (Command: k d) ► To select screen mute on/off. ► To adjust screen brightness. You can also adjust brightness in the PICTURE menu. Transmission [k][d][ ][Set ID][ ][Data][Cr] Transmission [k][h][ ][Set ID][ ][Data][Cr] Data 00 : Screen mute off (Picture on) Video mute off...
Page 40
11. OSD Select (Command: k l) 15. Energy Saving (Command: j q) ► To select OSD (On Screen Display) on/off when controlling remotely. ► To reduce the power consumption of the TV. You can also adjust Energy Saving in PICTURE menu. Transmission [k][l][ ][Set ID][ ][Data][Cr] Transmission [j][q][ ][Set ID][ ][Data][Cr] Data 00 : OSD off...
Page 41
19. Programme Add/Skip (Command: m b) 17. Equalizer (Command : j v) ► To adjust equalize. ► To set skip status for the current Programme. Transmission [j][v][ ][Set ID][ ][Data][Cr] Transmission [m][b][ ][Set ID][ ][Data][Cr] Data 00 : Skip 01 : Add Ack [b][ ][Set ID][ ][OK/NG][Data][x] Data Frequency...
Page 42
22. Input select (Command: x b) * Real data mapping (Main Picture Input) 00 : Step 0 ► To select input source for main picture. Transmission [x][b][ ][Set ID][ ][Data][Cr] Step 10 (Set ID 10) Data Structure Step 15 (Set ID 15) 10 : Step 16 (Set ID 16) External Input...
