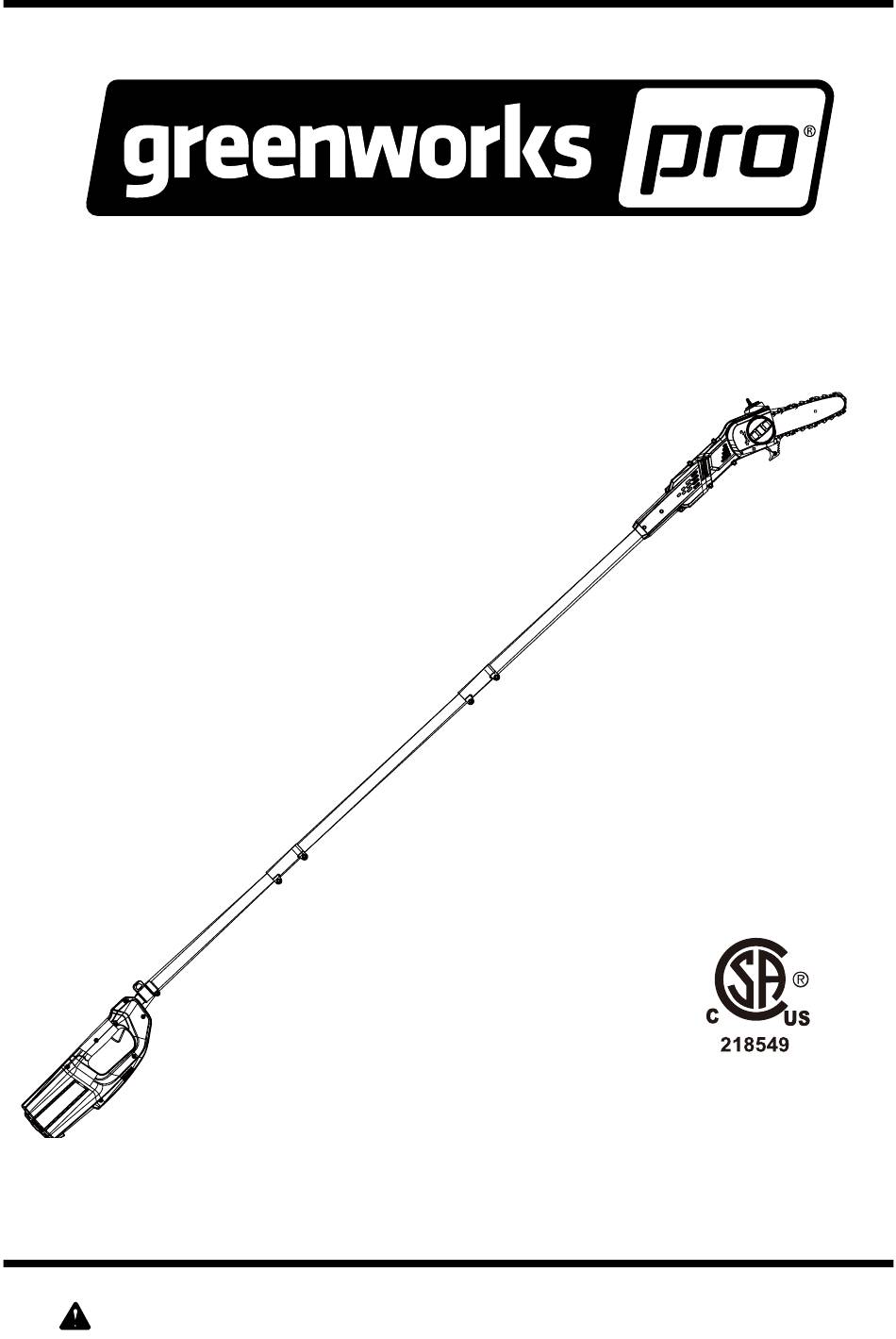

- Page 1 60V 10” BRUSHLESS POLESAW PS60L210 Owner’s Manual TOLL-FREE HELPLINE: 1-855-345-3934 Read all safety rules and instructions carefully before operating this tool.
-
Page 2: Table Of Contents
CONTENTS Contents ..........................2 ......................2 Safety Rules ........................3 Symbols ..........................9 Know Your Polesaw ......................11 Assembly ........................... 12 Operation ..........................15 Battery & Charger Maintenance ..................21 Maintenance..........................23 Environmentally Safe Battery Disposal.................29 Troubleshooting........................30 Warranty..........................31 Exploded View ........................32 Part List ..........................33 PRODUCT SPECIFICATIONS 60V 10"... -
Page 3: Safety Rules
SAfETY RULES W A R N I N G Read and understand all instructions before using this product. failure to follow all instructions listed below may result in electric shock, fire, and/or serious personal injury. WORK AREA SAFETY • Keep work area clean and well lit. Cluttered or dark areas invite accidents. • Do not operate polesaw in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. - Page 4 SAFETY RULES POLESAW USE AND CARE • Do not force the polesaw. Use the correct polesaw for your application. The correct polesaw will do the job better and safer at the rate for which it was designed. • Do not use the polesaw if the switch does not turn it on and off. Any polesaw that cannot be controlled with the switch is dangerous and must be repaired.
- Page 5 SAFETY RULES FOR ALL APPLIANCES • Avoid dangerous environment. Don’t use appliances in damp or wet locations. • Don’t use in rain. • Keep Children Away. All visitors should be kept at a distance from work area. • Dress Properly. Do not wear loose clothing or jewelry. They can be caught in moving parts.
- Page 6 SAFETY RULES Use only the following type and size battery(ies) • • Do not dispose of the battery(ies) in a fire. The cell may explode. Check with local codes for possible special disposal instructions. • Do not open or mutilate the battery(ies). Released electrolyte is corrosive and may cause damage to the eyes or skin.
- Page 7 GENERAL SAFETY RULES • Do not use the pole saw in bad weather conditions, especially when there is a risk of lightning. This decreases the risk of being struck by lightning. • Always use two hands when operating the pole saw. Hold the pole saw with both hands to avoid loss of control.
- Page 8 SAFETY RULES W A R N I N G (PROPOSITION 65) Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: •...
-
Page 9: Symbols
SYMBOLS Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer. DESIGNATION SYMBOLS EXPLANATION Volts Voltage Amperes Current Hertz Frequency (cycles per second) - Page 10 SYMBOLS The following signal words and meanings are intended to explain the levels of risk associated with this product. SYMBOL SIGNAL MEANING DANGER Indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury. WARNING Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury.
-
Page 11: Know Your Polesaw
KNOW YOUR POLESAW Read this operator's manual and safety rules before operating your polesaw. Compare the illustration in (Figure 1) to your polesaw in order to familiarize yourself with the location of various controls and adjustments. Save this manual for future reference. Polesaw Extension Pole Scabbard... -
Page 12: Assembly
ASSEMBLY INSTRUCTION UNPACKING This product has been shipped completely assembled. • Carefully remove the product and any accessories from the box. Make sure that all items listed in the package contents section are included. • Inspect the product carefully to make sure no breakage or damage occurred during shipping. •... - Page 13 ASSEMBLY INSTRUCTION W A R N I N G If any parts are damaged or missing, do not operate this product until the parts are replaced. Using a product with damaged or missing parts could result in serious personal injury. W A R N I N G Do not attempt to modify this product or create accessories not recommended for use with this leading to possible serious personal injury.
- Page 14 ASSEMBLY INSTRUCTION W A R N I N G Do not allow familiarity with this product to make you careless. Remember that a careless fraction W A R N I N G Always wear safety goggles or safety glasses with side shields when operating power tools. Failure to do so could result in objects being thrown into your eyes, resulting in possible serious injury W A R N I N G Do not use any attachments or accessories not recommended by the manufacturer of this product.
-
Page 15: Operation
OPERATION Press Button Press Button Hole Lock Nut Step 2 Scrench Step 3 W A R N I N G Do not allow familiarity with this product to make you careless. Remember that a careless fraction W A R N I N G Do not use any attachments or accessories not recommended by the manufacturer of this product. - Page 16 OPERATION ADDING BAR AND CHAIN LUBRICANT (See Figure 3) Use Bar and Chain Lubricant. It is designed for chains and chain oilers, and is formulated to perform over a wide temperature range with no dilution required. NOTE: Polesaw comes from the factory with no bar and chain oil added. Level should also be •...
- Page 17 OPERATION BATTERY PACK (See Figure 4) I M P O R T A N T The battery pack is not charged when it is purchased. Before us time, place the battery pack in the battery charger and charge it fully. Be sure to read all safety precautions, and follow the instructions in the section entitled Charging Procedure.
- Page 18 OPERATION I M P O R T A N T This Lithium-ion battery pack is equipped with an internal circuit breaker which will automatically shut off the power to the tool and then reset itself once cooled. Follow these steps if an overload occurs while under heavy use: 1.
- Page 19 OPERATION PREPARATION FOR CUTTING (See Figure 6-7) • Wear non-slip gloves for maximum grip and protection. • Maintain a proper grip on the unit whenever the motor is runn pole shaft. on the rear handle, so your body is to the left of the chain line. Never use a left-handed (cross- handed) grip, or any stance that places your body or arm across the chain line.
- Page 20 OPERATION LIMBING AND PRUNING(See Figure 8) This unit is designed for trimming small branches and limbs up to 6 in. (15.2 cm) in diameter. For best results, observe the following precautions: • Plan the cut carefully. Be aware of the direction in which the branch will fall. •...
-
Page 21: Battery & Charger Maintenance
BATTERY & CHARGER MAINTENANCE CHARGING PROCEDURE (See Figure 9) NOTE : The battery is not shipped fully charged. It is recommended to fully charge . This lithium-ion battery will not develop a memory and may be charged at any time. A fully discharged battery pack will require approximately 60 minutes to fully charge from a discharged state. - Page 22 BATTERY & CHARGER MAINTENANCE W A R N I N G If the battery is inserted into the charger when warm or hot, the CHARGING LED indicator light on the charger may switch on and illuminate ORANGE. If this occurs allow the battery to cool outside of the charger from approximately 30 minutes.
-
Page 23: Maintenance
MAINTENANCE W A R N I N G When servicing, use only identical replacement parts. Use of any other parts may create a hazard or cause product damage. W A R N I N G Always wear safety goggles or safety glasses with side shields during power tool operation or when blowing dust. - Page 24 MAINTENANCE CHAIN TENSION • Stop the motor and remove the battery before setting the chain tension. Turn the bar cover knob counterclockwise to loosen the bar cover but do not remove the bar cover. Turn the chain tensioning screw clockwise to tension chain. Turn the guide bar knob clockwise to tighten. Refer to the Replacing the bar and chain section for additional information.
- Page 25 MAINTENANCE REPLACING THE BAR AND CHAIN • Remove the lock knob and chain cover. • • pin hole. Fit the chain over the sprocket and into the bar groove. The cutters on the top of the bar should face toward the bar tip, in the direction of the chain rotation. •...
- Page 26 MAINTENANCE CHAIN OILER • Use a lubricant that is designed for chains and chain oilers and is formulated to perform over a wide temperature range with no dilution required. • Remove the cap and carefully pour approximately 2 oz (57 g) of bar and chain lubricant into the bar lube reservoir.
- Page 27 MAINTENANCE CHAIN MAINTENANCE For smooth and fast cutting, the chain needs to be maintained properly. The following conditions indicate that the chain requires sharpening: • Wood chips are small and powdery. • Chain must be forced through the wood during cutting. •...
- Page 28 MAINTENANCE HOW TO SHARPEN THE CUTTERS same length, as fast cutting can be obtained only when all cutters are uniform. midpoint of the bar. Wear gloves for protection. from the steel on each return stroke. ers in one direction. Then move to the PARTS OF A CUTTER Cutting Corner Side Plate...
-
Page 29: Environmentally Safe Battery Disposal
ENVIRONMENTALLY SAFE BATTERY DISPOSAL The batteries used in this polesaw’s battery pack contain the following toxic and corrosive material: LITHIUM-ION, a toxic material. W A R N I N G environment. Before disposing of damaged or worn out Lithium-Ion battery packs, contact your local waste disposal agency or the local Environmental Protection Agency for information and for disposal. -
Page 30: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION Bar and chain Check chain tension for Tension chain. Refer to to the "Chain running hot and overtightened condition. Tensioning" section. smoking. Bar and Chain Oil Tank Low or Empty. needed. Motor runs, but Chain tension too tight. Refer to the "Chain Tensioning"... -
Page 31: Warranty
3. Normal wear, except as noted below; 4. Routine maintenance items such as lubricants, blade sharpening; GREENWORKS PRO HELPLINE: Warranty service is available by calling our toll-free helpline at 1-855-345-3934. TRANSPORTATION CHARGES: Transportation charges for the movement of any power equipment unit or attachment are the responsibility of the purchaser. -
Page 32: Exploded View
EXPLODED VIEW... -
Page 33: Part List
PARTS LIST ITEM NO. PART NO. DESCRIPTION 311011891 Polesaw Handle Assembly 311021726 Pole Assembly 311001891 Pole Head Assembly 311051734B Oil Cap Assembly 311041726 6 Bar and Chain Assembly 33304590 Distance Sleeve 339001726 Sprocket 32209590 C-C lip 211011382 Battery 211011989 Charger 34114155-1 Scabbard Greenworks Tools...
