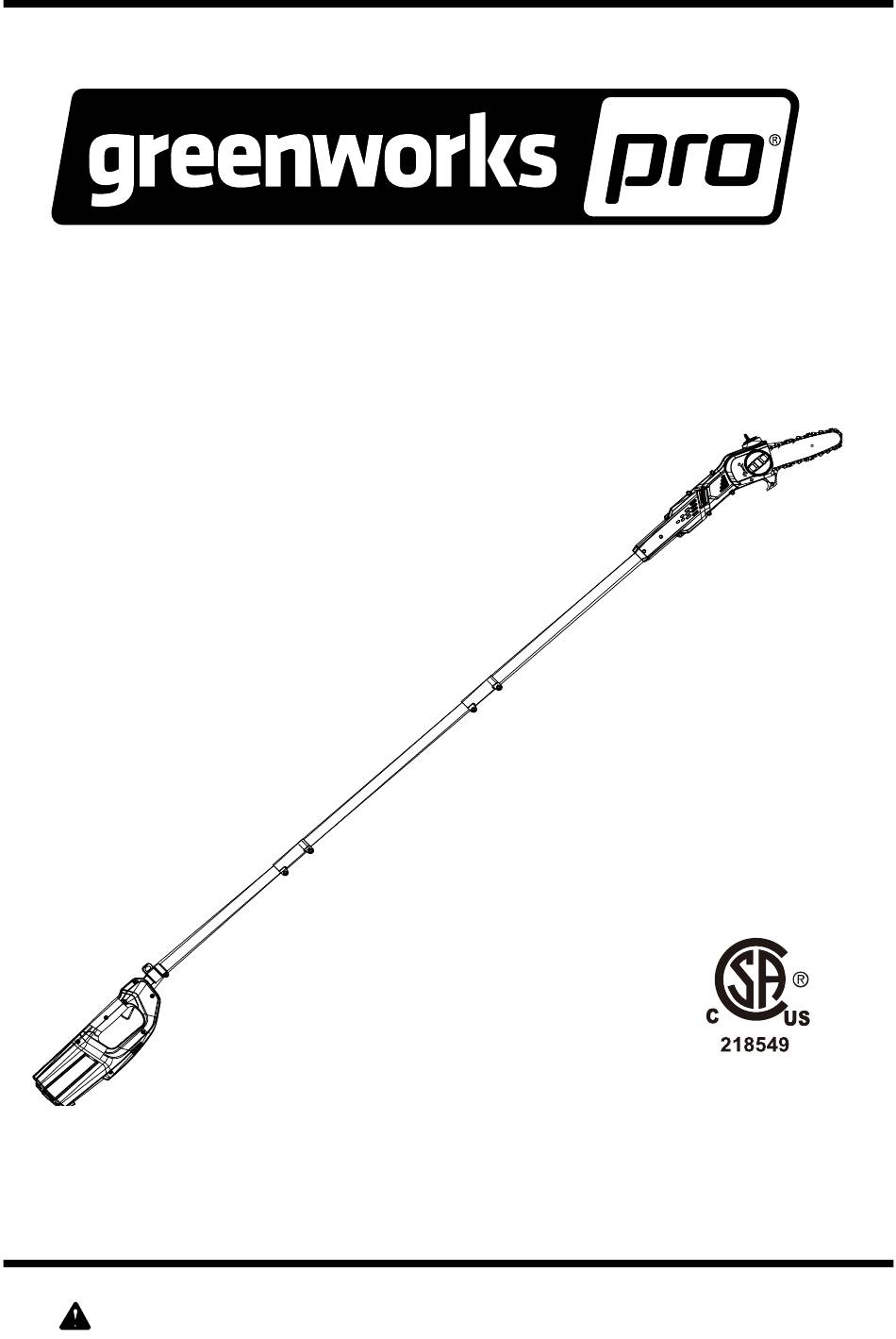

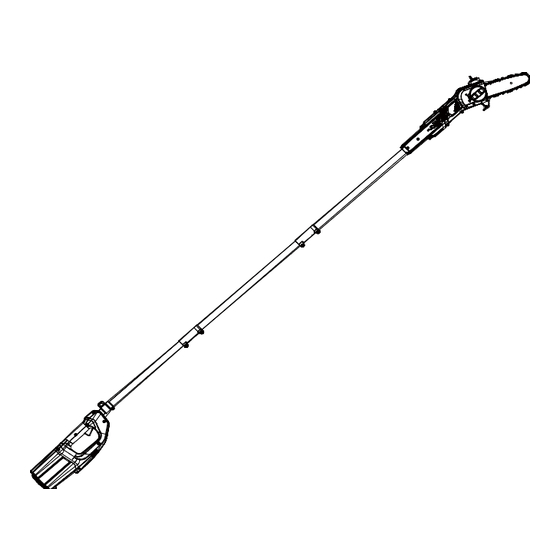

- Page 1 60V 10” BRUSHLESS POLESAW PS60L00 Owner’s Manual TOLL-FREE HELPLINE: 1-855-345-3934 Read all safety rules and instructions carefully before operating this tool.
-
Page 2: Table Of Contents
CONTENTS Contents ..........................2 Product Specifications ......................2 Safety Rules ........................3 Symbols ..........................8 Know Your Polesaw ......................10 Assembly ..........................11 Operation ..........................14 Battery & Charger Maintenance ..................20 Maintenance...........................22 Environmentally Safe Battery Disposal.................28 Troubleshooting........................29 Warranty..........................30 Exploded View ........................31 Part List ..........................32 PRODUCT SPECifiCATiONS 60V 10"... -
Page 3: Safety Rules
SAfETY RULES W A R N I N G Read and understand all instructions before using this product. failure to follow all instructions listed below may result in electric shock, fire, and/or serious personal injury. WORK AREA SAFETY • Keep work area clean and well lit. Cluttered or dark areas invite accidents. •... - Page 4 SAfETY RULES BATTERY USE AND CARE • Ensure the switch is in the off position before inserting battery pack. • Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. •...
- Page 5 SAfETY RULES • Don’t Overreach. Keep proper footing and balance at all times. • Stay Alert. Watch what you are doing. Use common sense. Do not operate appliance when you are tired. • Maintain Appliance With Care. Keep cutting edge sharp and clean for best performance and to reduce the risk of injury.
- Page 6 SAfETY RULES • Keep all parts of the body away from the saw chain. Make sure the switch is off when clearing jammed material. Saw chain continues to move after the switch is turned off. A moment of inattention while operating the extended-reach pruner may result in serious personal injury. •...
- Page 7 SAfETY RULES W A R N I N G (PROPOSITION 65) Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: •...
-
Page 8: Symbols
SYMBOLS Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer. DESIGNATION SYMBOLS EXPLANATION Volts Voltage Amperes Current Hertz Frequency (cycles per second) - Page 9 SYMBOLS The following signal words and meanings are intended to explain the levels of risk associated with this product. SYMBOL SIGNAL MEANING DANGER indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury. WARNING indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury.
-
Page 10: Know Your Polesaw
KNOW YOUR POLESAW Read this operator's manual and safety rules before operating your polesaw. Compare the illustration in (figure 1) to your polesaw in order to familiarize yourself with the location of various controls and adjustments. Save this manual for future reference. Polesaw Extension Pole Scabbard... -
Page 11: Assembly
ASSEMBLY iNSTRUCTiON UNPACKING This product requires assembly. • Carefully remove the product and any accessories from the box. Make sure that all items listed in the package contents section are included. • inspect the product carefully to make sure no breakage or damage occurred during shipping. •... - Page 12 ASSEMBLY iNSTRUCTiON W A R N I N G if any parts are damaged or missing, do not operate this product until the parts are replaced. Using a product with damaged or missing parts could result in serious personal injury. W A R N I N G Do not attempt to modify this product or create accessories not recommended for use with this product.
- Page 13 ASSEMBLY iNSTRUCTiON W A R N I N G Do not allow familiarity with this product to make you careless. Remember that a careless fraction of a second is sufficient to inflict serious injury. W A R N I N G Always wear safety goggles or safety glasses with side shields when operating power tools.
-
Page 14: Operation
OPERATiON Press Button Press Button Hole Lock Nut Step 2 Wrench Step 3 W A R N I N G Do not allow familiarity with this product to make you careless. Remember that a careless fraction of a second is sufficient to inflict serious injury. W A R N I N G Do not use any attachments or accessories not recommended by the manufacturer of this product. - Page 15 OPERATiON ADDING BAR AND CHAIN LUBRICANT (See Figure 3) Use Bar and Chain Lubricant. it is designed for chains and chain oilers, and is formulated to perform over a wide temperature range with no dilution required. NOTE: Polesaw comes from the factory with no bar and chain oil added. Level should also be checked after every 30 minutes of use and refilled as needed.
- Page 16 OPERATiON BATTERY PACK (See Figure 4) I M P O R T A N T The battery pack is not charged when it is purchased. Before using the polesaw for the first time, place the battery pack in the battery charger and charge it fully. Be sure to read all safety precautions, and follow the instructions in the section entitled Charging Procedure.
- Page 17 OPERATiON I M P O R T A N T This Lithium-ion battery pack is equipped with an internal circuit breaker which will automatically shut off the power to the tool and then reset itself once cooled. follow these steps if an overload occurs while under heavy use: 1.
- Page 18 OPERATiON PREPARATION FOR CUTTING (See Figure 6-7) • Wear non-slip gloves for maximum grip and protection. • Maintain a proper grip on the unit whenever the motor is running. Use your right hand to firmly grip the rear handle while your left hand has a firm grip on the pole shaft. •...
- Page 19 OPERATiON LIMBING AND PRUNING(See Figure 8) This unit is designed for trimming small branches and limbs up to 6 in. (15.2 cm) in diameter. for best results, observe the following precautions: • Plan the cut carefully. Be aware of the direction in which the branch will fall. •...
-
Page 20: Battery & Charger Maintenance
BATTERY & CHARGER MAiNTENANCE CHARGING PROCEDURE (See Figure 9) NOTE : The battery is not shipped fully charged. it is recommended to fully charge before first use to ensure that maximum run time can be achieved. This lithium-ion battery will not develop a memory and may be charged at any time. - Page 21 BATTERY & CHARGER MAiNTENANCE W A R N I N G if the battery is inserted into the charger when warm or hot, the CHARGiNG LED indicator light on the charger may switch on and illuminate ORANGE. if this occurs allow the battery to cool outside of the charger from approximately 30 minutes.
-
Page 22: Maintenance
MAiNTENANCE W A R N I N G When servicing, use only identical replacement parts. Use of any other parts may create a hazard or cause product damage. W A R N I N G Always wear safety goggles or safety glasses with side shields during power tool operation or when blowing dust. - Page 23 MAiNTENANCE CHAIN TENSION • Stop the motor and remove the battery before setting the chain tension. Turn the bar cover knob counterclockwise to loosen the bar cover but do not remove the bar cover. Turn the chain tensioning screw clockwise to tension chain. Turn the guide bar knob clockwise to tighten.
- Page 24 MAiNTENANCE REPLACING THE BAR AND CHAIN • Remove the lock knob and chain cover. • The bar contains a bar stud slot that fits over the bar stud. The bar also contains a chain tensioning pin hole that fits over the chain tensioning pin. •...
- Page 25 MAiNTENANCE CHAIN OILER • Use a lubricant that is designed for chains and chain oilers and is formulated to perform over a wide temperature range with no dilution required. • Remove the cap and carefully pour approximately 2 oz (57 g) of bar and chain lubricant into the bar lube reservoir.
- Page 26 MAiNTENANCE CHAIN MAINTENANCE for smooth and fast cutting, the chain needs to be maintained properly. The following conditions indicate that the chain requires sharpening: • Wood chips are small and powdery. • Chain must be forced through the wood during cutting. •...
- Page 27 MAiNTENANCE HOW TO SHARPEN THE CUTTERS Be careful to file all cutters to the specified angles and to the same length, as fast cutting can be obtained only when all cutters are uniform. • Tighten the chain tension enough that the chain does not wobble. Do all of your filing at the midpoint of the bar.
-
Page 28: Environmentally Safe Battery Disposal
ENViRONMENTALLY SAfE BATTERY DiSPOSAL The batteries used in this polesaw’s battery pack contain the following toxic and corrosive material: LiTHiUM-iON, a toxic material. W A R N I N G Toxic materials must be disposed of in a specific manner in order to prevent contamination of the environment. -
Page 29: Troubleshooting
TROUBLESHOOTiNG PROBLEM POSSIBLE CAUSE SOLUTION Bar and chain Check chain tension for Tension chain. Refer to to the "Chain running hot and overtightened condition. Tensioning" section. smoking. Bar and Chain Oil Tank Low or Check the Oil Tank Level, and refill if Empty. -
Page 30: Warranty
3. Normal wear, except as noted below; 4. Routine maintenance items such as lubricants, blade sharpening; 5. Normal deterioration of the exterior finish due to use or exposure. GREENWORKS PRO HELPLINE: Warranty service is available by calling our toll-free helpline at 1-855-345-3934. TRANSPORTATION CHARGES: Transportation charges for the movement of any power equipment unit or attachment are the responsibility of the purchaser. -
Page 31: Exploded View
EXPLODED ViEW... -
Page 32: Part List
PARTS LiST ITEM NO. PART NO. DESCRIPTION 311011891 Polesaw Handle Assembly 311021726 Pole Assembly 311001891 Pole Head Assembly 311051734B Oil Cap Assembly 311041726 Bar and Chain Assembly 33304590 Distance Sleeve 339001726 Sprocket 32209590 C-clip 211011382 Battery 211011989 Charger 34114155-1 Scabbard Greenworks Tools P.O.
