Hanover Outdoor Furniture
If you have any problems with this product (missing or damaged parts, assembly issues, etc.),
PLEASE DO NOT RETURN TO THE RETAILER/STORE
Please call our Toll‐Free Customer Service Hotline at:
Between 9:00 AM and 5:00 PM Eastern Time, Monday through Friday
Or visit our website at:

To expedite any future warranty claims, please retain the Instruction Sheet, Warranty
Card and receipt for future use.
For  additional on‐line support on assembly, troubleshooting and care & maintenance of your outdoor
furniture, please visit our website at:    www.hanover‐products.com.



IMPORTANT
from where you purchased the product.
www.hanover‐products.com


1‐800‐416‐3511






6/1/2015 (a)

Advertisement

Table of Contents
loading

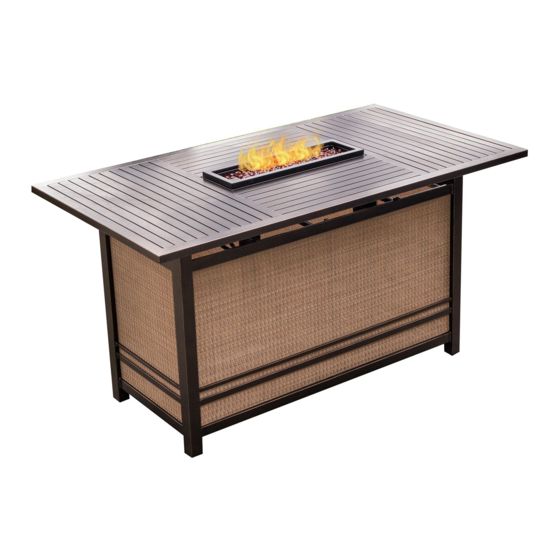

Summary of Contents for Hanover Traditions TRAD5PCFPBR-RED

  • Page 1   Hanover Outdoor Furniture          IMPORTANT  If you have any problems with this product (missing or damaged parts, assembly issues, etc.),  PLEASE DO NOT RETURN TO THE RETAILER/STORE     from where you purchased the product.      1‐800‐416‐3511 Please call our Toll‐Free Customer Service Hotline at:    Between 9:00 AM and 5:00 PM Eastern Time, Monday through Friday  www.hanover‐products.com   Or visit our website at:        To expedite any future warranty claims, please retain the Instruction Sheet, Warranty  Card and receipt for future use.    For  additional on‐line support on assembly, troubleshooting and care & maintenance of your outdoor  furniture, please visit our website at:    www.hanover‐products.com.   6/1/2015 (a) ...
  • Page 2 ASSEMBLY INSTRUCTIONS CSA Model 98300 ARV08300 Installer: Leave these instructions with consumer. Consumer: Keep these instructions for future reference DANGER   WARNING:  If you smell gas: Improper installation, adjustment alteration, 1. Shut off gas to the appliance. service or maintenance can cause injury or 2.
  • Page 3: Table Of Contents

    TABLE OF CONTENTS Important Safety Information Important About Propane Specification Parts Identification List Installation 7-11 Natural Gas Conversion Lighting Instructions Batteries Maintenance Troubleshooting Guide Warranty...
  • Page 4: Important Safety Information

    IMPORTANT SAFETY INFORMATION The installation must conform with local codes or, in the absence of local codes, with the National Fuel Gas Code, ANSI Z223.1/NFPA 54; International Fuel Gas Code. ; Natural Gas and Propane Installation Code, CSA B149.1; or Propane Storage and Handling Code, B149.2, as applicable. The appliance and its appliance main gas valve must be disconnected from the gas supply piping system during any pressure testing of that system at test pressures in excess of 1/2 psi (3.5kPa).
  • Page 5: Important About Propane

    IMPORTANT SAFETY INFORMATION ABOUT PROPANE (LP) GAS A self contained LP-gas cylinder for use with this appliance must have a capacity of 20 lbs. and must be equipped with a Type 1 connector and an OPD (overfill protection device). See Figure 1. The LP-gas supply cylinder to be used must be constructed and marked in accordance with the specification for LP-gas cylinders of the U.S.
  • Page 6: Parts Identification List

    PARTS IDENTIFICATION LIST PART DESCRIPTION PART# CONTROL KNOB FP0245 GAS VALVE FP0307 THERMOCOUPLE FP0004 LP REGULATOR HOSE FP1329 ELECTRODE FP1330 GAS TUBE FP1689 ORIFICE ELBOW FP1385 IGNITION MODULE FP1666 ORIFICE BRACKET FP1667 PROPANE ORIFICE FP1299 NATURAL GAS ORIFICE FP1300 “AAA” BATTERY(1.5V) HW0705 FOOTCAP FC0660...
  • Page 7 MIDDLE PANEL FP1750 BOTTOM PANEL FP1751 BACK PANEL FP1752 DOOR PANEL FP1753 BURNER COVER FP1754 BURNER COVER FP1755 PROTECTIVE RING FIREPAN/BURNER FP1756 ASSEMBLY SUPPORT BAR-1 FP1757 SUPPORT BAR-2 FP1758...
  • Page 8: Installation

    INSTALLATION 1. Identify parts packed in carton against the parts list. Remove all protective materials and set parts on a flat, non-abrasive surface. IMPORTANT NOTE: WE RECOMMEND TWO PEOPLE WORK TOGETHER TO ASSEMBLE THE PRODUCT. 2. Place the back panel upside down on a flat, non-abrasive surface. Open it as shown in Figure 2.
  • Page 9 4. Attach the bottom panel to legs by using four 1/4"x30 mm bolts and washers as shown in Figure 4.Guide the bolts through holes in the bottom panel, into pre-drilled holes in the legs. Hand tighten only. Figure 4 5. Carefully place the middle panel inside back panel with bottom panel as shown in Figure 5.
  • Page 10 6. Attach the bottom panel to the back panel by using two 1/4"x30 mm bolts and washers as shown in Figure 6. Guide the bolts through holes in the bottom panel, into pre-drilled holes in the back panel. Hand tighten only. Figure 6 7.
  • Page 11 9. After making any necessary adjustments to the alignment of the all parts, use the hex bolt driver to tighten all bolts. Do not over tighten. Over tightening may strip bolts. 10. With the help of another person, Attach the table top to the complete base by using four 1/4"x20 mm bolts and washers as shown in Figure 9.
  • Page 12 12. Tighten threaded knobs (L) found on tank tray (Figure.11) so that the LP tank cannot move from side to side. Do not remove plastic cap from end of threaded section. Figure 11 13. Pour the lava rocks (not included) into the burner pan completely covering the burner.
  • Page 13: Natural Gas Conversion

    NATURAL GAS CONVERSION Natural gas conversion must be performed only by your natural gas provider or service company. Step 1- At the control panel, disconnect the rubber gas hose from the gas valve. Step 2- Below the burner, disconnect the aluminum gas tube from the orifice elbow. Step 3- Remove the 2 M4 nuts from the orifice holder and remove the orifice bracket assembly.
  • Page 14: Lighting Instructions

    Step 5- Stick the conversion label on the rating plate as shown in Figure 15. Metal Rating Plate Serial Number _________________ Model Number: 98900 CAUTION: The gas pressure regulator provided with this appliance must be used. This regulator is set for an outlet pressure of This appliance has been converted to use Natural Gas.
  • Page 15: Batteries

    control knob in for 10 to 15 seconds. Release the control knob. The control knob should pop back out and then remain lit. Note: If the fire does not light, turn the knob to the “OFF” position and wait five (5) minutes before trying again.
  • Page 16: Troubleshooting Guide

    TROUBLESHOOTING GUIDE PROBLEM CAUSE REMEDY Check that gas tank valve is open. Turn control knob to “ON” and push control No Propane Gas at Burner knob in. Make sure tank has propane gas. Check that AAA battery is installed with Burner won’t light negative (-) end first and has a charge.
  • Page 17: Warranty

    ONE-YEAR LIMITED WARRANTY What is Covered Under This Warranty? The item you have purchased is warranted against defects in material and workmanship for the following parts from the date of purchase for the period of warranty as outlined below, but only when the unit is installed and operated in accordance with the instructions in this Owner’s Manual and in compliance with local building and fire codes: Limited 1 Year •...
