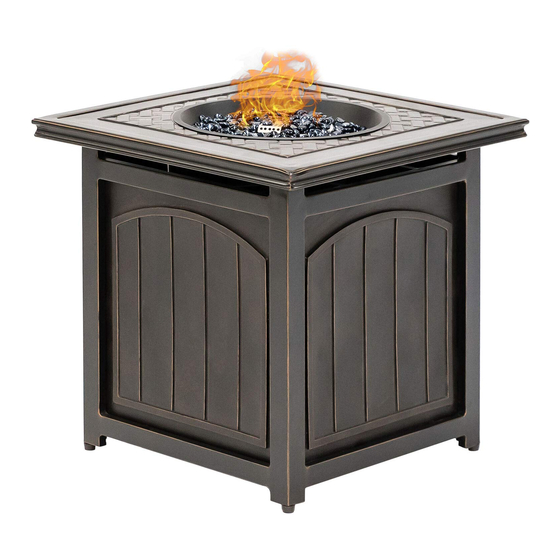

Summary of Contents for Hanover Traditions TRAD26SQFP

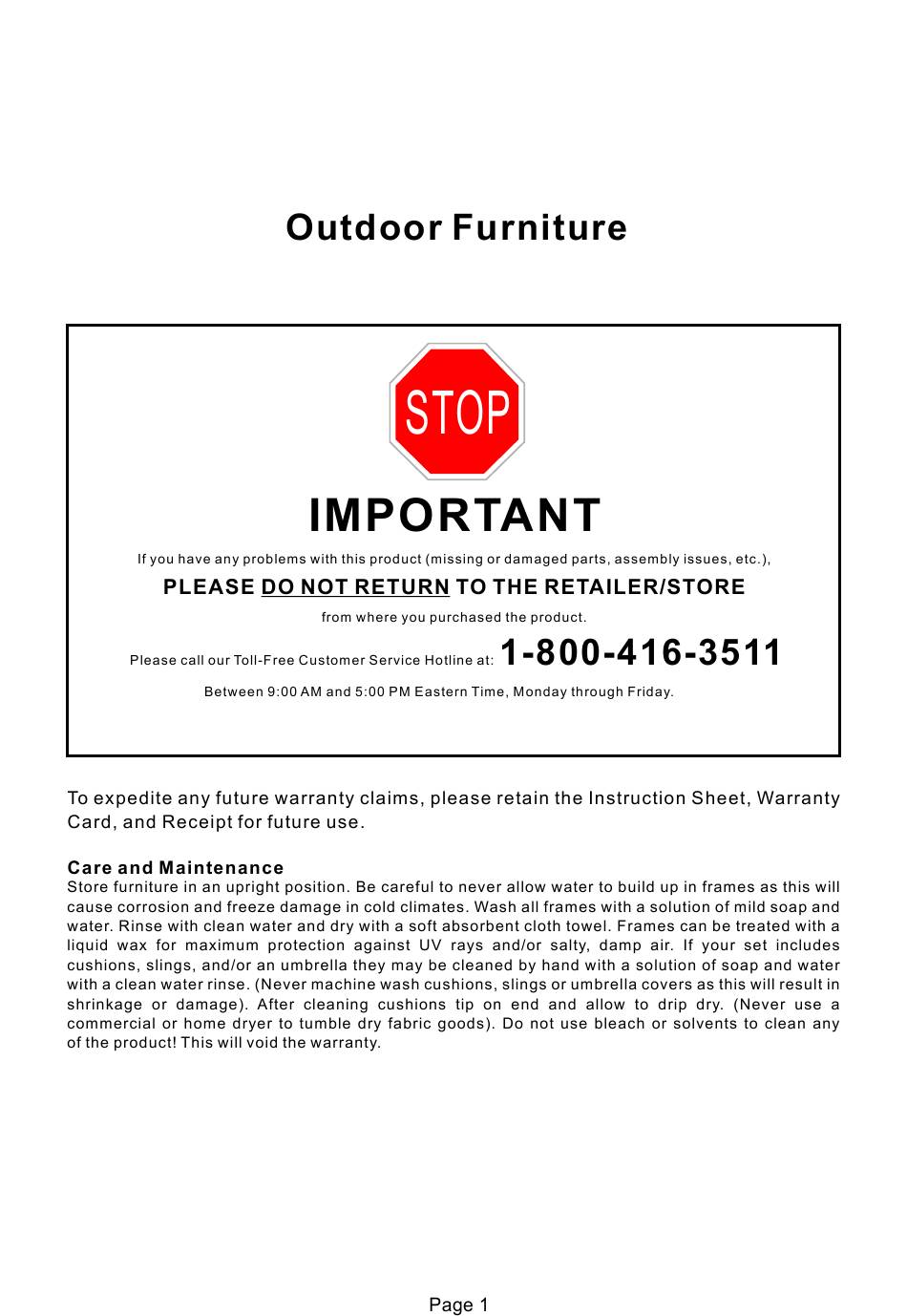

- Page 4 ASSEMBLY INSTRUCTIONS CSA Model WT17YL3 ARE13600 WARNING: It is UNSAFE to use this Installer: Leave these instructions with consumer. product for cooking! Consumer: Keep these instructions for future reference WARNING: DANGER If you smell gas: Improper installation, adjustment alteration, 1.
-
Page 5: Table Of Contents
TABLE OF CONTENTS Important Safety Information ..............3 Important Information about Propane............4 Specification ..................4 Parts Identification List ................5 Installation .....................6 Natural Gas Conversion ..............7-8 Maintenance ..................8 Batteries ....................9 Lighting Instructions ................ 9-10 Troubleshooting Guide ................10 Warranty ....................11... -
Page 6: Important Safety Information
IMPORTANT SAFETY INFORMATION The installation must conform with local codes or, in the absence of local codes, with the National Fuel Gas Code, ANSI Z223.1/NFPA 54; International Fuel Gas Code. ; Natural Gas and Propane Installation Code, CSA B149.1; or Propane Storage and Handling Code, B149.2, as applicable. The appliance and its appliance main gas valve must be disconnected from the gas supply piping system during any pressure testing of that system at test pressures in excess of 1/2 psi (3.5kPa). -
Page 7: Important Information About Propane
IMPORTANT SAFETY INFORMATION ABOUT PROPANE (LP) GAS A LP-gas cylinder for use with this appliance must have a capacity of 20 lbs / 9kg. and must be equipped with a Type 1 connector and an OPD (overfill protection device). Figure 1 The LP-gas supply cylinder to be used must be constructed and marked in accordance with the specification for LP-gas cylinders of the U.S. -
Page 8: Parts Identification List
PARTS IDENTIFICATION LIST PART DESCRIPTION PART# CONTROL KNOB FP2329 GAS VALVE FP2330 THERMOCOUPLE FP2331 FLEX CONNECTOR FP2332 ELECTRODE FP2333 IGNITION MODULE FP2334 LP REGULATOR HOSE FP1916 ADJUSTABLE FOOT CAPS FC0553 FIRE ICE FP2124 PROPANE ORIFICE FP2122 NATURAL GAS ORIFICE FP2123 AIR SHUTTER FP1922 “AA”... -
Page 9: Installation
INSTALLATION 1. Carefully unpack all items from the box. Place the base in the final position. There must be a minimum of 24 in / 60.96 cm of clearance from the side of the table top to any combustible walls. 2. -
Page 10: Natural Gas Conversion
NATURAL GAS CONVERSION Natural gas conversion must be performed only by your natural gas provider or service company. 1. SHUT OFF THE GAS SUPPLY TO THE UNIT AND ANY NEARBY ELECTRICAL SOURCE OR APPLICANCES 2. Below the burner, carefully disconnect flex connector attached to the orifice holder (see step1). 3. -
Page 11: Maintenance
ALL the connections. NEVER USE A FLAME TO CHECK FOR GAS LEAKS! Step5 10. Stick the conversion label on the rating plate as shown in Figure 5. Metal Rating Plate WT17YL3 Serial Number _________________ Model Number: CAUTION: The gas pressure regulator provided with this appliance must be used. This regulator is set for an outlet pressure of This appliance has been converted to use Natural Gas. -
Page 12: Batteries
BATTERIES Make sure the control knob is in the "OFF" position. Unscrew the push button cap on the ignition module located on the control panel to access the battery compartment. The ignition module requires one Alkaline AA size battery (1.5V). The negative (-) end goes in first. See Figure 7.Dispose of battery safely. -
Page 13: Troubleshooting Guide
2. Push in the igniter button. You will hear a slight clicking sound. With the igniter button pushed in, push and turn the control knob to the “ON” position. The fire should light within a few seconds. Once the flame is lit, release the igniter button and continue to hold the control knob in for 10 to 15 seconds. -
Page 14: Warranty
ONE-YEAR LIMITED WARRANTY What is Covered Under This Warranty? The item you have purchased is warranted against defects in material and workmanship for the following parts from the date of purchase for the period of warranty as outlined below, but only when the unit is installed and operated in accordance with the instructions in this Owner’s Manual and in compliance with local building and fire codes: Limited 1 Year •...
