User Manual

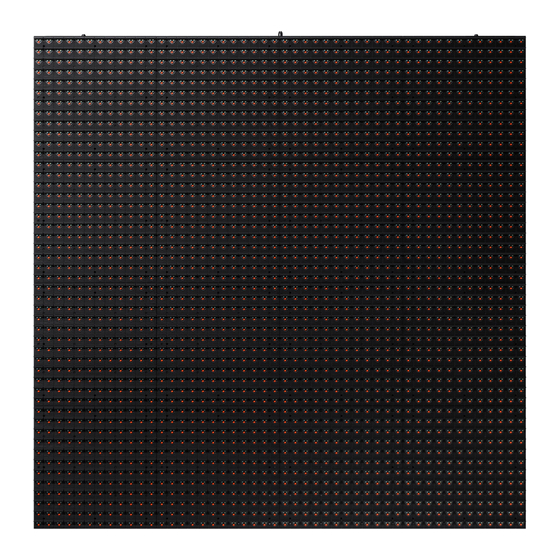

XPR-E (XPR060-E XPR080-E XPR100-E XPR160-E XPR200-E)
XPR-F (XPR060-F XPR080-F XPR100-F XPR160-F XPR200-F)
XPR-S (XPR060-S XPR080-S XPR100-S XPR160-S)
The colour and the appearance may differ depending on the product, and the content in the
manual is subject to change without prior notice to improve the performance.
An administration fee may be charged in the following situations:
(a) An engineer is called out at your request, but it is found that the product has no defect (i.e.,
where the user manual has not been read).
(b) You bring the unit to a repair centre, but it is found that the product has no defect (i.e.,
where the user manual has not been read).
You will be informed of the administration fee amount before a technician visits.
© Samsung
Samsung owns the copyright for this manual. Use or reproduction of this manual in parts or entirety without the authorization of Samsung is prohibited. Trademarks other than Samsung are property of their respective owners.
